Parking Brake Switch: Removal

NOTE: Removal steps in this procedure may contain installation details.

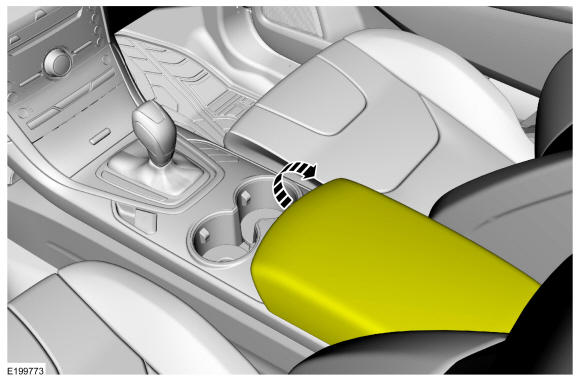

  1. Open the floor console stowage bin lid.
    GFD525138Courtesy of FORD MOTOR COMPANY

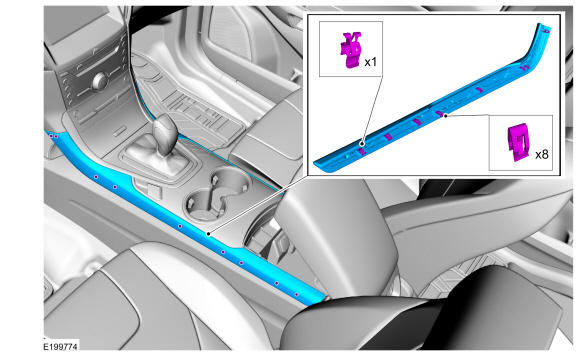

  2. On both sides. Detach the clips and remove the floor console upper finish panels.
    GFD525139Courtesy of FORD MOTOR COMPANY

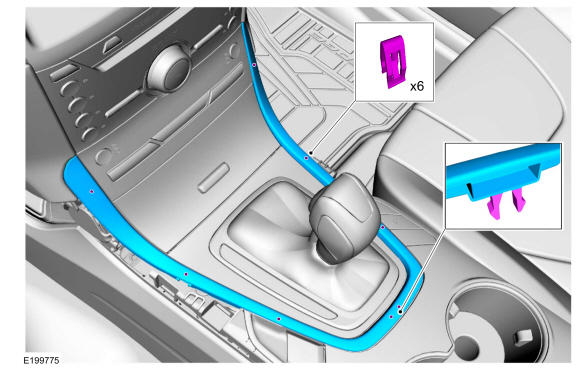

  3. Detach the clips and remove the lower center stack finish panel.
    GFD525140Courtesy of FORD MOTOR COMPANY

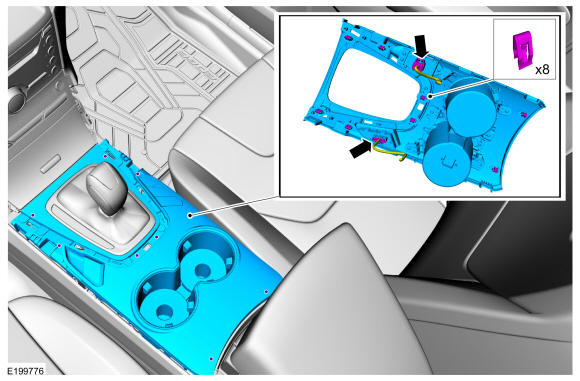

  4. Detach the clips, disconnect the electrical connectors and remove the floor console upper trim panel.
    GFD525141Courtesy of FORD MOTOR COMPANY

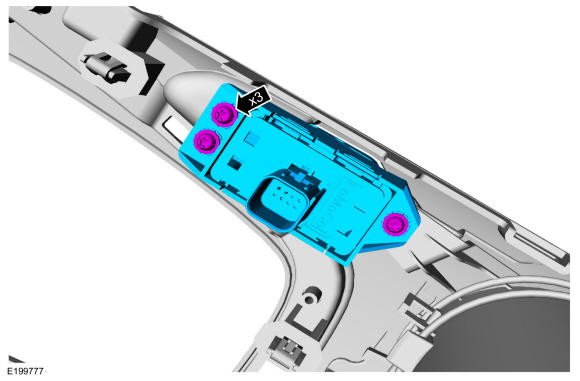

  5. Remove the 3 screws and the EPB switch.
GFD525142Courtesy of FORD MOTOR COMPANY
