Rear Brake Caliper Anchor Plate: Removal

NOTE: Steps in the removal procedure may contain installation details.

1. Remove the brake pads. Refer to: Brake Pads  .

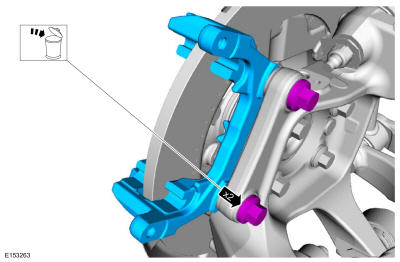

2. Remove the bolts and the brake caliper anchor plate. Discard the bolts.

   Torque: 76 lb.ft (103 Nm)

Courtesy of FORD MOTOR COMPANY
