Roof Opening Panel Seal: Removal

NOTE: This procedure is for the primary seal only.

Remove the roof opening panel sliding glass panel. Refer to: Roof Opening Panel Glass .
Remove the air deflector. Refer to: Air Deflector .
Remove the seal.

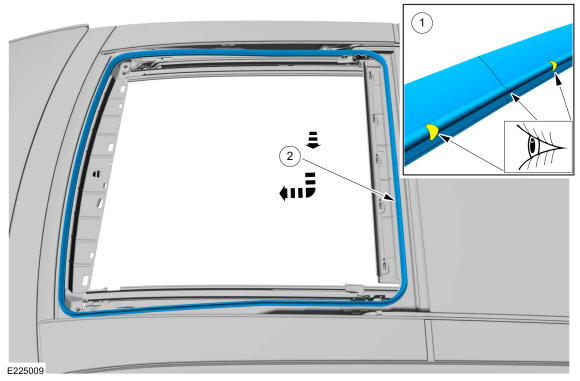

1. Note the position of the moulded seam and the vent holes for installation in the same location.
2. NOTE: The stretching of the seal prior to pulling from the frame assembly causes more of the adhesive to come off of the frame for ease of cleaning.

  To remove the seal, pull forward on the seal along the frame before pulling away from the frame.
