Engine Undershield - 2.7L EcoBoost (238kW/324PS)

For information on Ford Color Coded Illustrations refer to OEM Color Coding .

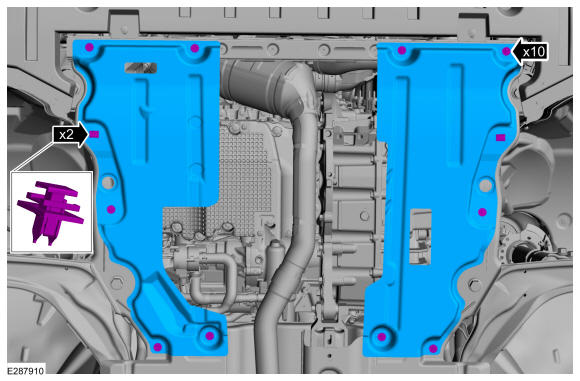

1. Remove the bolts, grommets and the engine undershield.

   Torque: 27 lb.in (3 Nm)
