Cowl Panel: Removal
NOTE:
Removal steps in this procedure may contain installation details.
- Remove the cowl panel grille. Refer to: Cowl Panel Grille .

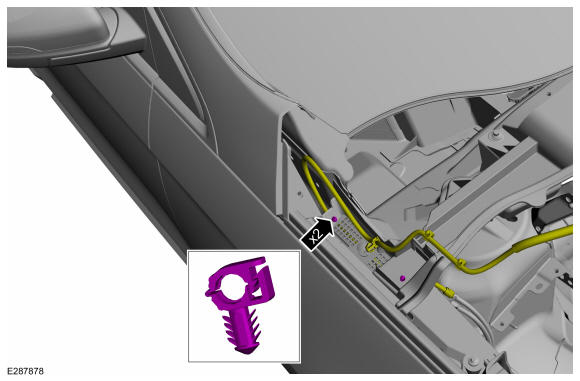

- Release the retainers and position the windshield washer hose aside.

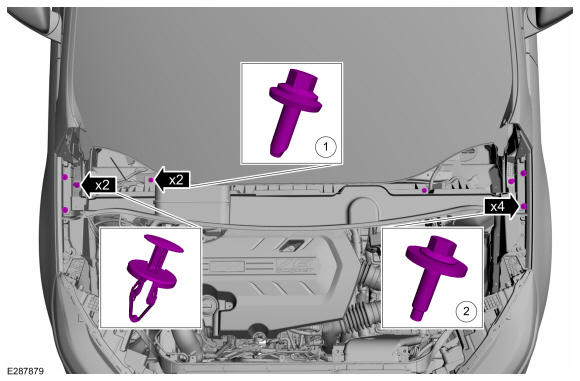

- Remove the pin-type retainers and the bolts.
Torque: 1: 80 lb.in (9 Nm) | 2: 71 lb.in (8 Nm)

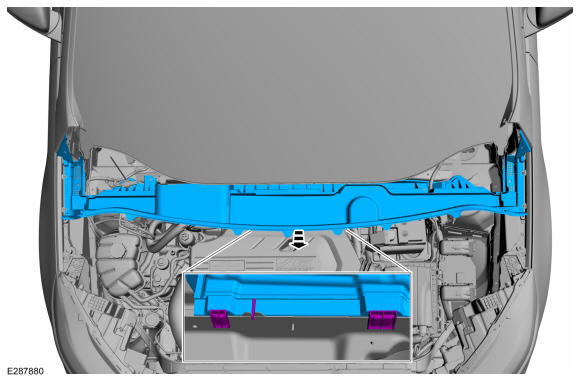

- Release the tabs and remove the cowl panel.
