Front Bumper: Removal

All vehicles

1. Remove the front bumper cover. Refer to: Front Bumper Cover  .
2. Remove the CCM. Refer to: Cruise Control Module (CCM) .

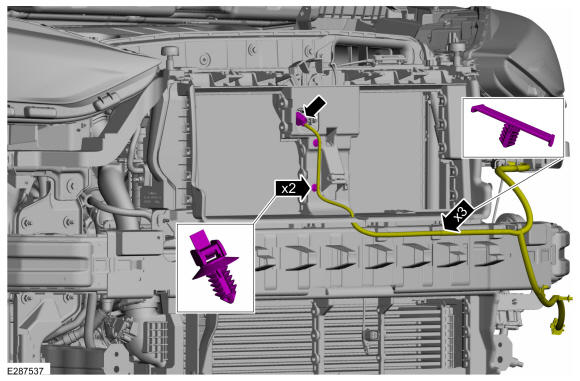

3. Disconnect the hood latch electrical connector, separate the wiring harness retainers and position the wiring harness aside.

   Courtesy of FORD MOTOR COMPANY

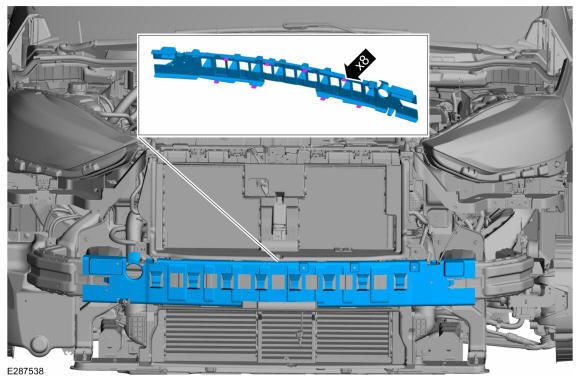

4. Release the tabs and remove the front bumper energy absorber.

   Courtesy of FORD MOTOR COMPANY

   Vehicles equipped with active grille shutter

5. Remove the active grille shutter assembly. Refer to: Active Grille Shutter .

   Vehicles not equipped with active grille shutters

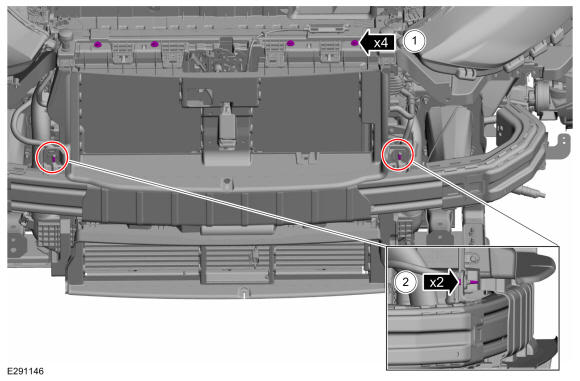

6. Remove the grille opening panel bolts.

   Torque: 1.: 42 lb.in (4.8 Nm) | 2.: 80 lb.in (9 Nm)

   Courtesy of FORD MOTOR COMPANY

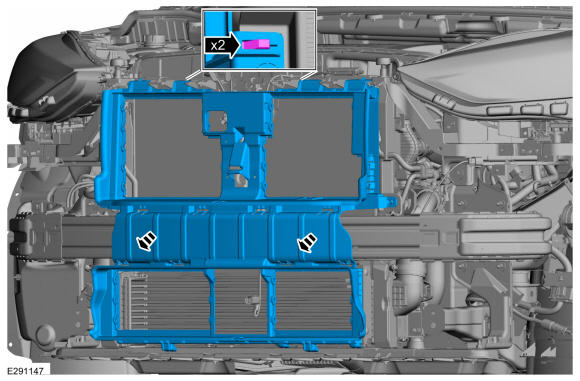

7. Release the clips and remove the grille opening panel.

   Courtesy of FORD MOTOR COMPANY

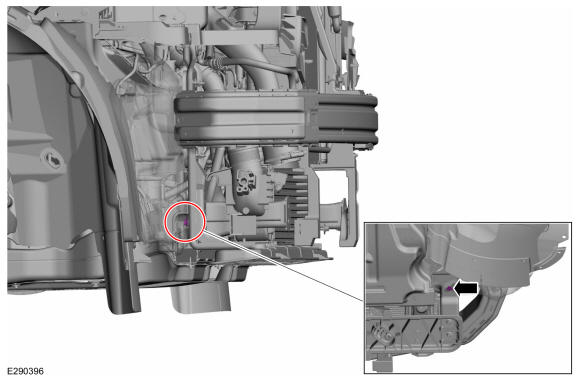

8. Remove the lower washer reservoir bolt.

   Torque: 28 lb.in (3.2 Nm)

   Courtesy of FORD MOTOR COMPANY

9. Support the lower radiator support.

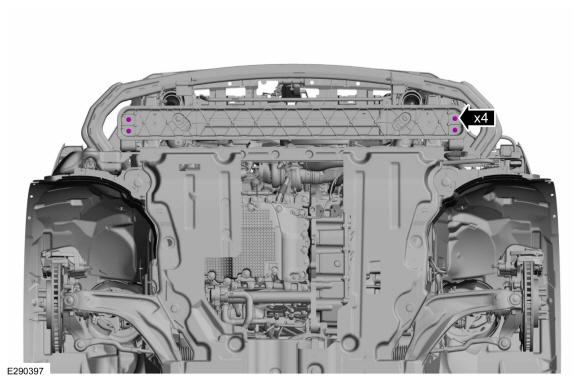

10. Remove the bolts from the lower radiator support.

    Torque: 18 lb.ft (24 Nm)

    Courtesy of FORD MOTOR COMPANY

11. Lower the lower radiator support for clearance to the front bumper.

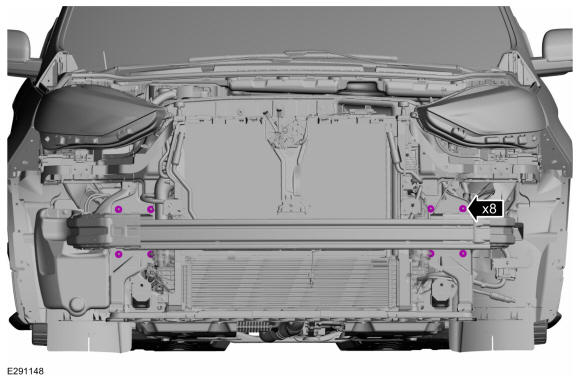

12. Remove the front bumper nuts.

    Torque: 17 lb.ft (22.5 Nm)

    Courtesy of FORD MOTOR COMPANY

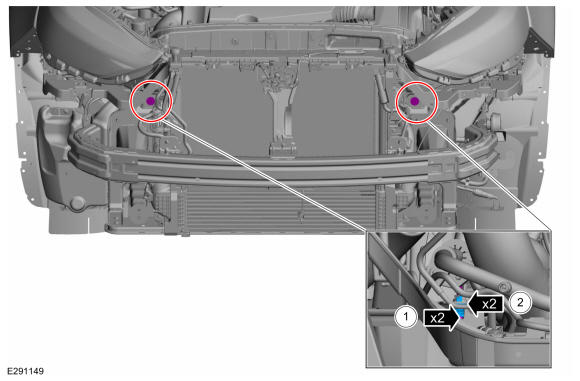

13. Remove the front bumper adjuster assemblies.
    1. Remove the front bumper adjuster bolts.

       Torque: 177 lb.in (20 Nm)

    2. Remove the front bumper adjusters.

    Courtesy of FORD MOTOR COMPANY

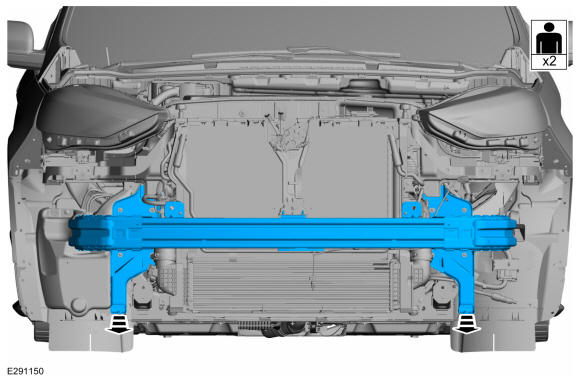

14. With the help of an assistant. Remove the front bumper.

Courtesy of FORD MOTOR COMPANY
