Front Bumper Cover: Removal

NOTE: Removal steps in this procedure may contain installation details.

Remove the front wheel and tire assemblies. Refer to: Wheel and Tire .

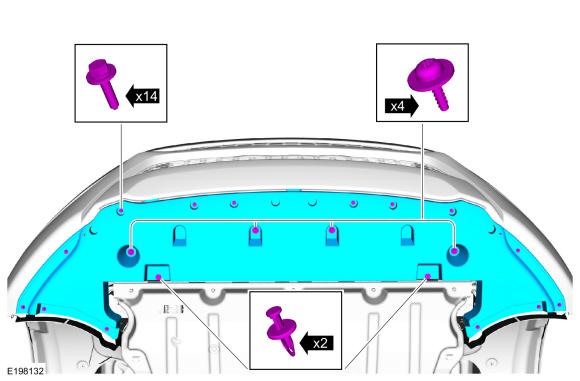

Remove the bolts, the screws, the push pins and the front underbody shield.
Torque: 13 lb.in (1.5 Nm)

Courtesy of FORD MOTOR COMPANY

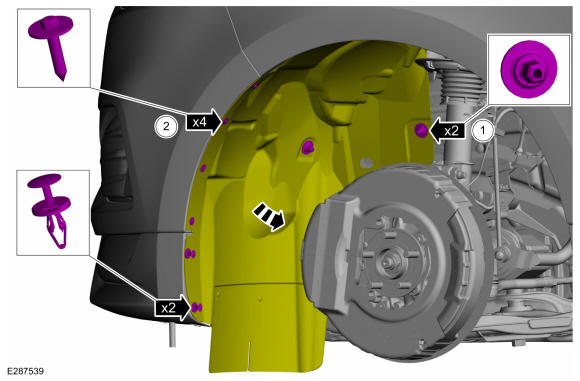

On both sides. Remove the screws, the nuts, the push pins and position the fender liner aside.
Torque: 1: 13 lb.in (1.5 Nm) | 2: 22 lb.in (2.5 Nm)

Courtesy of FORD MOTOR COMPANY

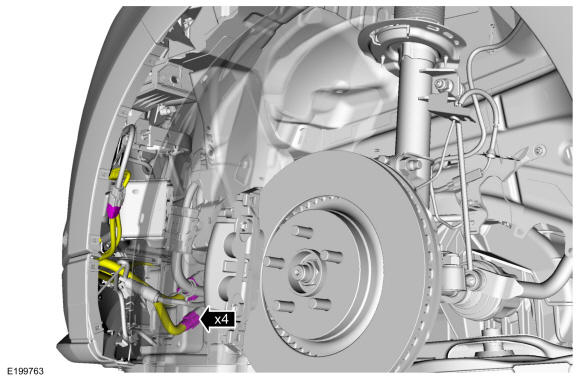

Disconnect the front bumper cover wiring harness electrical connectors.

Courtesy of FORD MOTOR COMPANY

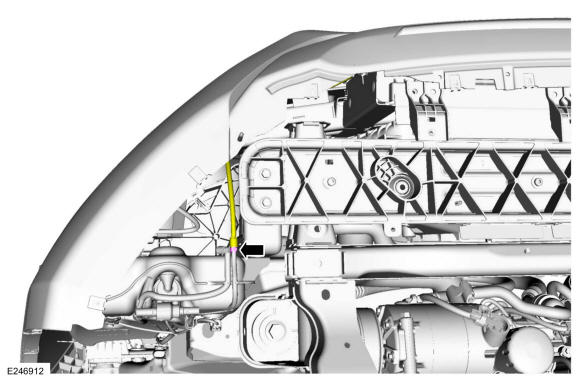

If equipped. Disconnect the front camera washer hose.

Courtesy of FORD MOTOR COMPANY

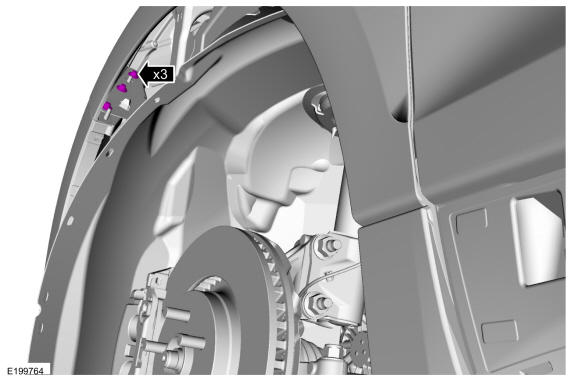

On both sides. Remove the front bumper cover bracket bolts.
Torque: 55 lb.in (6.2 Nm)

Courtesy of FORD MOTOR COMPANY

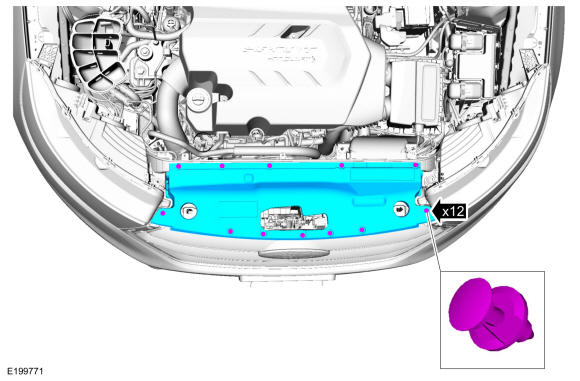

Remove the pin-type retainers and the radiator sight shield.

Courtesy of FORD MOTOR COMPANY

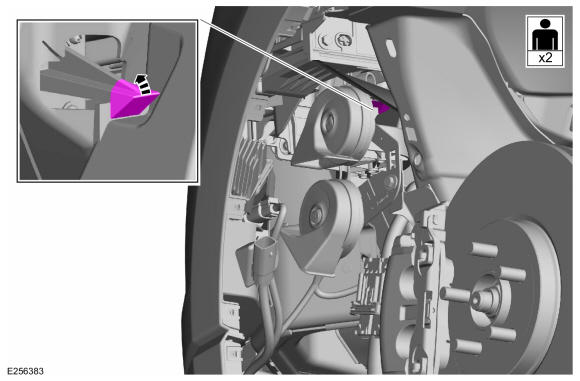

With the help of an assistant, on both sides. Release the tab.

Courtesy of FORD MOTOR COMPANY

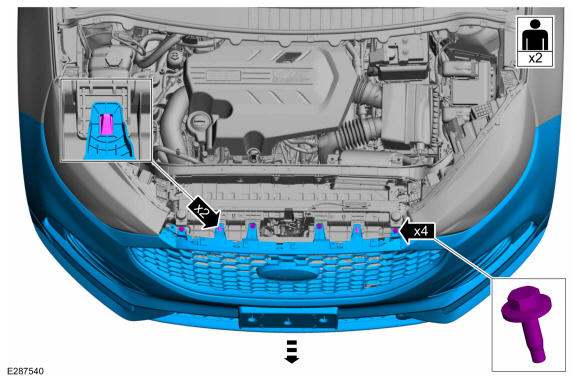

With the help of an assistant. Remove the bolts, release the tabs and remove the front bumper cover.
Torque: 42 lb.in (4.8 Nm)

Courtesy of FORD MOTOR COMPANY
