Rear Seat Cushion: Removal

NOTE: Removal steps in this procedure may contain installation details.

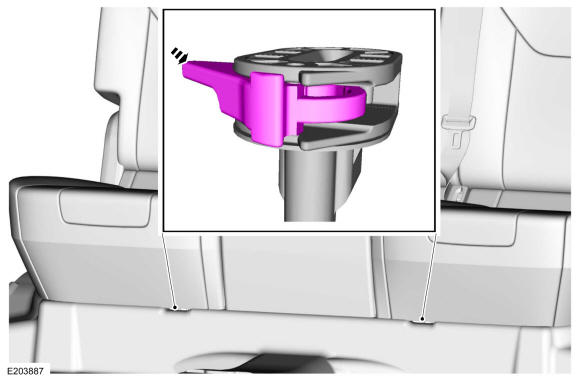

Release the rear seat cushion front locking tabs.

Courtesy of FORD MOTOR COMPANY

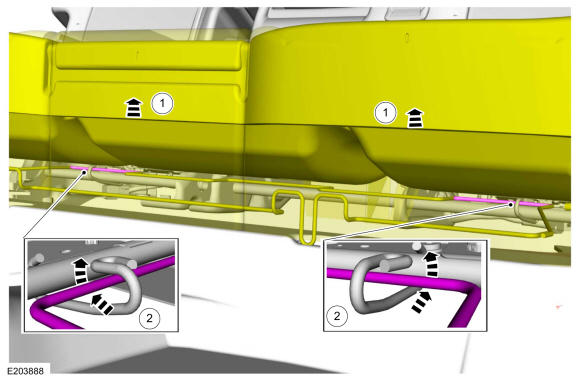

Release the rear seat cushion.
1. Raise the front of the cushion.
2. Push the cushion rearward until the cushion frame clears the attaching hooks.
Courtesy of FORD MOTOR COMPANY
NOTE: Outboard recliner handle and side shield removed for clarity.

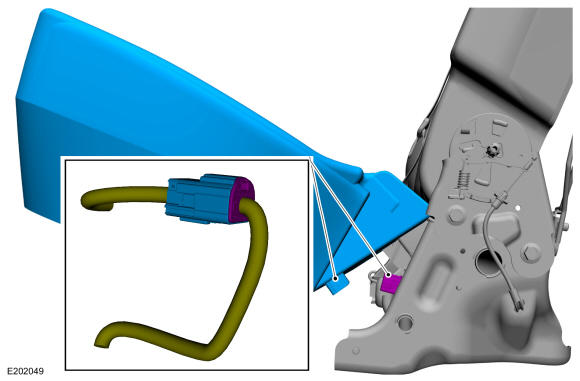

Disconnect the electrical connector and remove the rear seat cushion.

Courtesy of FORD MOTOR COMPANY
