Rear Seat Backrest: Removal

Both seat backrests

1. Remove the rear seat cushion. Refer to: Rear Seat Cushion  .

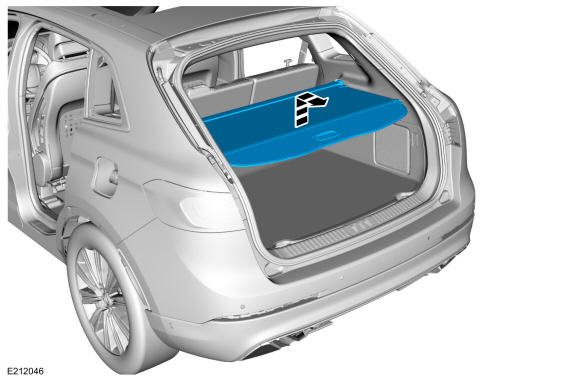

2. Remove the load compartment luggage cover.

   Courtesy of FORD MOTOR COMPANY

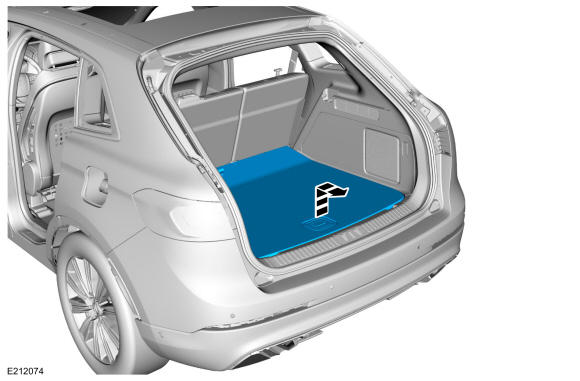

3. Remove the load compartment floor cover.

   Courtesy of FORD MOTOR COMPANY

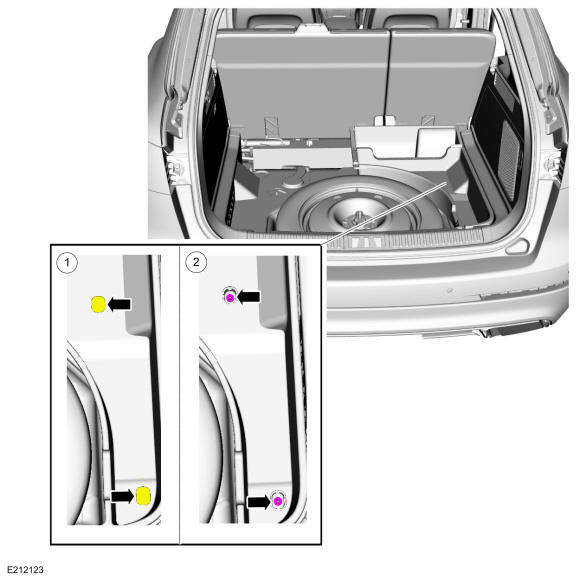

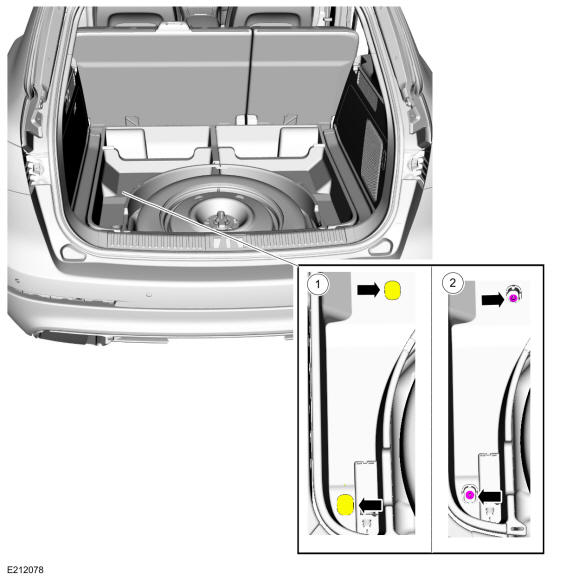

4. If equipped. Remove the LH side storage bin retainers.
   1. NOTE: The retainer covers have tethers on them and do not fully come off.

      Position aside the retainer covers.

   2. Remove the retainers.

   Courtesy of FORD MOTOR COMPANY

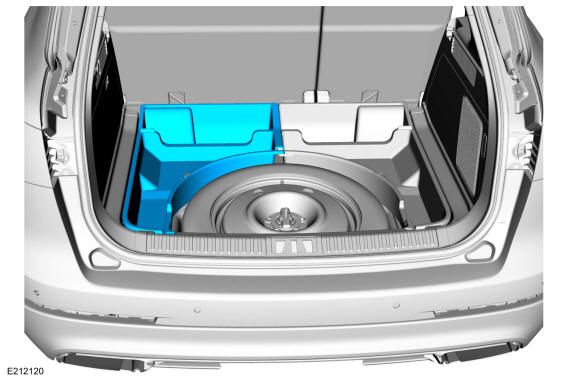

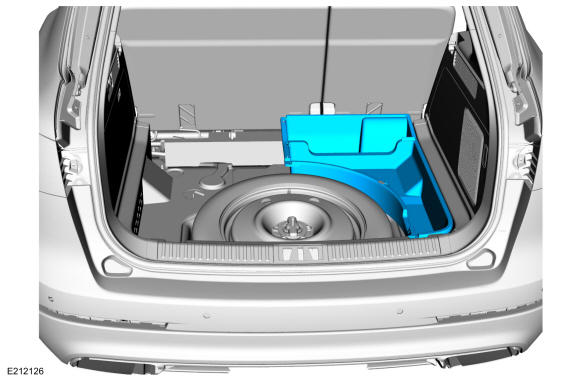

5. If equipped. Remove the LH side storage bin.

   Courtesy of FORD MOTOR COMPANY

6. If equipped. Remove the RH side storage bin retainers.
   1. NOTE: The retainer covers have tethers on them and do not fully come off.

      Position aside the retainer covers.

   2. Remove the retainers.

   Courtesy of FORD MOTOR COMPANY

7. If equipped. Remove the RH side storage bin.

   Courtesy of FORD MOTOR COMPANY

   RH seat backrest

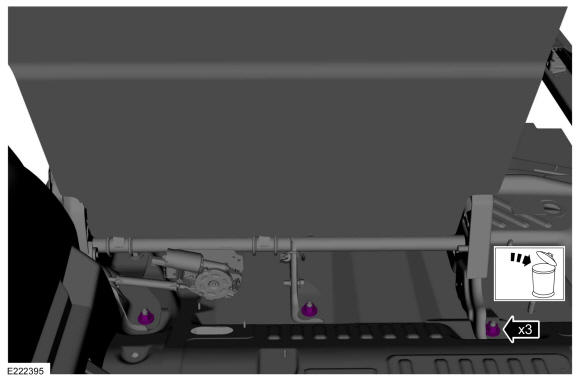

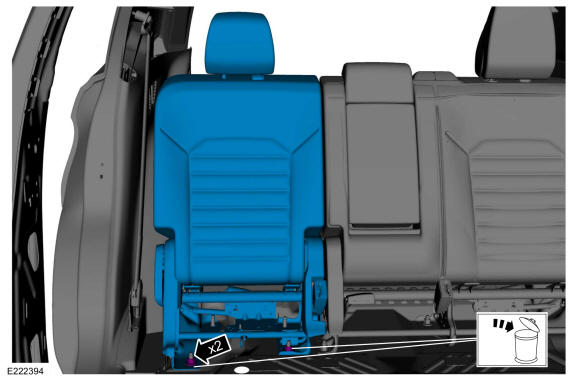

8. Remove the RH rear seat backrest rear nuts.

   Torque: 52 lb.ft (70 Nm)

   Courtesy of FORD MOTOR COMPANY

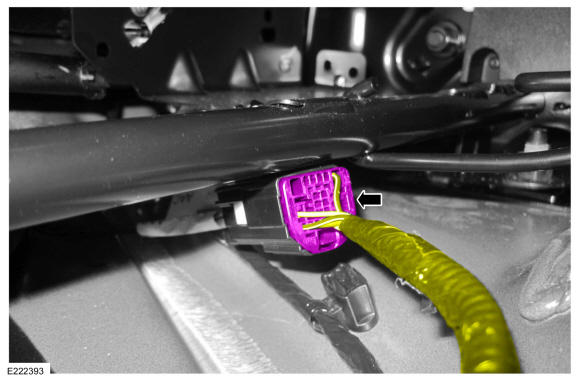

9. Disconnect the RH body harness-to-rear seat backrest electrical connector.

   Courtesy of FORD MOTOR COMPANY

10. Remove the nuts and the RH rear seat backrest.

    Torque: 52 lb.ft (70 Nm)

    Courtesy of FORD MOTOR COMPANY

    LH seat backrest

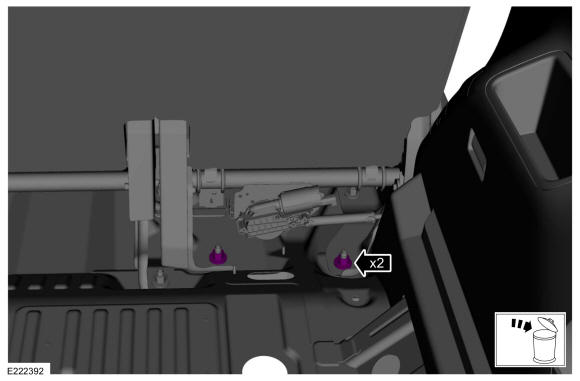

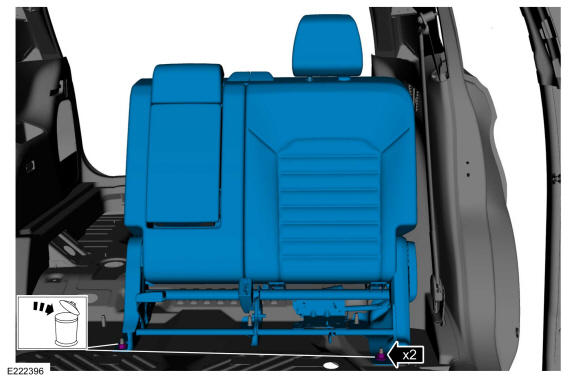

11. Remove the LH rear seat backrest rear nuts.

    Torque: 52 lb.ft (70 Nm)

    Courtesy of FORD MOTOR COMPANY

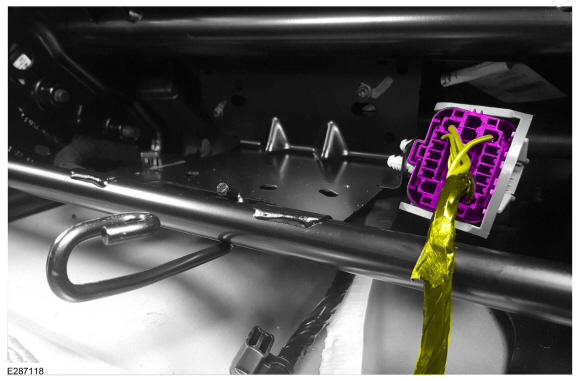

12. Disconnect the LH body harness-to-rear seat backrest electrical connector.

    Courtesy of FORD MOTOR COMPANY

13. Remove the nuts and the LH rear seat backrest.

    Torque: 52 lb.ft (70 Nm)

    Courtesy of FORD MOTOR COMPANY

    Both seat backrests

    NOTE: These steps are only necessary when installing a new component.
    NOTE: LH rear seat backrest shown, RH rear seat backrest similar.
14. If equipped. Remove the power fold seat motor. Refer to: Power Fold Seat Motor  .

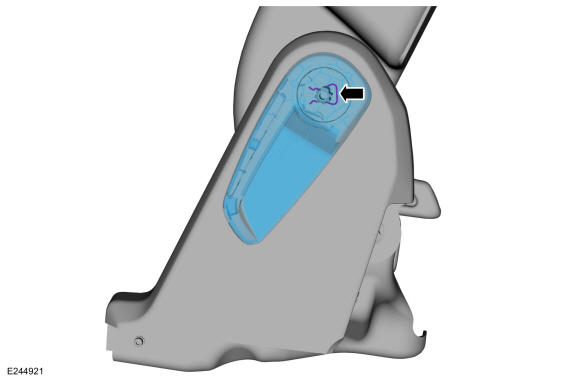

15. Release the U-clip and remove the backrest recline handle.

    Courtesy of FORD MOTOR COMPANY

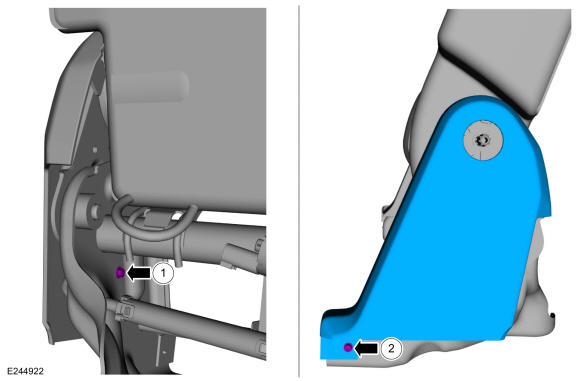

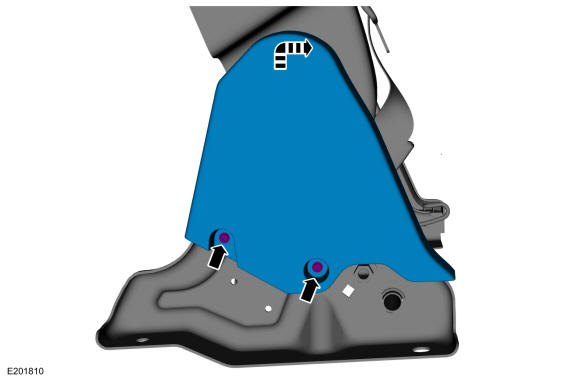

16. Remove the outboard side shield.
    1. Remove the fastener.
    2. Remove the fastener.

    Courtesy of FORD MOTOR COMPANY

17. Remove the fasteners and the inboard side shield.

    Courtesy of FORD MOTOR COMPANY

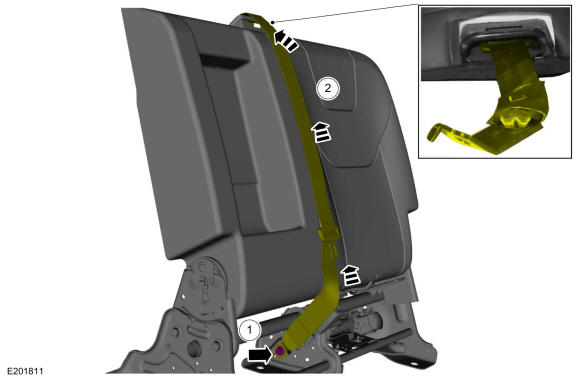

18. Detach the rear center seatbelt lower anchor.
    1. Remove the fastener.

       Torque: 35 lb.ft (47.5 Nm)

    2. Route the seatbelt through the upper backrest cover.

    Courtesy of FORD MOTOR COMPANY

    NOTE: Follow the unique instructions or graphic for this step in the installation.

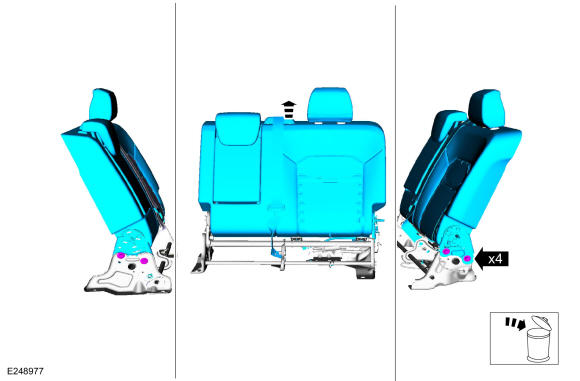

19. Remove the bolts and separate the rear seat backrest from the rear seat backrest riser.

Courtesy of FORD MOTOR COMPANY
