Rear Seat Armrest: Removal

NOTE: Removal steps in this procedure may contain installation details.

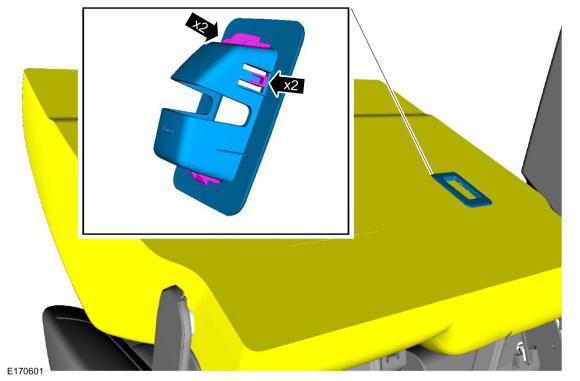

Remove the inboard child safety seat tether anchor bezel.

Courtesy of FORD MOTOR COMPANY

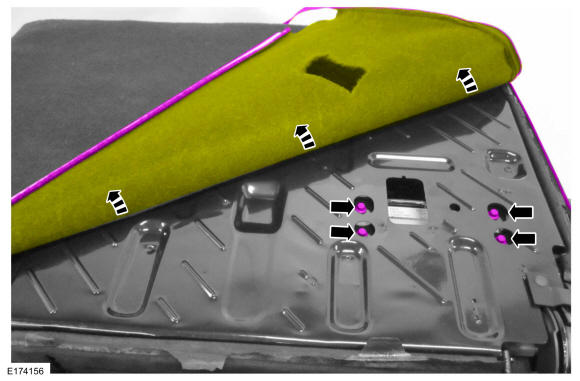

Release the backrest lower J-clip. Unzip the inboard backrest cover and remove the armrest fasteners.
Torque: 80 lb.in (9.0 Nm)

Courtesy of FORD MOTOR COMPANY

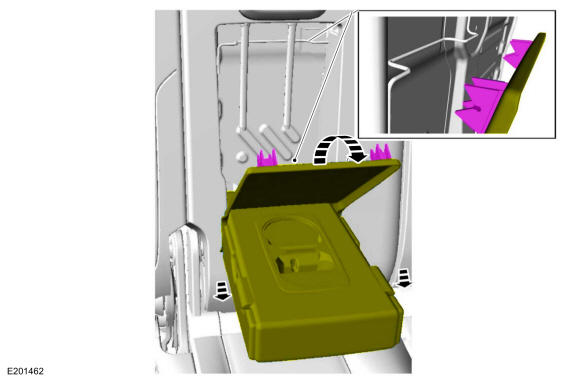

Lower the armrest and release the armrest back panel upper locking clips from the backrest frame.

Courtesy of FORD MOTOR COMPANY

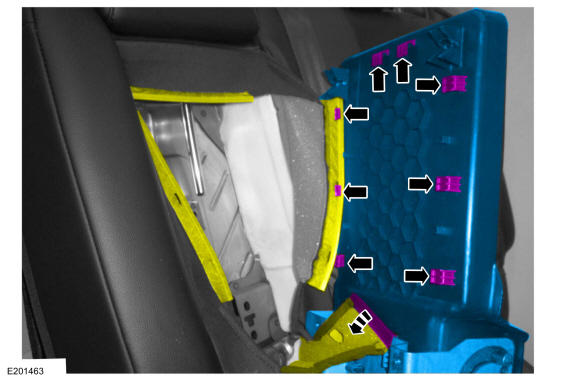

Detach the backrest cover from the armrest hooks. Detach the J-clip and remove the armrest.

Courtesy of FORD MOTOR COMPANY
