Heated Rear Seat Switch: Removal

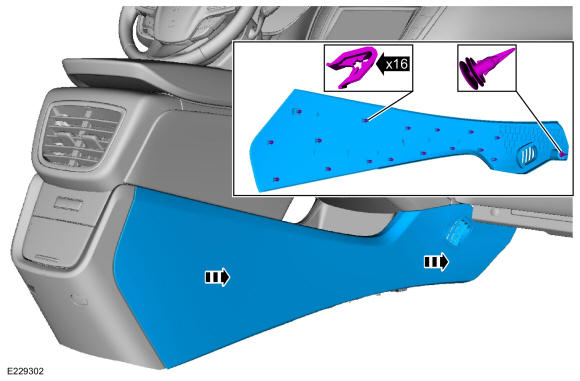

  1. On both sides. Release the clips, the pin-type retainer and remove the floor console lower trim panel.
    GFD529153Courtesy of FORD MOTOR COMPANY

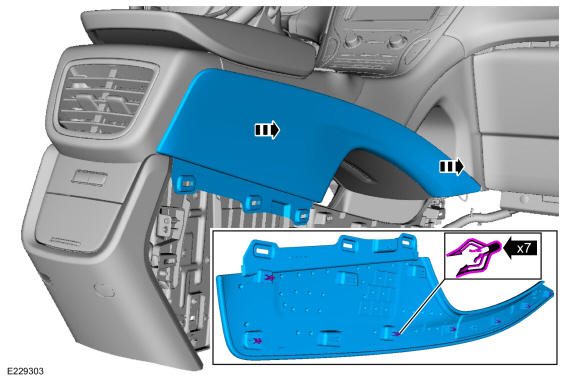

  2. On both sides. Release the clips and remove the floor console middle trim panel.
    GFD529154Courtesy of FORD MOTOR COMPANY

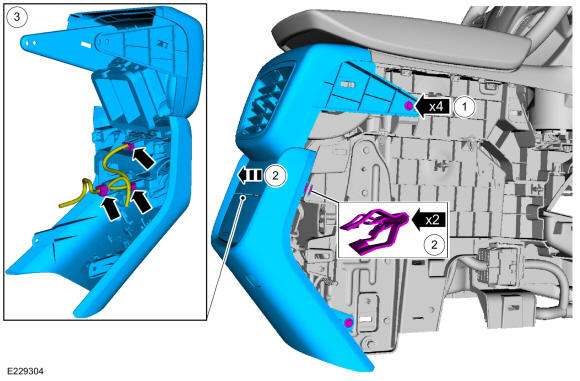

  3. Remove the floor console rear trim panel.

    1. On both sides. Remove the screws.
    2. On both sides. Release the spring retainer.
    3. Disconnect the electrical connector(s).

    GFD529155Courtesy of FORD MOTOR COMPANY

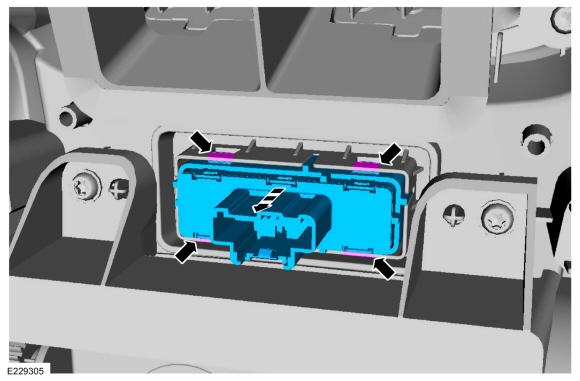

  4. Release the locking tabs and remove the heated rear seat switch.
GFD529156Courtesy of FORD MOTOR COMPANY
