Instrument Panel Upper Section: Removal

NOTE: Removal steps in this procedure may contain installation details.

Remove the instrument panel. Refer to: Instrument Panel .

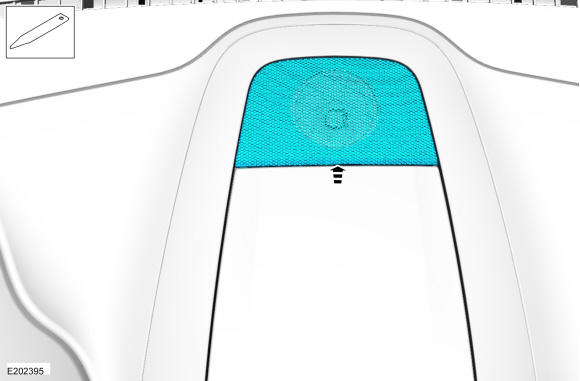

Remove the instrument panel speaker grille. Use the General Equipment: Interior Trim Remover

Courtesy of FORD MOTOR COMPANY

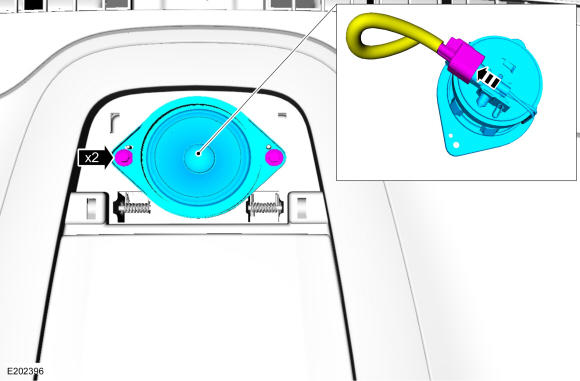

Remove the bolts and the instrument panel speaker.
- Disconnect the electrical connector.
  Torque: 22 lb.in (2.5 Nm)
Courtesy of FORD MOTOR COMPANY
NOTE: Touch screen FCIM shown, others similar.

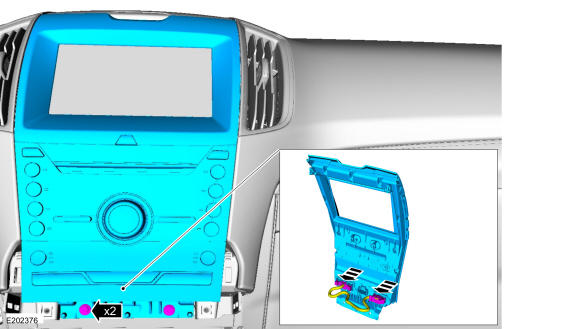

Remove the bolts and the FCIM.
- Disconnect the electrical connectors.
  Torque: 22 lb.in (2.5 Nm)
Courtesy of FORD MOTOR COMPANY
NOTE: Touch screen FDIM shown, non-touch screen FCDIM similar.

Remove the bolts and the FDIM.
- Disconnect the electrical connectors.
  Torque: 22 lb.in (2.5 Nm)
Courtesy of FORD MOTOR COMPANY

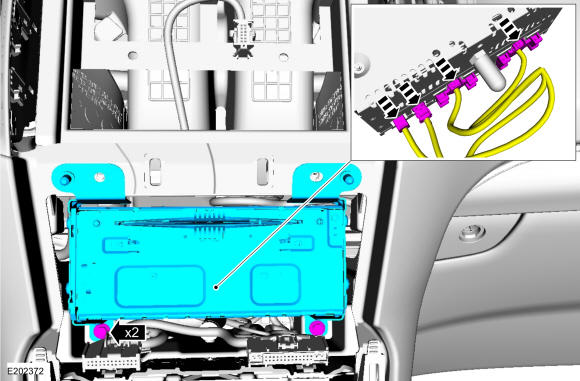

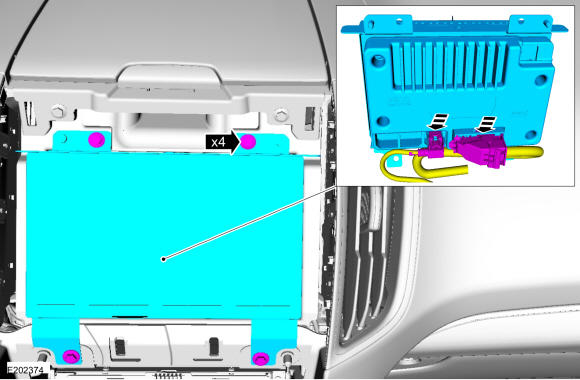

Remove the bolts and the ACM.
- Disconnect the electrical connectors.
  Torque: 22 lb.in (2.5 Nm)
Courtesy of FORD MOTOR COMPANY

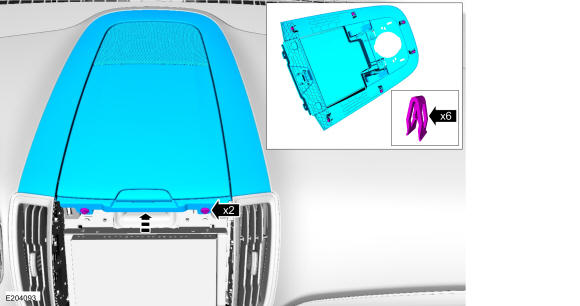

Remove the bolts and the upper instrument panel storage bin.
Torque: 22 lb.in (2.5 Nm)

Courtesy of FORD MOTOR COMPANY

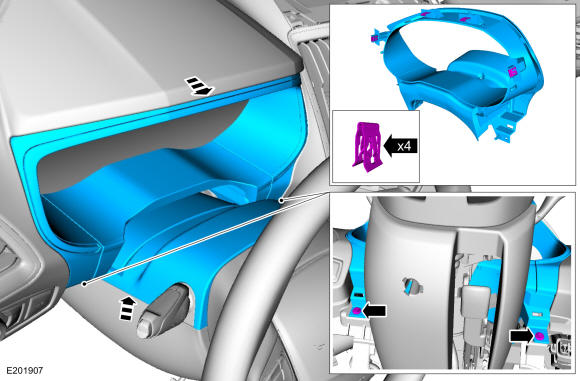

Remove bolts, release the clips and remove the IPC bezel.
Torque: 22 lb.in (2.5 Nm)

Courtesy of FORD MOTOR COMPANY

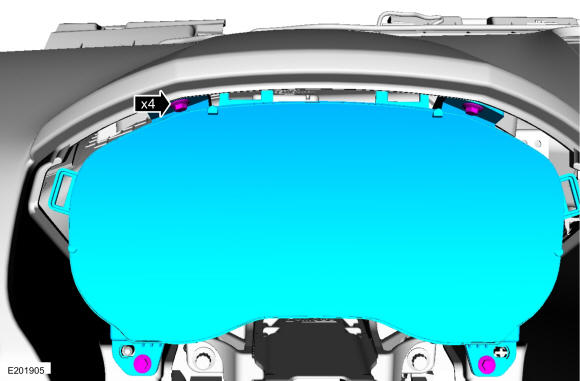

Remove the bolts and the IPC.
Torque: 22 lb.in (2.5 Nm)

Courtesy of FORD MOTOR COMPANY

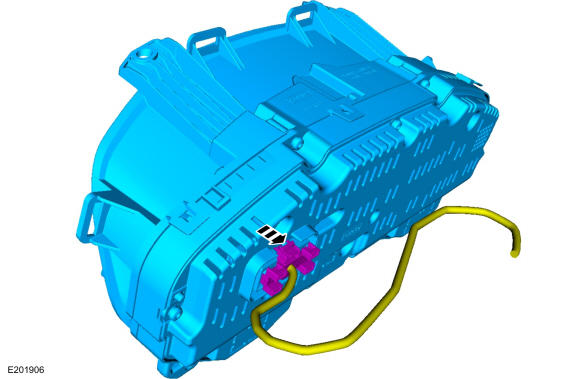

Disconnect the electrical connector.

Courtesy of FORD MOTOR COMPANY

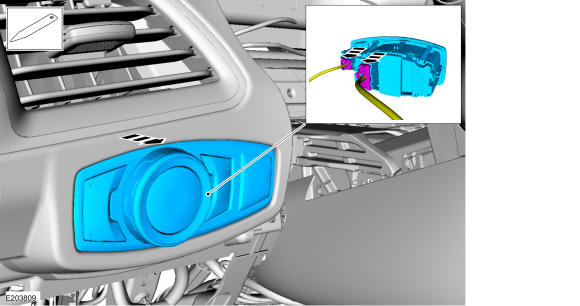

Remove the headlamp switch.
- Disconnect the electrical connector.
Courtesy of FORD MOTOR COMPANY
- Disconnect the electrical connector.
- Remove the bolts.
  Torque: 71 lb.in (8 Nm)
- Through the opening, push the tabs down and detach the clips.
Courtesy of FORD MOTOR COMPANY
Pivot the driver knee airbag down, separate the knee bolster clips and remove the driver knee airbag.

Courtesy of FORD MOTOR COMPANY

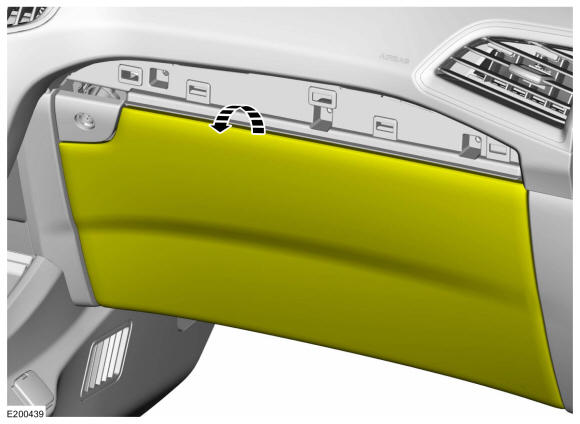

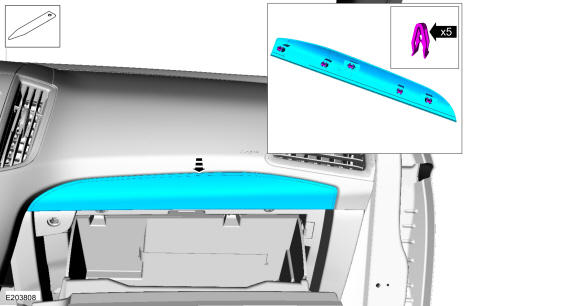

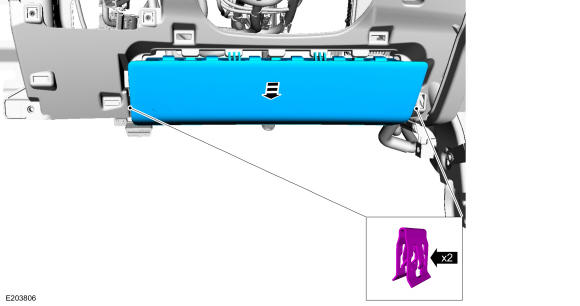

Release the clips and remove the glove compartment finish panel.

Courtesy of FORD MOTOR COMPANY
Open the glove compartment.

Courtesy of FORD MOTOR COMPANY

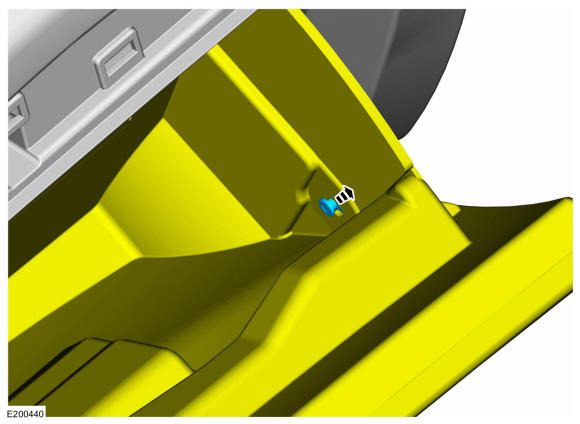

Detach the glove compartment damper.

Courtesy of FORD MOTOR COMPANY

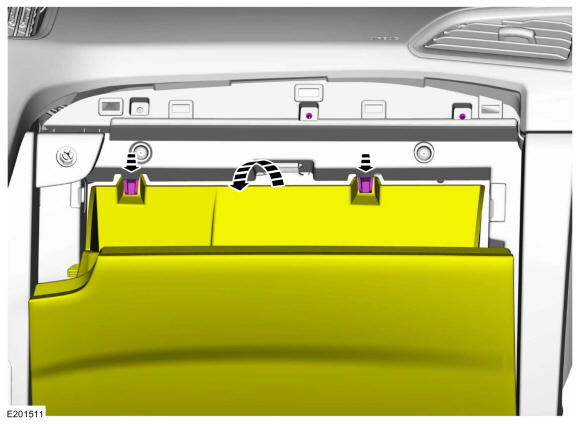

Release the tabs and fully lower the glove compartment.

Courtesy of FORD MOTOR COMPANY

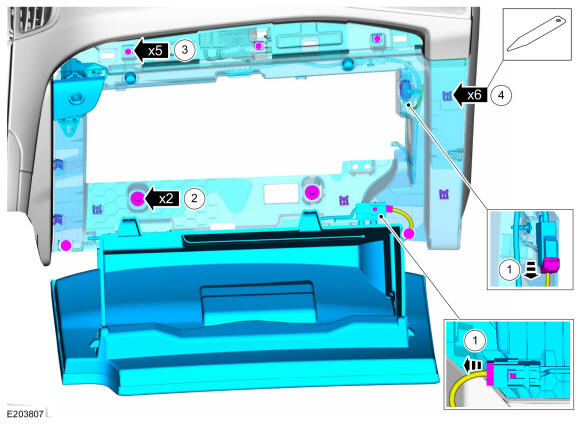

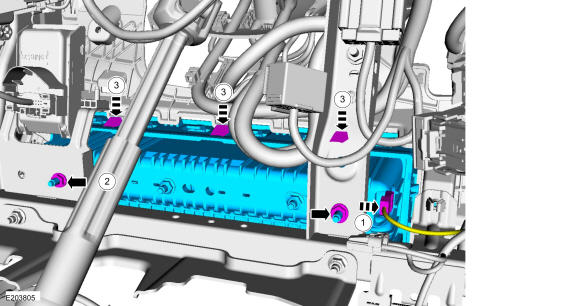

1. Disconnect the electrical connectors.
2. Remove the bolts.
  Torque: 35 lb.in (4 Nm)
3. Remove the screws.
  Torque: 22 lb.in (2.5 Nm)
4. Release the clips and remove the glove compartment. Use the General Equipment: Interior Trim Remover
Courtesy of FORD MOTOR COMPANY

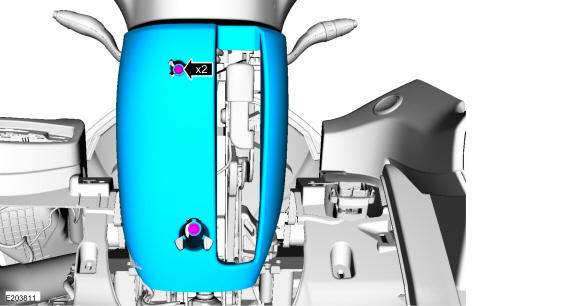

Remove the screws and the lower steering column shroud.
Torque: 22 lb.in (2.5 Nm)

Courtesy of FORD MOTOR COMPANY

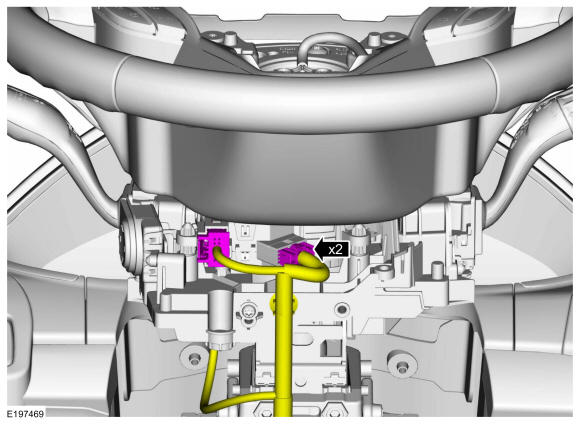

Disconnect the electrical connectors.

Courtesy of FORD MOTOR COMPANY
NOTE: Vehicles with power adjustable steering column.

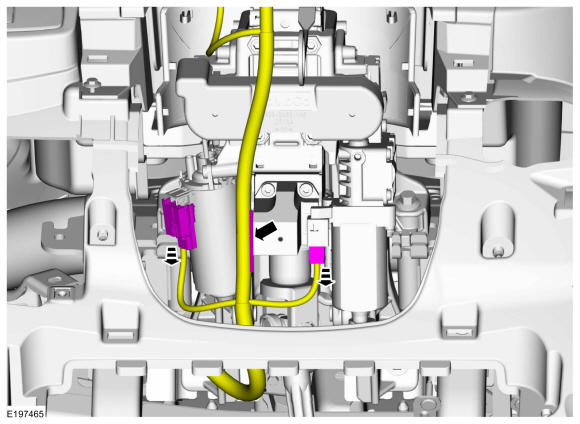

Detach the retainer, disconnect the power tilt motor and power telescopic motor electrical connectors.

Courtesy of FORD MOTOR COMPANY

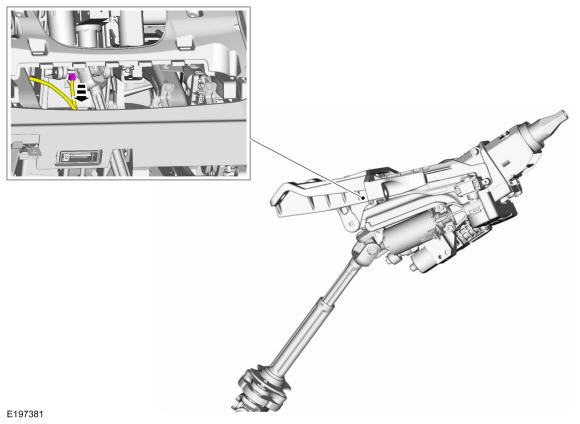

Disconnect the deployable column electrical connector.

Courtesy of FORD MOTOR COMPANY
NOTE: Do not reuse steering column bolts. This may result in fastener failure and steering column detachment or loss of steering control. Failure to follow this instruction may result in serious injury to vehicle occupant(s).

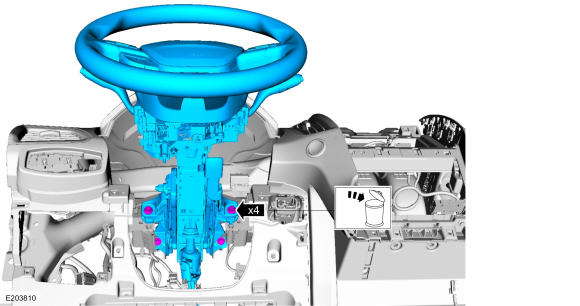

Remove and discard the bolts and remove the steering column.

Torque: 18 lb.ft (25 Nm)

Courtesy of FORD MOTOR COMPANY

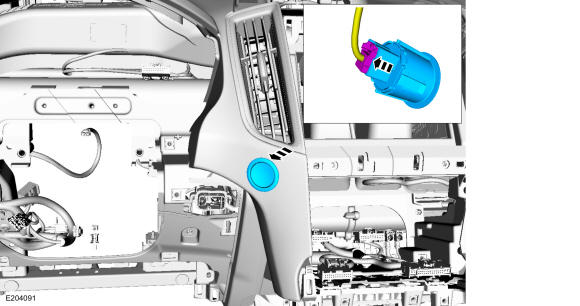

Remove the engine start stop button.
- Disconnect the electrical connector.
Courtesy of FORD MOTOR COMPANY

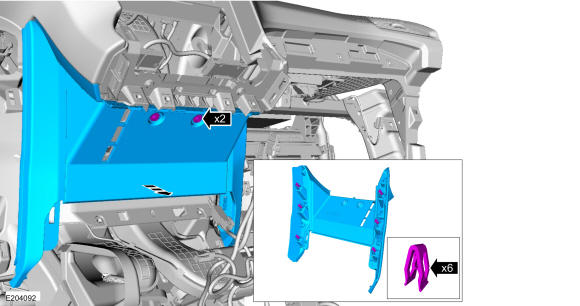

Remove the 2 screws, release the clips and remove the lower instrument panel trim panel.

Courtesy of FORD MOTOR COMPANY

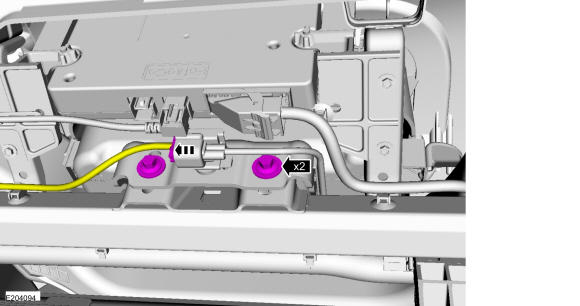

Remove passenger airbag to cross car beam bolts.
- Disconnect the electrical connector.
  Torque: 80 lb.in (9 Nm)
Courtesy of FORD MOTOR COMPANY

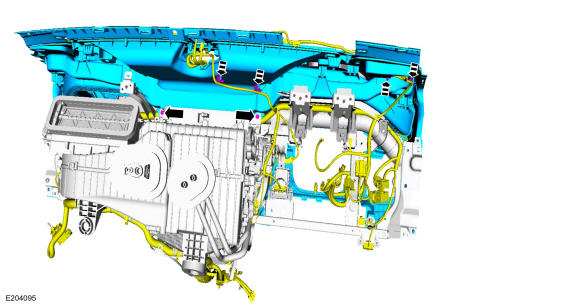

Remove the HVAC to instrument panel upper section bolts.
- Detach the wiring harness from the instrument panel upper section and position aside.
  Torque: 35 lb.in (4 Nm)
Courtesy of FORD MOTOR COMPANY
NOTE: Make sure that all electrical connectors and wiring are not hindered before removing the instrument panel upper section or damage to the components may occur.

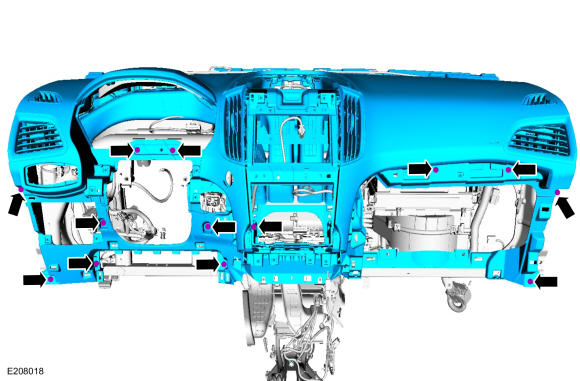

Remove the instrument panel upper section to in-vehicle cross beam bolts and remove the instrument panel upper section.

Torque: 22 lb.in (2.5 Nm)

Courtesy of FORD MOTOR COMPANY
