Rear Parking Aid Camera: Removal

  1. Remove the reversing lamp. Refer to: Reversing Lamp .

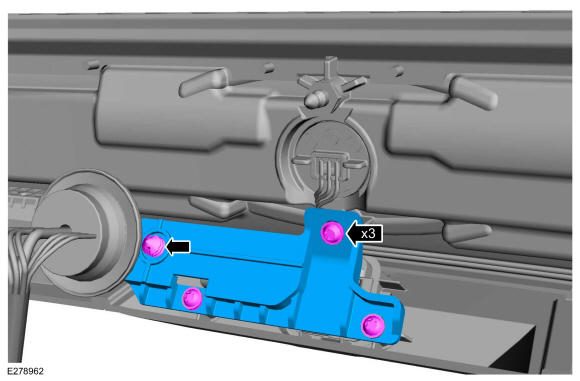

  2. Remove the screws, separate the wiring guide and remove the rear parking aid camera bracket.
    GFD528512Courtesy of FORD MOTOR COMPANY

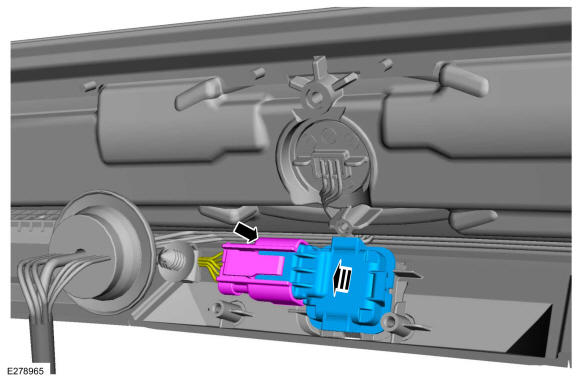

  3. Disconnect the electrical connector and remove the rear parking aid camera.
GFD528513Courtesy of FORD MOTOR COMPANY
