Front Parking Aid Camera: Removal

  1. Remove the front bumper cover. Refer to: Front Bumper Cover .

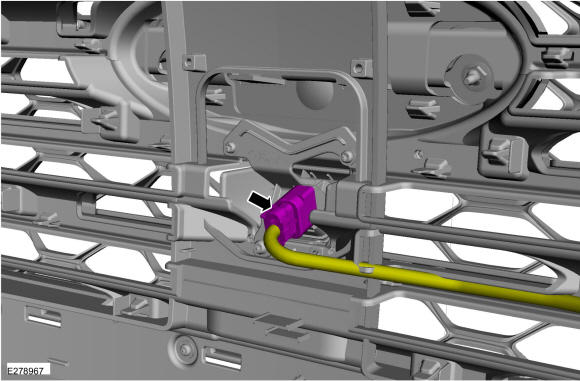

  2. Disconnect the electrical connector.
    GFD528506Courtesy of FORD MOTOR COMPANY

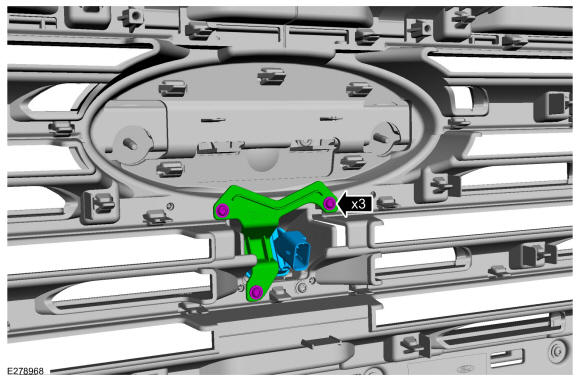

  3. Remove the screws, the front parking aid camera bracket and the front parking aid camera.
GFD528507Courtesy of FORD MOTOR COMPANY
