Parking Aid - Component Location

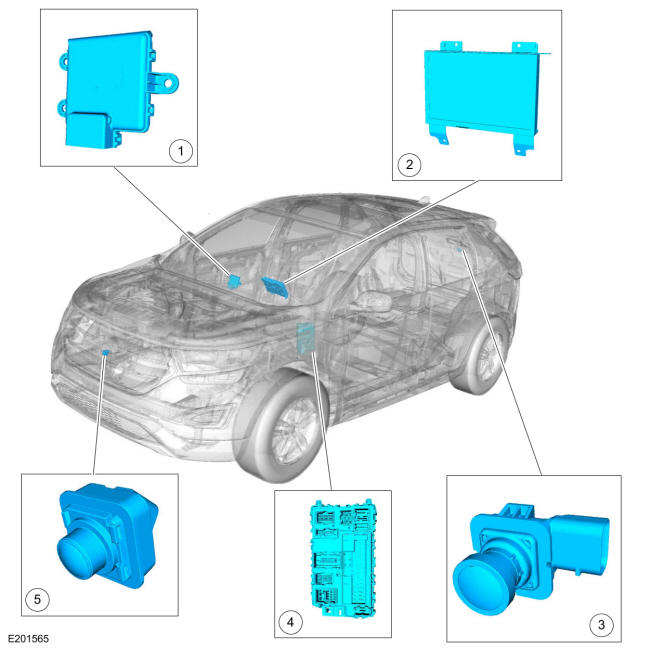

Component Location - Parking Aid Camera
 Courtesy of FORD MOTOR COMPANY
|
| Item |
Description |
| 1 |
IPMB (front and rear parking aid camera system) |
| 2 |
Centerstack infotainment display (FDIM shown FCDIM similar) |
| 3 |
Rear parking aid camera |
| 4 |
BCM (rear only parking aid camera system) |
| 5 |
Front parking aid camera |
