Turbocharger Coolant Supply Tube - RH: Installation
-

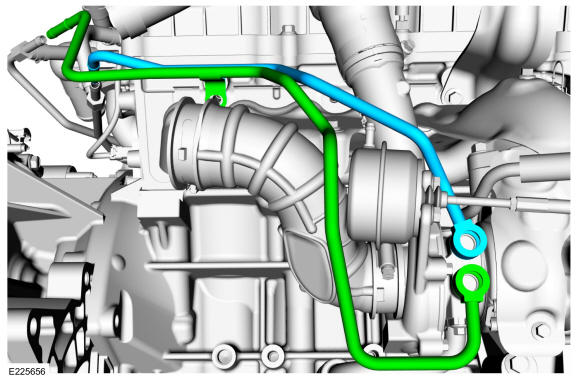

- Install the turbocharger coolant supply tube.
- Install the turbocharger coolant return tube.

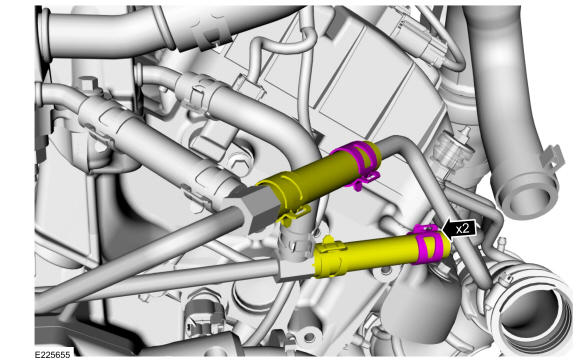

- Connect the turbocharger coolant hoses and clamps.

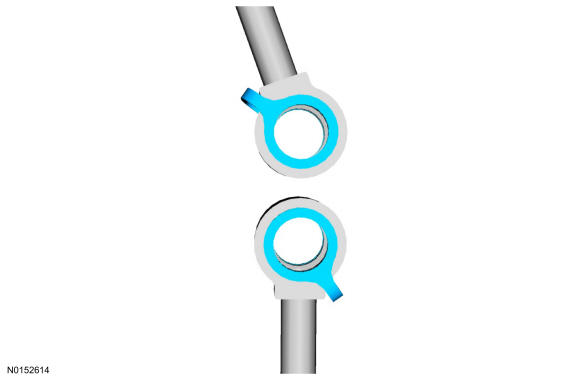

- Install the 2 new turbocharger coolant tube linked sealing washers.
- Connect the turbocharger coolant tubes, then install the new turbocharger coolant tube bolts finger tight at this stage.
- Install the coolant tube bracket retaining nut, finger tight.
- Install the turbocharger coolant tubes, then install and tighten the new coolant tube bolts in the following 2 stages.
- Stage 1: Tighten to 12 Nm (106 lb-in).
- Stage 2: Tighten 60 degrees.

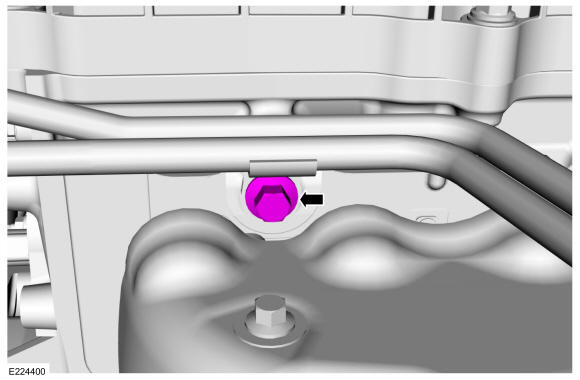

- Tighten the coolant tube bracket retaining nut. Tighten to 12 Nm (107 lb-in).

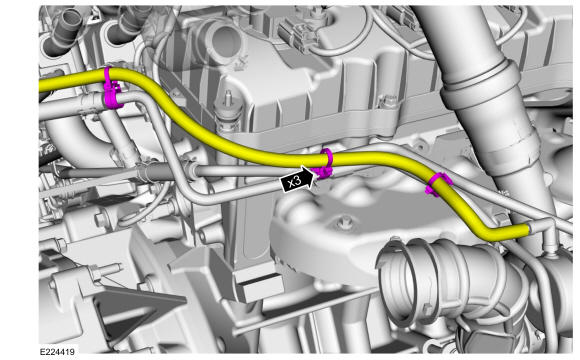

- Attach the turbocharger wastegate control hose retainers.
-

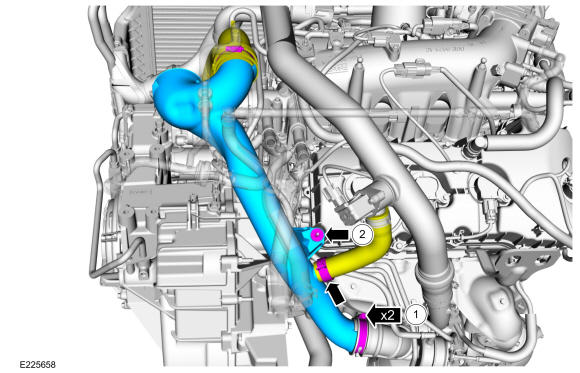

- Install the turbocharger inlet tube and tighten the clamps. Tighten to 5 Nm (44 lb-in).
- Install and tighten the turbocharger inlet tube retaining nut. Tighten to 5 Nm (44 lb-in).
- Connect the turbocharger bypass hose and clamp.
- Instal the air cleaner assembly and the air cleaner outlet tube. Refer to Intake Air Distribution and Filtering .

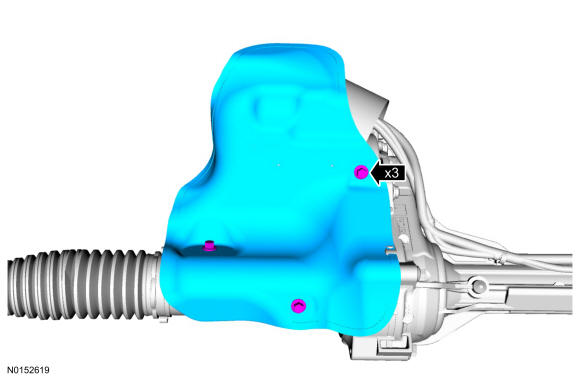

- Install the steering gear heat shield and then install and tighten the steering gear heat shield retaining bolts. Tighten to 11 Nm (97 lb-in).
- Install the RH catalytic converter. Refer to Exhaust System .
- Fill the cooling system. Refer to Engine Cooling .
- If equipped. Install the underbody shield and then install the underbody shield retainers.
- Remove the oil filler cap and install the engine appearance cover. Install the oil filler cap.
