Removal And Installation: Turbocharger: Installation

  1. NOTE: Make sure that 4 new turbocharger-to-cylinder head studs, 4 new turbocharger nuts and a new turbocharger gasket are installed.

    Tighten in the sequence shown to 50 Nm (37 lb-ft).

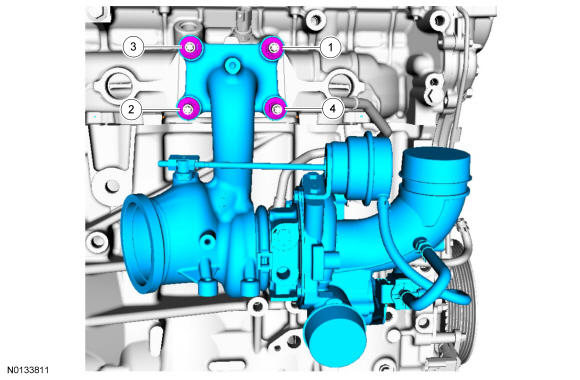

    Fig 1: Turbocharger Location W/ Bolt Tightening Sequence
    GFD340267Courtesy of FORD MOTOR COMPANY
  2. To install, reverse the removal procedure.
