Adjustable Pedal

Fig 1: Adjustable Pedal Wiring Diagram (1 Of 3)
GFDWR30968Courtesy of FORD MOTOR COMPANY
Fig 2: Adjustable Pedal Wiring Diagram (2 Of 3)
GFDWR30969Courtesy of FORD MOTOR COMPANY

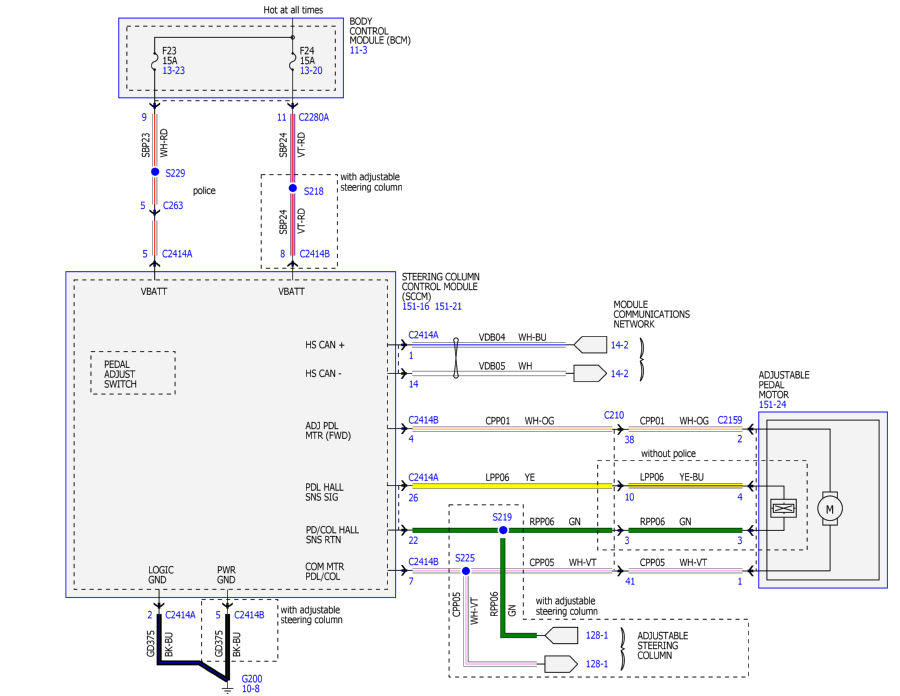

Fig 3: Adjustable Pedal Wiring Diagram (3 Of 3)
GFDWR30970Courtesy of FORD MOTOR COMPANY
