Wheel Studs: Installation

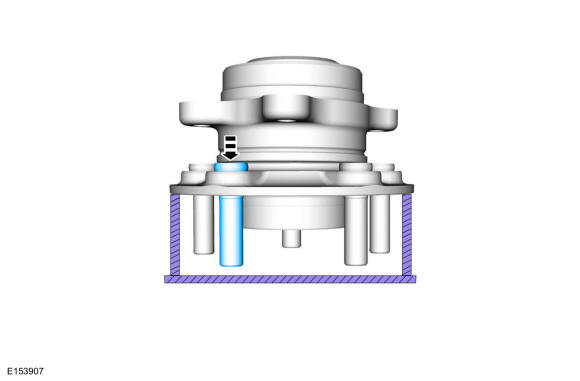

  1. Press the wheel stud into the wheel bearing and wheel hub flange until fully seated. Use the General Equipment: Hydraulic Press
    GFD397140Courtesy of FORD MOTOR COMPANY
  2. Install the wheel bearing and wheel hub. Refer to: Wheel Bearing and Wheel Hub - FWD . Refer to: Wheel Bearing and Wheel Hub - AWD .
