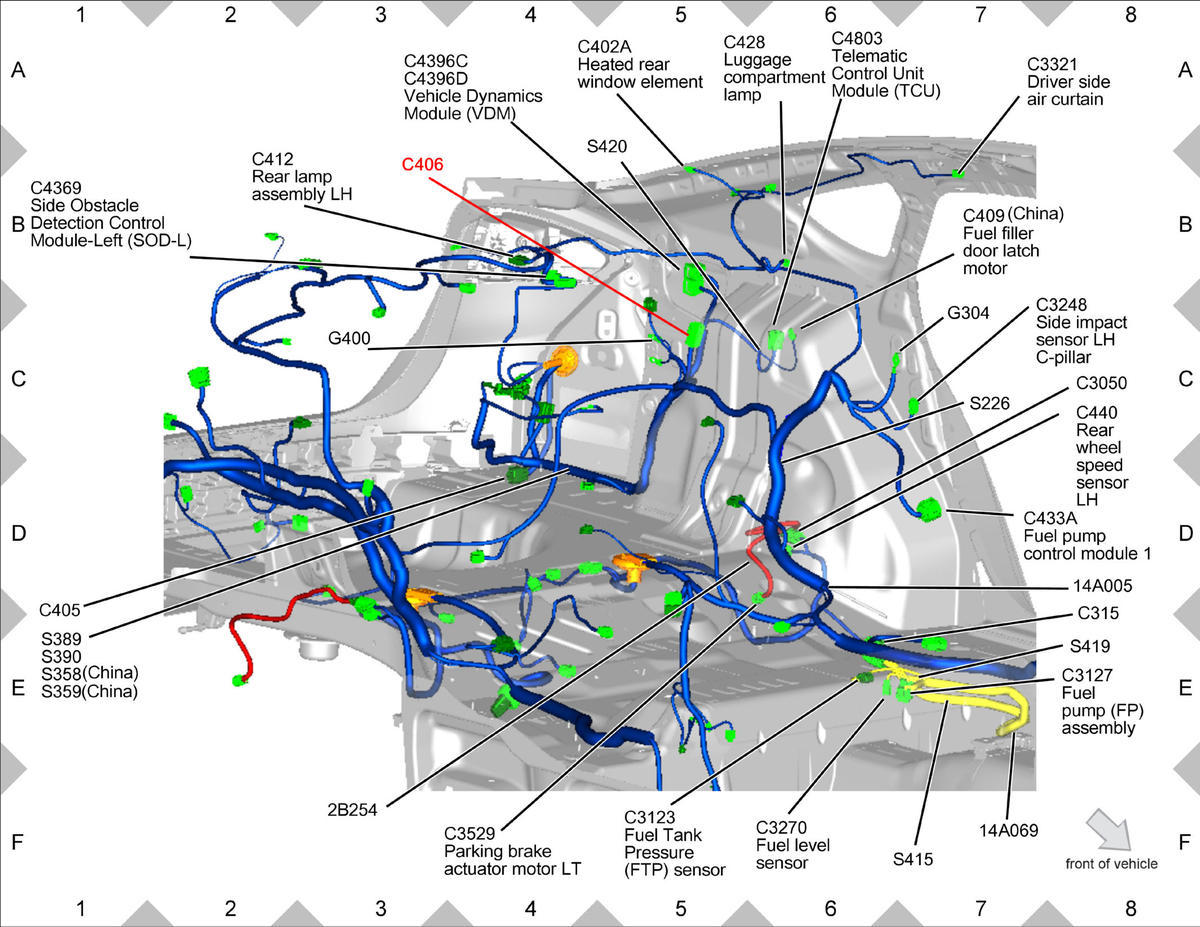

Home >> Ford >> 2019 >> Fusion Titanium, AWD >> Repair and Diagnosis >> Electrical >> Wiring Diagrams >> OEM Component Harness Location Charts By Connectors (Except Hybrid) >> Component Location Charts By Connectors >> C406 (Fusion) (1 Of 2)
