Home >> Ford >> 2019 >> Fusion Titanium, AWD >> Repair and Diagnosis >> Electrical >> Wiring Diagrams >> OEM Component Harness Location Charts By Connectors (Except Hybrid) >> Component Location Charts By Connectors >> C312 Below Right A-Pillar To Passenger Door

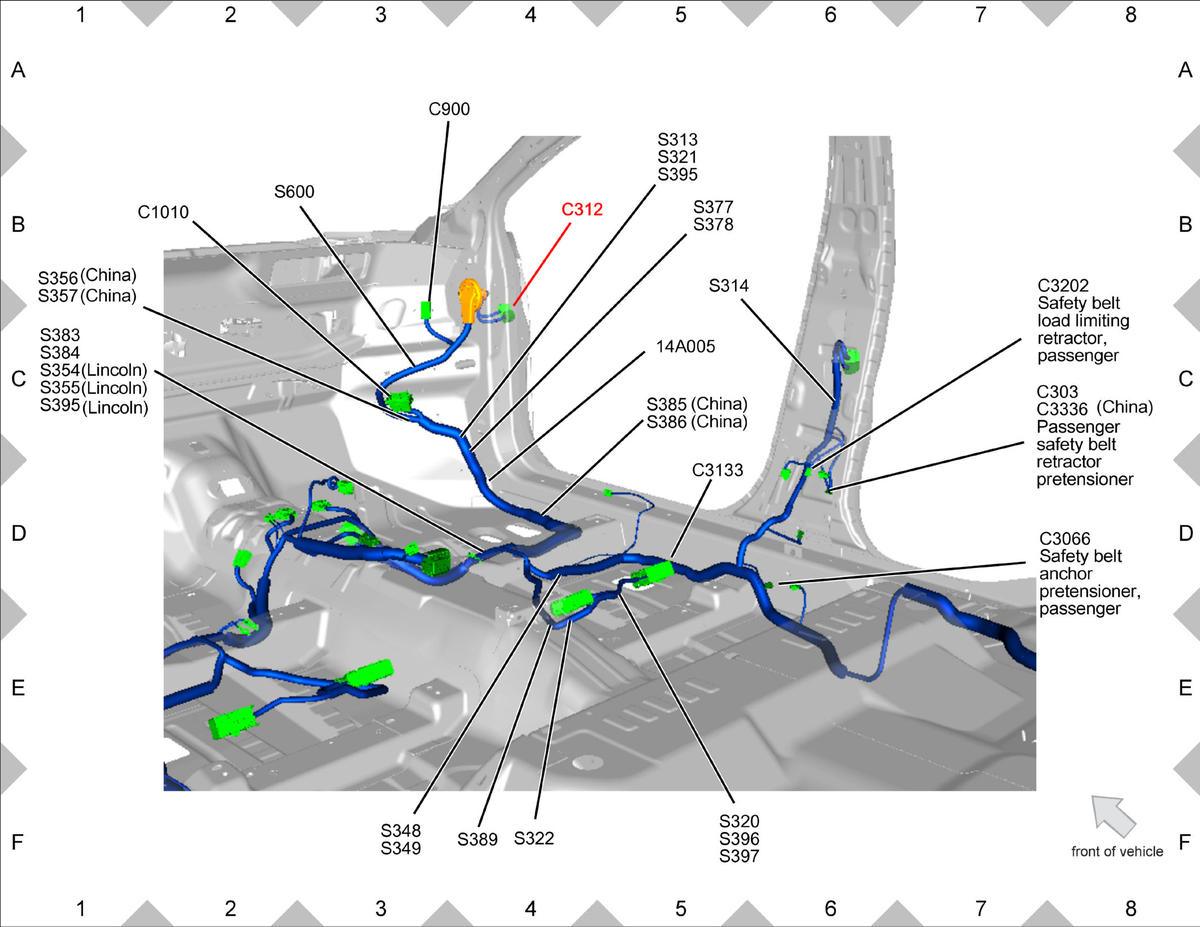

C312 Below Right A-Pillar To Passenger Door

GFDWR59881

Courtesy of FORD MOTOR COMPANY
