Overhead Console: Removal

NOTE: Removal steps in this procedure may contain installation details.
NOTE: Consoles look different depending on option level.

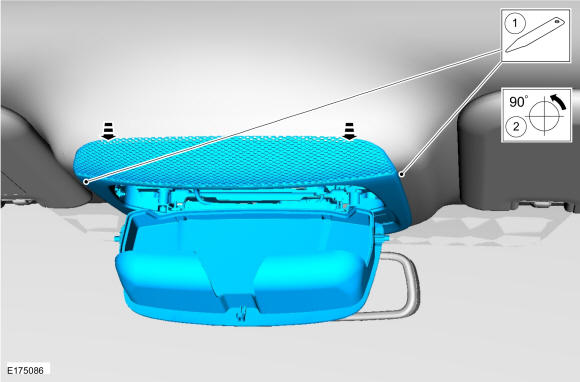

    1. Insert trim tool in location(s) shown in illustration.
    2. Rotate the tool 90 degrees to release the overhead console rear retainers.
    GFD403510Courtesy of FORD MOTOR COMPANY

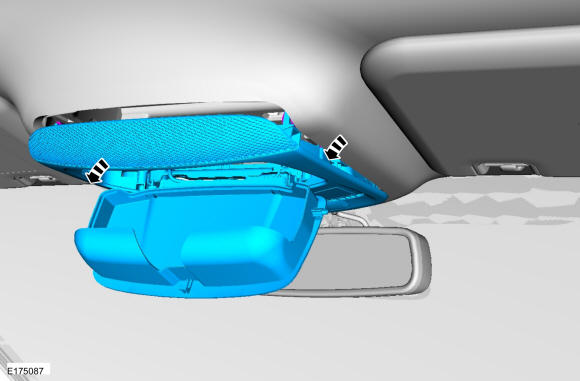

  2. Working from the rear to the front along each side release the overhead console retainers.
    GFD403511Courtesy of FORD MOTOR COMPANY

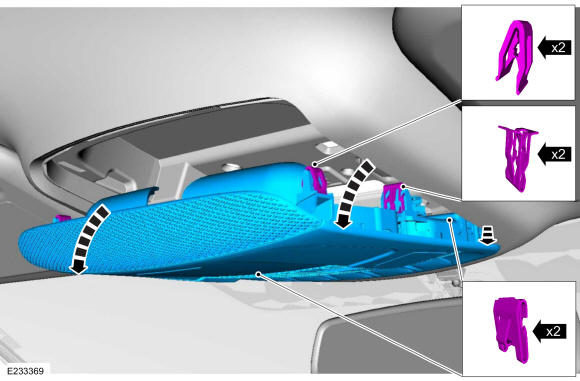

  3. Rotate to release the clips and remove the overhead console.
    GFD403512Courtesy of FORD MOTOR COMPANY

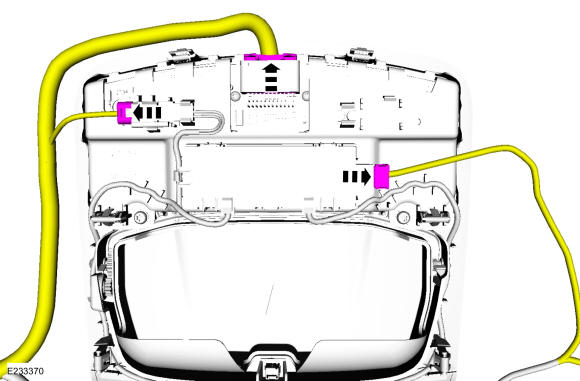

  4. Disconnect the electrical connectors.
GFD403513Courtesy of FORD MOTOR COMPANY
