Section 49 (OEM Component Harness Location Charts By Connectors (Hybrid/ENERGI))
>>
Component Location Charts By Connectors
>>

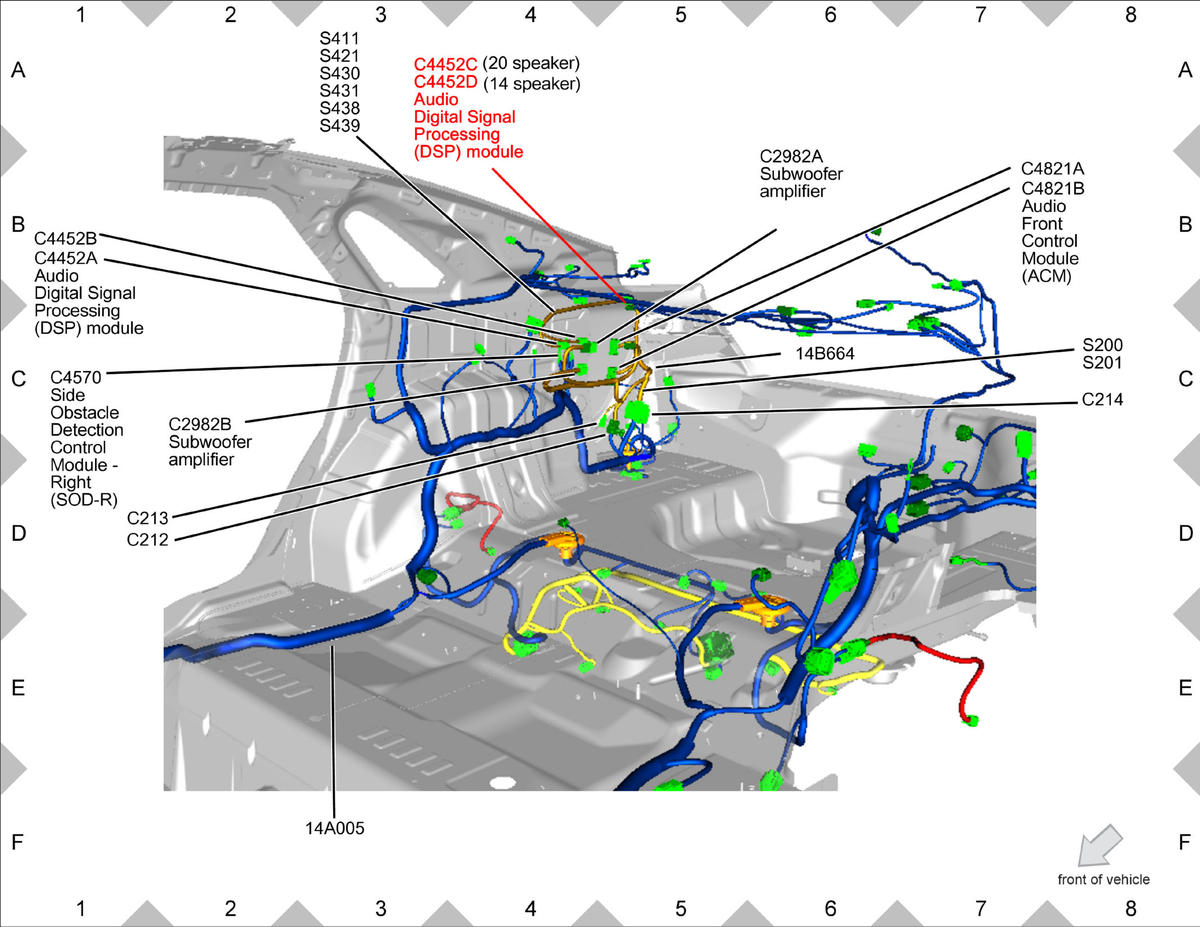

C4452D Audio Digital Signal Processing (DSP) Module (MKZ)
C4452D Audio Digital Signal Processing (DSP) Module (MKZ)
WARNING:
This page is about a different variant/trim than selected.
Courtesy of FORD MOTOR COMPANY
