Section 49 (OEM Component Harness Location Charts By Connectors (Hybrid/ENERGI))
>>
Component Location Charts By Connectors
>>

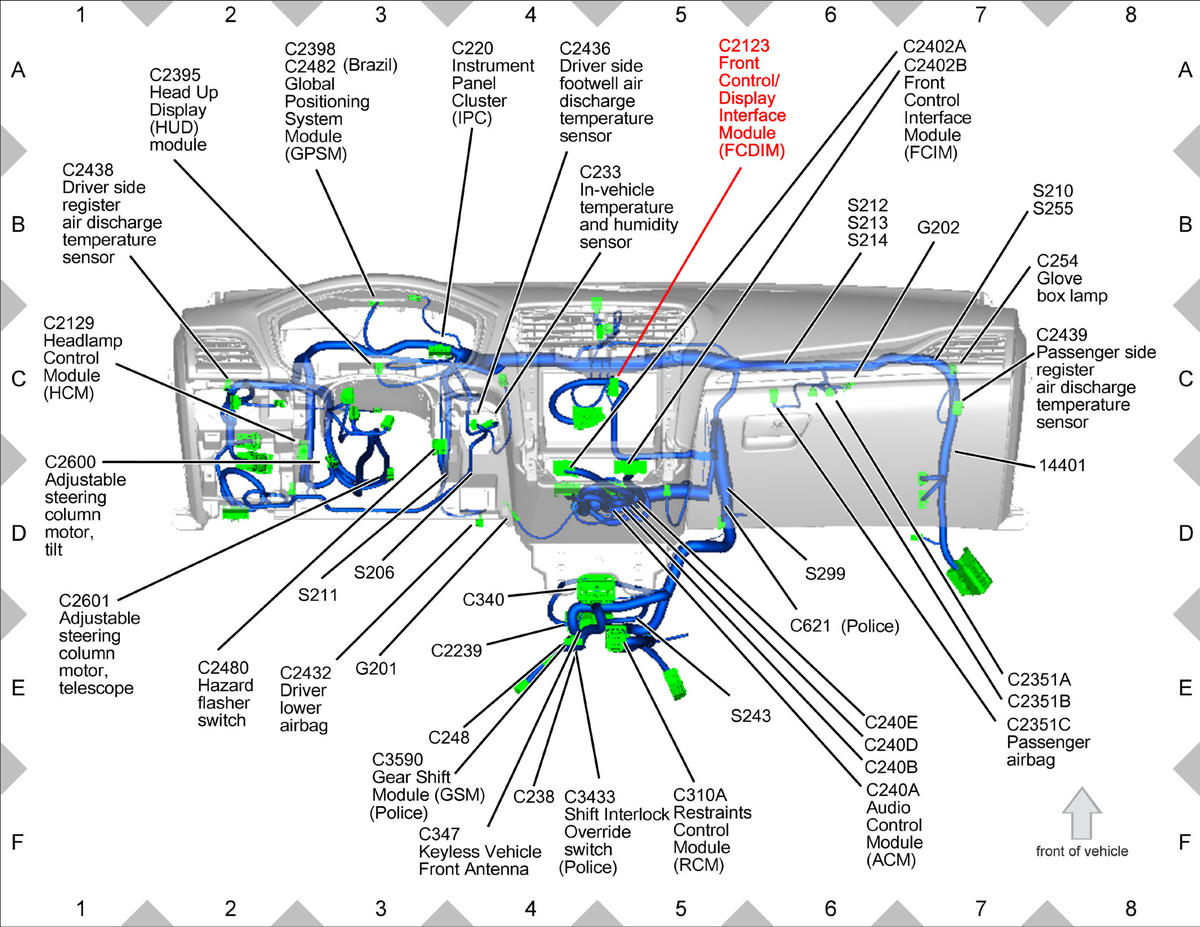

C2123 Front Control/Display Interface Module (FCDIM) (Fusion)
C2123 Front Control/Display Interface Module (FCDIM) (Fusion)
WARNING:
This page is about a different variant/trim than selected.
Courtesy of FORD MOTOR COMPANY
