Front Active Park Assist Sensors: Removal

WARNING: This page is about a different variant/trim than selected.
NOTE: Removal steps in this procedure may contain installation details.
NOTE: The LH side shown, RH side is similar.
  1. Remove the front wheel and tire. Refer to: Wheel and Tire .

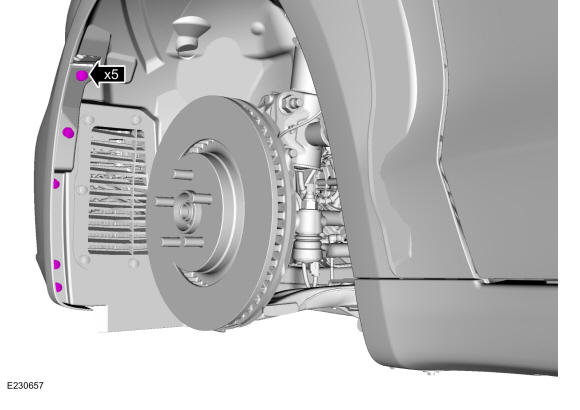

  2. Remove the plastic rivets from the front of the fender liner.
    GFD436453Courtesy of FORD MOTOR COMPANY
  3. Remove the screws.
    GFD436454Courtesy of FORD MOTOR COMPANY

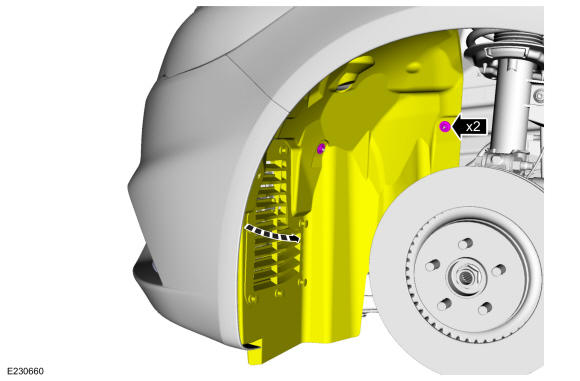

  4. Remove the nuts and position the fender liner aside.
    GFD436455Courtesy of FORD MOTOR COMPANY

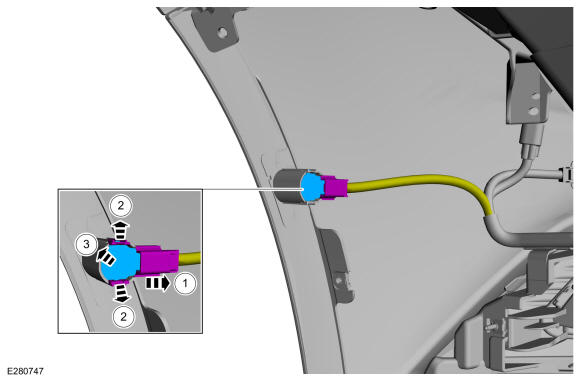

  5. Remove the front active park assist sensor.

    1. Disconnect the front active park assist sensor electrical connector.
    2. Release the tabs.
    3. Remove the front active park assist sensor from the bracket.

GFD436456Courtesy of FORD MOTOR COMPANY
