Section 120 (Parking Aid - Vehicles With: Active Park Assist (Hybrid/ENERGI))
>>
Description And Operation
>>
Parking Aid - System Operation and Component Description
>>

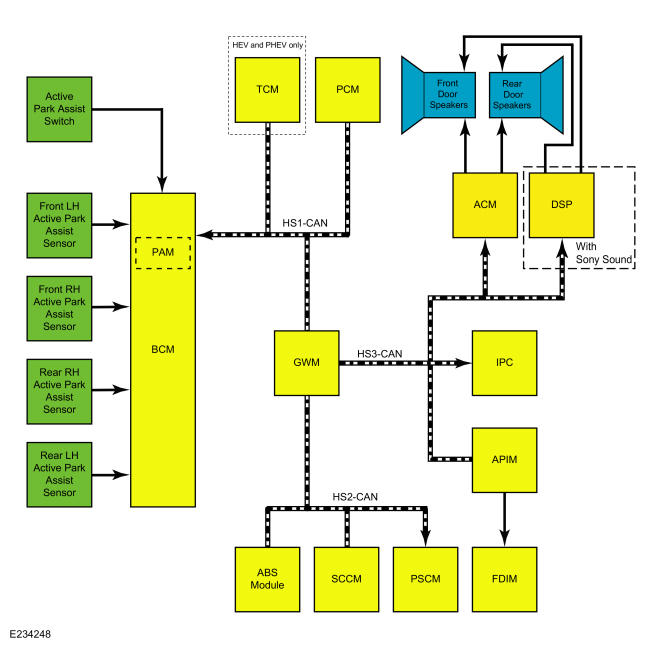

System Diagram
System Diagram
WARNING:
This page is about a different variant/trim than selected.
Courtesy of FORD MOTOR COMPANY
