Front Toe Adjustment

For information on Ford Color Coded Illustrations refer to OEM COLOR CODING

Wheel Alignment System

NOTE: Make sure that the vehicle is standing on a level surface.

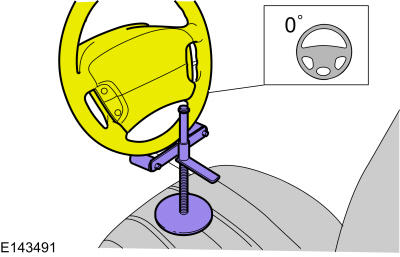

Steering wheel in straight ahead position.

Courtesy of FORD MOTOR COMPANY
Using alignment equipment and the manufacturer's instructions, check front toe setting on both sides. Use the General Equipment: Wheel Alignment System
1. On both sides.
2. On both sides.
3. NOTE: Make sure that the boot is correctly located.
Courtesy of FORD MOTOR COMPANY
NOTE: If equipped with Lane Departure Warning (LDW) System, camera alignment is required for the lane keeping alert and lane keeping aid to function correctly.
