Passenger Airbag: Installation

WARNING: Before installing the passenger air bag module assembly:

Inspect the passenger air bag module and instrument panel/deployment chute cavity for any damage or foreign material.
Remove any foreign material from the passenger air bag module and instrument panel/deployment chute cavity.
Install new parts if damaged.

Failure to follow these instructions may result in the passenger air bag deploying incorrectly, which increases the risk of serious personal injury or death in a crash.

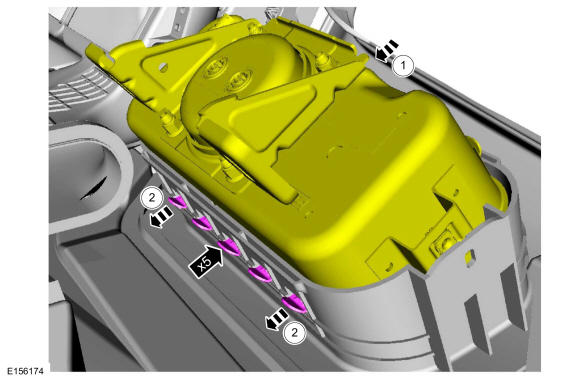

1. Position the passenger airbag to the deployment chute.
2. Engage the 5 passenger airbag retainers to the deployment chute.
Courtesy of FORD MOTOR COMPANY

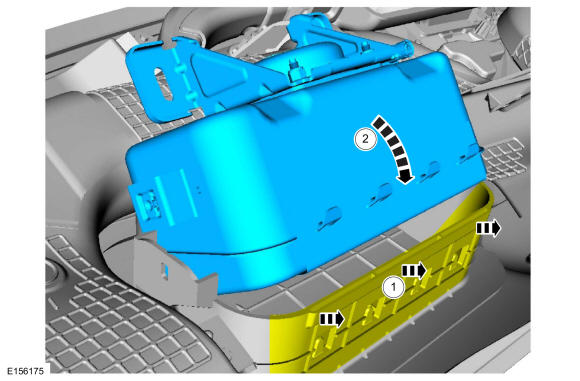

1. Pull the passenger airbag deployment chute out, making room for the passenger airbag to pass.
2. Rotate the passenger airbag down and into the deployment chute.
Courtesy of FORD MOTOR COMPANY

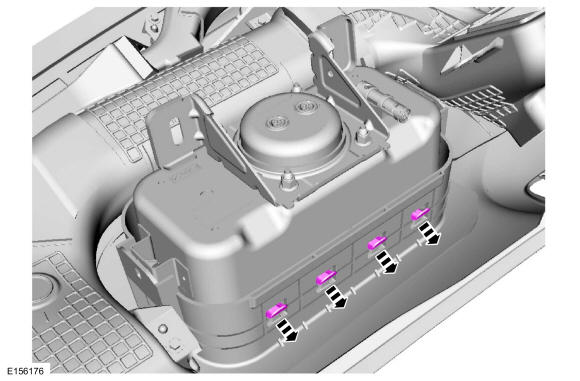

Engage the passenger airbag retainers to the deployment chute.

Courtesy of FORD MOTOR COMPANY

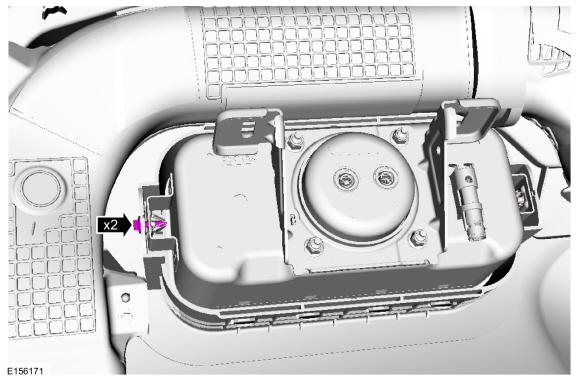

Install the screws.
Torque: 13 lb.in (1.5 Nm)

Courtesy of FORD MOTOR COMPANY
Install the instrument panel upper section. Refer to: Instrument Panel Upper Section .
If the SRS was depowered, repower the SRS. Refer to: Supplemental Restraint System (SRS) Depowering and Repowering .
