Home >> Ford >> 2019 >> Fusion Energi Titanium >> Repair and Diagnosis >> Restraints >> Air Bag, SRS >> Supplemental Restraint System (3 Of 3) (Hybrid/ENERGI) >> Removal And Installation >> Passenger Airbag Deactivation (PAD) Indicator >> Removal

Passenger Airbag Deactivation (PAD) Indicator: Removal

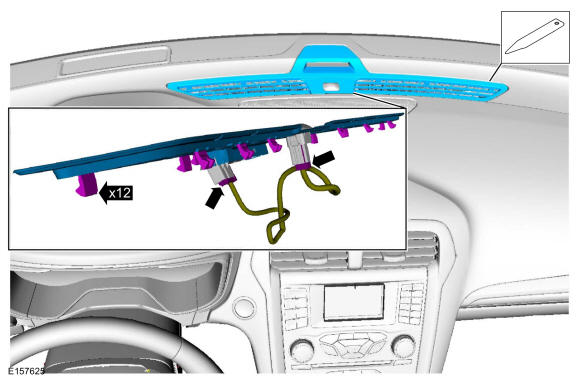

    • Release the tabs and remove the defroster grille panel. Use the General Equipment: Interior Trim Remover

    • Disconnect the electrical connector.

    GFD437299Courtesy of FORD MOTOR COMPANY

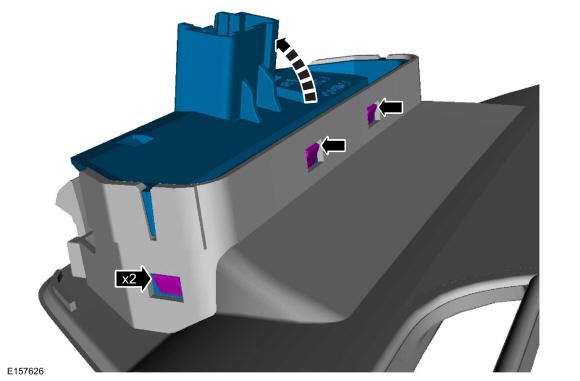

  2. Release the tabs and remove the PAD indicator.
GFD437553Courtesy of FORD MOTOR COMPANY
