Driver Airbag: Installation

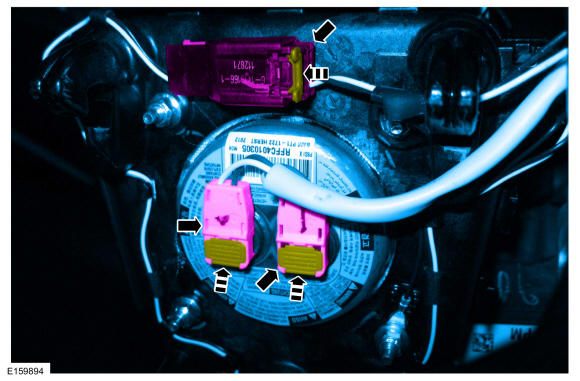

  1. Connect the electrical connectors.
    GFD437537Courtesy of FORD MOTOR COMPANY

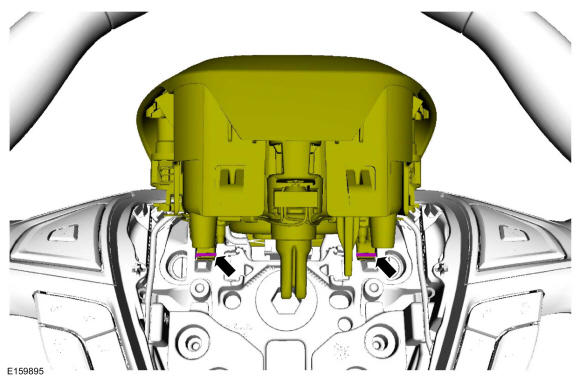

  2. Engage the 2 driver airbag retaining hooks to the steering wheel spring clips.
    GFD437538Courtesy of FORD MOTOR COMPANY

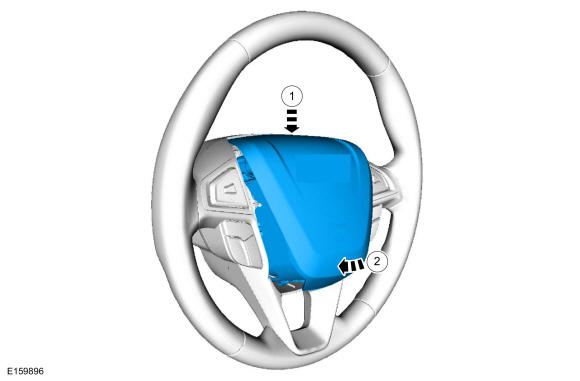

    1. Push down on the driver airbag.
    2. Pivot the driver airbag down and engage the lower retaining hook to the spring clip.
    GFD437539Courtesy of FORD MOTOR COMPANY
  4. If the SRS was depowered, repower the SRS. Refer to: Supplemental Restraint System (SRS) Depowering and Repowering .
