C-Pillar Side Impact Sensor: Removal
NOTE:
Removal steps in this procedure may contain installation details.
-
WARNING: Turn the ignition OFF and wait one minute to deplete the backup power supply. Ignition must remain OFF until repair is complete. Failure to follow this instruction may result in serious personal injury or death in the event of an accidental deployment.
If installing a new component for a SRS fault, continue to Step 2. Otherwise, turn the ignition off, wait at least one minute and continue to Step 3.
- Depower the SRS. Refer to: Supplemental Restraint System (SRS) Depowering and Repowering .
- Remove the C-pillar lower trim panel. Refer to: C-Pillar Lower Trim Panel .

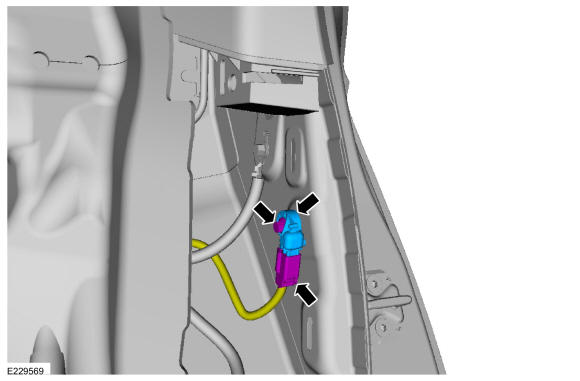

- Disconnect the electrical connector, remove the bolt and the side impact sensor.
Torque: 93 lb.in (10.5 Nm)
