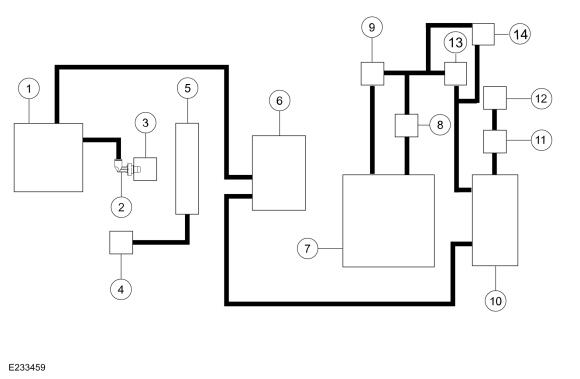

System Diagram
| Item | Description |
|---|---|
| 1 | Intake manifold |
| 2 | PCV valve |
| 3 | Crankcase vent oil separator |
| 4 | Air Cleaner (ACL) outlet pipe |
| 5 | Valve cover |
| 6 | EVAP canister purge valve |
| 7 | Fuel tank |
| 8 | Fuel Tank Pressure (FTP) sensor and tube (HEV) and Fuel Tank Pressure (FTP) sensor and tube (PHEV) |
| 9 | Fuel tank filler pipe |
| 10 | EVAP canister |
| 11 | EVAP leak detection pump |
| 12 | EVAP leak detection filter |
