Supplemental Restraint System

Fig 1: Supplemental Restraint System Wiring Diagram (1 Of 10)
GFDWR73010Courtesy of FORD MOTOR COMPANY

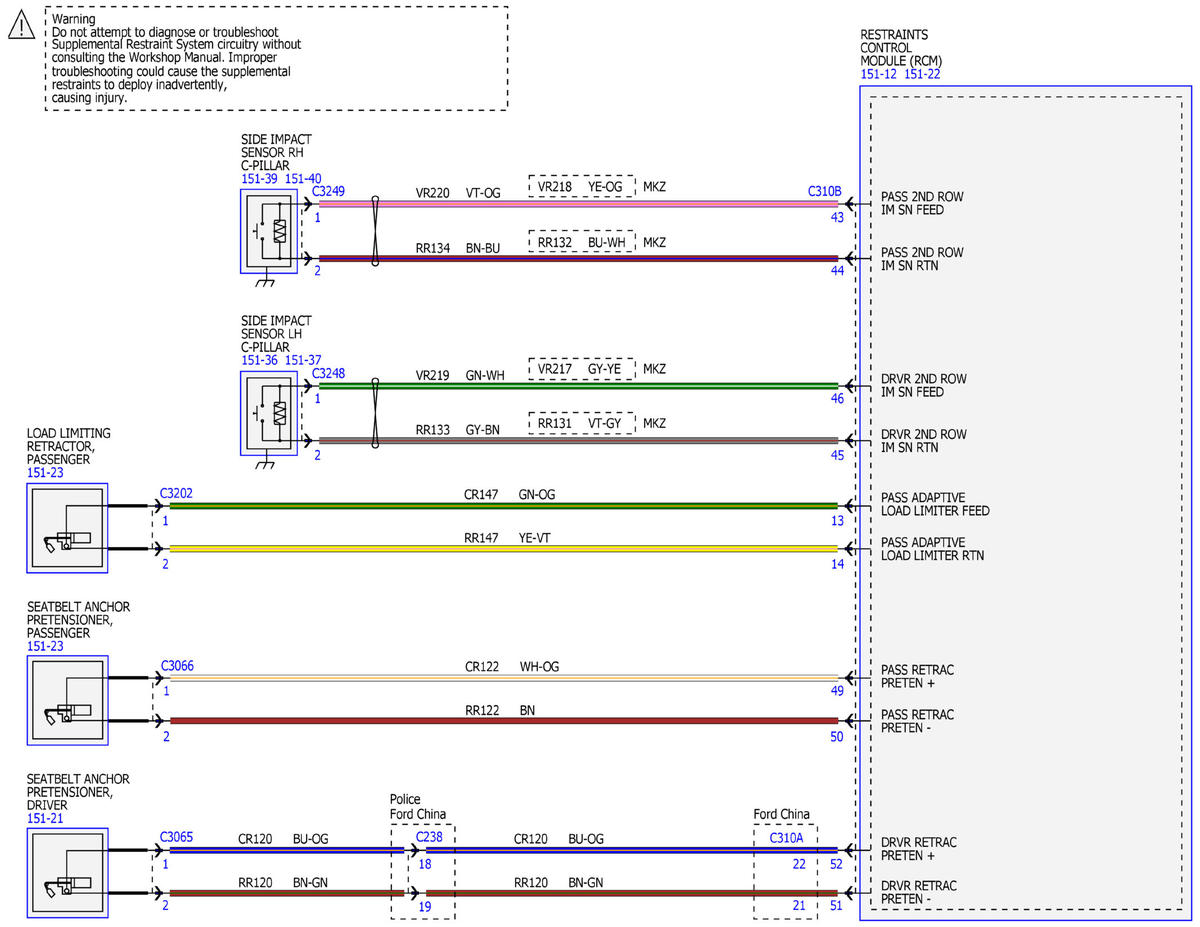

Fig 2: Supplemental Restraint System Wiring Diagram (2 Of 10)
GFDWR73011Courtesy of FORD MOTOR COMPANY
Fig 3: Supplemental Restraint System Wiring Diagram (3 Of 10)
GFDWR73012Courtesy of FORD MOTOR COMPANY

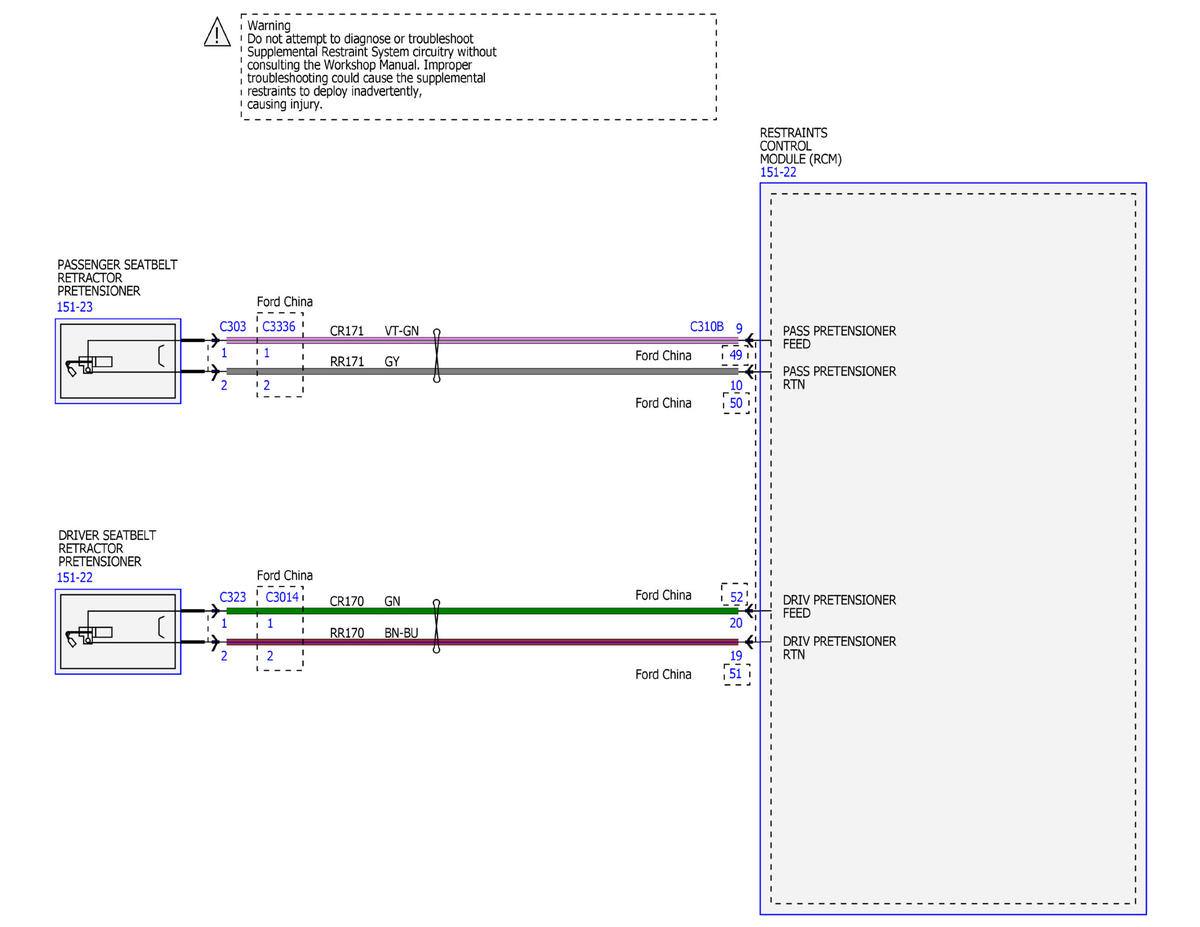

Fig 4: Supplemental Restraint System Wiring Diagram (4 Of 10)
GFDWR73013Courtesy of FORD MOTOR COMPANY

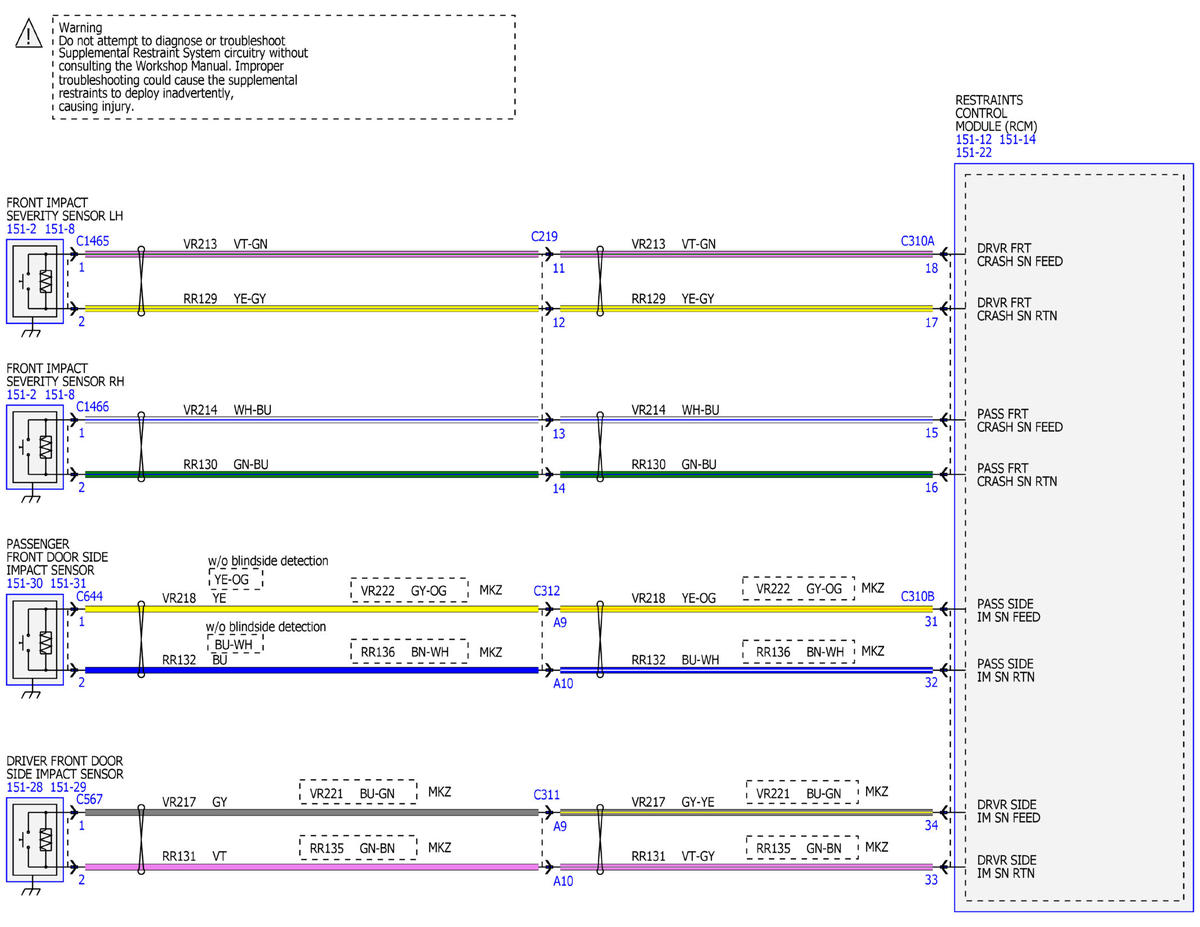

Fig 5: Supplemental Restraint System Wiring Diagram (5 Of 10)
GFDWR73014Courtesy of FORD MOTOR COMPANY

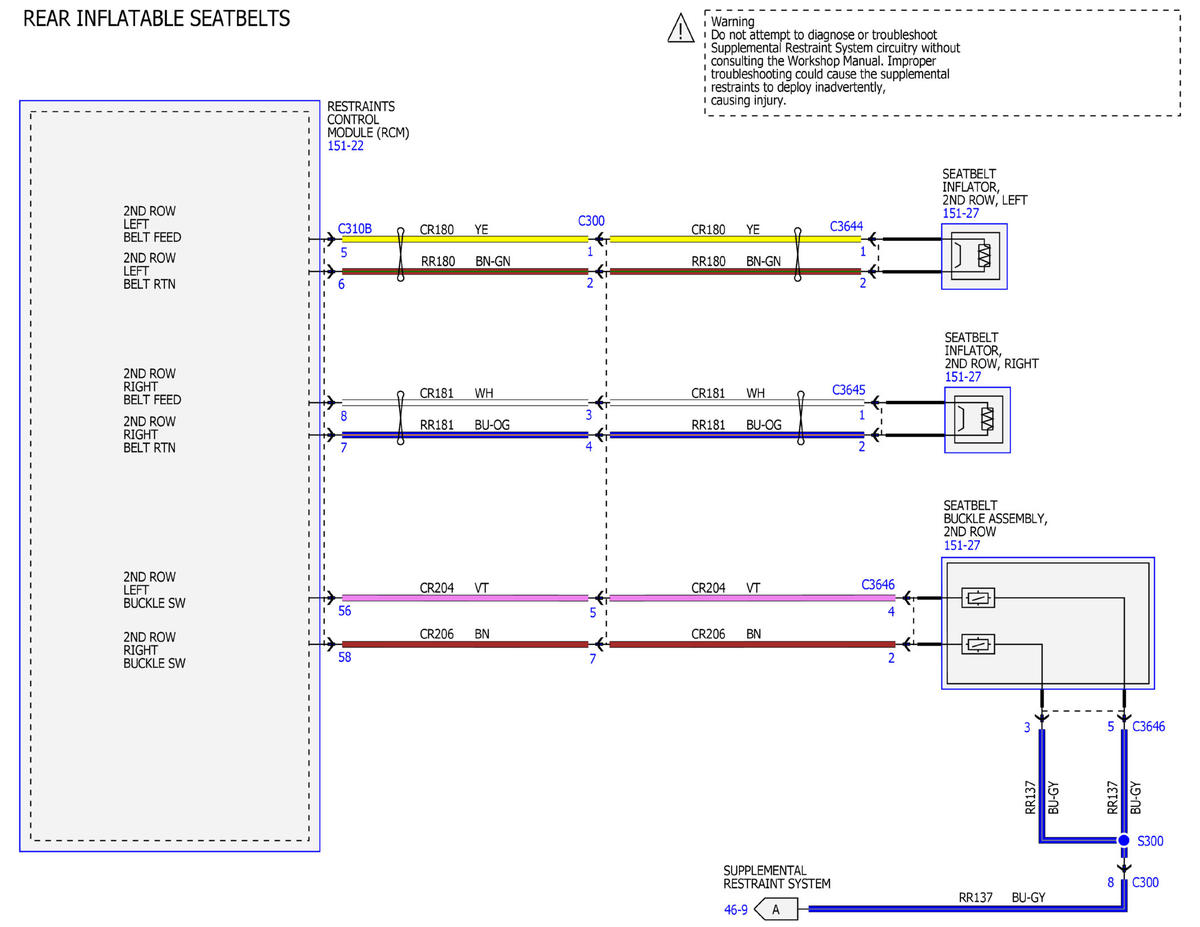

Fig 6: Supplemental Restraint System Wiring Diagram (6 Of 10)
GFDWR73015Courtesy of FORD MOTOR COMPANY
Fig 7: Supplemental Restraint System Wiring Diagram (7 Of 10)
GFDWR73016Courtesy of FORD MOTOR COMPANY

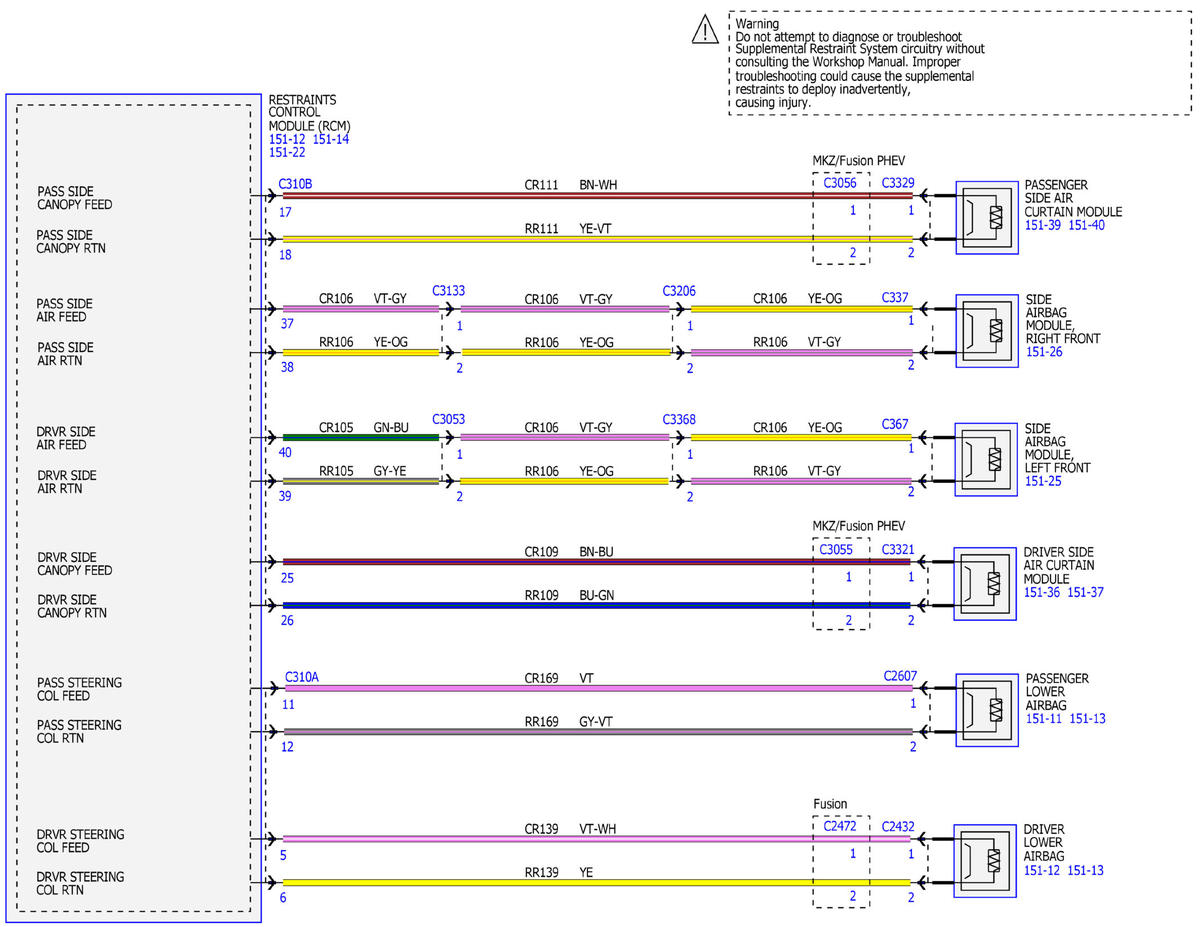

Fig 8: Supplemental Restraint System Wiring Diagram (8 Of 10)
GFDWR73017Courtesy of FORD MOTOR COMPANY

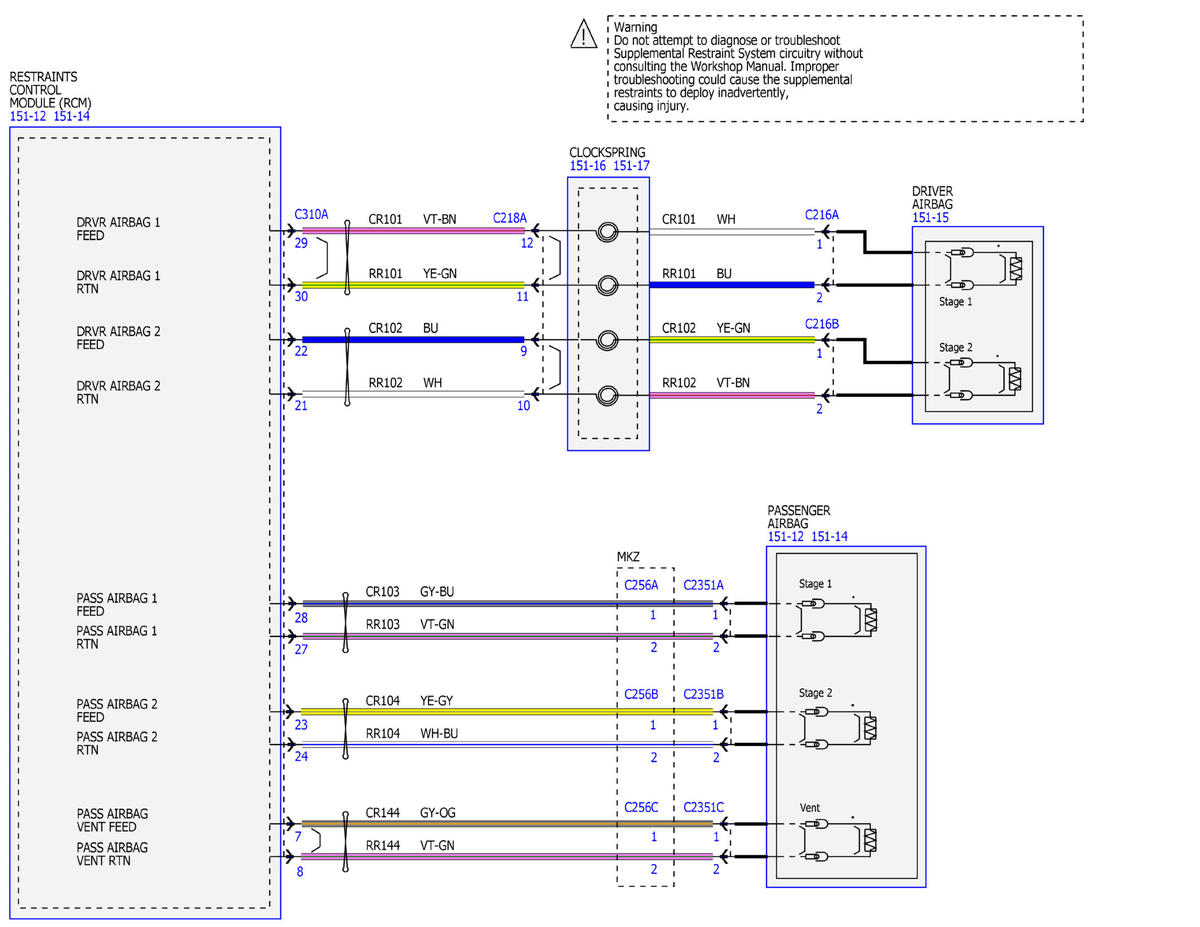

Fig 9: Supplemental Restraint System Wiring Diagram (9 Of 10)
GFDWR73018Courtesy of FORD MOTOR COMPANY

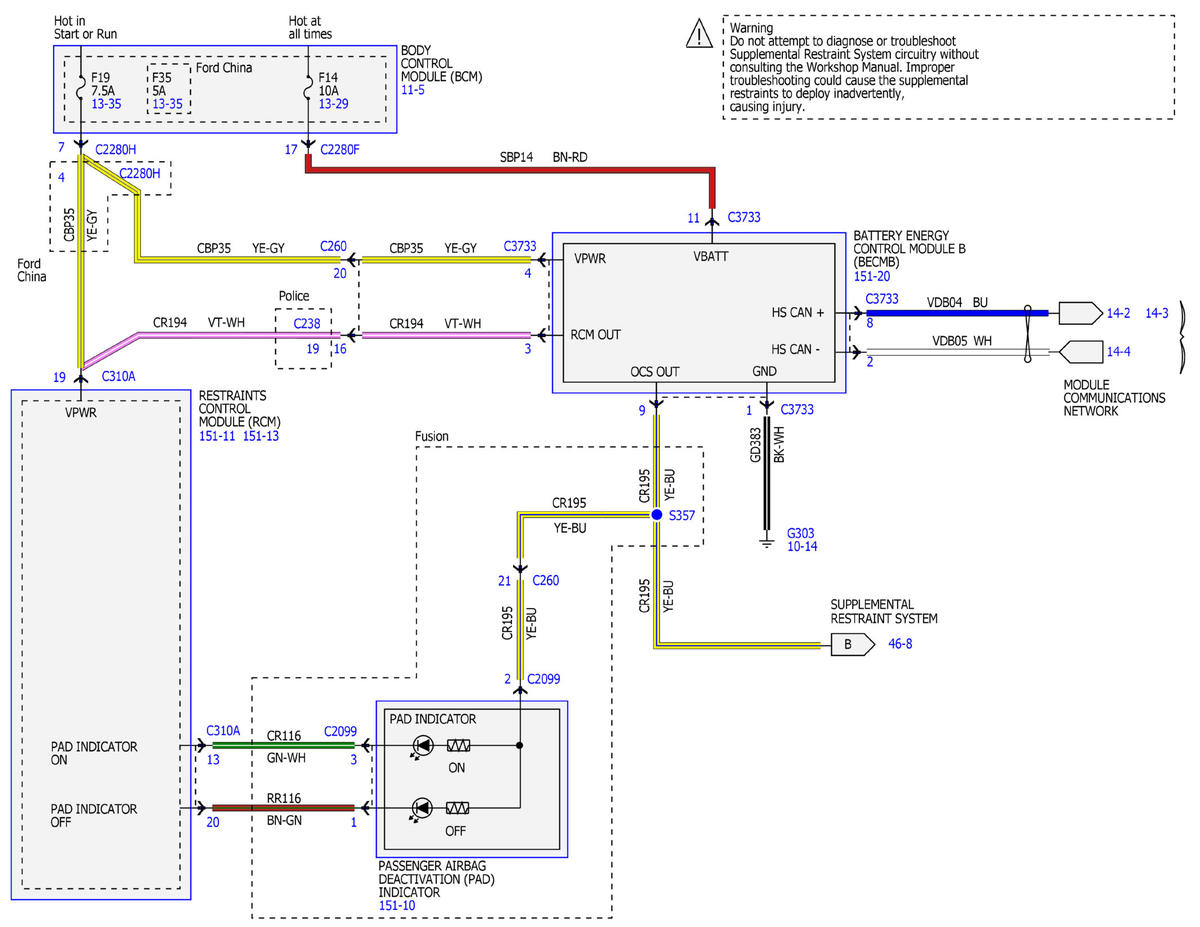

Fig 10: Supplemental Restraint System Wiring Diagram (10 Of 10)
GFDWR73019Courtesy of FORD MOTOR COMPANY
