Fusion Energi Titanium
>>
Repair and Diagnosis
>>
Electrical
>>
Wiring Diagrams
>>
OEM Wiring Diagrams (Hybrid/ENERGI)
>>
Starting System
Starting System

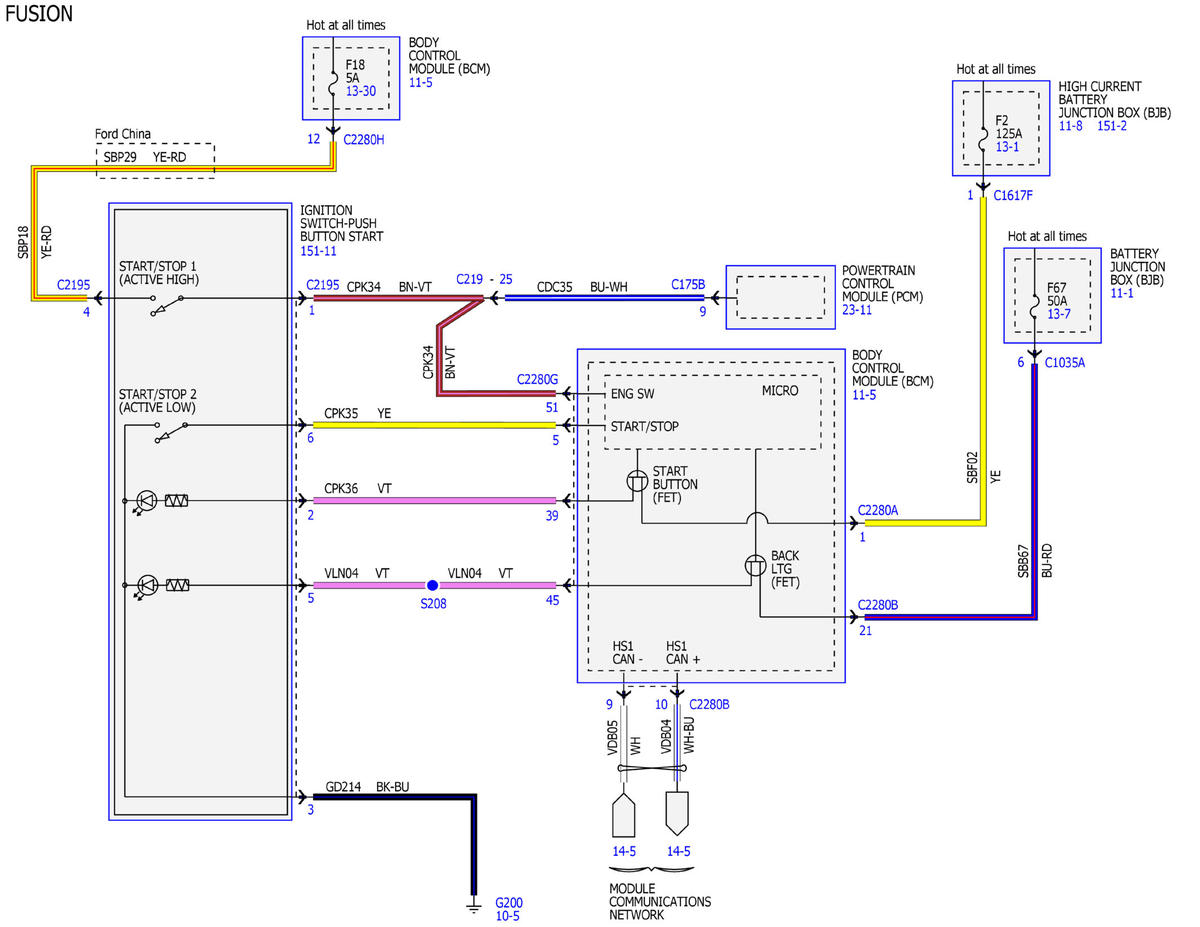

Fig 1: Starting System Wiring Diagram (1 Of 2)
Courtesy of FORD MOTOR COMPANY
Fig 2: Starting System Wiring Diagram (2 Of 2)
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
