Shift Interlock

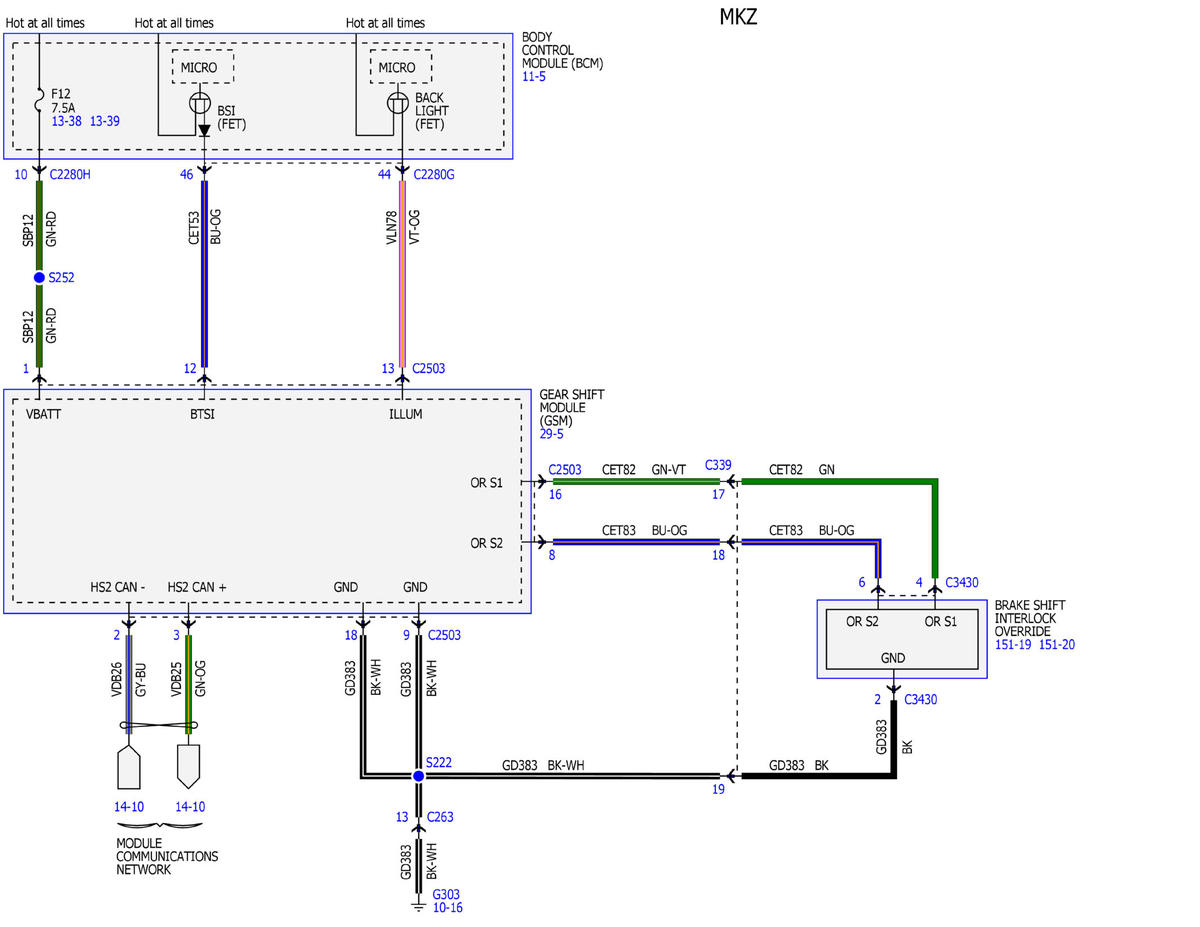

Fig 1: Shift Interlock Wiring Diagram (1 Of 4)
GFDWR73004Courtesy of FORD MOTOR COMPANY

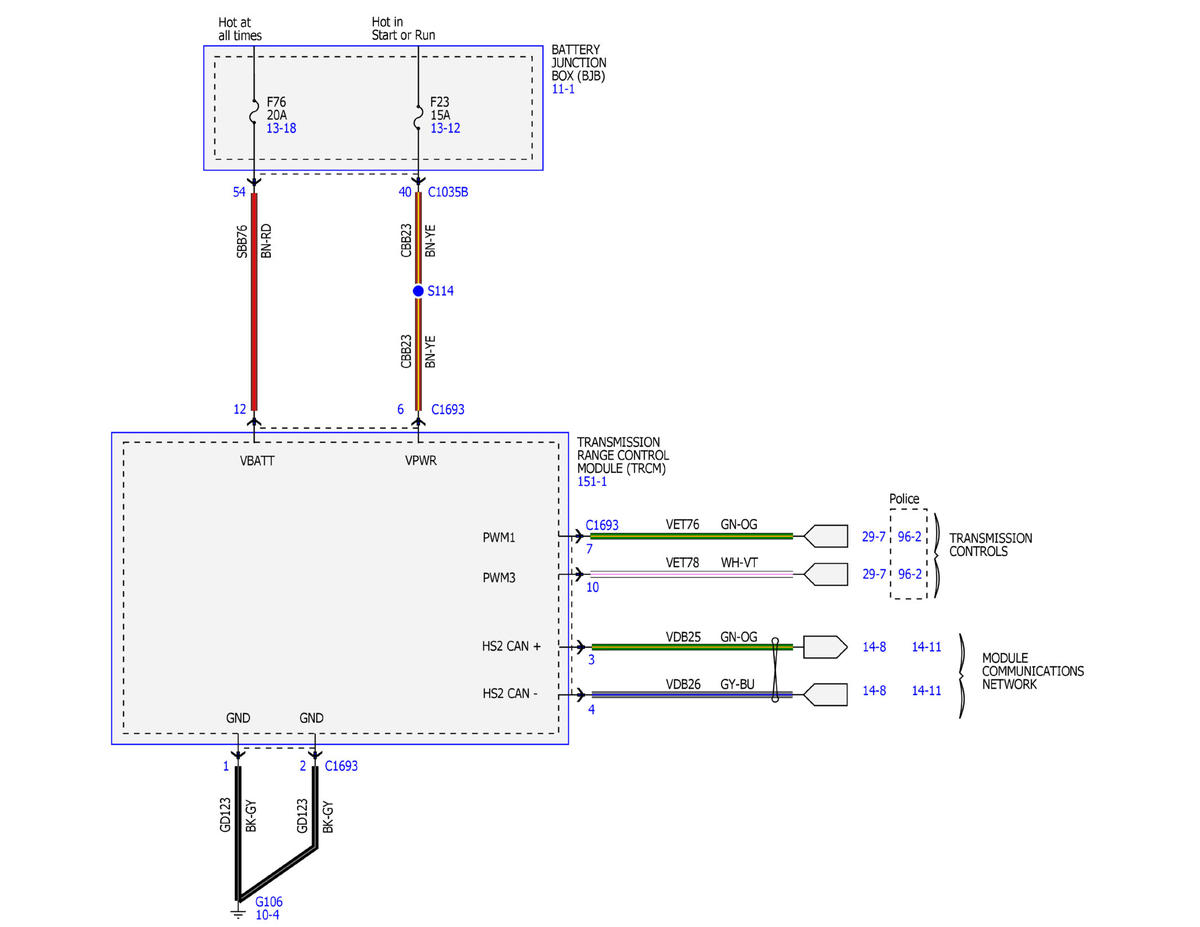

Fig 2: Shift Interlock Wiring Diagram (2 Of 4)
GFDWR73005Courtesy of FORD MOTOR COMPANY

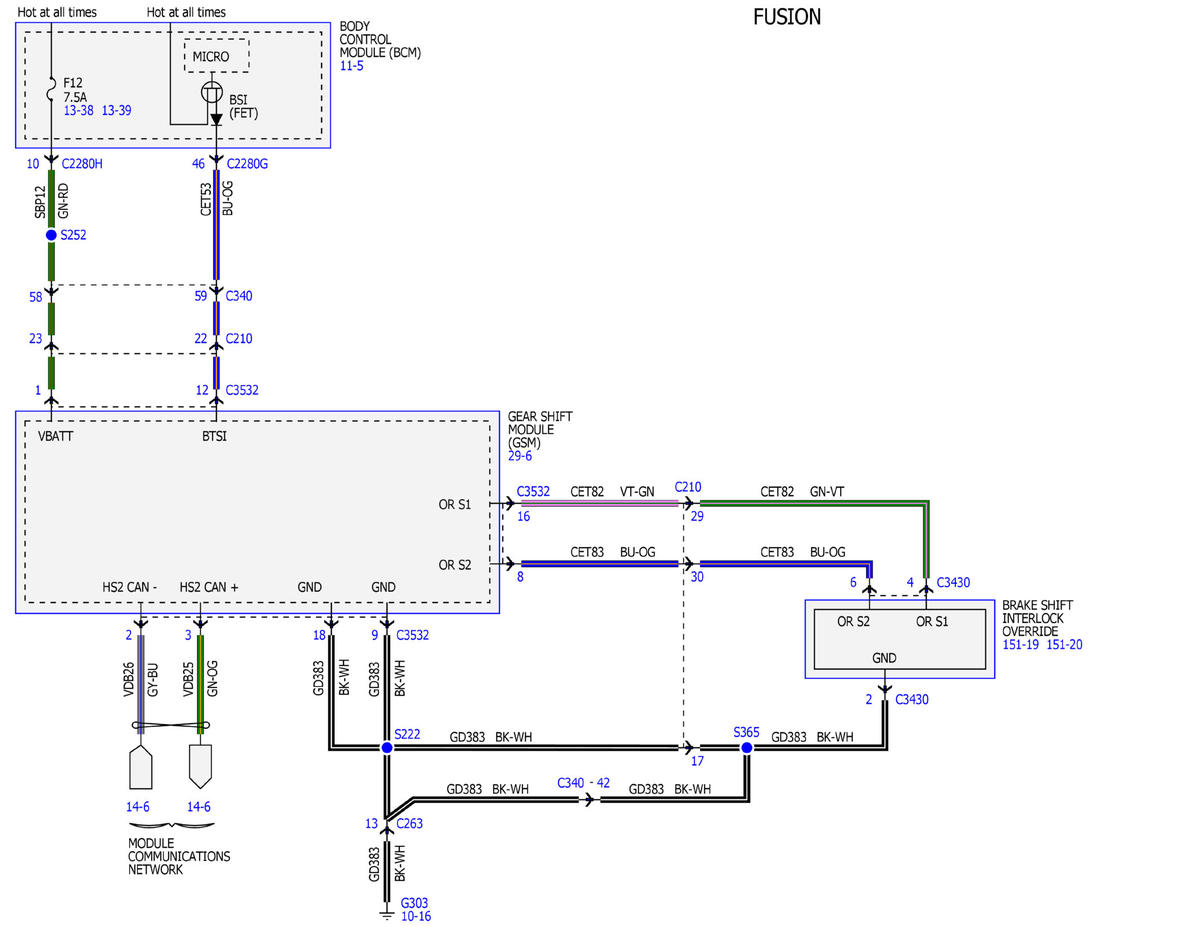

Fig 3: Shift Interlock Wiring Diagram (3 Of 4)
GFDWR73006Courtesy of FORD MOTOR COMPANY

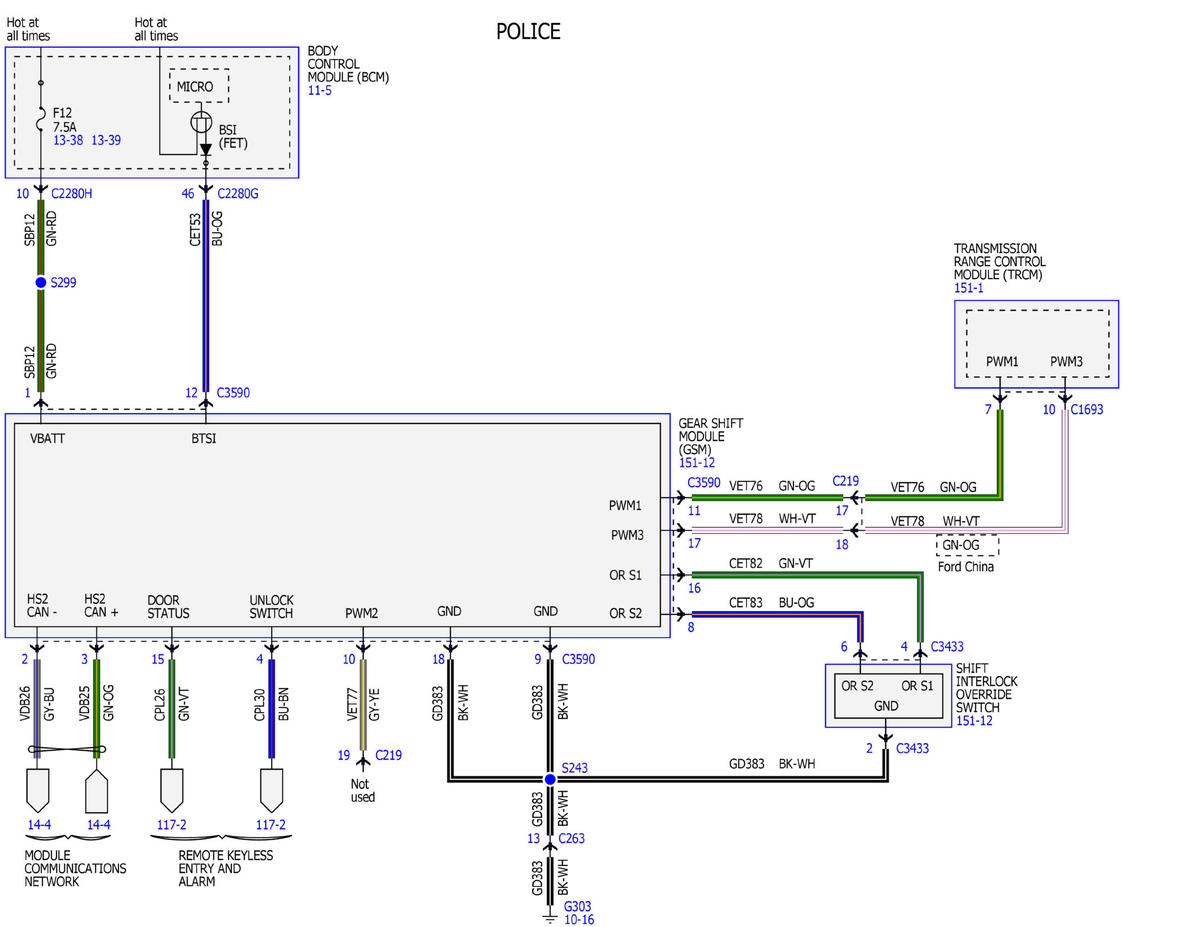

Fig 4: Shift Interlock Wiring Diagram (4 Of 4)
GFDWR73007Courtesy of FORD MOTOR COMPANY
