Roof Opening Panel

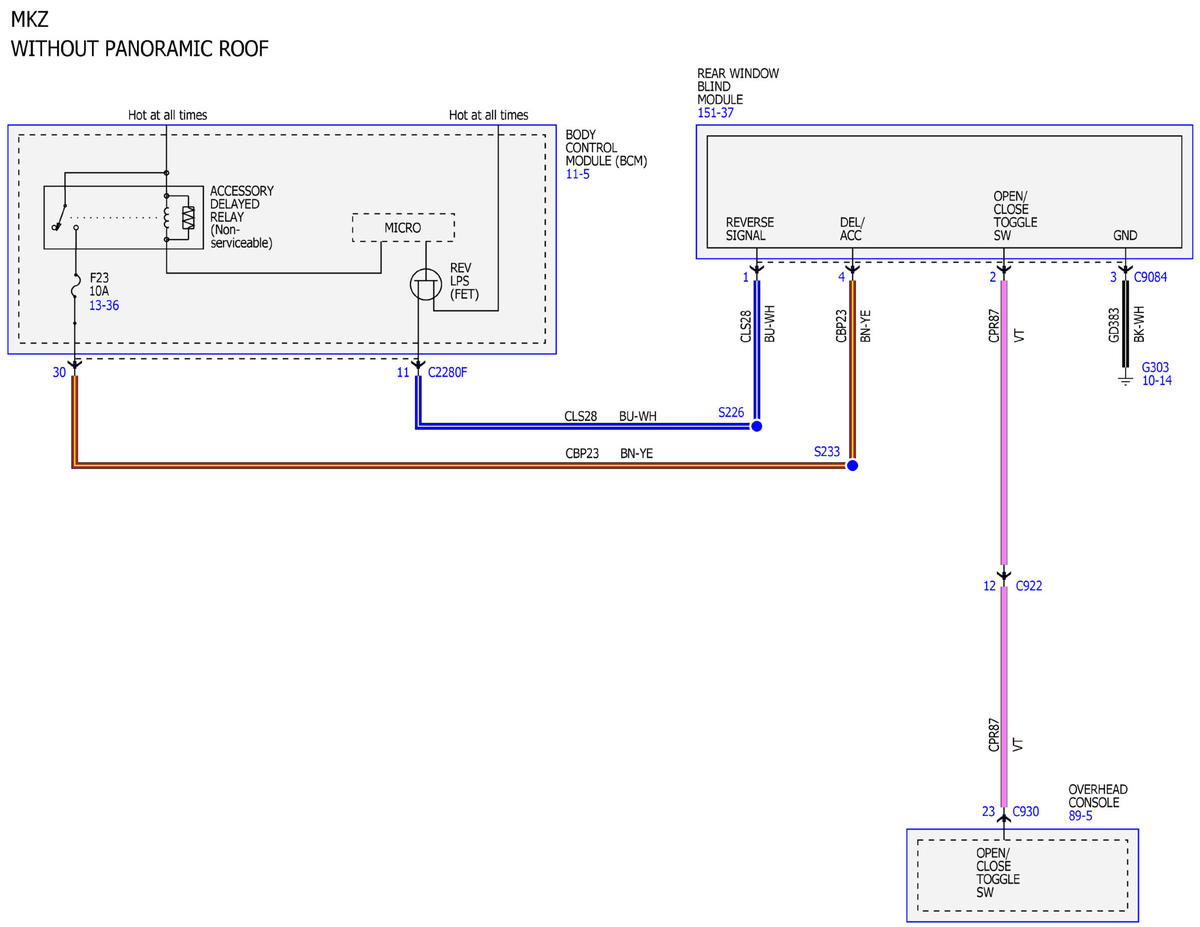

Fig 1: Roof Opening Panel Wiring Diagram (1 Of 4)
GFDWR73000Courtesy of FORD MOTOR COMPANY

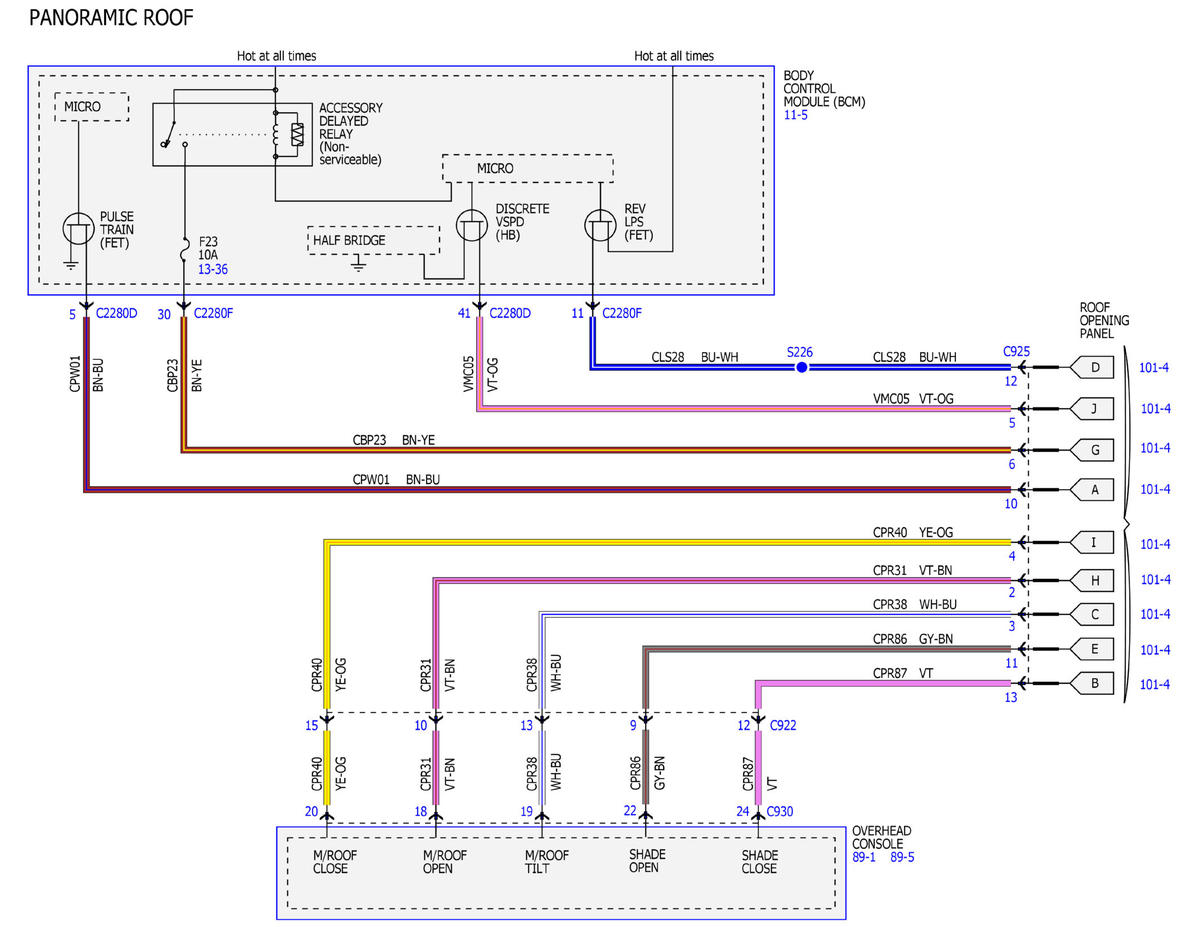

Fig 2: Roof Opening Panel Wiring Diagram (2 Of 4)
GFDWR73001Courtesy of FORD MOTOR COMPANY

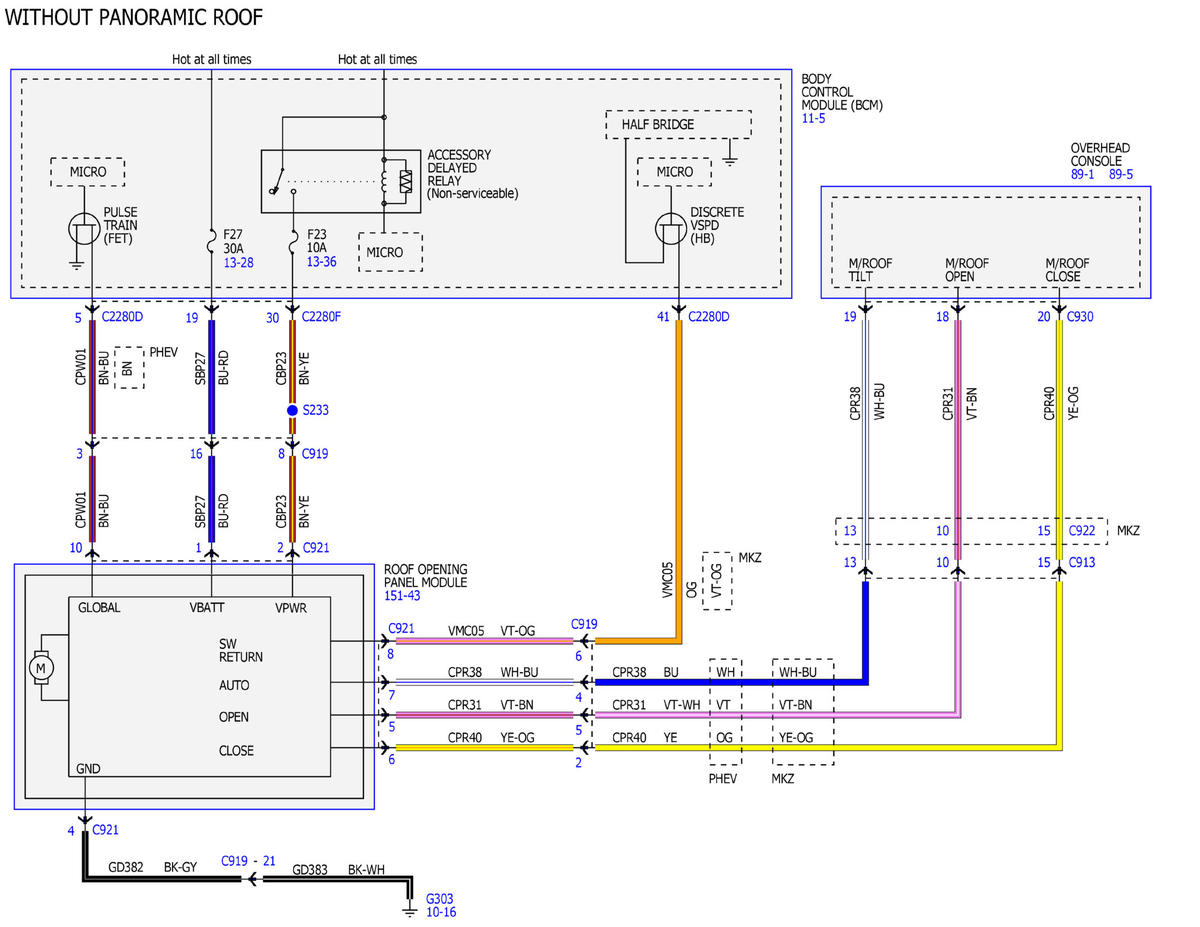

Fig 3: Roof Opening Panel Wiring Diagram (3 Of 4)
GFDWR73002Courtesy of FORD MOTOR COMPANY

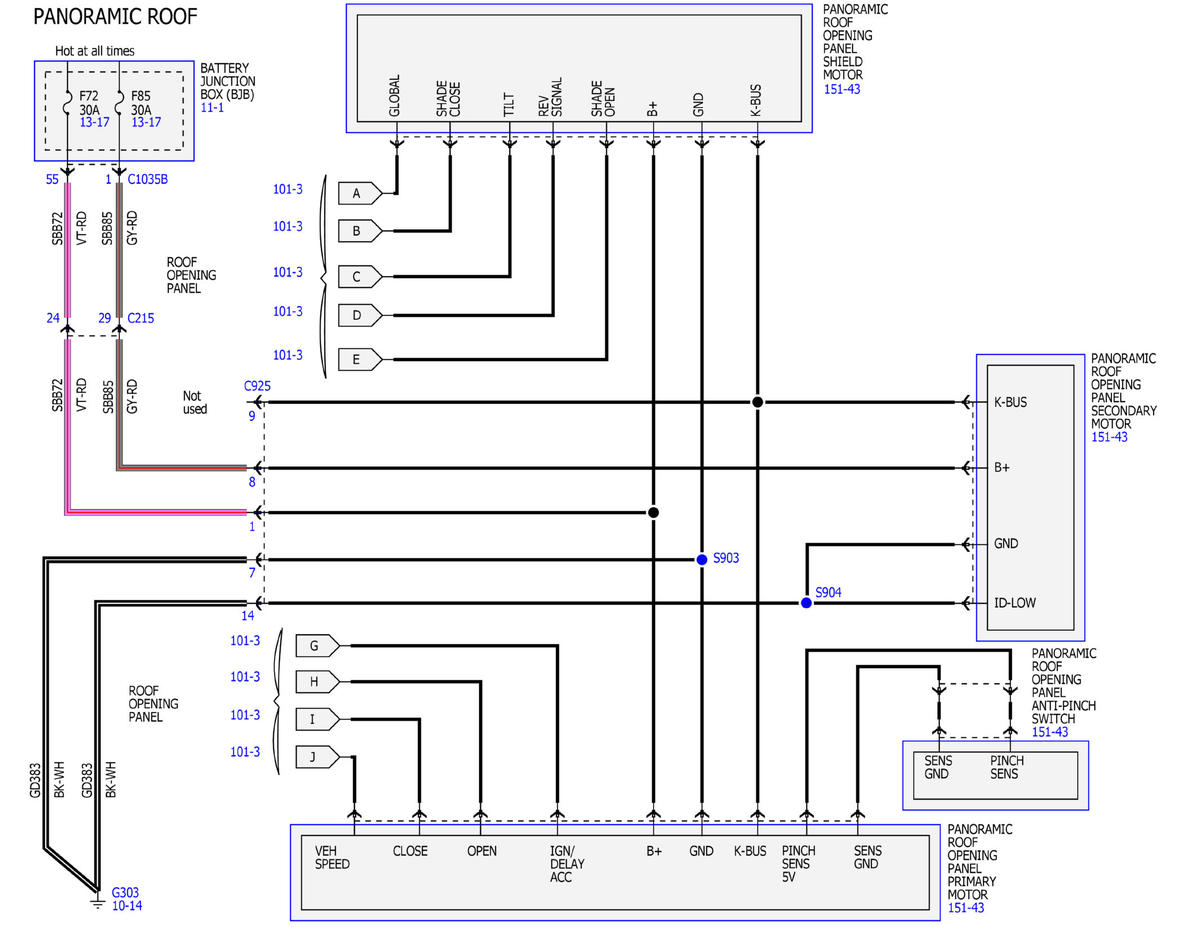

Fig 4: Roof Opening Panel Wiring Diagram (4 Of 4)
GFDWR73003Courtesy of FORD MOTOR COMPANY
