Power Sunshade

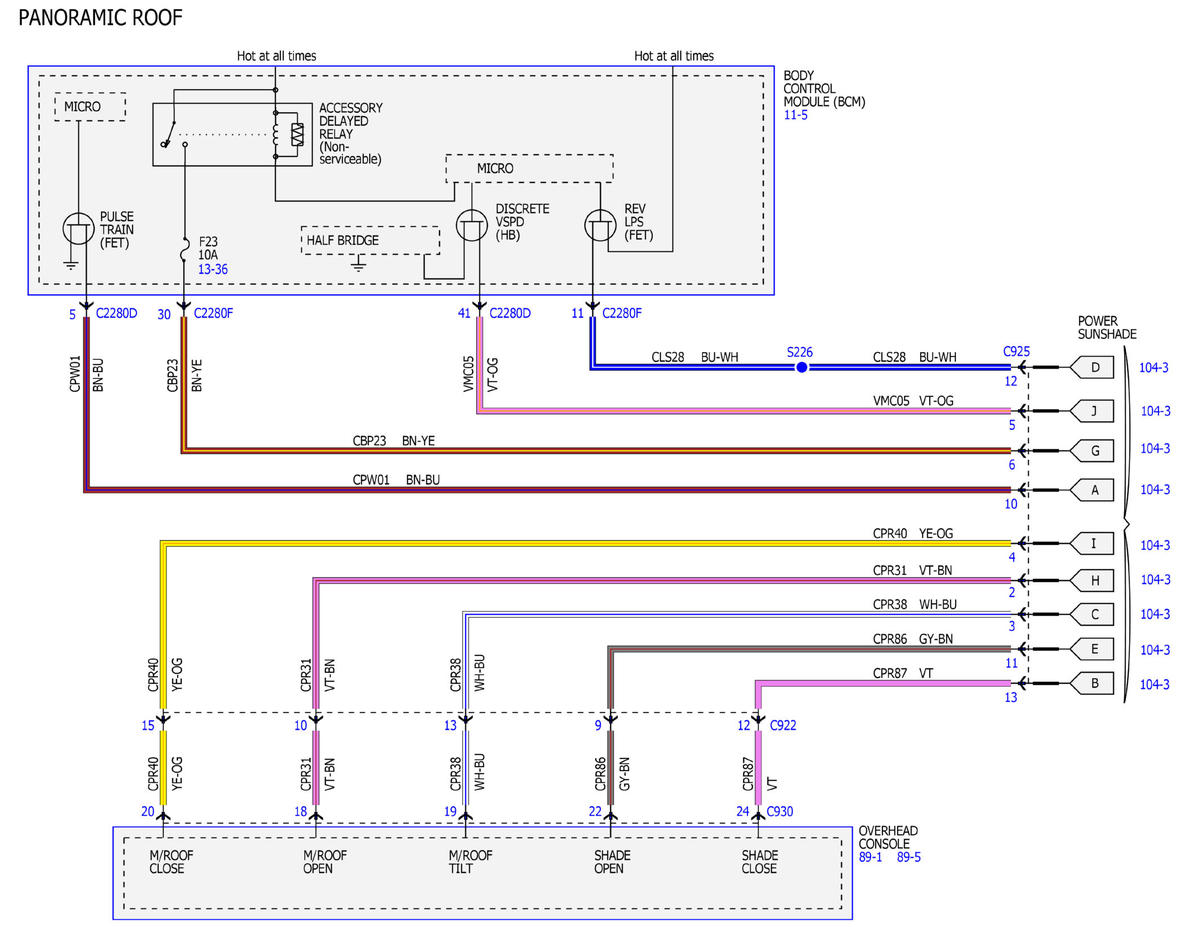

Fig 1: Power Sunshade Wiring Diagram (1 Of 3)
GFDWR72969Courtesy of FORD MOTOR COMPANY

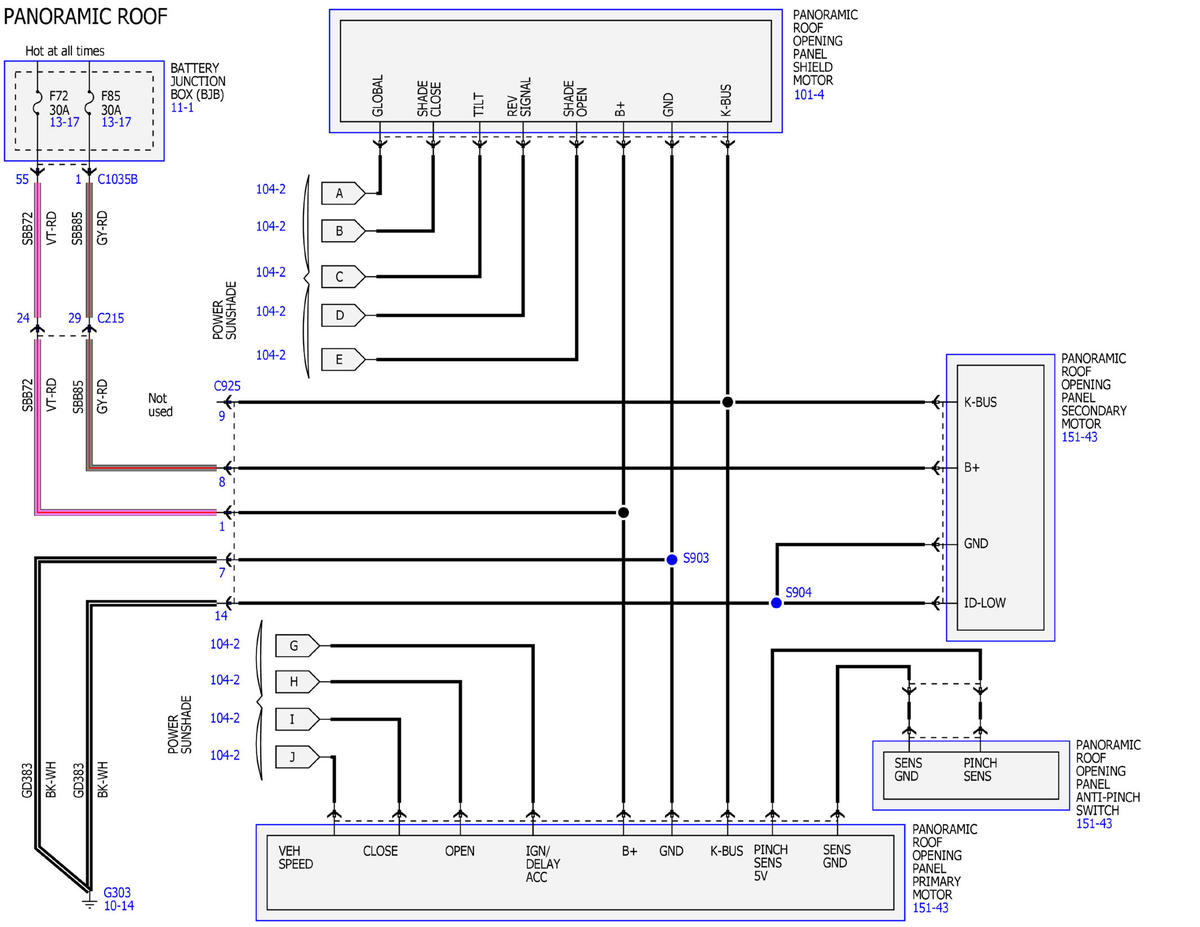

Fig 2: Power Sunshade Wiring Diagram (2 Of 3)
GFDWR72970Courtesy of FORD MOTOR COMPANY

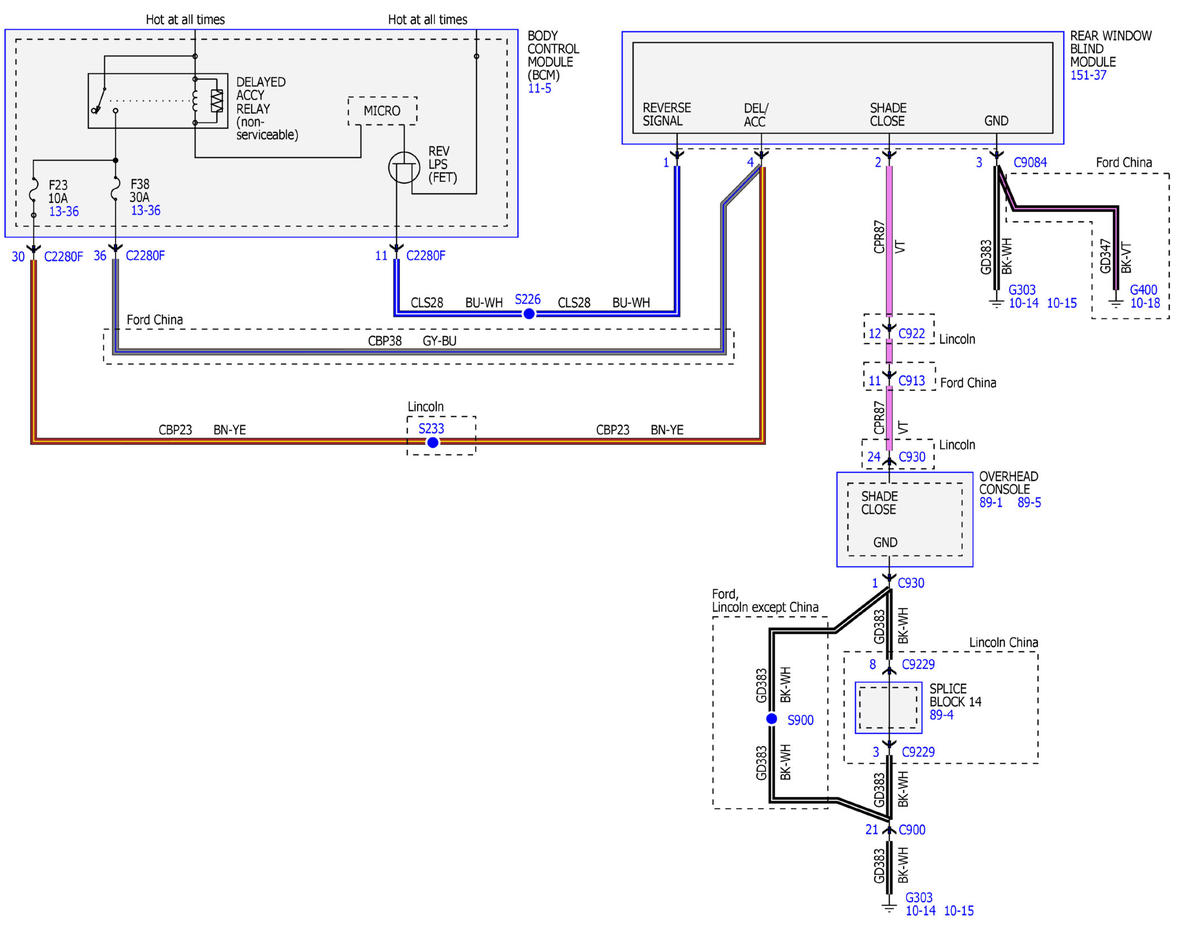

Fig 3: Power Sunshade Wiring Diagram (3 Of 3)
GFDWR72971Courtesy of FORD MOTOR COMPANY
