Power Distribution/BCM

Fig 1: Power Distribution/BCM Wiring Diagram (1 Of 49)

GFDWR72906

Courtesy of FORD MOTOR COMPANY

Fig 2: Power Distribution/BCM Wiring Diagram (2 Of 49)

GFDWR72907

Courtesy of FORD MOTOR COMPANY

Fig 3: Power Distribution/BCM Wiring Diagram (3 Of 49)

GFDWR72908

Courtesy of FORD MOTOR COMPANY

Fig 4: Power Distribution/BCM Wiring Diagram (4 Of 49)

GFDWR72909

Courtesy of FORD MOTOR COMPANY

Fig 5: Power Distribution/BCM Wiring Diagram (5 Of 49)

GFDWR72910

Courtesy of FORD MOTOR COMPANY

Fig 6: Power Distribution/BCM Wiring Diagram (6 Of 49)

GFDWR72911

Courtesy of FORD MOTOR COMPANY

Fig 7: Power Distribution/BCM Wiring Diagram (7 Of 49)

GFDWR72912

Courtesy of FORD MOTOR COMPANY

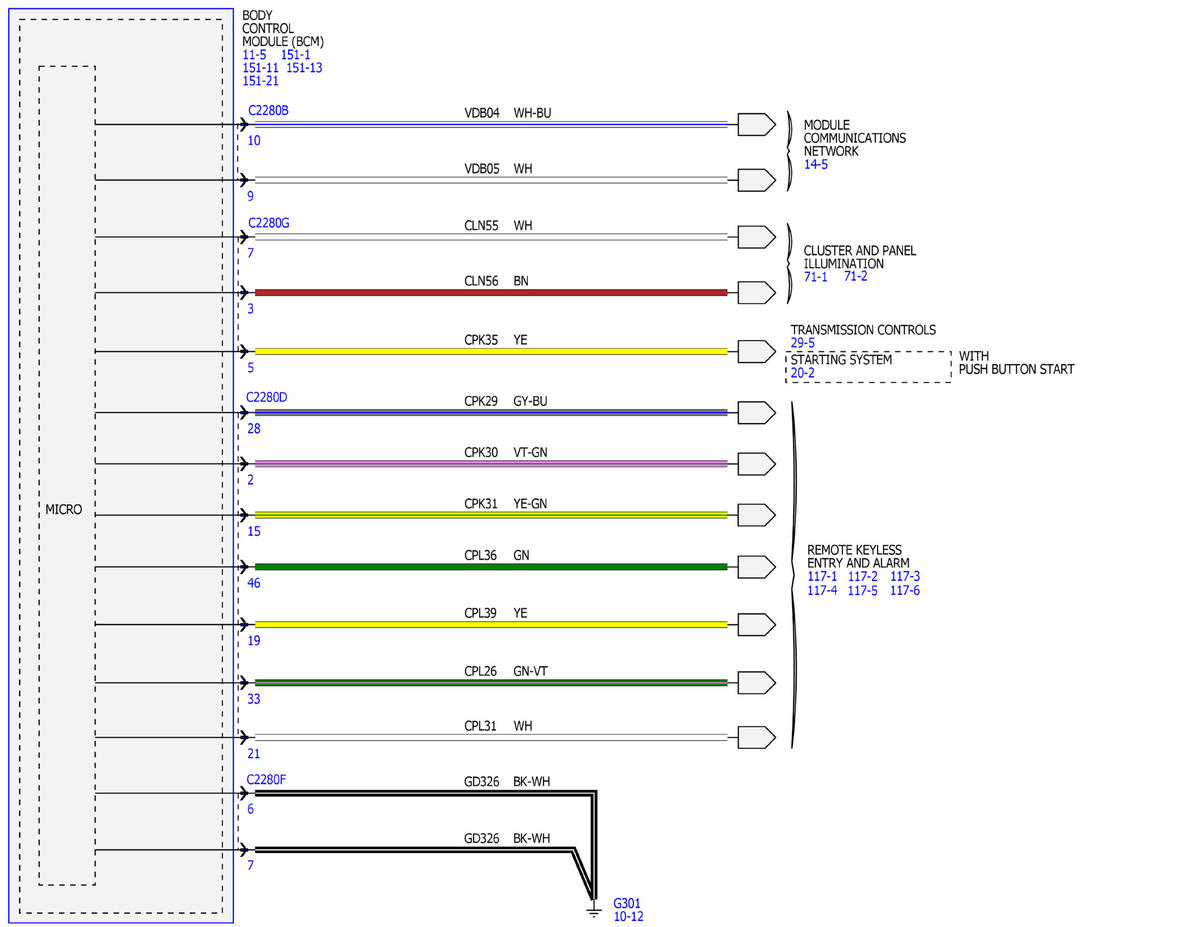

Fig 8: Power Distribution/BCM Wiring Diagram (8 Of 49)

GFDWR72913

Courtesy of FORD MOTOR COMPANY

Fig 9: Power Distribution/BCM Wiring Diagram (9 Of 49)

GFDWR72914

Courtesy of FORD MOTOR COMPANY

Fig 10: Power Distribution/BCM Wiring Diagram (10 Of 49)

GFDWR72915

Courtesy of FORD MOTOR COMPANY

Fig 11: Power Distribution/BCM Wiring Diagram (11 Of 49)

GFDWR72916

Courtesy of FORD MOTOR COMPANY

Fig 12: Power Distribution/BCM Wiring Diagram (12 Of 49)

GFDWR72917

Courtesy of FORD MOTOR COMPANY

Fig 13: Power Distribution/BCM Wiring Diagram (13 Of 49)

GFDWR72918

Courtesy of FORD MOTOR COMPANY

Fig 14: Power Distribution/BCM Wiring Diagram (14 Of 49)

GFDWR72919

Courtesy of FORD MOTOR COMPANY

Fig 15: Power Distribution/BCM Wiring Diagram (15 Of 49)

GFDWR72920

Courtesy of FORD MOTOR COMPANY

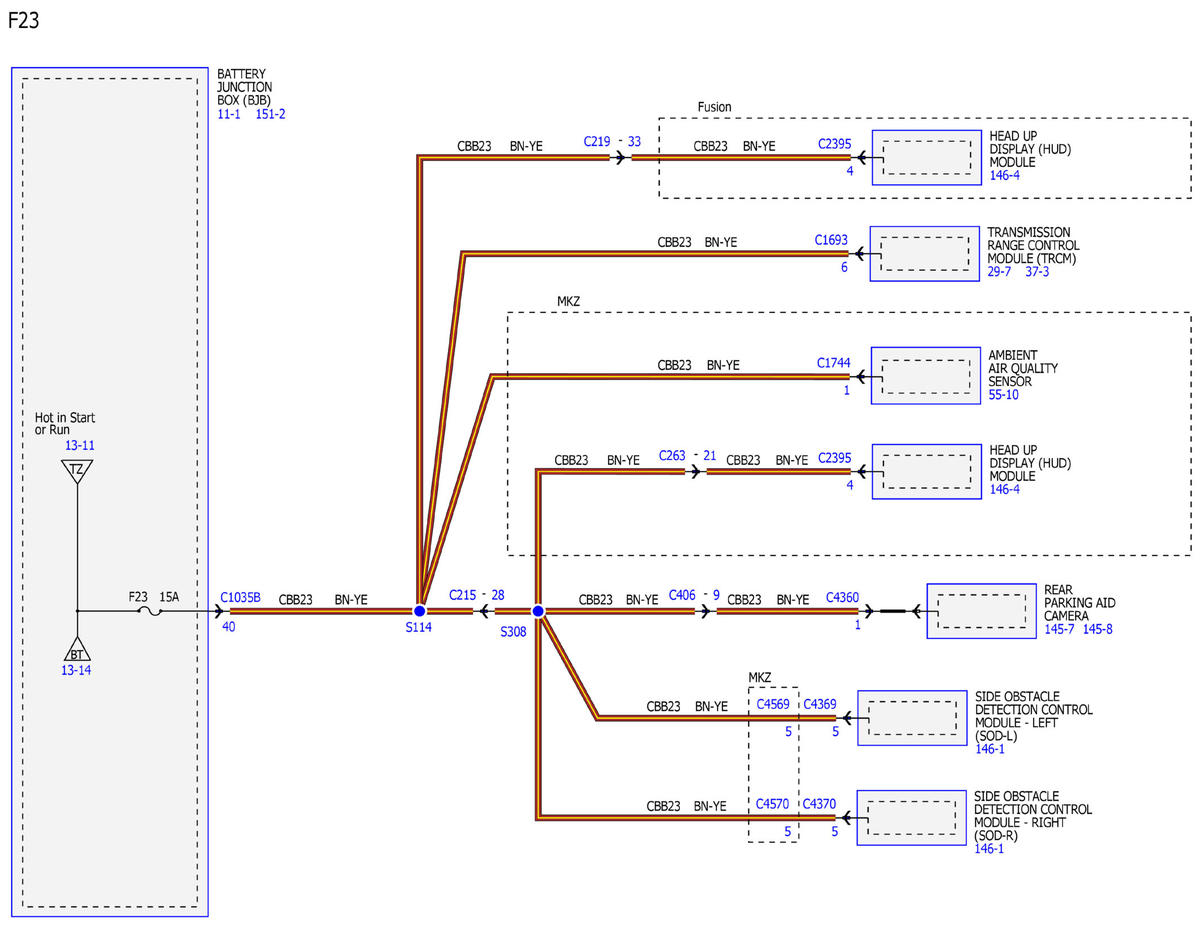

Fig 16: Power Distribution/BCM Wiring Diagram (16 Of 49)

GFDWR72921

Courtesy of FORD MOTOR COMPANY

Fig 17: Power Distribution/BCM Wiring Diagram (17 Of 49)

GFDWR72922

Courtesy of FORD MOTOR COMPANY

Fig 18: Power Distribution/BCM Wiring Diagram (18 Of 49)

GFDWR72923

Courtesy of FORD MOTOR COMPANY

Fig 19: Power Distribution/BCM Wiring Diagram (19 Of 49)

GFDWR72924

Courtesy of FORD MOTOR COMPANY

Fig 20: Power Distribution/BCM Wiring Diagram (20 Of 49)

GFDWR72925

Courtesy of FORD MOTOR COMPANY

Fig 21: Power Distribution/BCM Wiring Diagram (21 Of 49)

GFDWR72926

Courtesy of FORD MOTOR COMPANY

Fig 22: Power Distribution/BCM Wiring Diagram (22 Of 49)

GFDWR72927

Courtesy of FORD MOTOR COMPANY

Fig 23: Power Distribution/BCM Wiring Diagram (23 Of 49)

GFDWR72928

Courtesy of FORD MOTOR COMPANY

Fig 24: Power Distribution/BCM Wiring Diagram (24 Of 49)

GFDWR72929

Courtesy of FORD MOTOR COMPANY

Fig 25: Power Distribution/BCM Wiring Diagram (25 Of 49)

GFDWR72930

Courtesy of FORD MOTOR COMPANY

Fig 26: Power Distribution/BCM Wiring Diagram (26 Of 49)

GFDWR72931

Courtesy of FORD MOTOR COMPANY

Fig 27: Power Distribution/BCM Wiring Diagram (27 Of 49)

GFDWR72932

Courtesy of FORD MOTOR COMPANY

Fig 28: Power Distribution/BCM Wiring Diagram (28 Of 49)

GFDWR72933

Courtesy of FORD MOTOR COMPANY

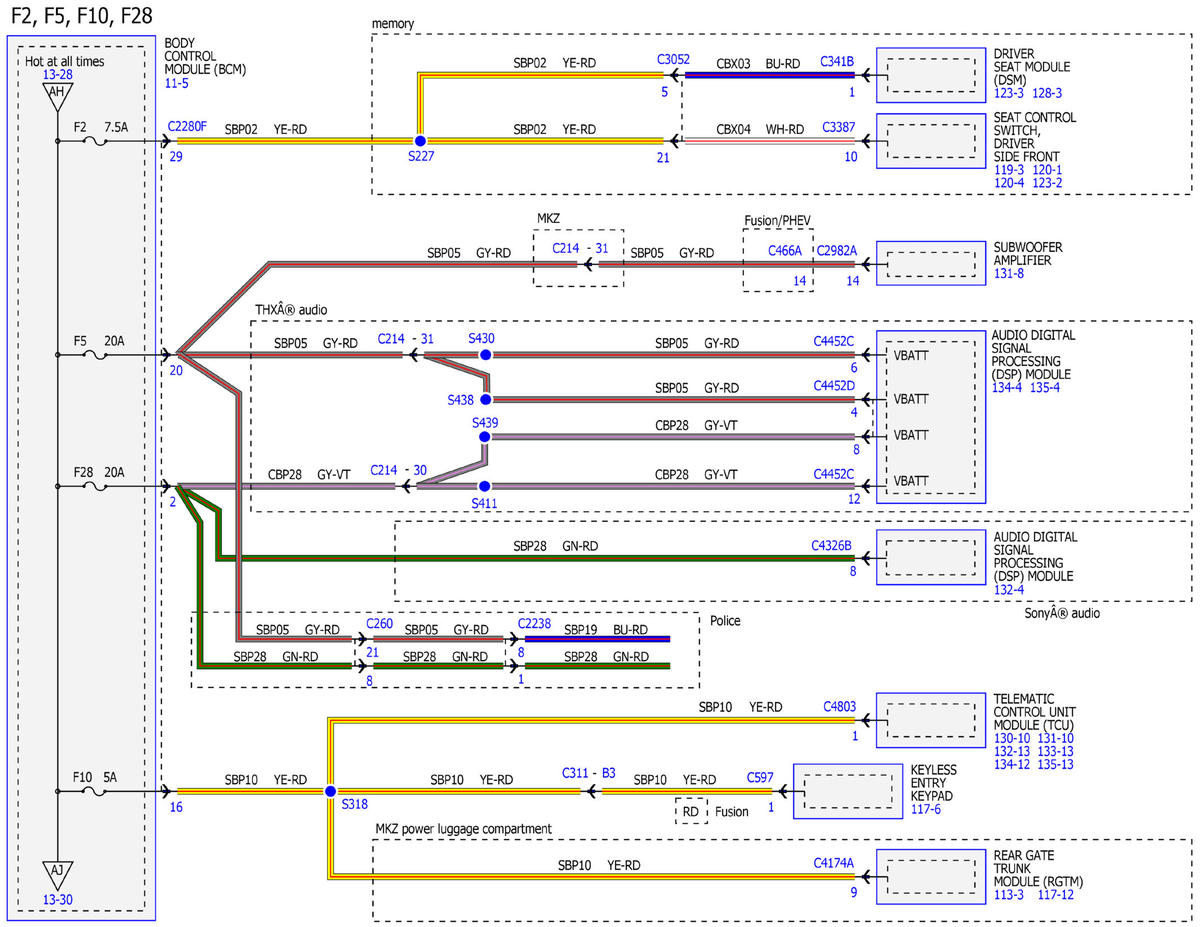

Fig 29: Power Distribution/BCM Wiring Diagram (29 Of 49)

GFDWR72934

Courtesy of FORD MOTOR COMPANY

Fig 30: Power Distribution/BCM Wiring Diagram (30 Of 49)

GFDWR72935

Courtesy of FORD MOTOR COMPANY

Fig 31: Power Distribution/BCM Wiring Diagram (31 Of 49)

GFDWR72936

Courtesy of FORD MOTOR COMPANY

Fig 32: Power Distribution/BCM Wiring Diagram (32 Of 49)

GFDWR72937

Courtesy of FORD MOTOR COMPANY

Fig 33: Power Distribution/BCM Wiring Diagram (33 Of 49)

GFDWR72938

Courtesy of FORD MOTOR COMPANY

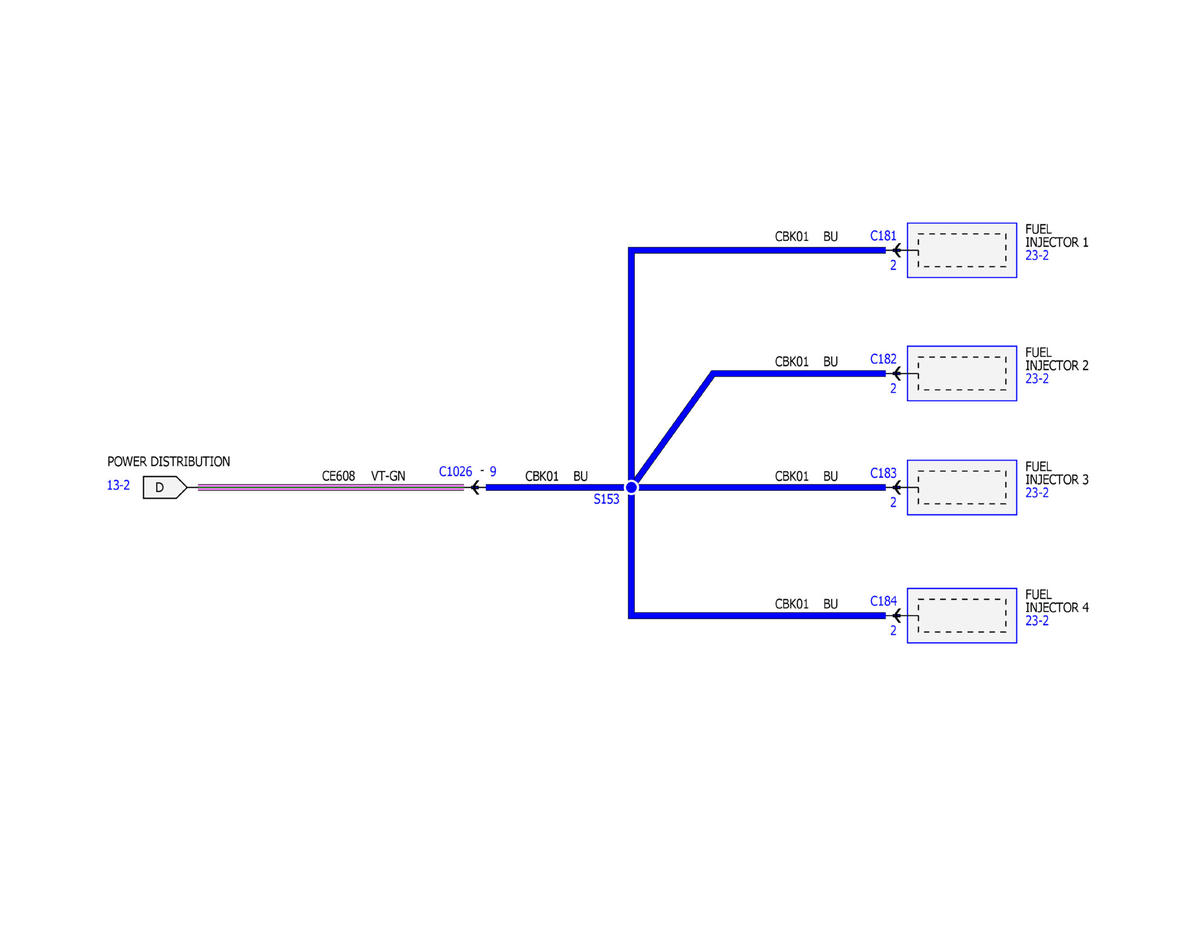

Fig 34: Power Distribution/BCM Wiring Diagram (34 Of 49)

GFDWR72939

Courtesy of FORD MOTOR COMPANY

Fig 35: Power Distribution/BCM Wiring Diagram (35 Of 49)

GFDWR72940

Courtesy of FORD MOTOR COMPANY

Fig 36: Power Distribution/BCM Wiring Diagram (36 Of 49)

GFDWR72941

Courtesy of FORD MOTOR COMPANY

Fig 37: Power Distribution/BCM Wiring Diagram (37 Of 49)

GFDWR72942

Courtesy of FORD MOTOR COMPANY

Fig 38: Power Distribution/BCM Wiring Diagram (38 Of 49)

GFDWR72943

Courtesy of FORD MOTOR COMPANY

Fig 39: Power Distribution/BCM Wiring Diagram (39 Of 49)

GFDWR72944

Courtesy of FORD MOTOR COMPANY

Fig 40: Power Distribution/BCM Wiring Diagram (40 Of 49)

GFDWR72945

Courtesy of FORD MOTOR COMPANY

Fig 41: Power Distribution/BCM Wiring Diagram (41 Of 49)

GFDWR72946

Courtesy of FORD MOTOR COMPANY

Fig 42: Power Distribution/BCM Wiring Diagram (42 Of 49)

GFDWR72947

Courtesy of FORD MOTOR COMPANY

Fig 43: Power Distribution/BCM Wiring Diagram (43 Of 49)

GFDWR72948

Courtesy of FORD MOTOR COMPANY

Fig 44: Power Distribution/BCM Wiring Diagram (44 Of 49)

GFDWR72949

Courtesy of FORD MOTOR COMPANY

Fig 45: Power Distribution/BCM Wiring Diagram (45 Of 49)

GFDWR72950

Courtesy of FORD MOTOR COMPANY

Fig 46: Power Distribution/BCM Wiring Diagram (46 Of 49)

GFDWR72951

Courtesy of FORD MOTOR COMPANY

Fig 47: Power Distribution/BCM Wiring Diagram (47 Of 49)

GFDWR72952

Courtesy of FORD MOTOR COMPANY

Fig 48: Power Distribution/BCM Wiring Diagram (48 Of 49)

GFDWR72953

Courtesy of FORD MOTOR COMPANY

Fig 49: Power Distribution/BCM Wiring Diagram (49 Of 49)

GFDWR72954

Courtesy of FORD MOTOR COMPANY
