Police Option

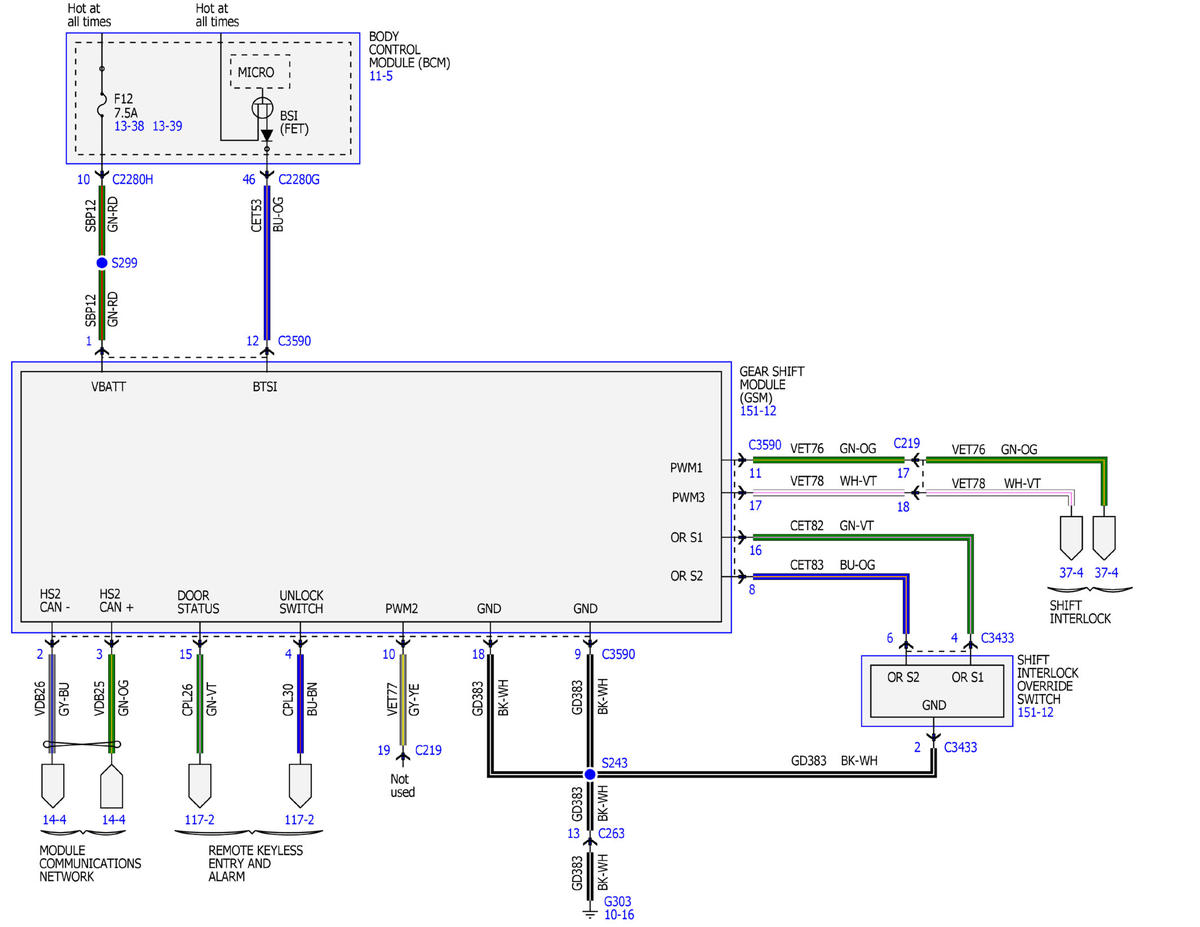

Fig 1: Police Option Wiring Diagram (1 Of 21)

GFDWR72885

Courtesy of FORD MOTOR COMPANY

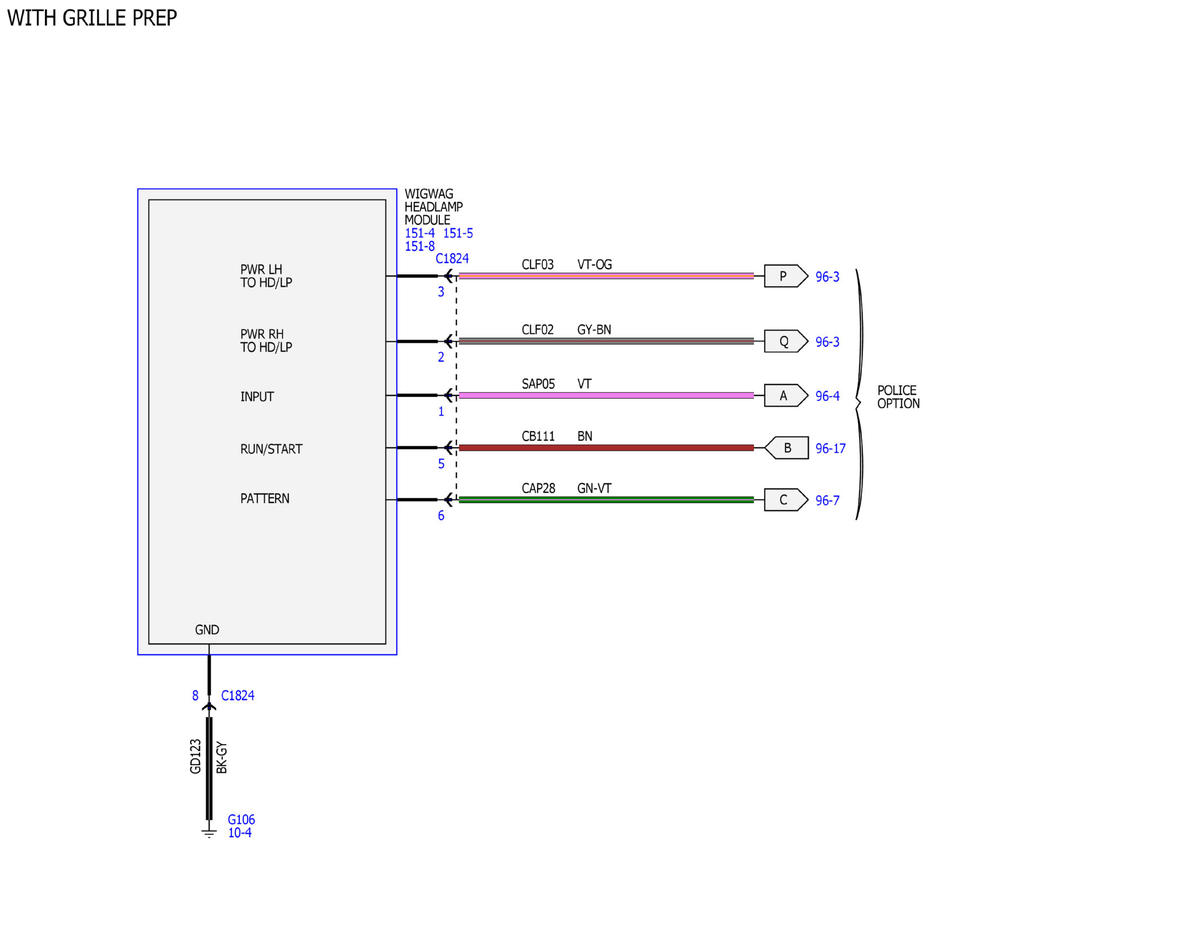

Fig 2: Police Option Wiring Diagram (2 Of 21)

GFDWR72886

Courtesy of FORD MOTOR COMPANY

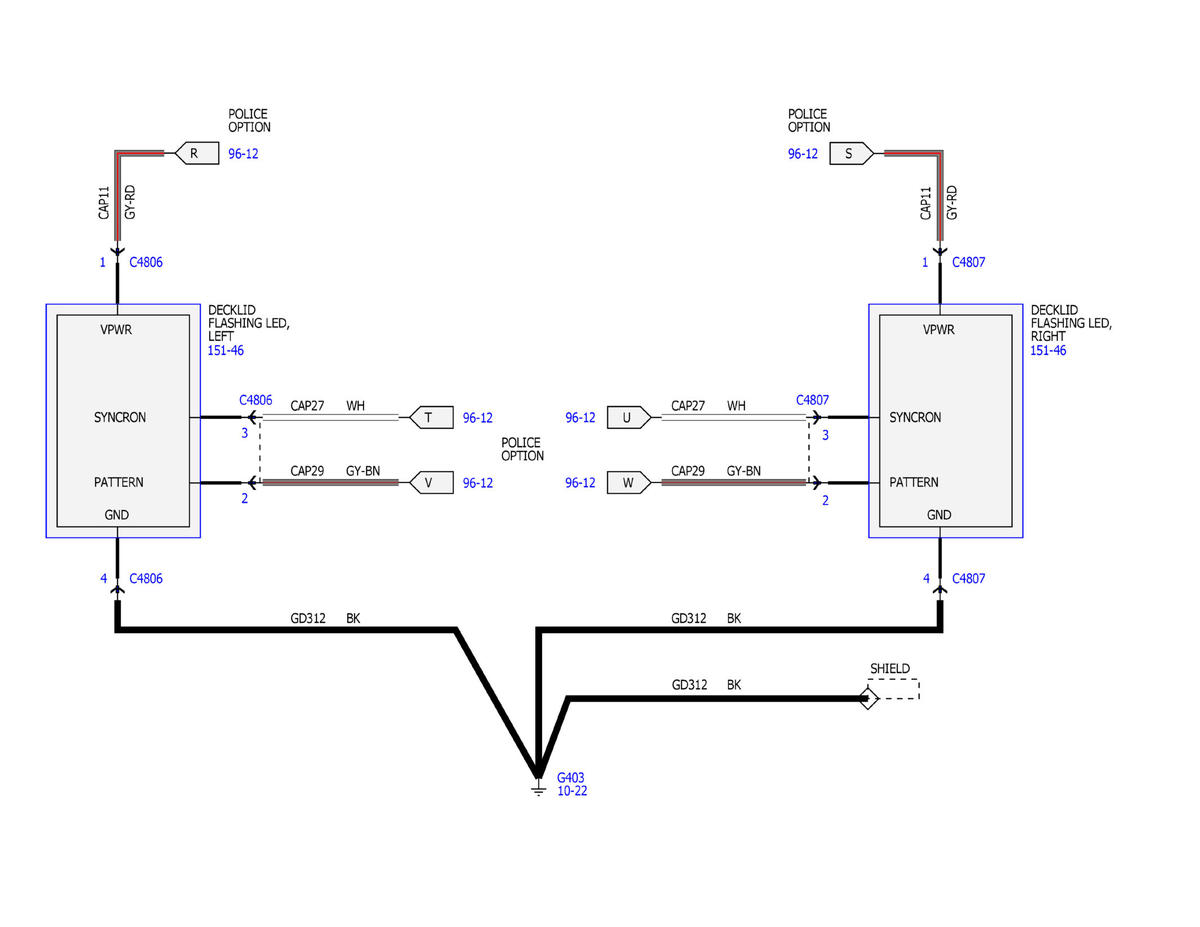

Fig 3: Police Option Wiring Diagram (3 Of 21)

GFDWR72887

Courtesy of FORD MOTOR COMPANY

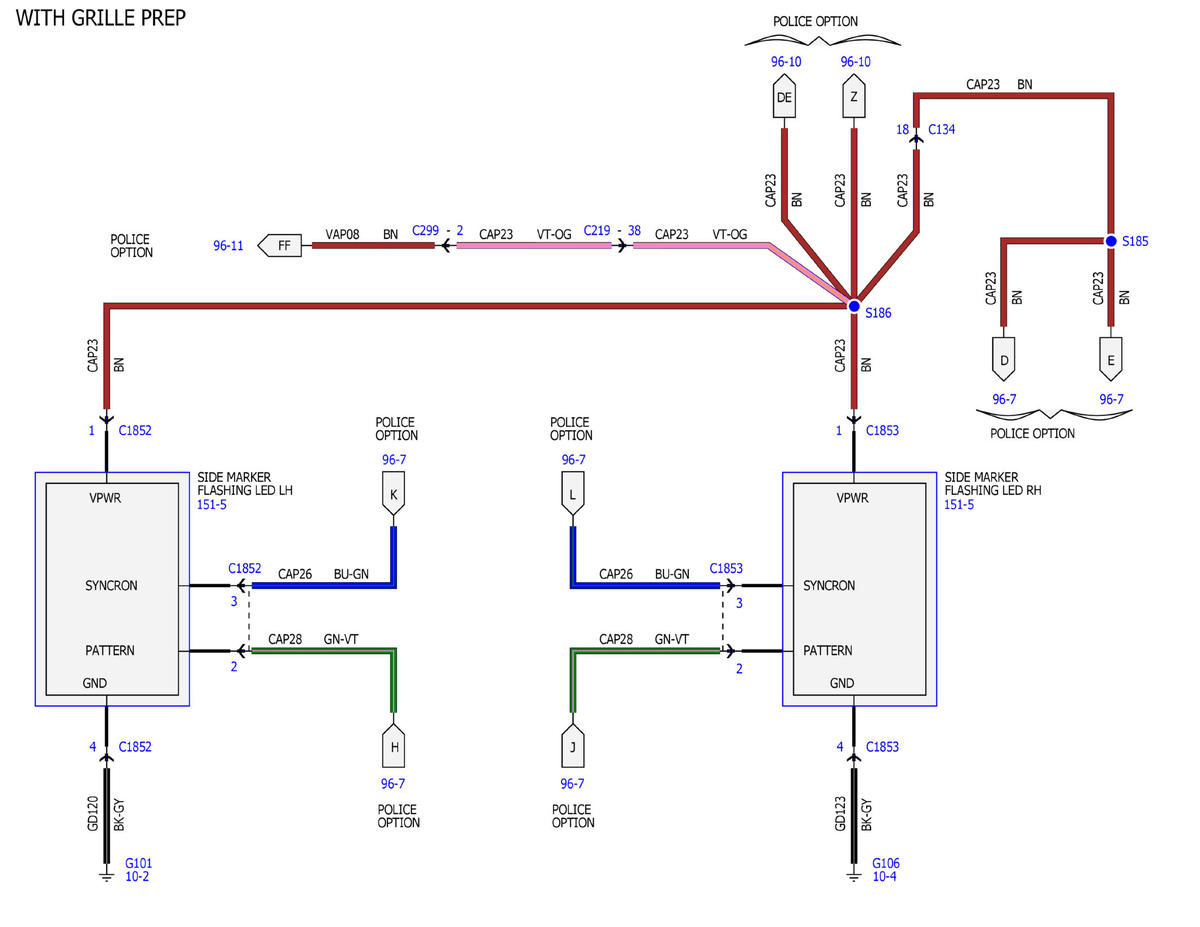

Fig 4: Police Option Wiring Diagram (4 Of 21)

GFDWR72888

Courtesy of FORD MOTOR COMPANY

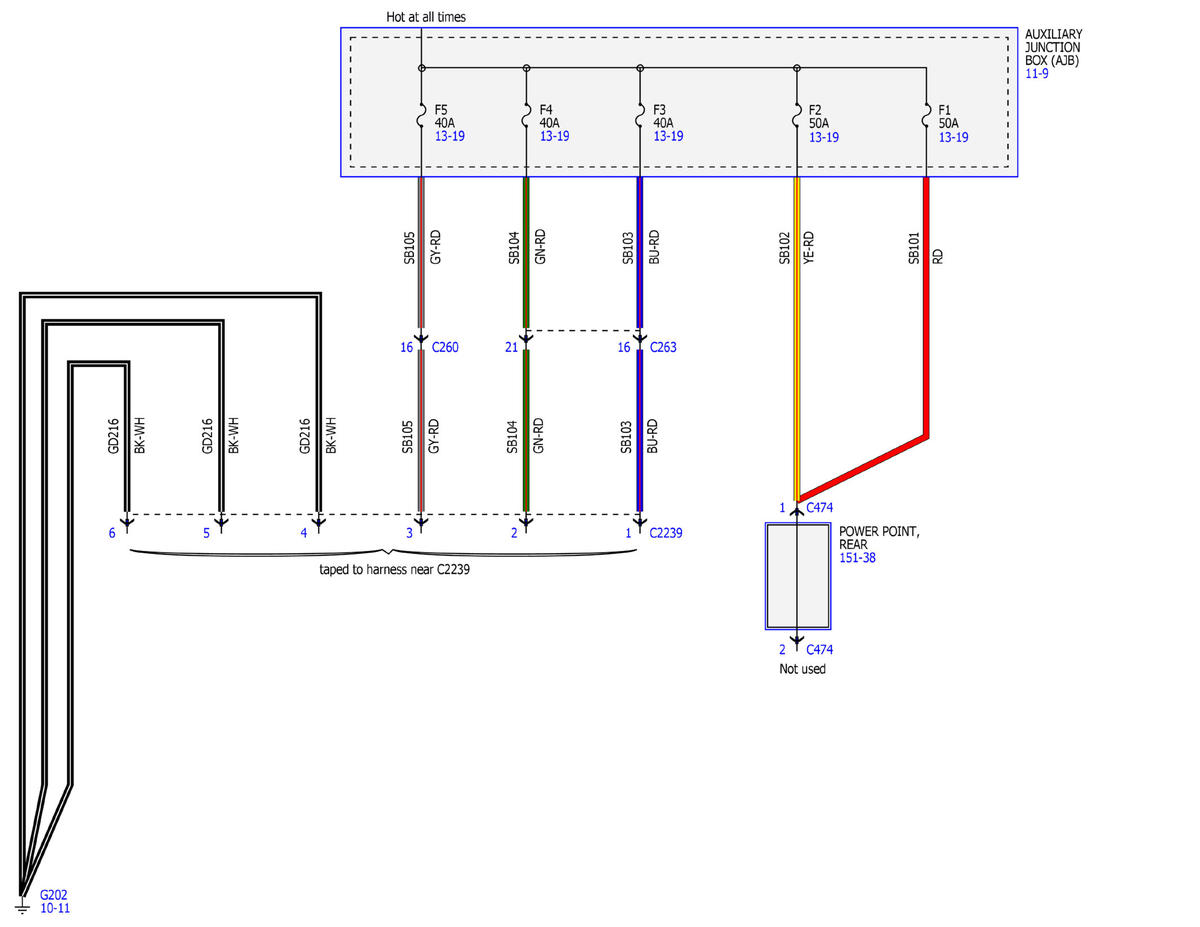

Fig 5: Police Option Wiring Diagram (5 Of 21)

GFDWR72889

Courtesy of FORD MOTOR COMPANY

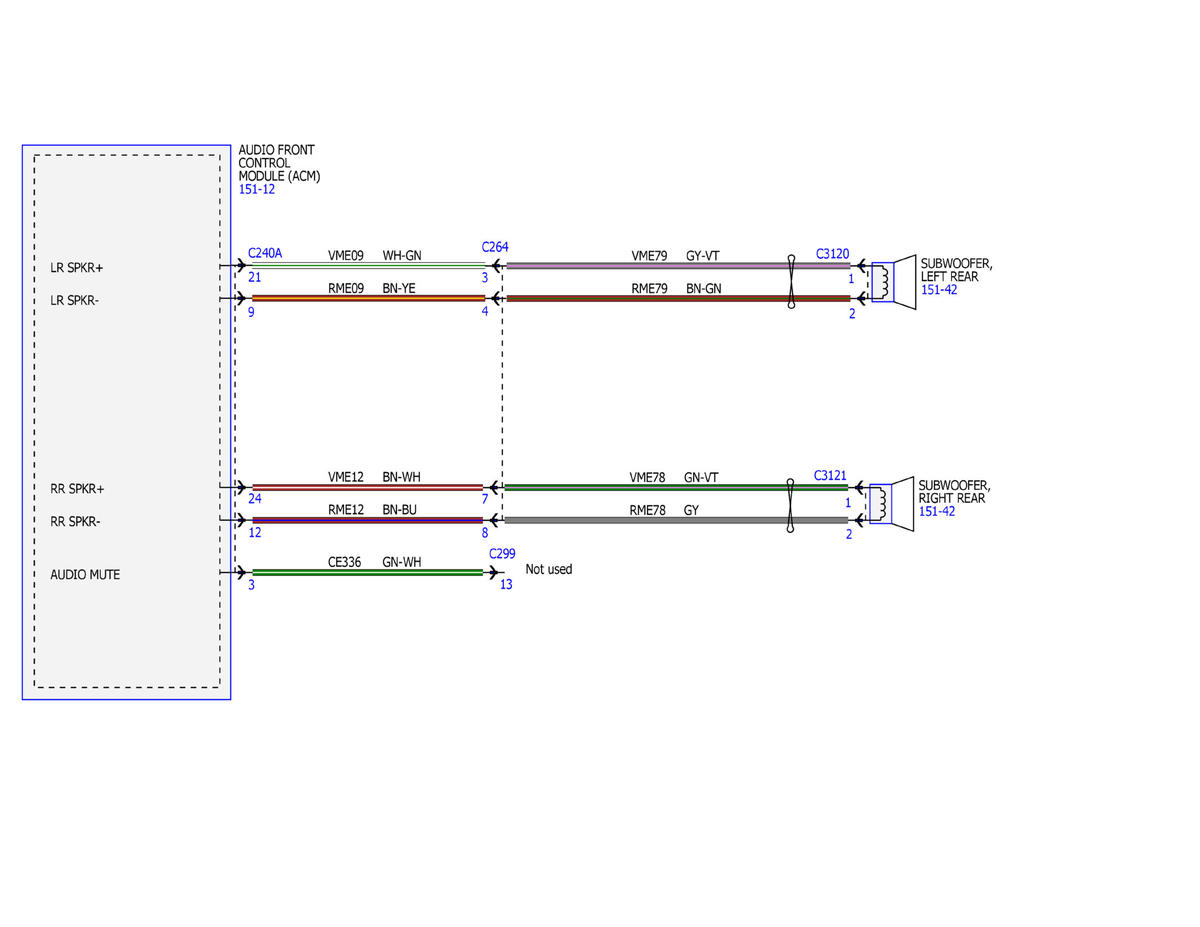

Fig 6: Police Option Wiring Diagram (6 Of 21)

GFDWR72890

Courtesy of FORD MOTOR COMPANY

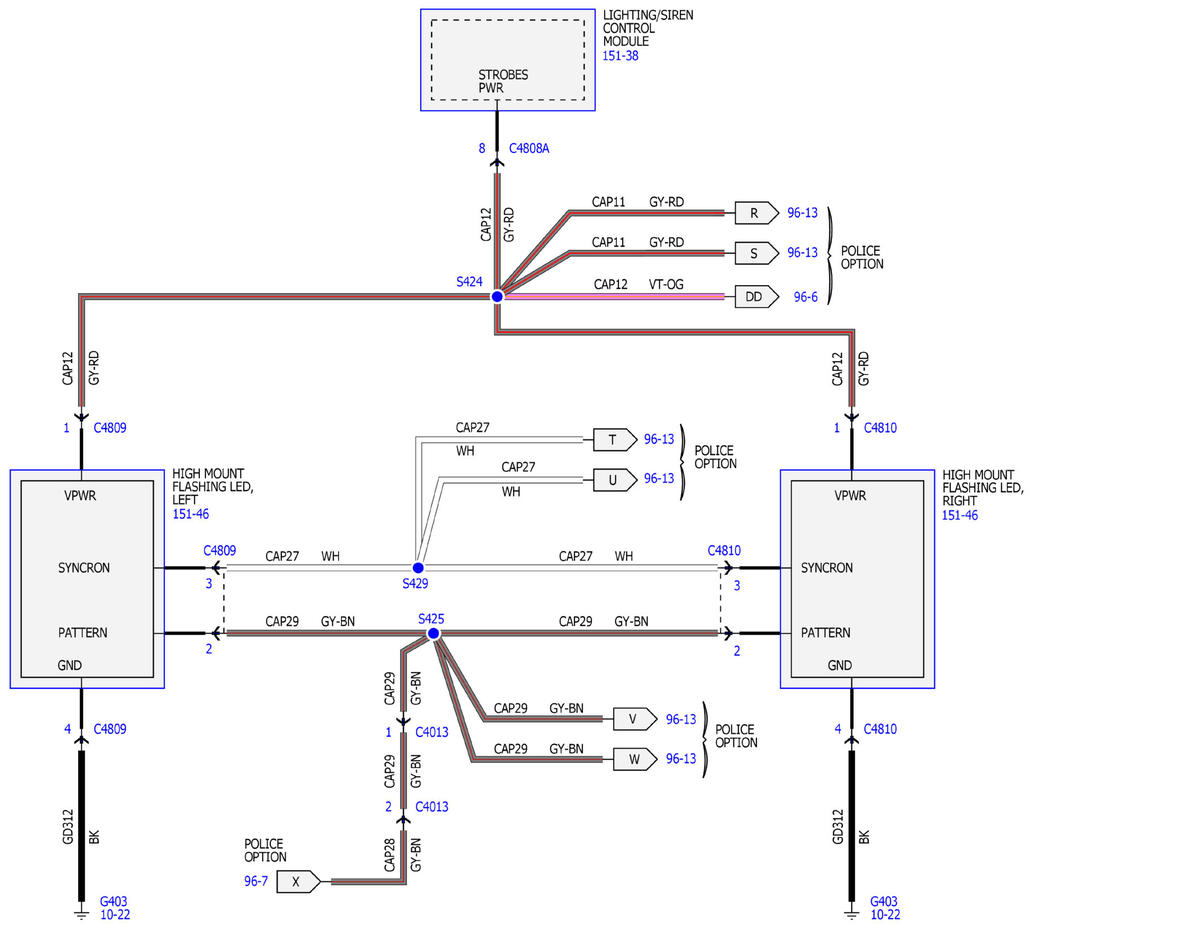

Fig 7: Police Option Wiring Diagram (7 Of 21)

GFDWR72891

Courtesy of FORD MOTOR COMPANY

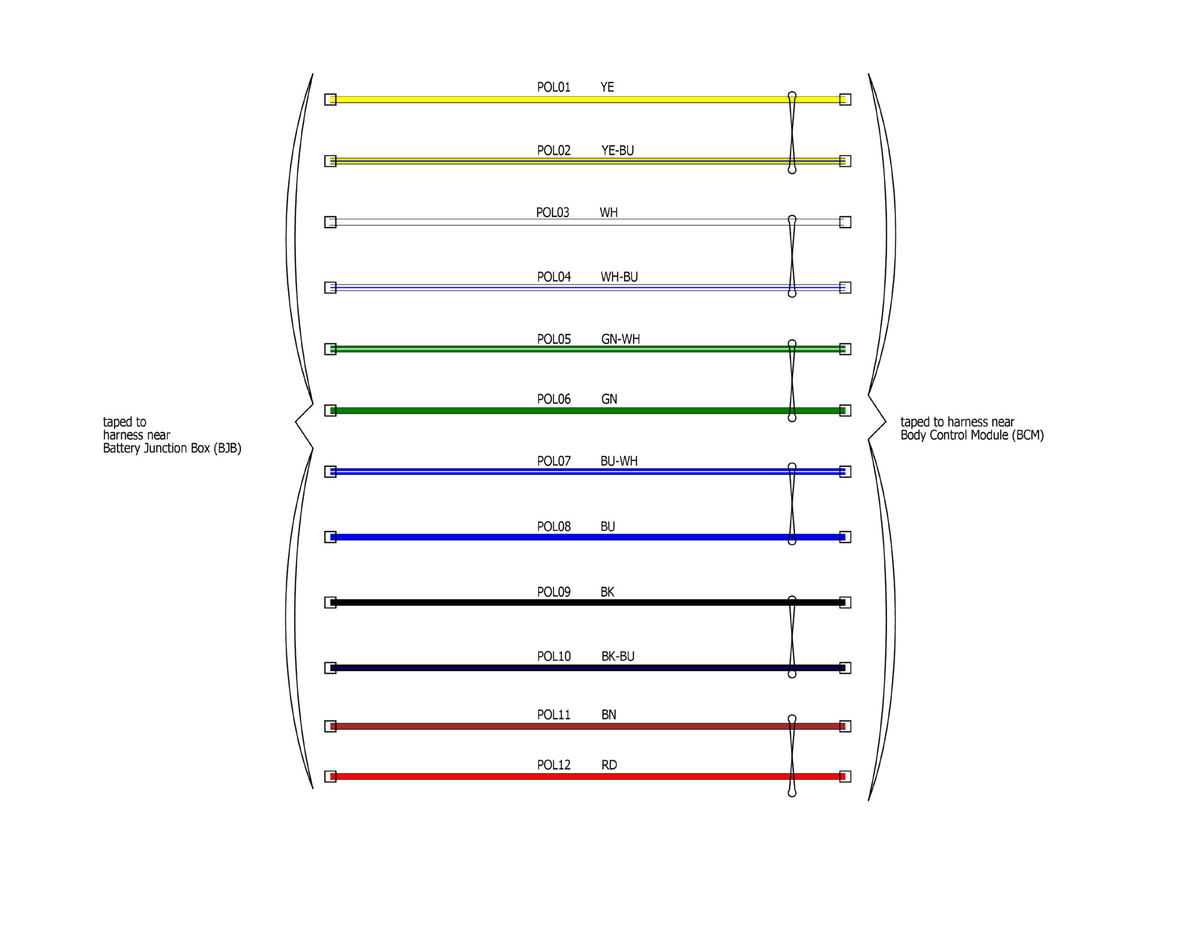

Fig 8: Police Option Wiring Diagram (8 Of 21)

GFDWR72892

Courtesy of FORD MOTOR COMPANY

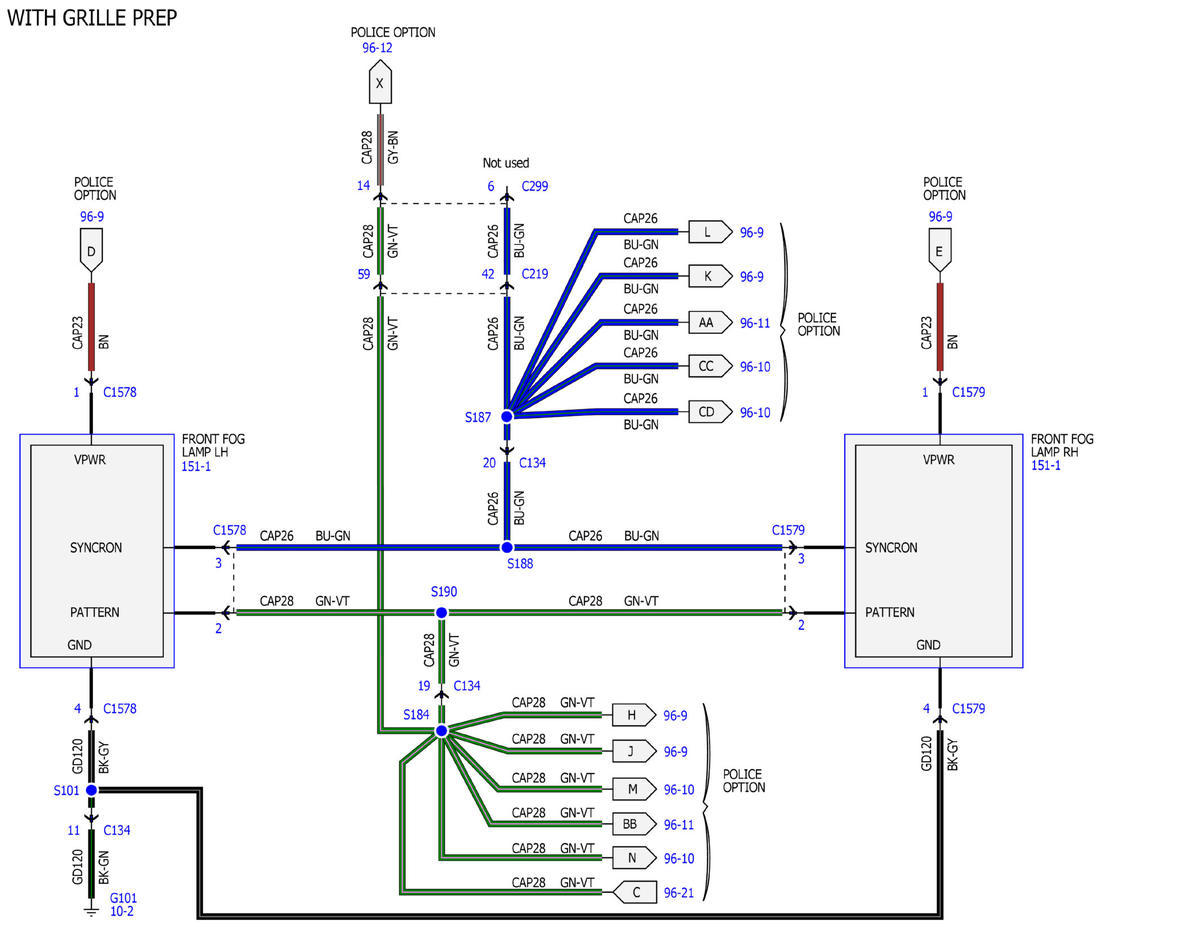

Fig 9: Police Option Wiring Diagram (9 Of 21)

GFDWR72893

Courtesy of FORD MOTOR COMPANY

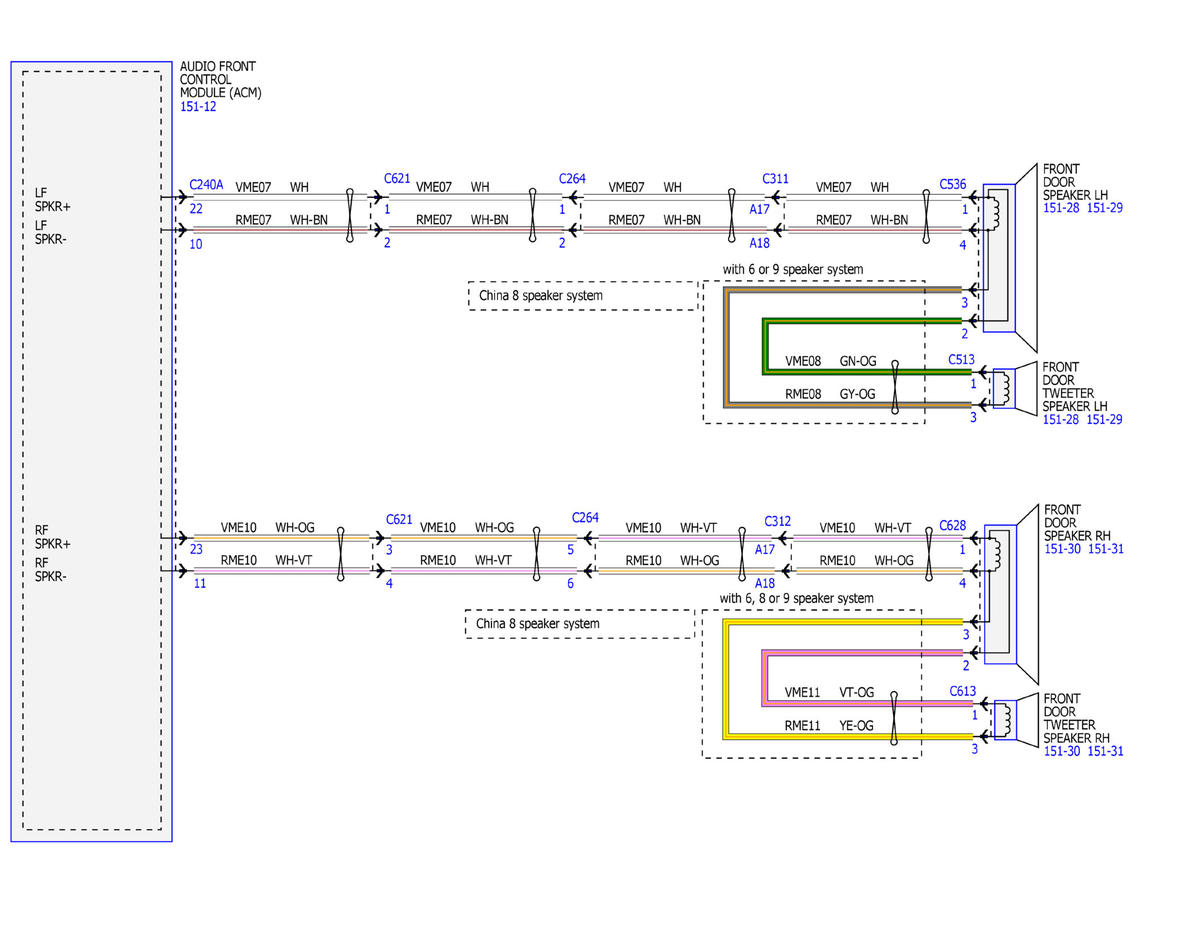

Fig 10: Police Option Wiring Diagram (10 Of 21)

GFDWR72894

Courtesy of FORD MOTOR COMPANY

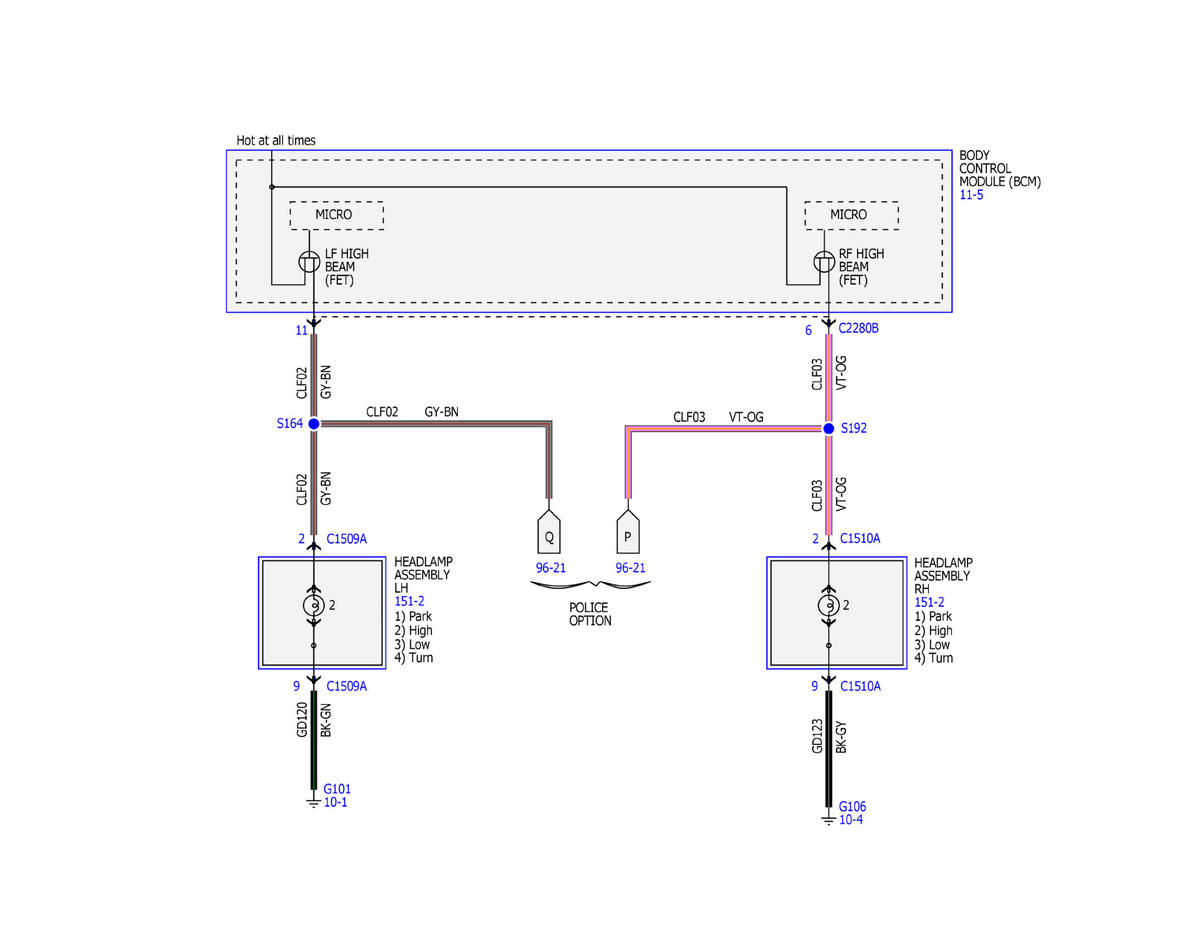

Fig 11: Police Option Wiring Diagram (11 Of 21)

GFDWR72895

Courtesy of FORD MOTOR COMPANY

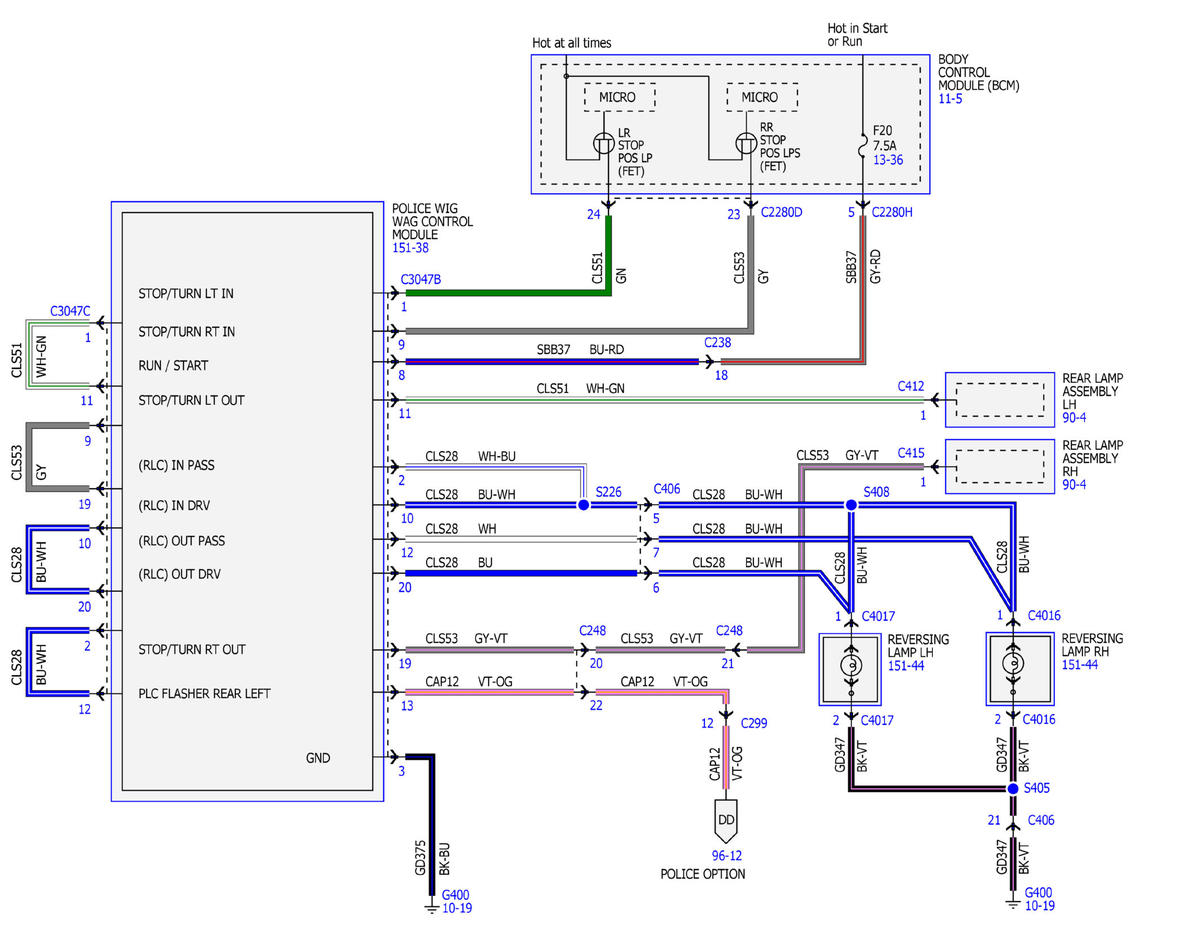

Fig 12: Police Option Wiring Diagram (12 Of 21)

GFDWR72896

Courtesy of FORD MOTOR COMPANY

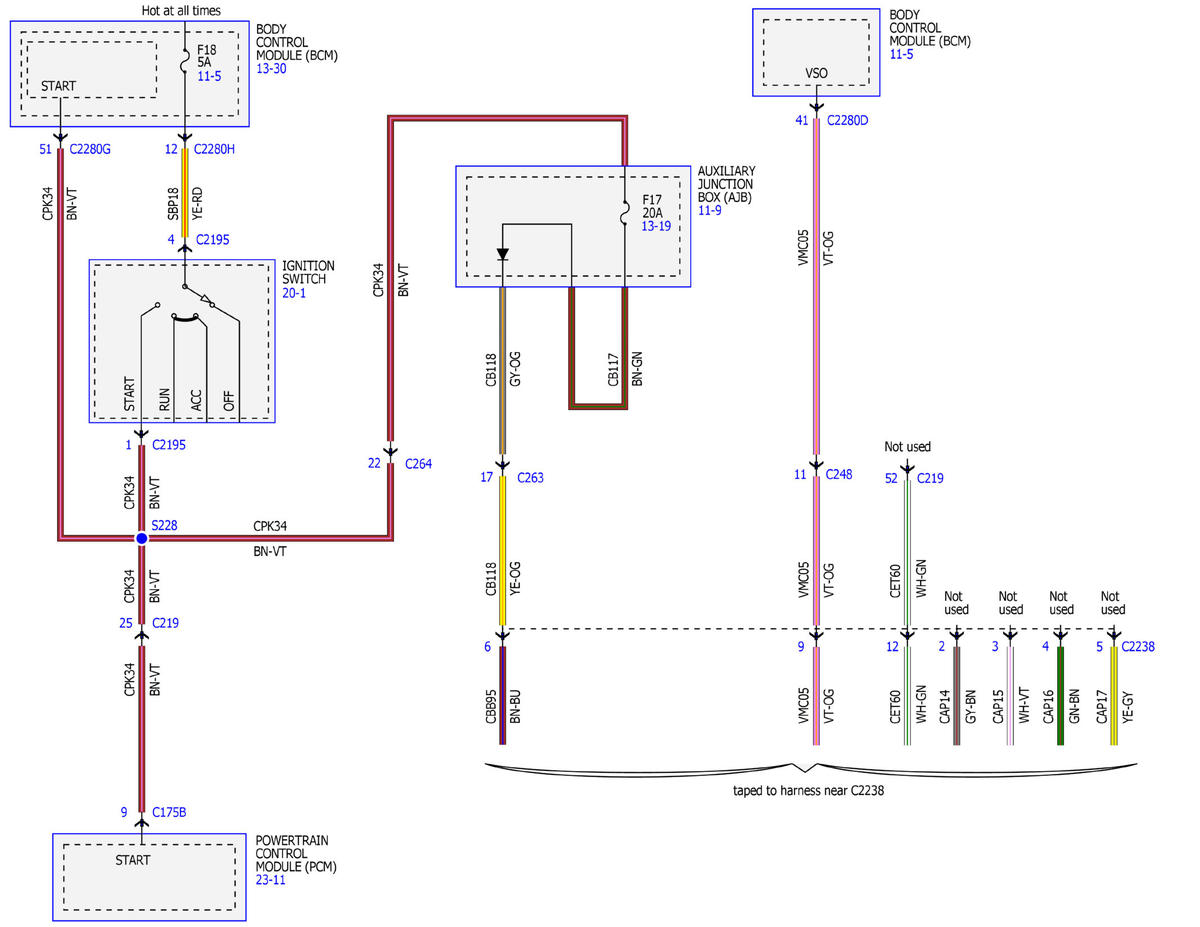

Fig 13: Police Option Wiring Diagram (13 Of 21)

GFDWR72897

Courtesy of FORD MOTOR COMPANY

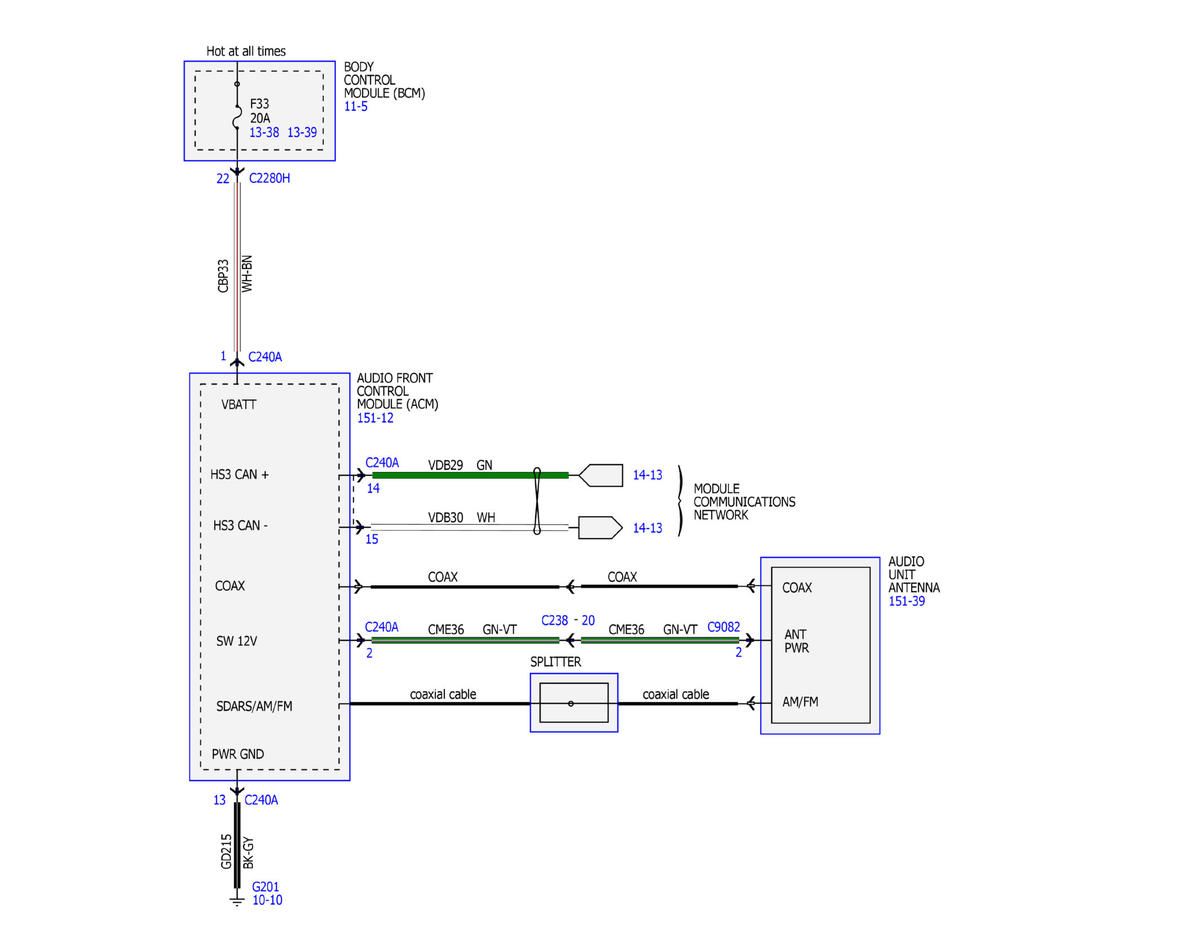

Fig 14: Police Option Wiring Diagram (14 Of 21)

GFDWR72898

Courtesy of FORD MOTOR COMPANY

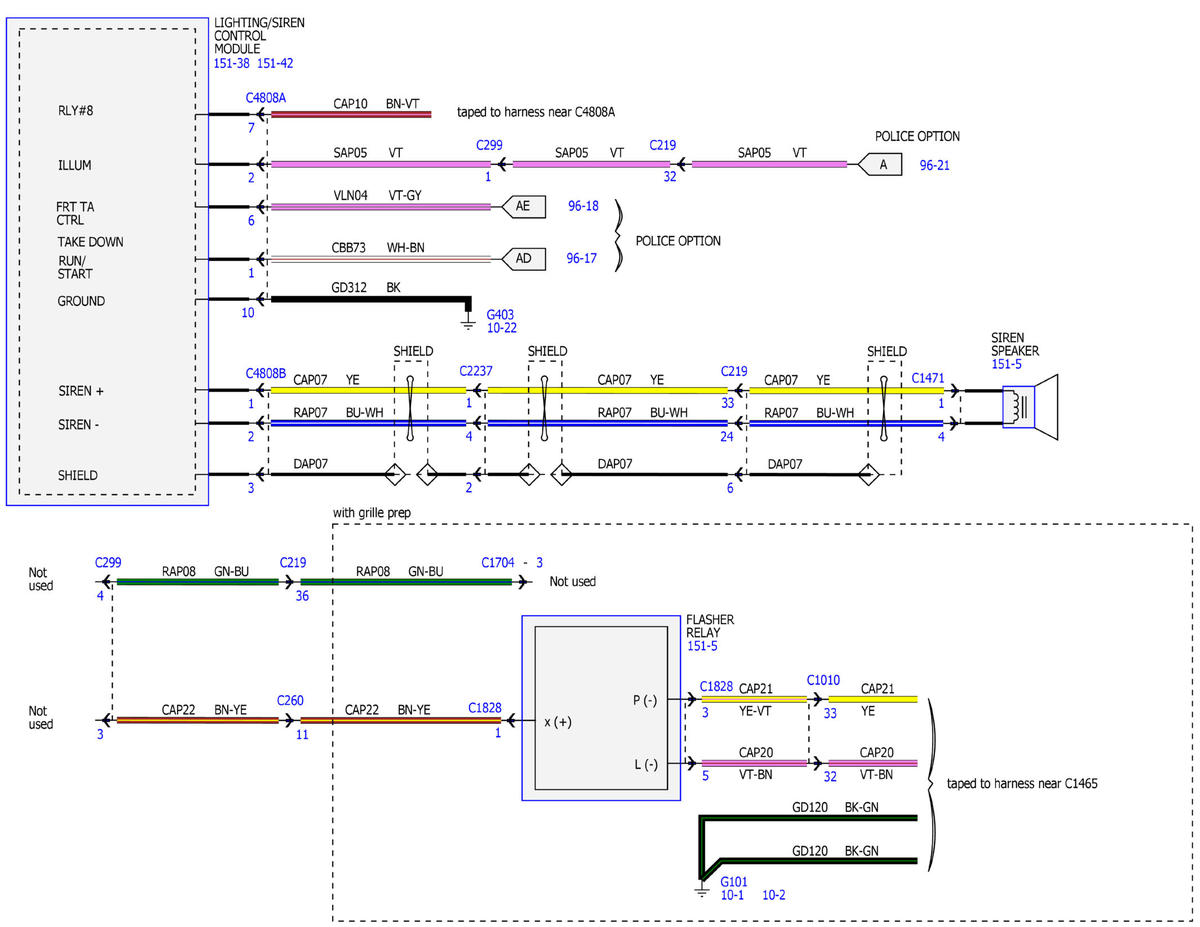

Fig 15: Police Option Wiring Diagram (15 Of 21)

GFDWR72899

Courtesy of FORD MOTOR COMPANY

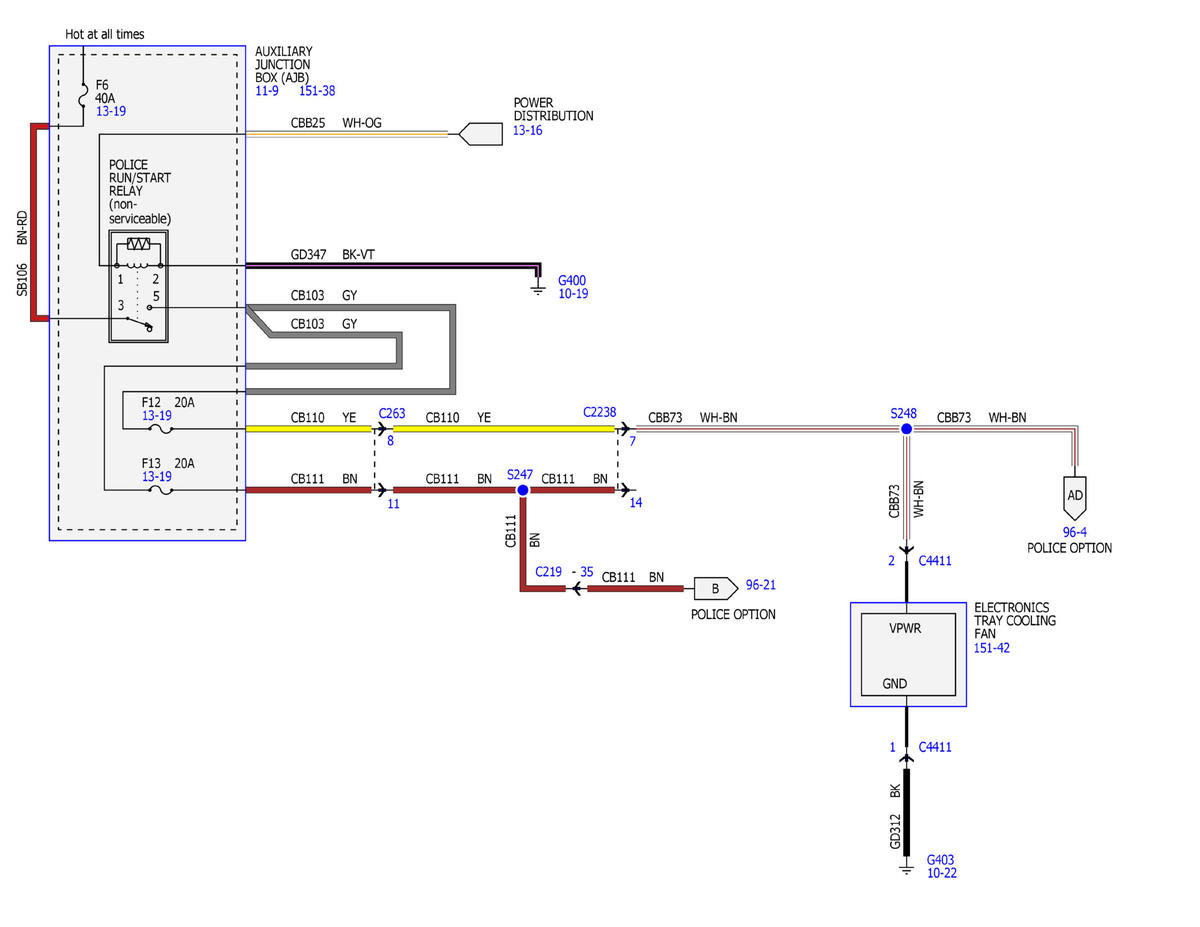

Fig 16: Police Option Wiring Diagram (16 Of 21)

GFDWR72900

Courtesy of FORD MOTOR COMPANY

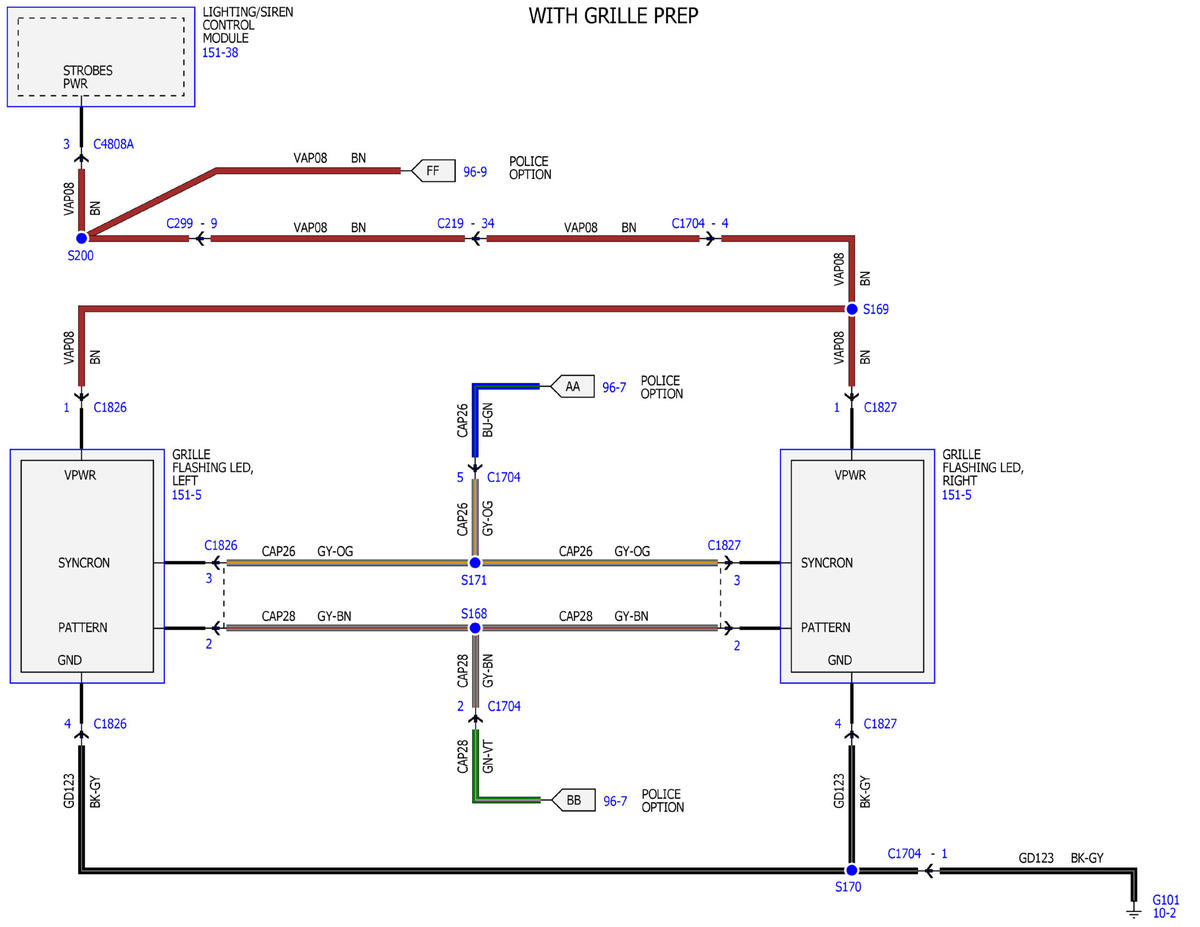

Fig 17: Police Option Wiring Diagram (17 Of 21)

GFDWR72901

Courtesy of FORD MOTOR COMPANY

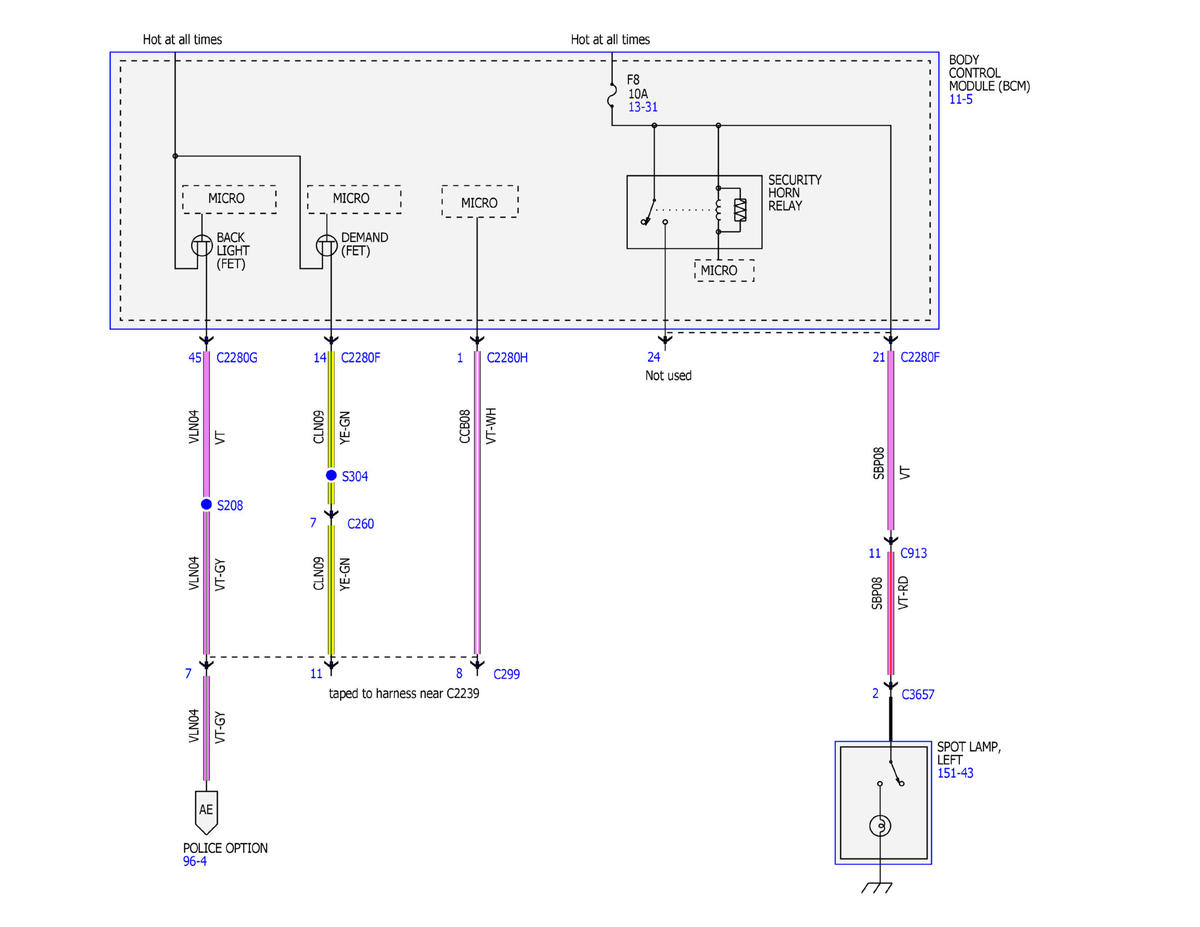

Fig 18: Police Option Wiring Diagram (18 Of 21)

GFDWR72902

Courtesy of FORD MOTOR COMPANY

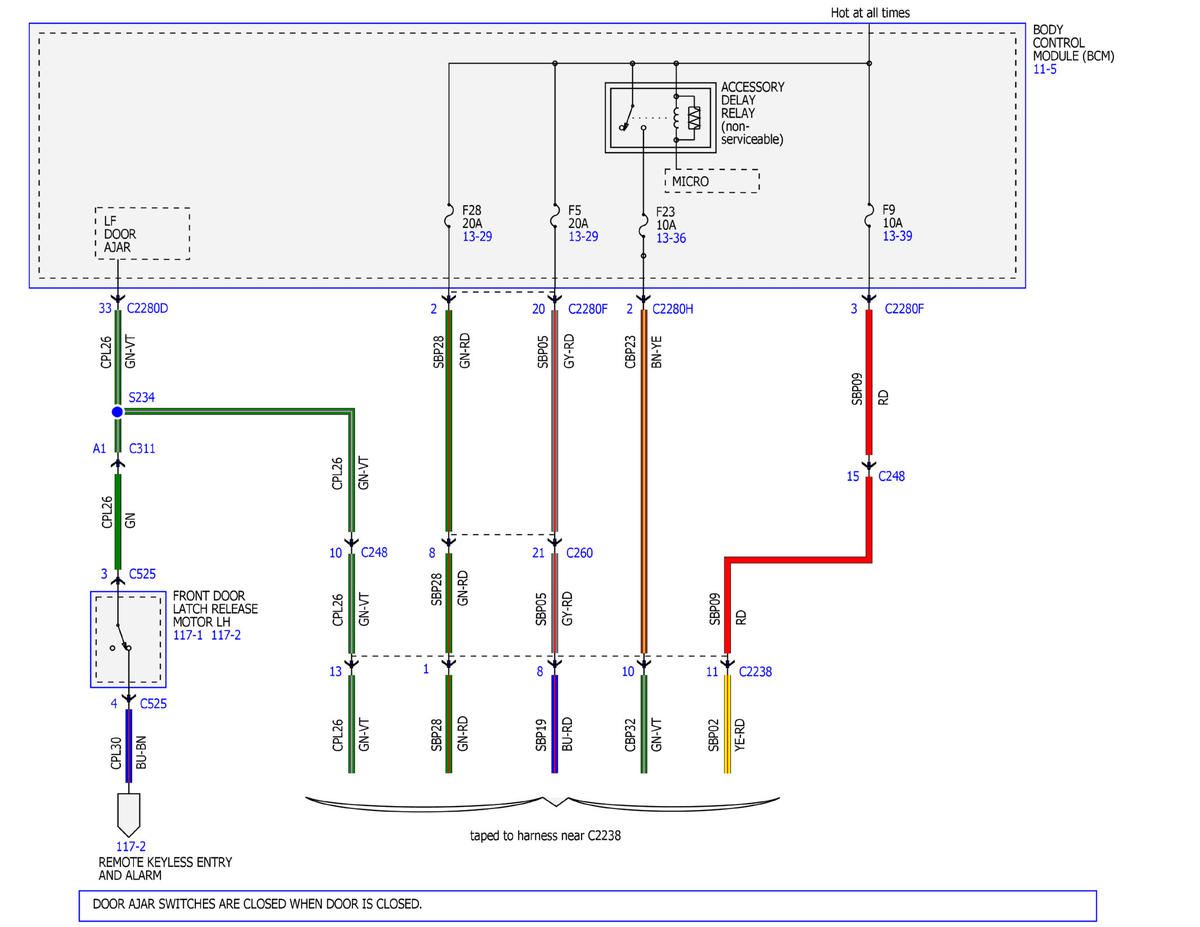

Fig 19: Police Option Wiring Diagram (19 Of 21)

GFDWR72903

Courtesy of FORD MOTOR COMPANY

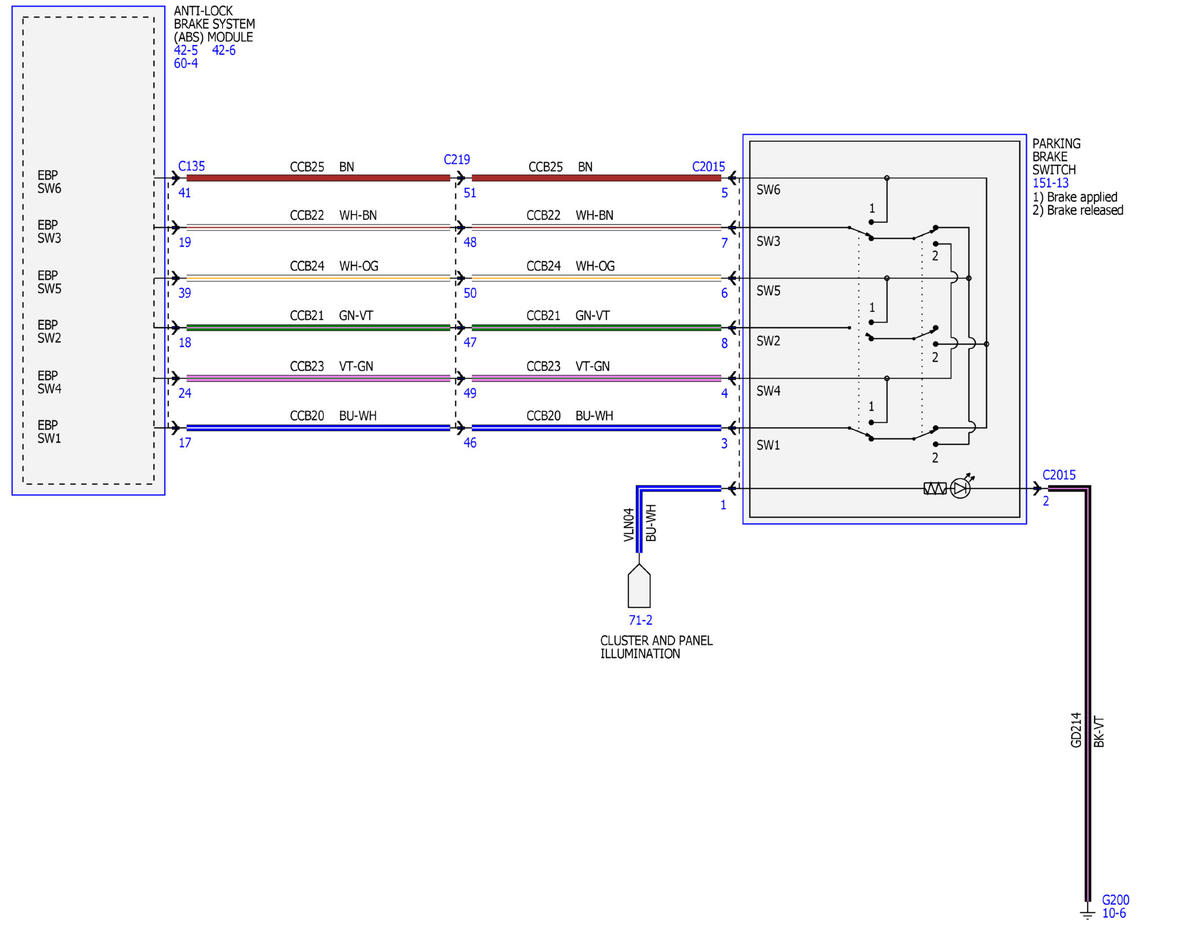

Fig 20: Police Option Wiring Diagram (20 Of 21)

GFDWR72904

Courtesy of FORD MOTOR COMPANY

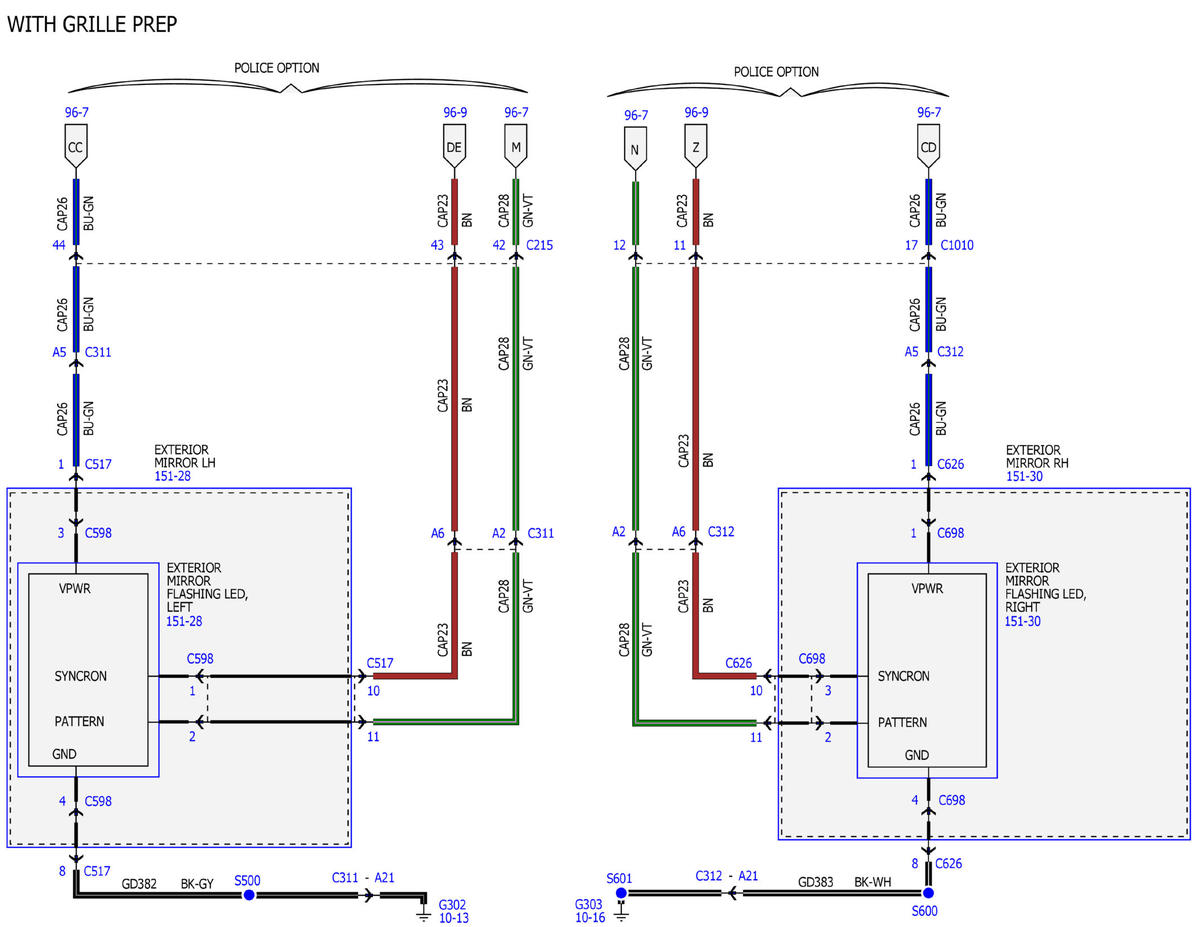

Fig 21: Police Option Wiring Diagram (21 Of 21)

GFDWR72905

Courtesy of FORD MOTOR COMPANY
