Parking Aid

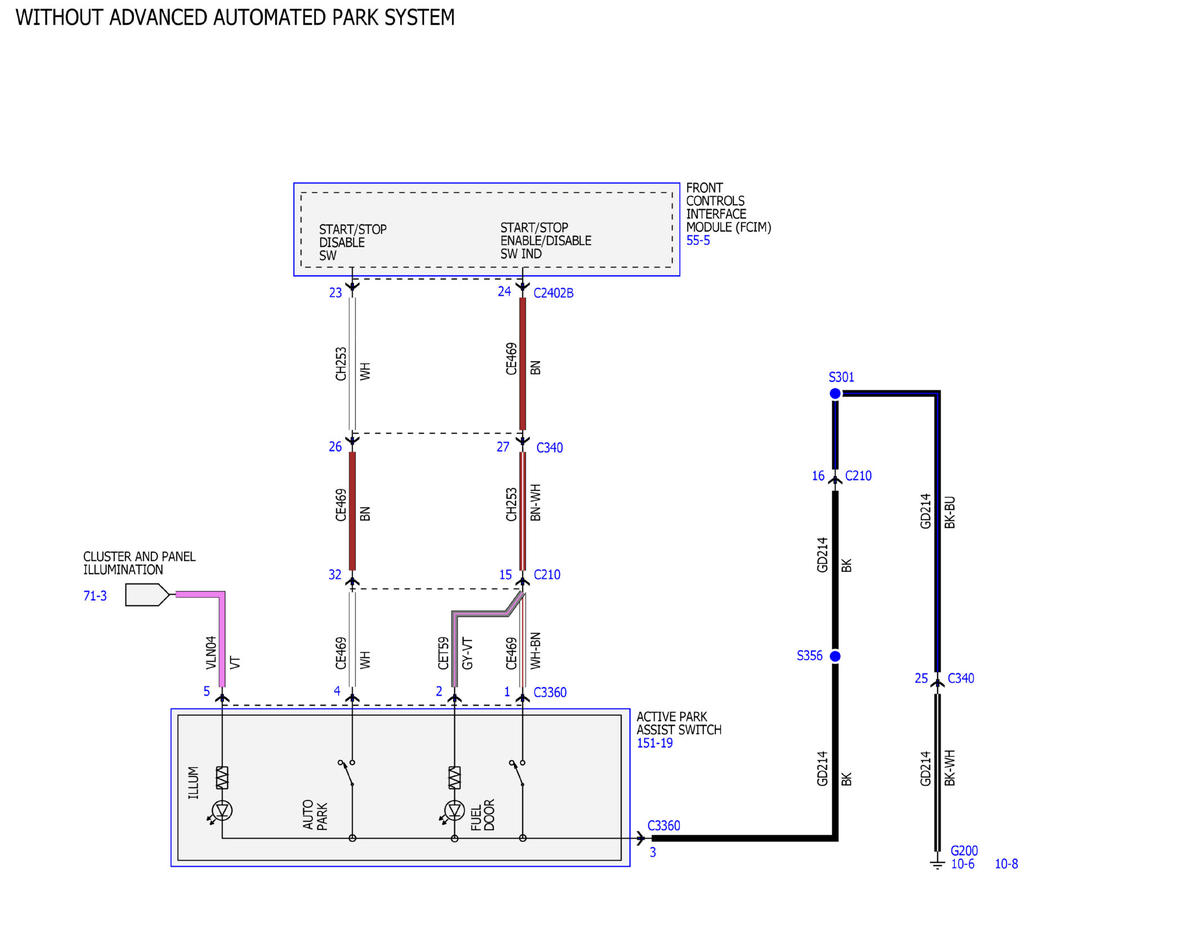

Fig 1: Parking Aid Wiring Diagram (1 Of 9)
GFDWR72870Courtesy of FORD MOTOR COMPANY
Fig 2: Parking Aid Wiring Diagram (2 Of 9)
GFDWR72871Courtesy of FORD MOTOR COMPANY

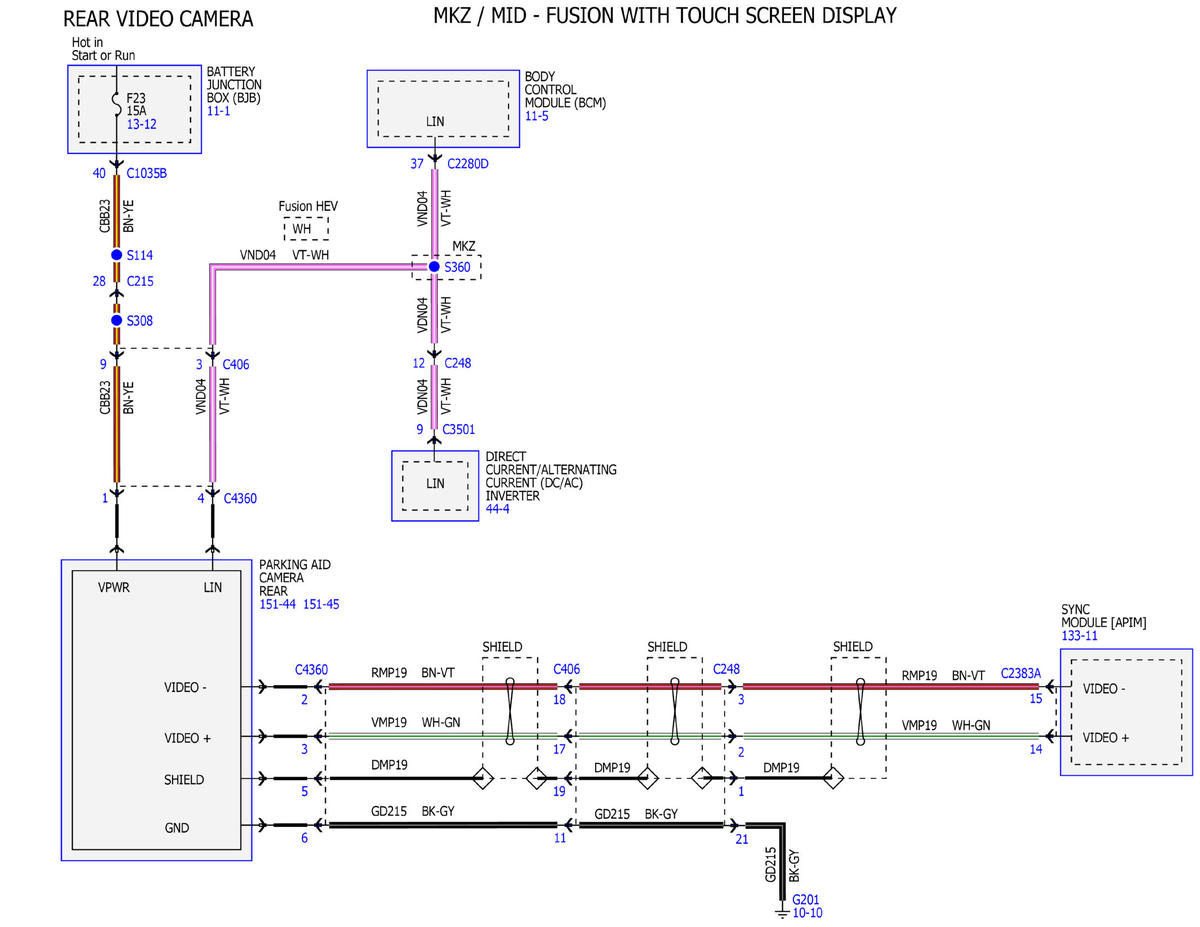

Fig 3: Parking Aid Wiring Diagram (3 Of 9)
GFDWR72872Courtesy of FORD MOTOR COMPANY

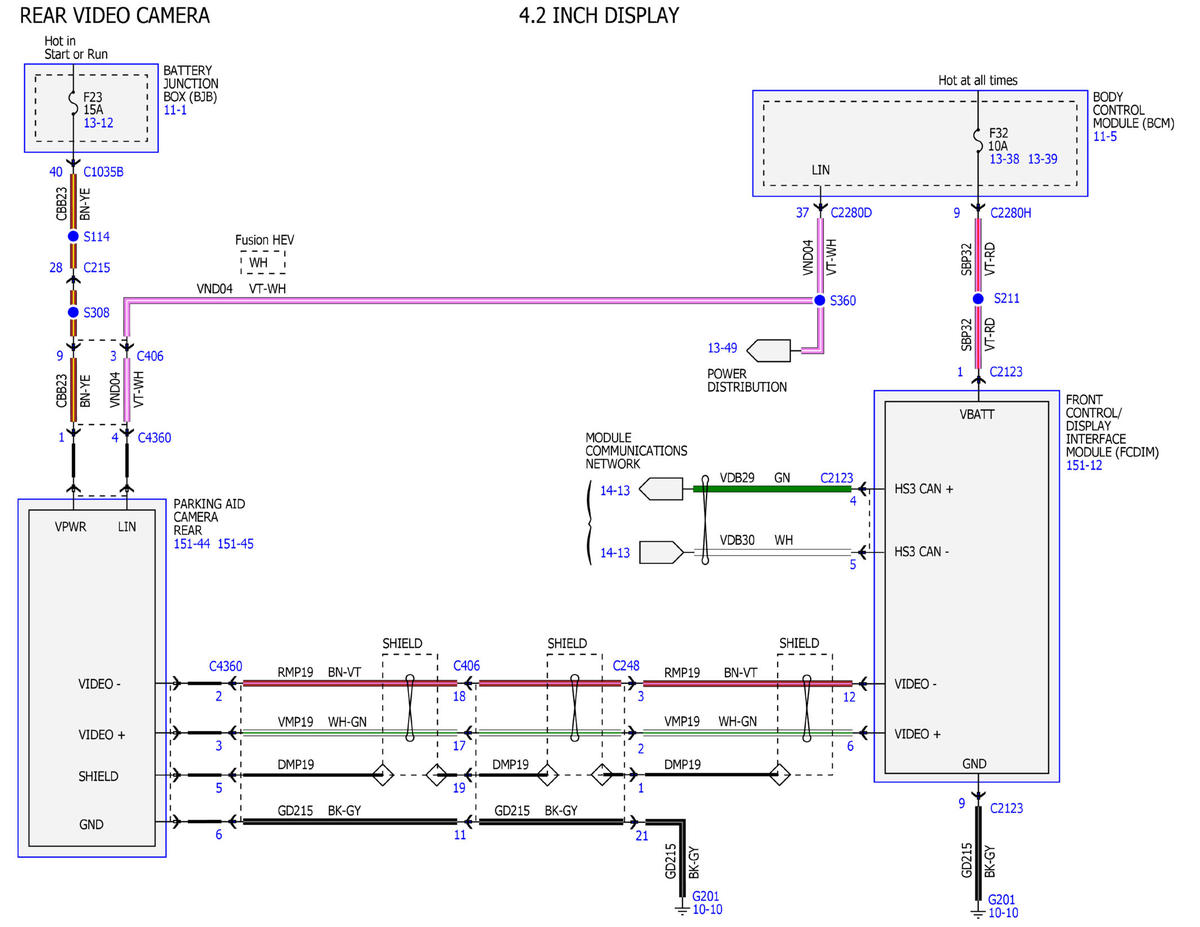

Fig 4: Parking Aid Wiring Diagram (4 Of 9)
GFDWR72873Courtesy of FORD MOTOR COMPANY

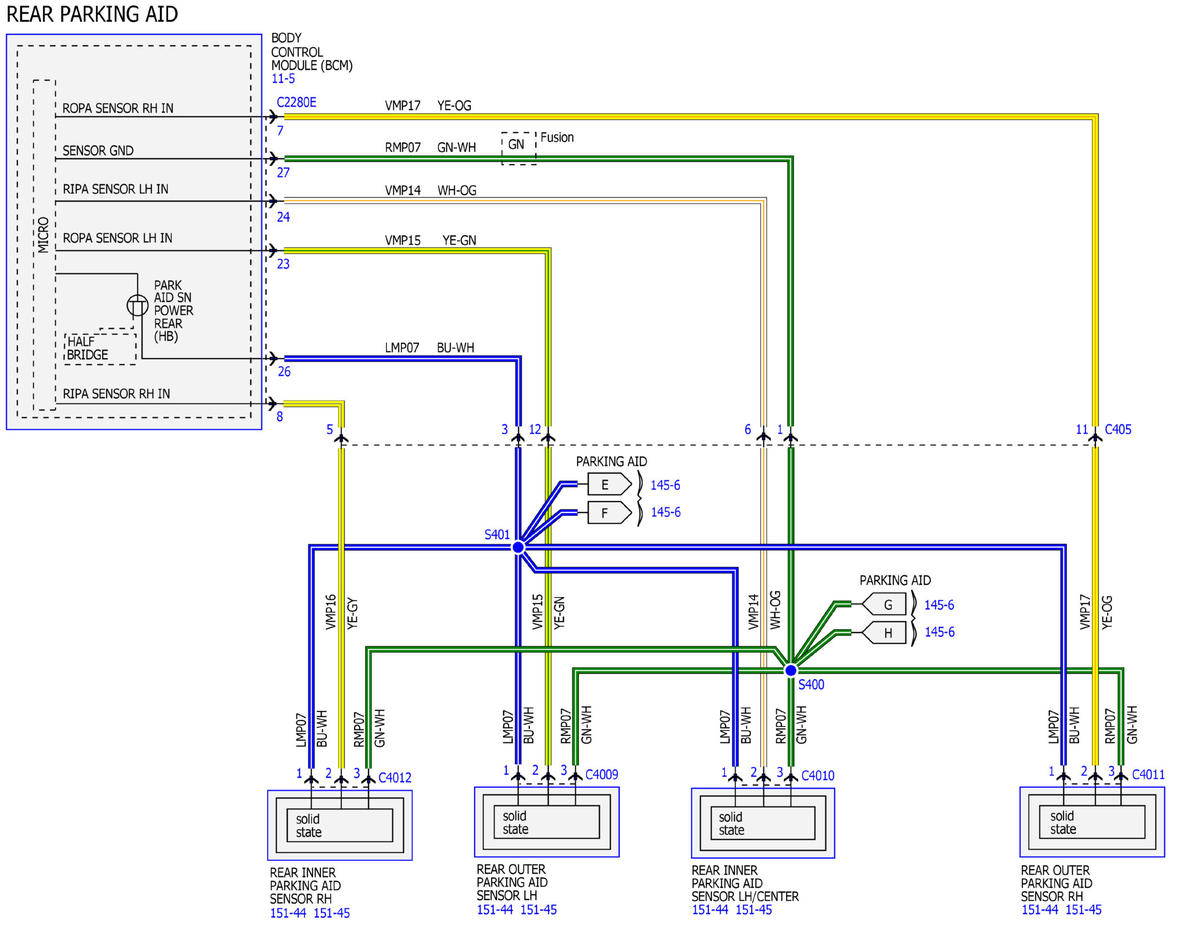

Fig 5: Parking Aid Wiring Diagram (5 Of 9)
GFDWR72874Courtesy of FORD MOTOR COMPANY

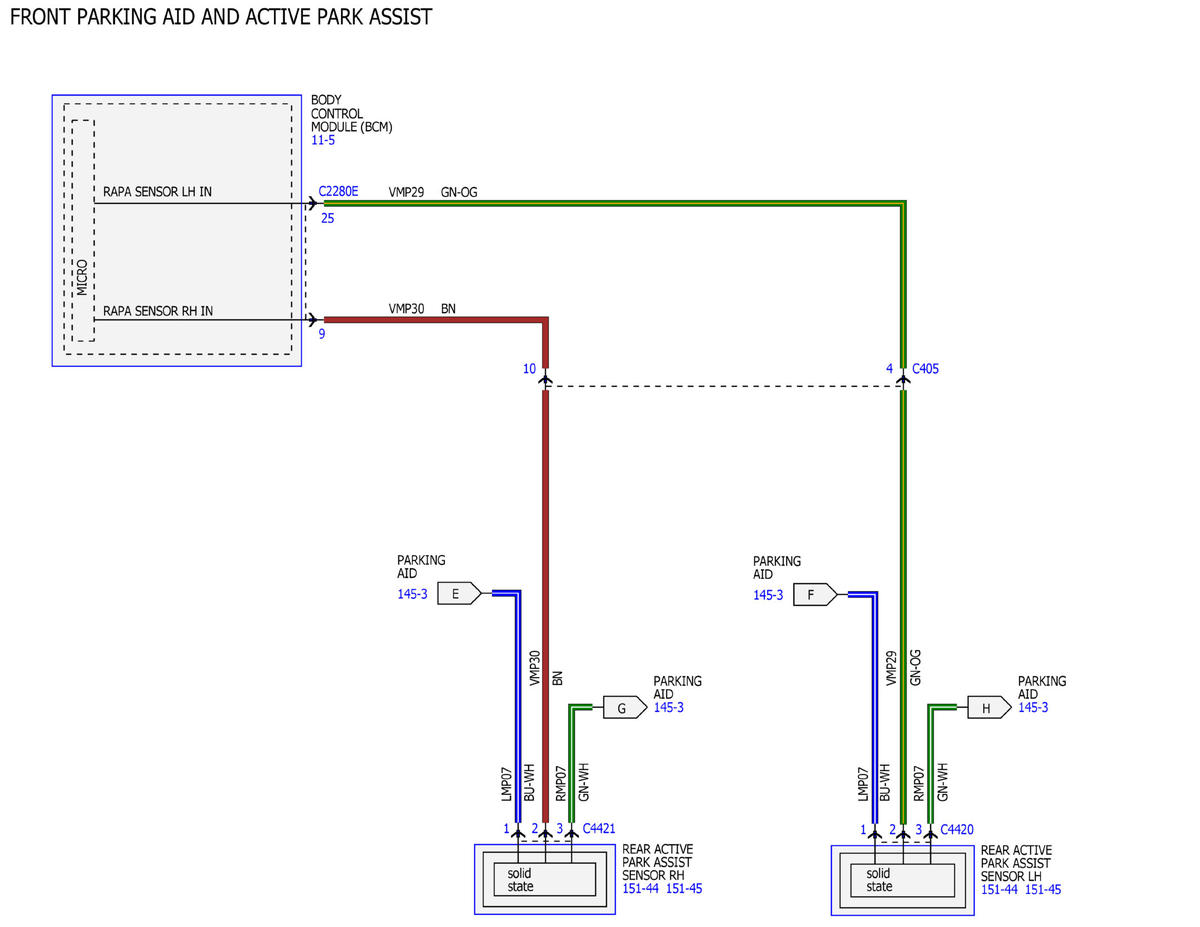

Fig 6: Parking Aid Wiring Diagram (6 Of 9)
GFDWR72875Courtesy of FORD MOTOR COMPANY

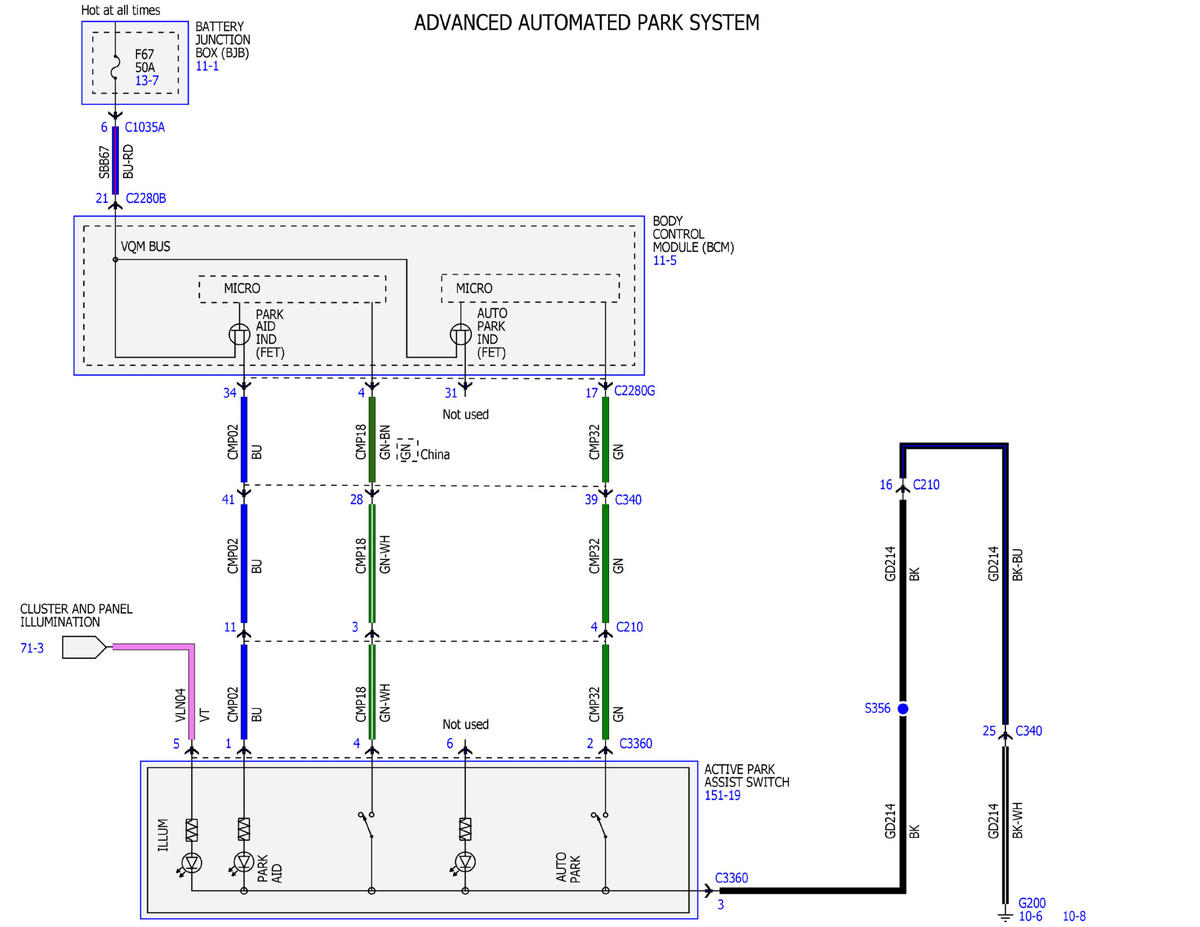

Fig 7: Parking Aid Wiring Diagram (7 Of 9)
GFDWR72876Courtesy of FORD MOTOR COMPANY

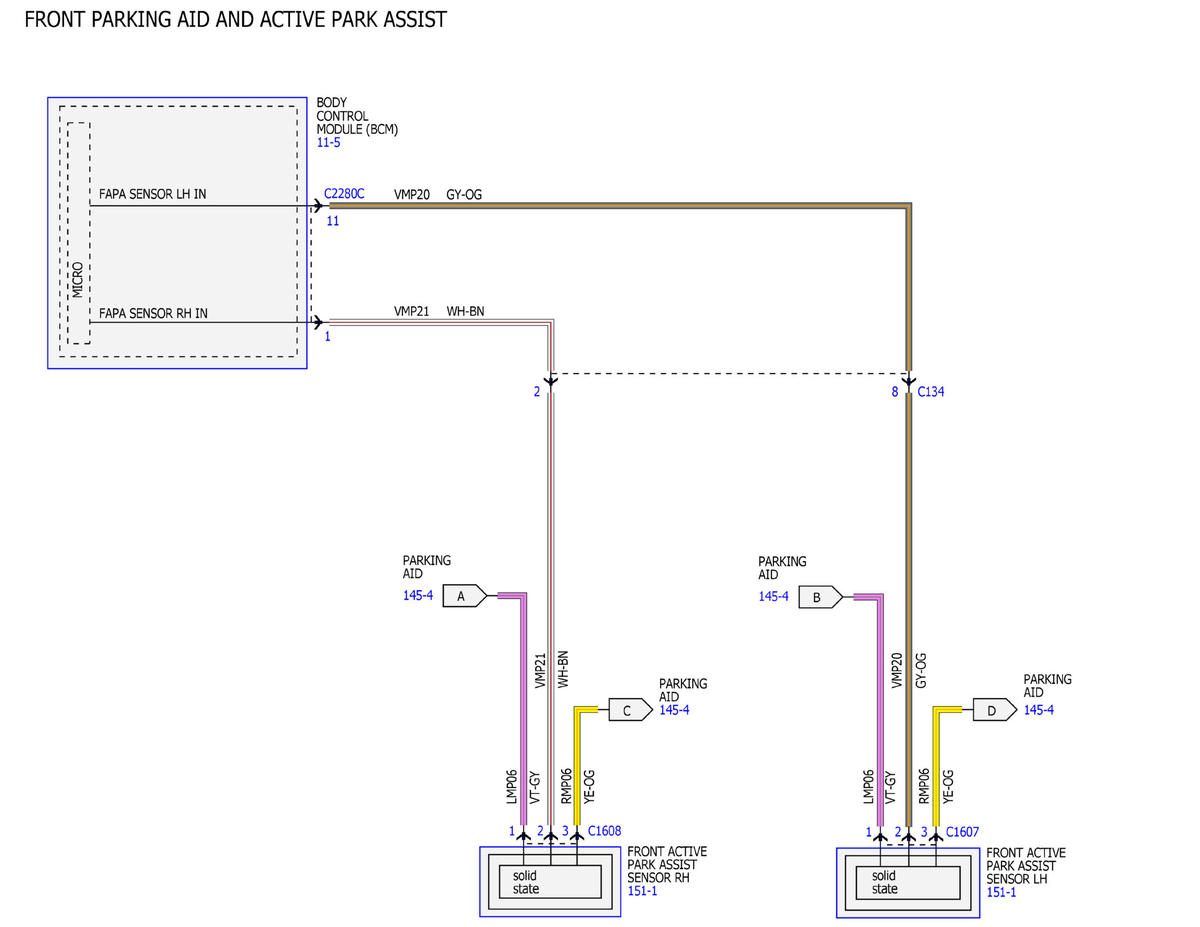

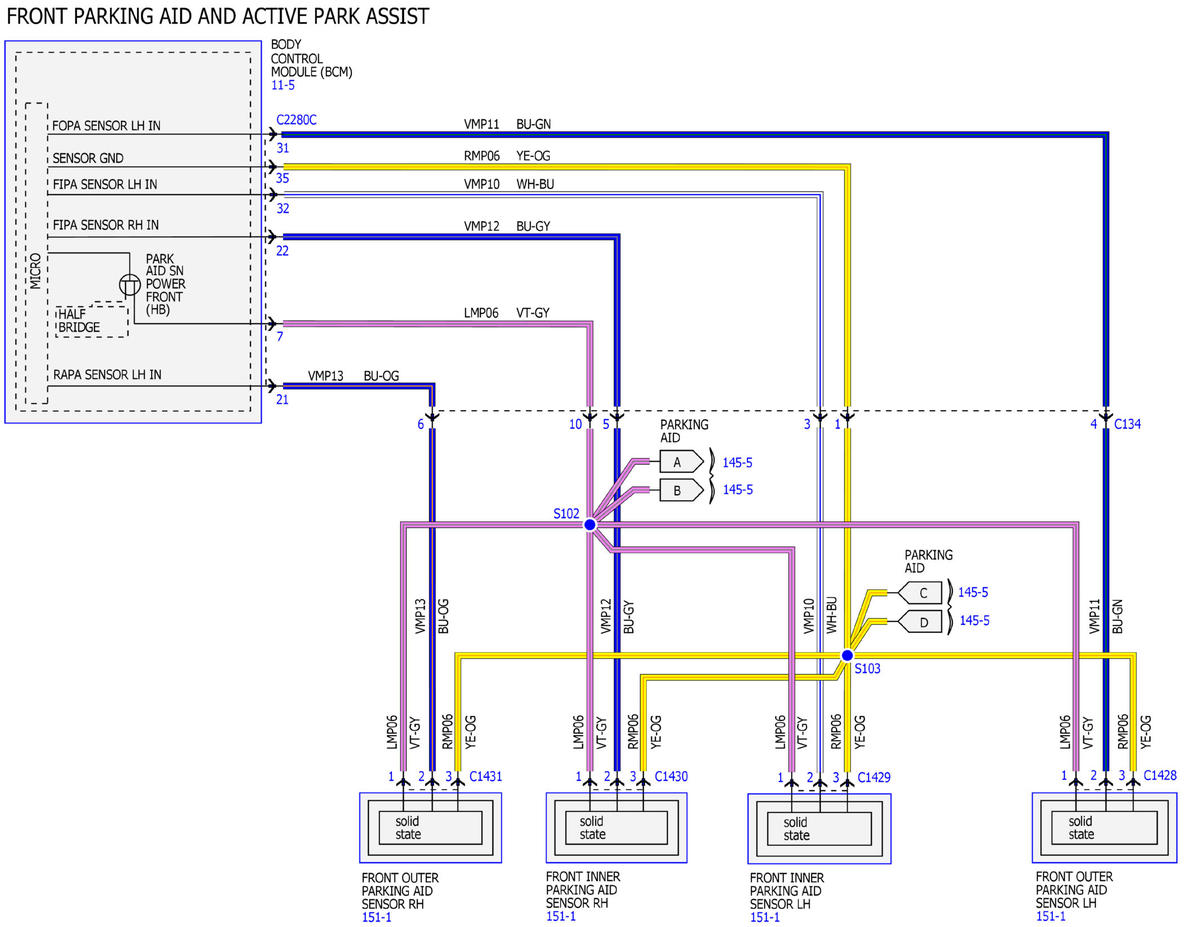

Fig 8: Parking Aid Wiring Diagram (8 Of 9)
GFDWR72877Courtesy of FORD MOTOR COMPANY
Fig 9: Parking Aid Wiring Diagram (9 Of 9)
GFDWR72878Courtesy of FORD MOTOR COMPANY
