Module Communications Network

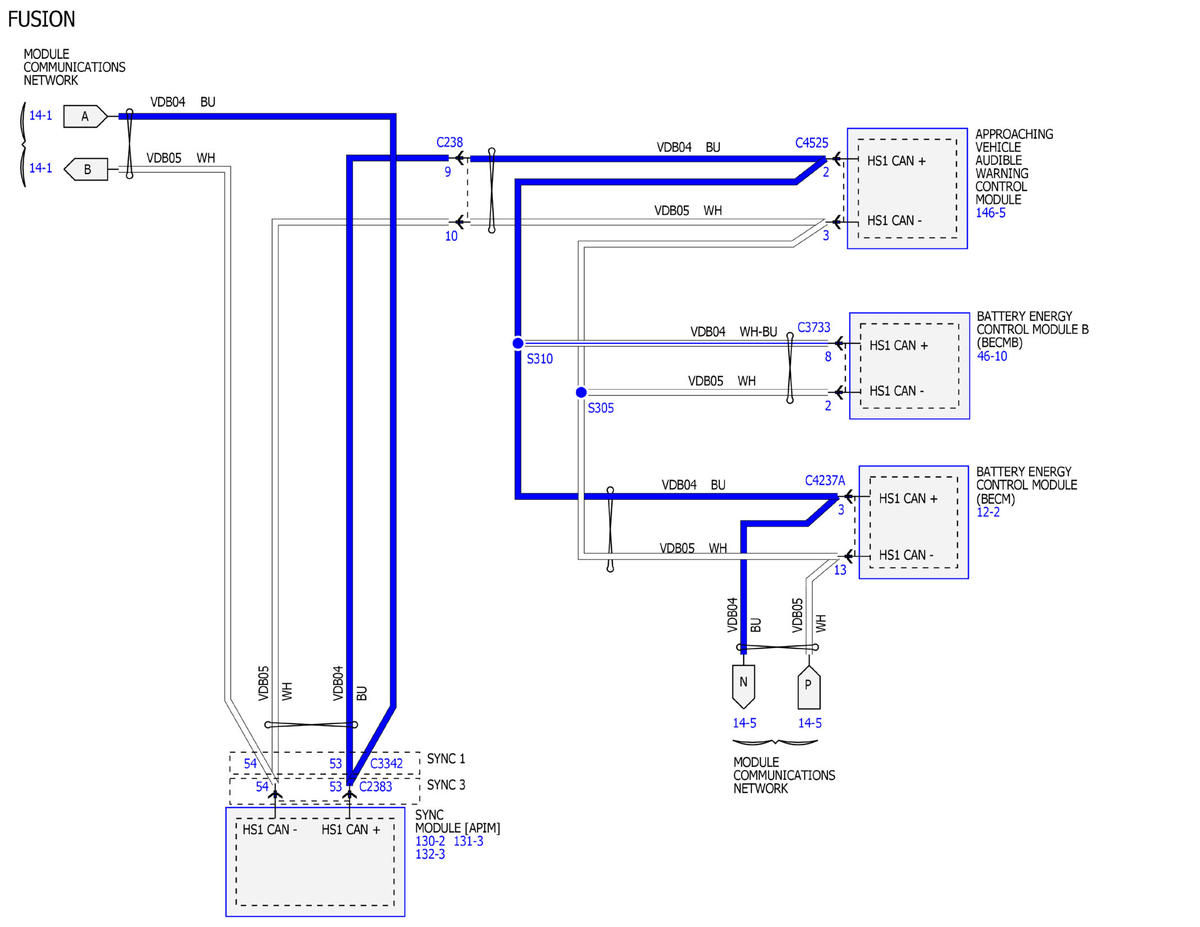

Fig 1: Module Communications Network Wiring Diagram (1 Of 21)

GFDWR72849

Courtesy of FORD MOTOR COMPANY

Fig 2: Module Communications Network Wiring Diagram (2 Of 21)

GFDWR72850

Courtesy of FORD MOTOR COMPANY

Fig 3: Module Communications Network Wiring Diagram (3 Of 21)

GFDWR72851

Courtesy of FORD MOTOR COMPANY

Fig 4: Module Communications Network Wiring Diagram (4 Of 21)

GFDWR72852

Courtesy of FORD MOTOR COMPANY

Fig 5: Module Communications Network Wiring Diagram (5 Of 21)

GFDWR72853

Courtesy of FORD MOTOR COMPANY

Fig 6: Module Communications Network Wiring Diagram (6 Of 21)

GFDWR72854

Courtesy of FORD MOTOR COMPANY

Fig 7: Module Communications Network Wiring Diagram (7 Of 21)

GFDWR72855

Courtesy of FORD MOTOR COMPANY

Fig 8: Module Communications Network Wiring Diagram (8 Of 21)

GFDWR72856

Courtesy of FORD MOTOR COMPANY

Fig 9: Module Communications Network Wiring Diagram (9 Of 21)

GFDWR72857

Courtesy of FORD MOTOR COMPANY

Fig 10: Module Communications Network Wiring Diagram (10 Of 21)

GFDWR72858

Courtesy of FORD MOTOR COMPANY

Fig 11: Module Communications Network Wiring Diagram (11 Of 21)

GFDWR72859

Courtesy of FORD MOTOR COMPANY

Fig 12: Module Communications Network Wiring Diagram (12 Of 21)

GFDWR72860

Courtesy of FORD MOTOR COMPANY

Fig 13: Module Communications Network Wiring Diagram (13 Of 21)

GFDWR72861

Courtesy of FORD MOTOR COMPANY

Fig 14: Module Communications Network Wiring Diagram (14 Of 21)

GFDWR72862

Courtesy of FORD MOTOR COMPANY

Fig 15: Module Communications Network Wiring Diagram (15 Of 21)

GFDWR72863

Courtesy of FORD MOTOR COMPANY

Fig 16: Module Communications Network Wiring Diagram (16 Of 21)

GFDWR72864

Courtesy of FORD MOTOR COMPANY

Fig 17: Module Communications Network Wiring Diagram (17 Of 21)

GFDWR72865

Courtesy of FORD MOTOR COMPANY

Fig 18: Module Communications Network Wiring Diagram (18 Of 21)

GFDWR72866

Courtesy of FORD MOTOR COMPANY

Fig 19: Module Communications Network Wiring Diagram (19 Of 21)

GFDWR72867

Courtesy of FORD MOTOR COMPANY

Fig 20: Module Communications Network Wiring Diagram (20 Of 21)

GFDWR72868

Courtesy of FORD MOTOR COMPANY

Fig 21: Module Communications Network Wiring Diagram (21 Of 21)

GFDWR72869

Courtesy of FORD MOTOR COMPANY
