Luggage Compartment
Luggage Compartment

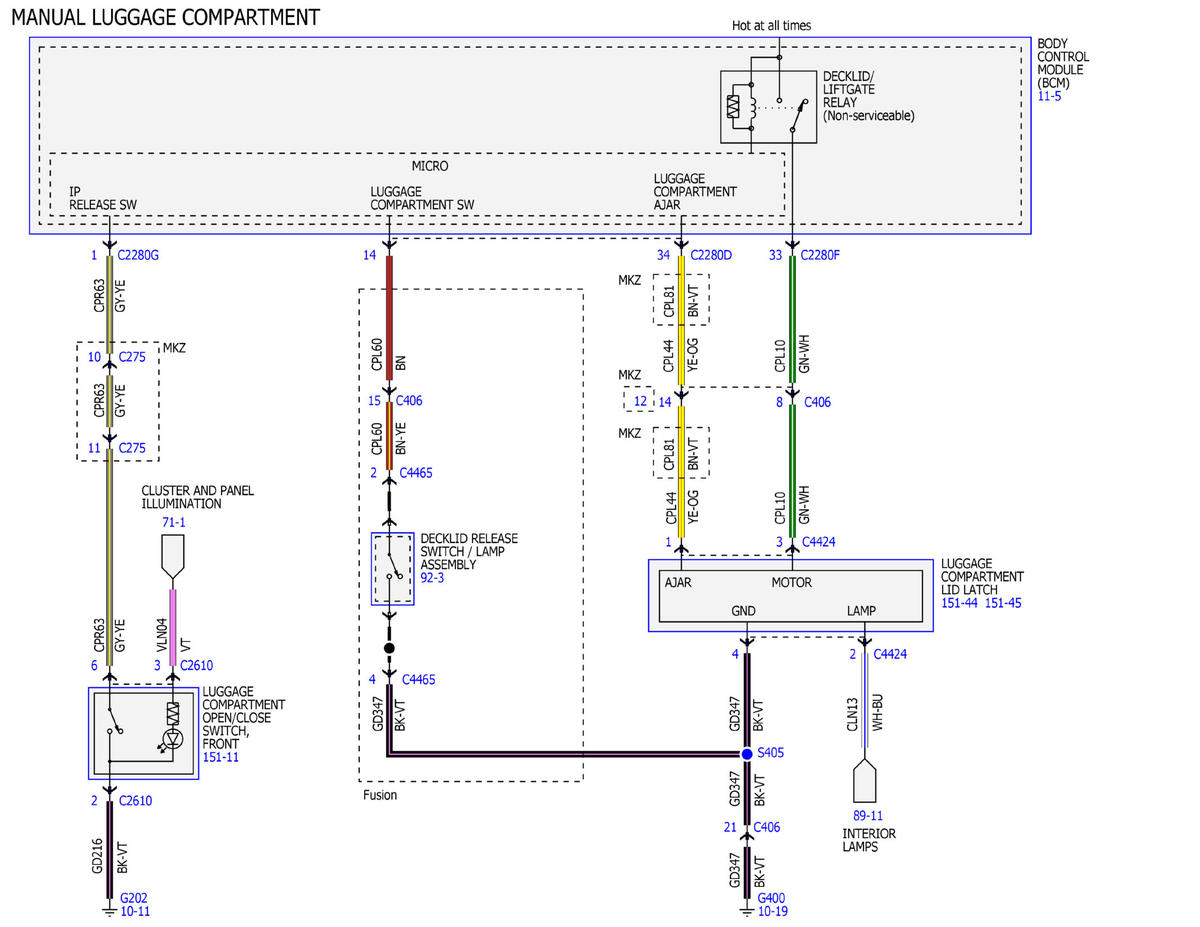

Fig 1: Luggage Compartment Wiring Diagram (1 Of 5)
Courtesy of FORD MOTOR COMPANY

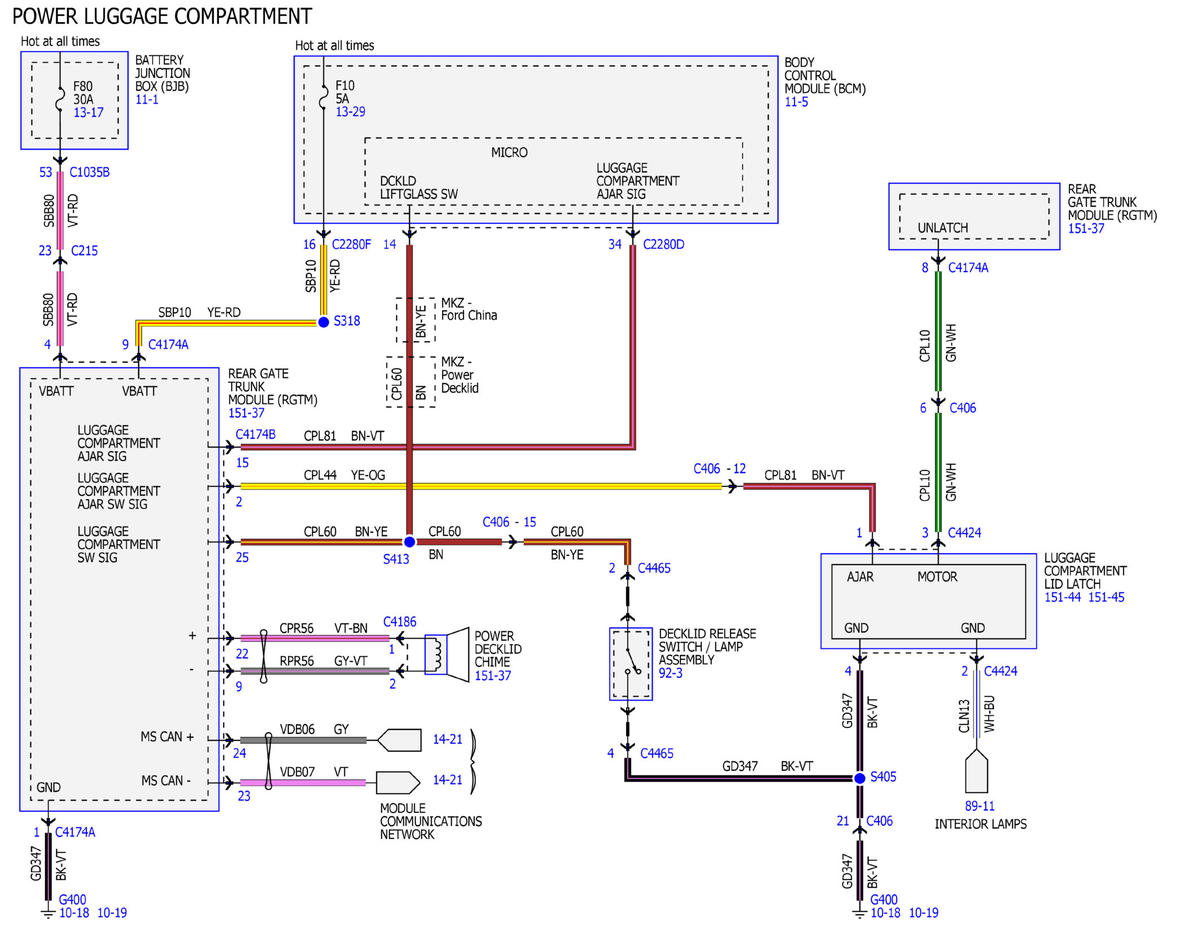

Fig 2: Luggage Compartment Wiring Diagram (2 Of 5)
Courtesy of FORD MOTOR COMPANY

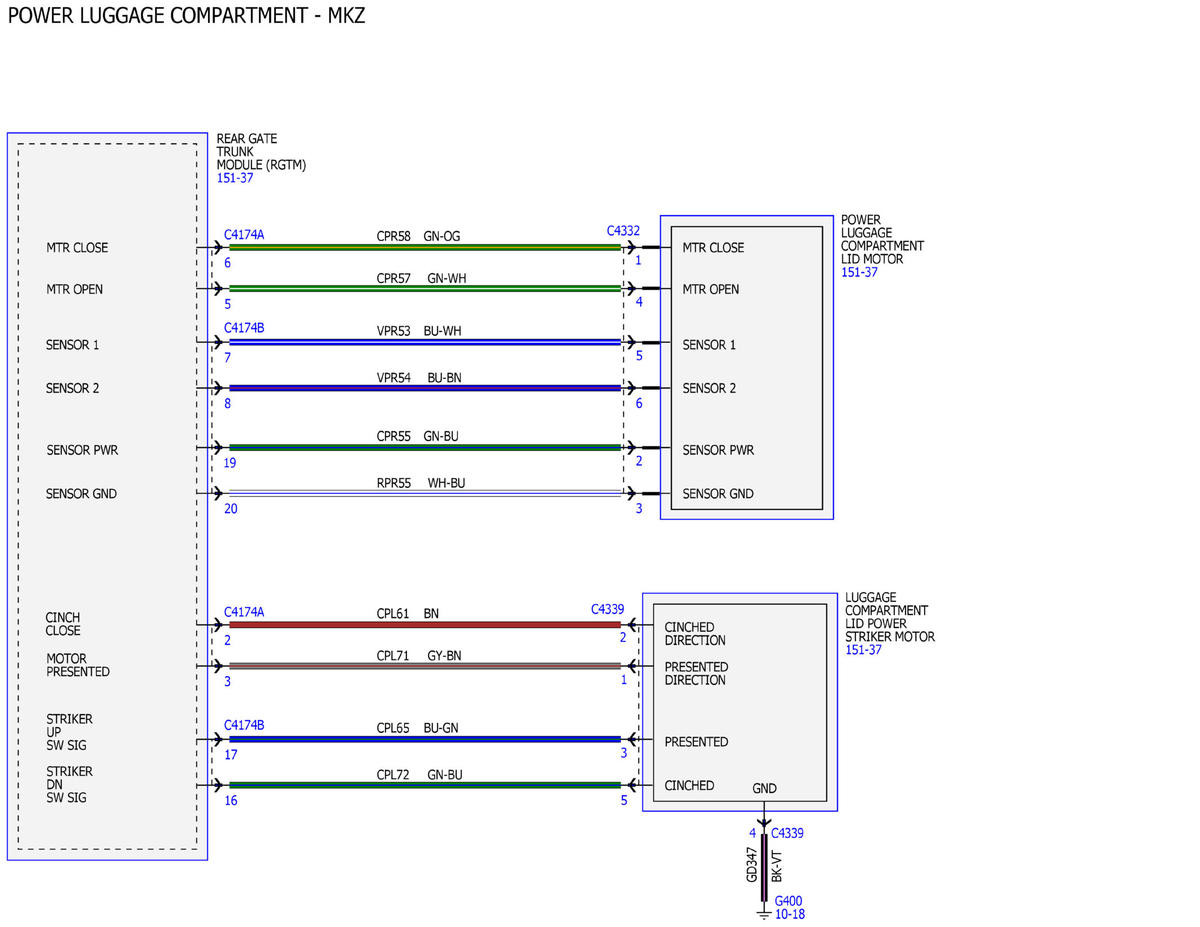

Fig 3: Luggage Compartment Wiring Diagram (3 Of 5)
Courtesy of FORD MOTOR COMPANY

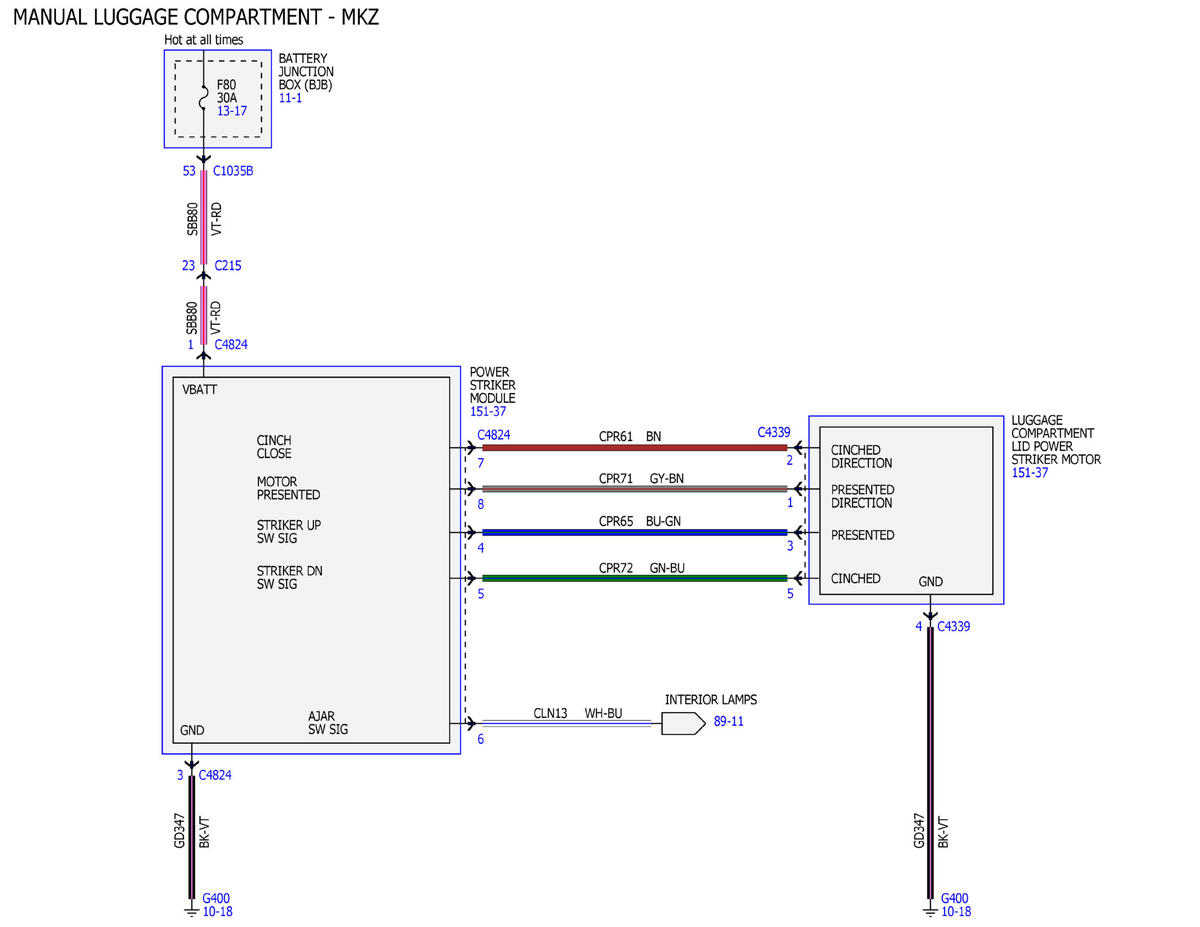

Fig 4: Luggage Compartment Wiring Diagram (4 Of 5)
Courtesy of FORD MOTOR COMPANY

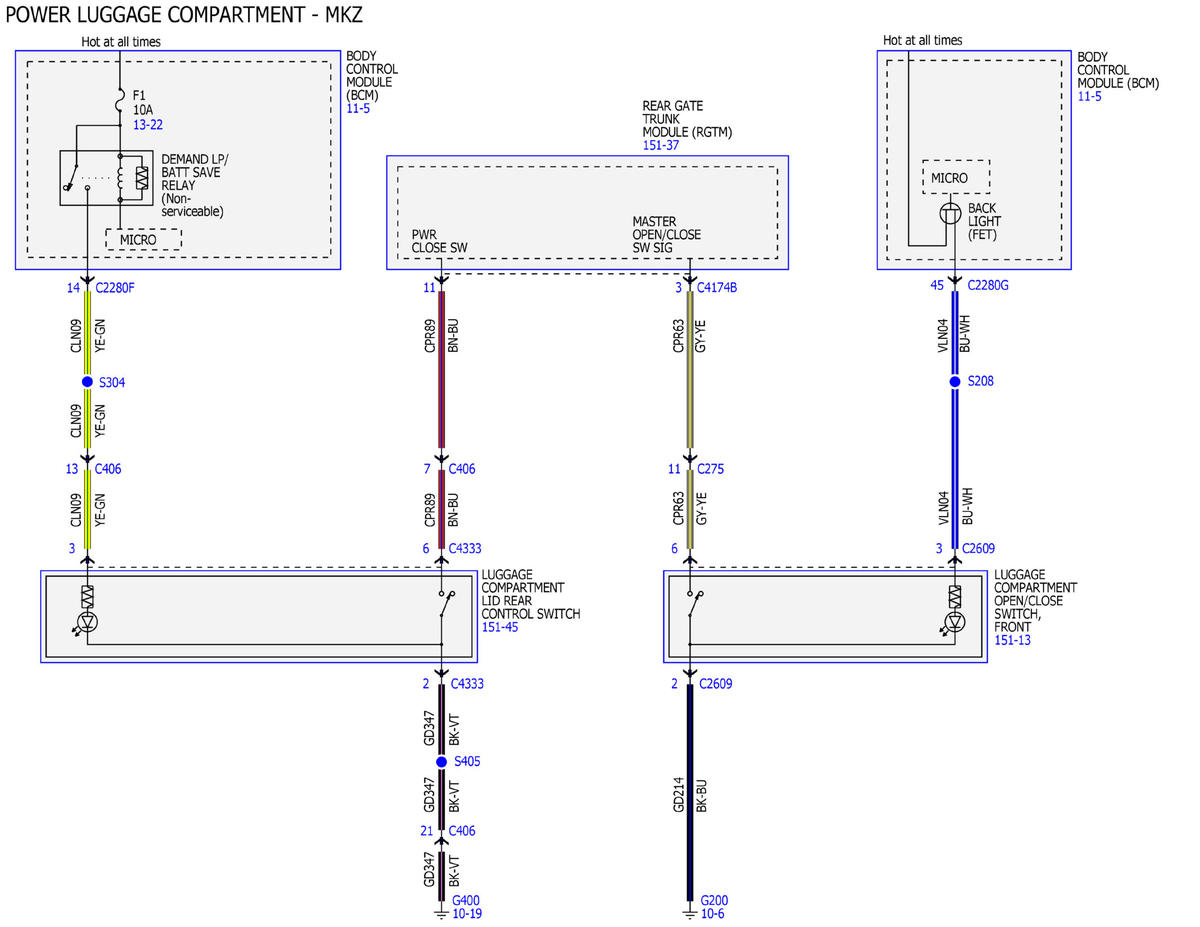

Fig 5: Luggage Compartment Wiring Diagram (5 Of 5)
Courtesy of FORD MOTOR COMPANY
