Instrument Cluster

Fig 1: Instrument Cluster Wiring Diagram (1 Of 6)
GFDWR72819Courtesy of FORD MOTOR COMPANY

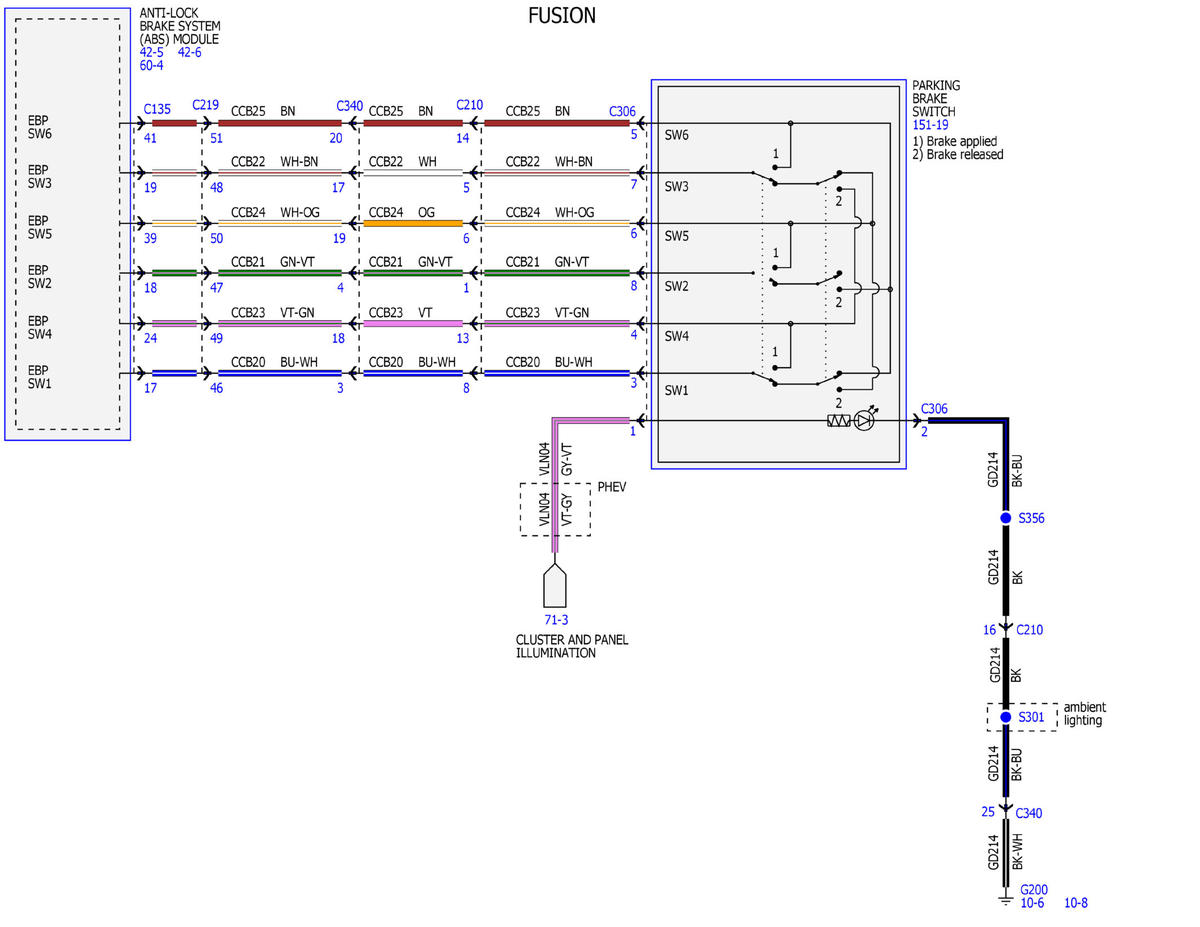

Fig 2: Instrument Cluster Wiring Diagram (2 Of 6)
GFDWR72820Courtesy of FORD MOTOR COMPANY

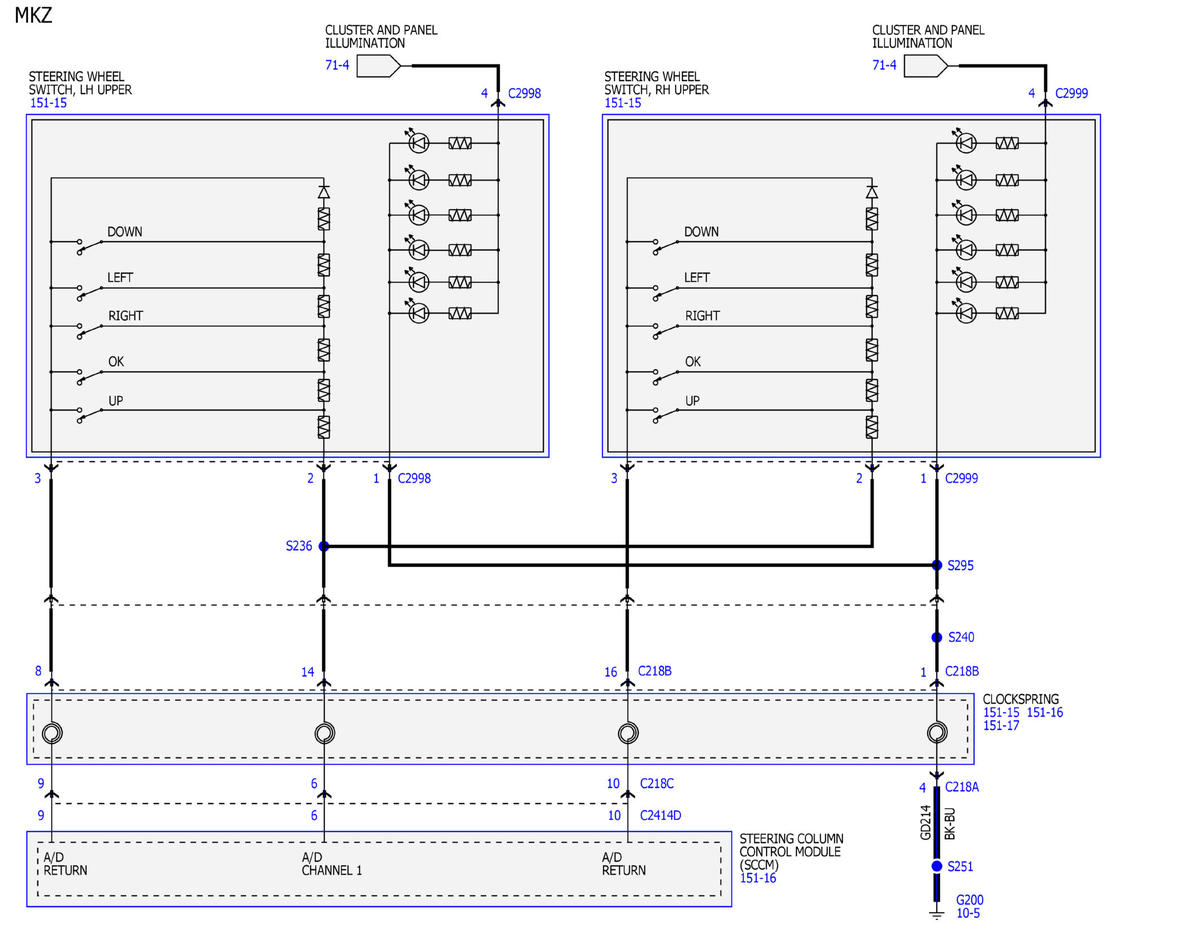

Fig 3: Instrument Cluster Wiring Diagram (3 Of 6)
GFDWR72821Courtesy of FORD MOTOR COMPANY

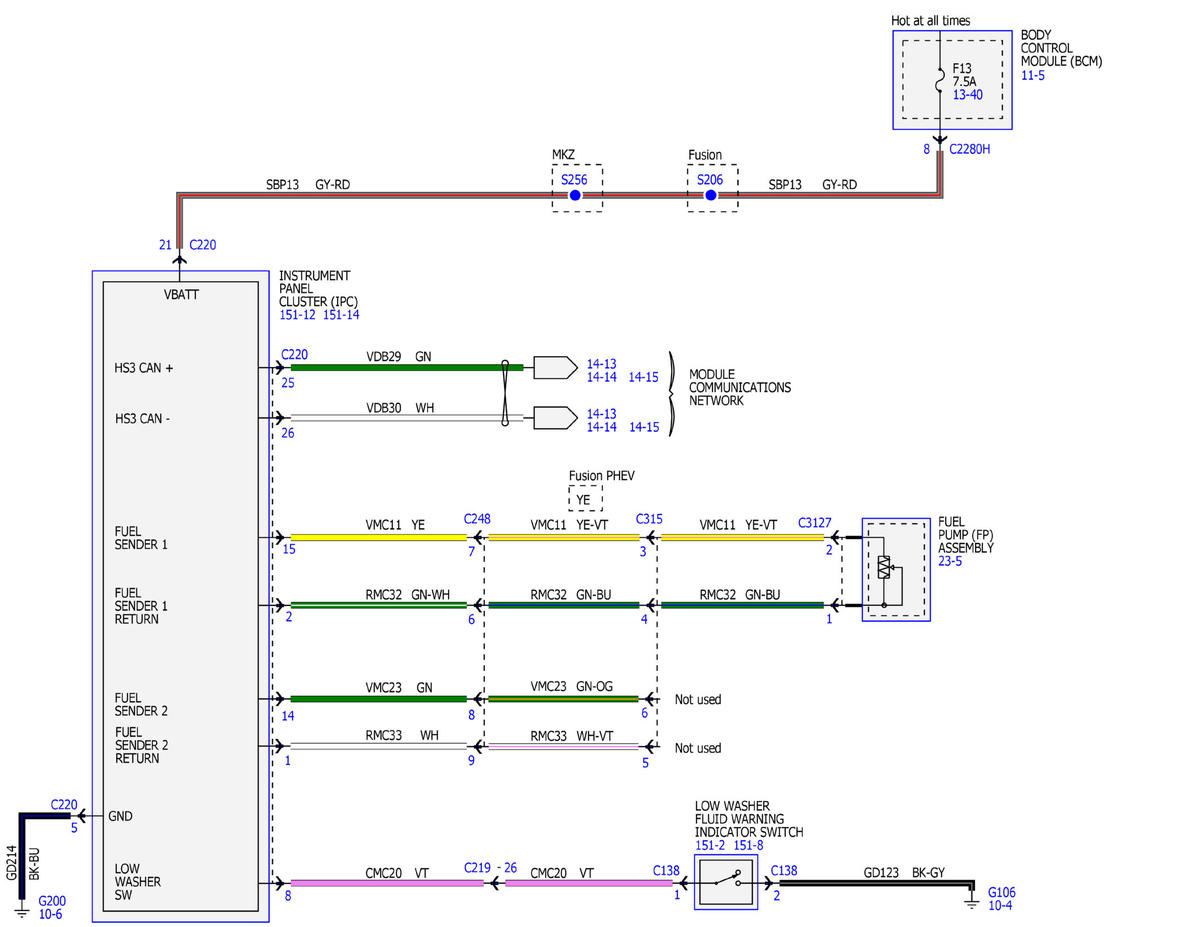

Fig 4: Instrument Cluster Wiring Diagram (4 Of 6)
GFDWR72822Courtesy of FORD MOTOR COMPANY

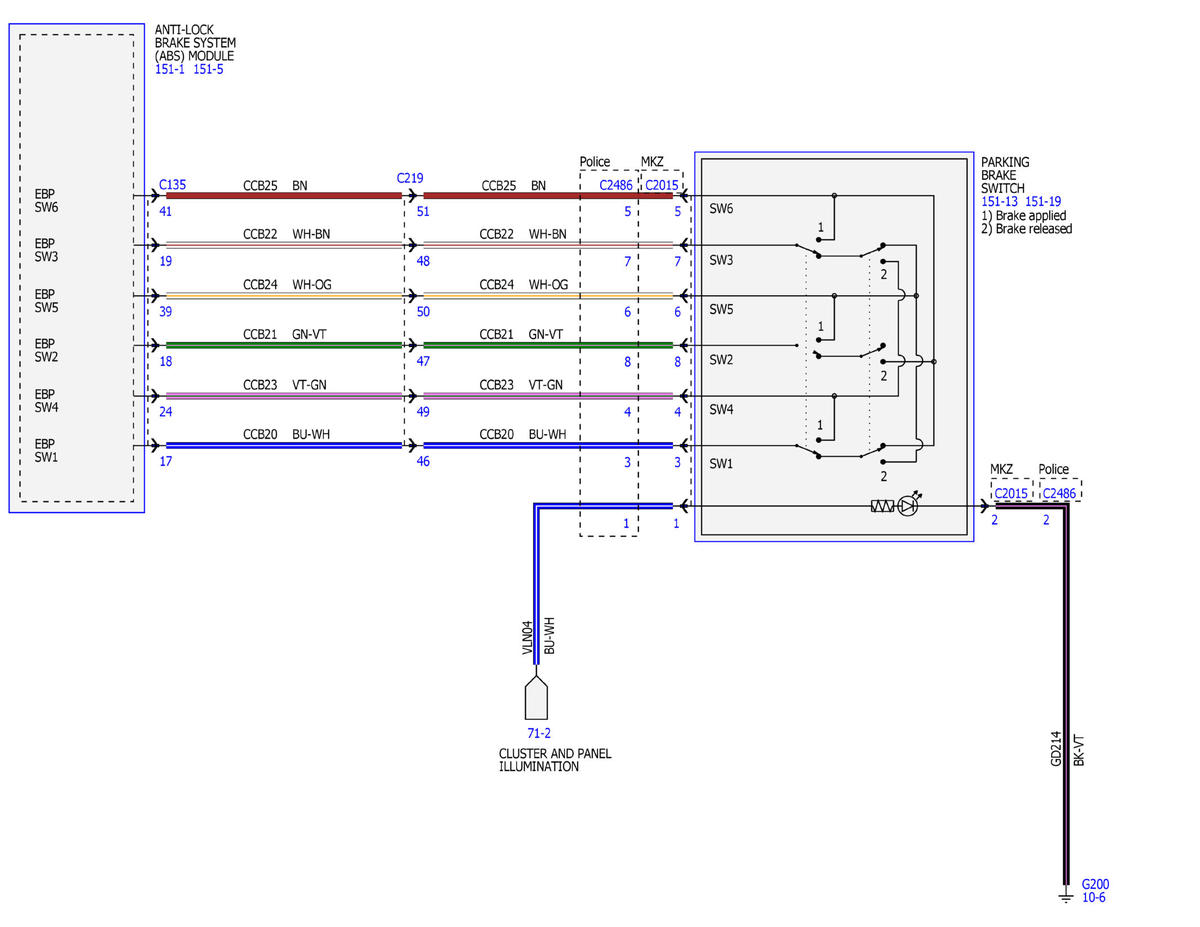

Fig 5: Instrument Cluster Wiring Diagram (5 Of 6)
GFDWR72823Courtesy of FORD MOTOR COMPANY

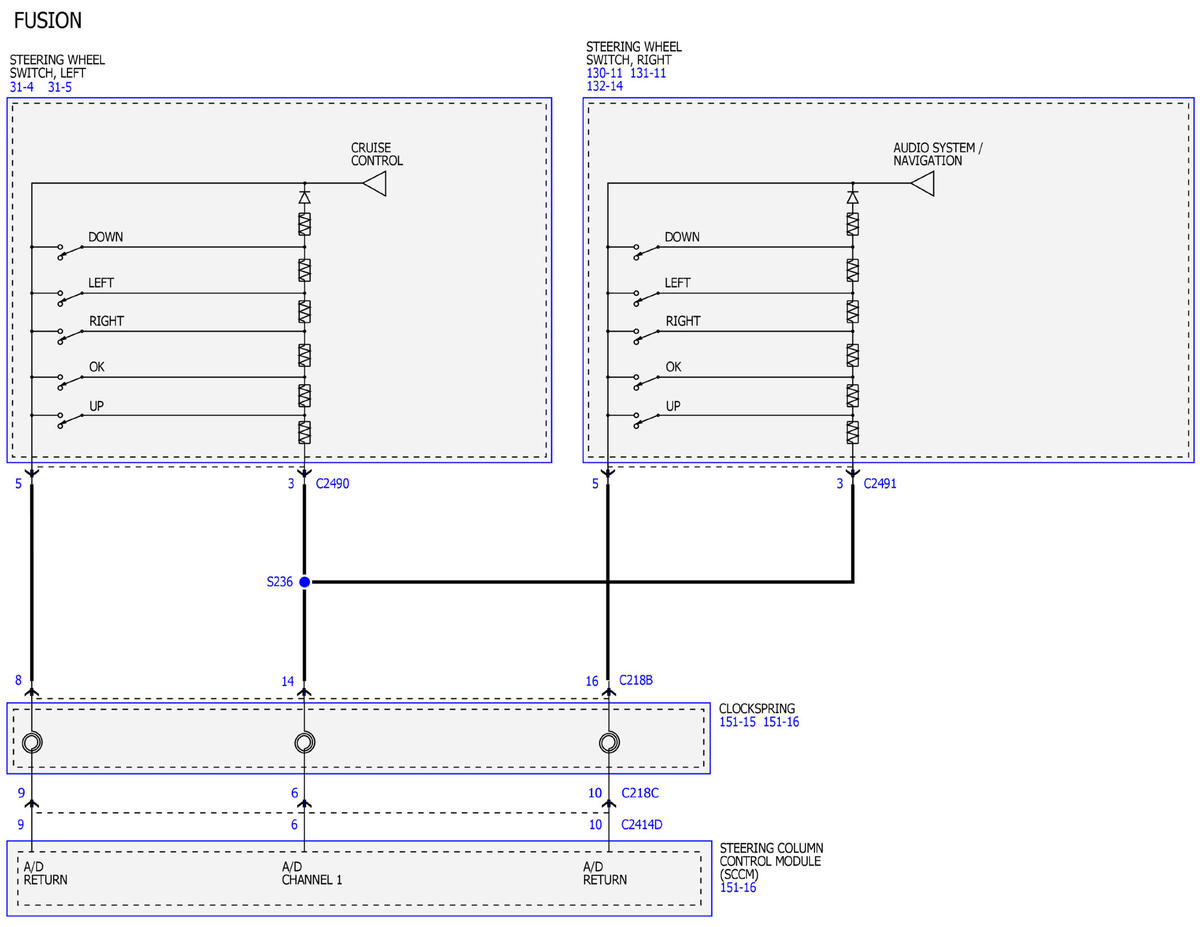

Fig 6: Instrument Cluster Wiring Diagram (6 Of 6)
GFDWR72824Courtesy of FORD MOTOR COMPANY
