Fusion Energi Titanium
>>
Repair and Diagnosis
>>
Electrical
>>
Wiring Diagrams
>>
OEM Wiring Diagrams (Hybrid/ENERGI)
>>
Fuel Filler Door Release
Fuel Filler Door Release

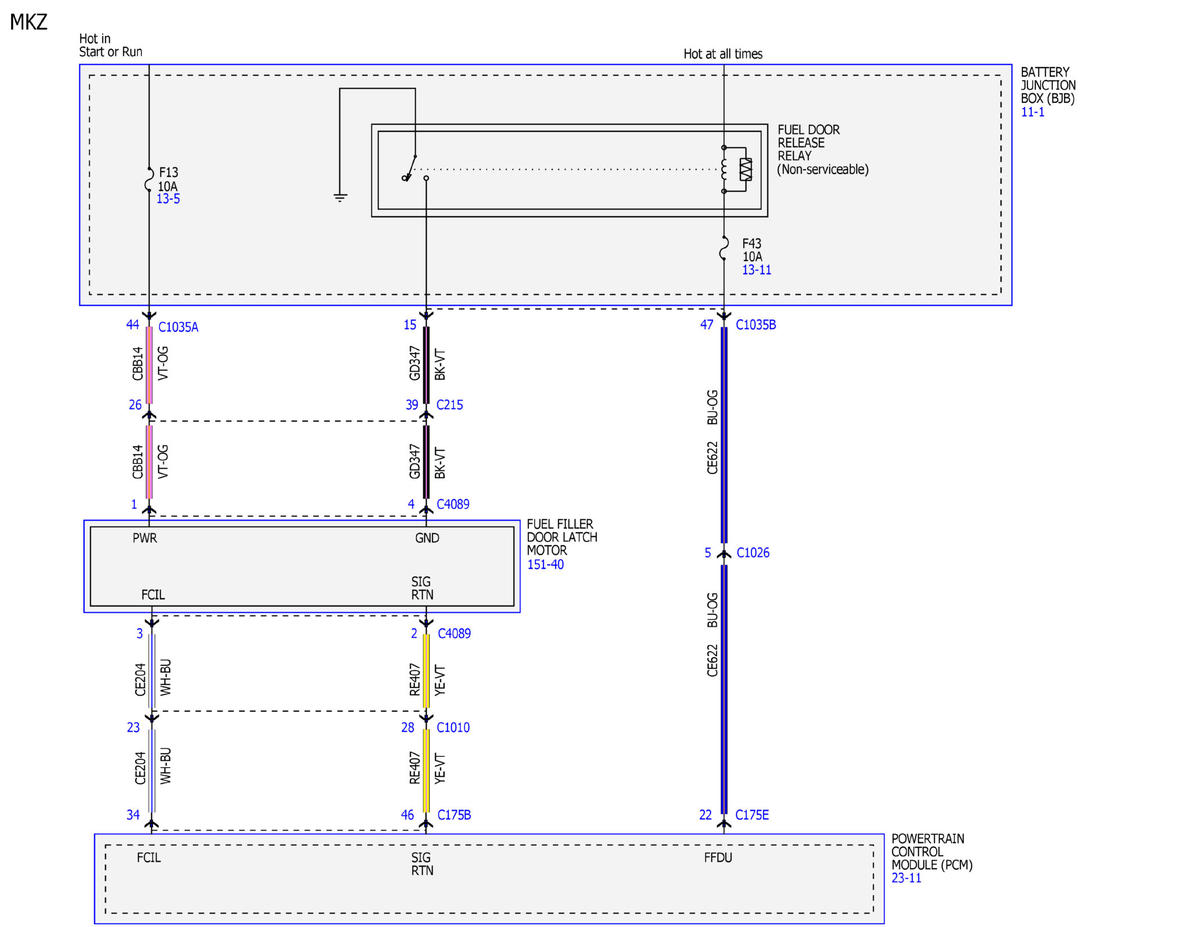

Fig 1: Fuel Filler Door Release Wiring Diagram (1 Of 4)
Courtesy of FORD MOTOR COMPANY

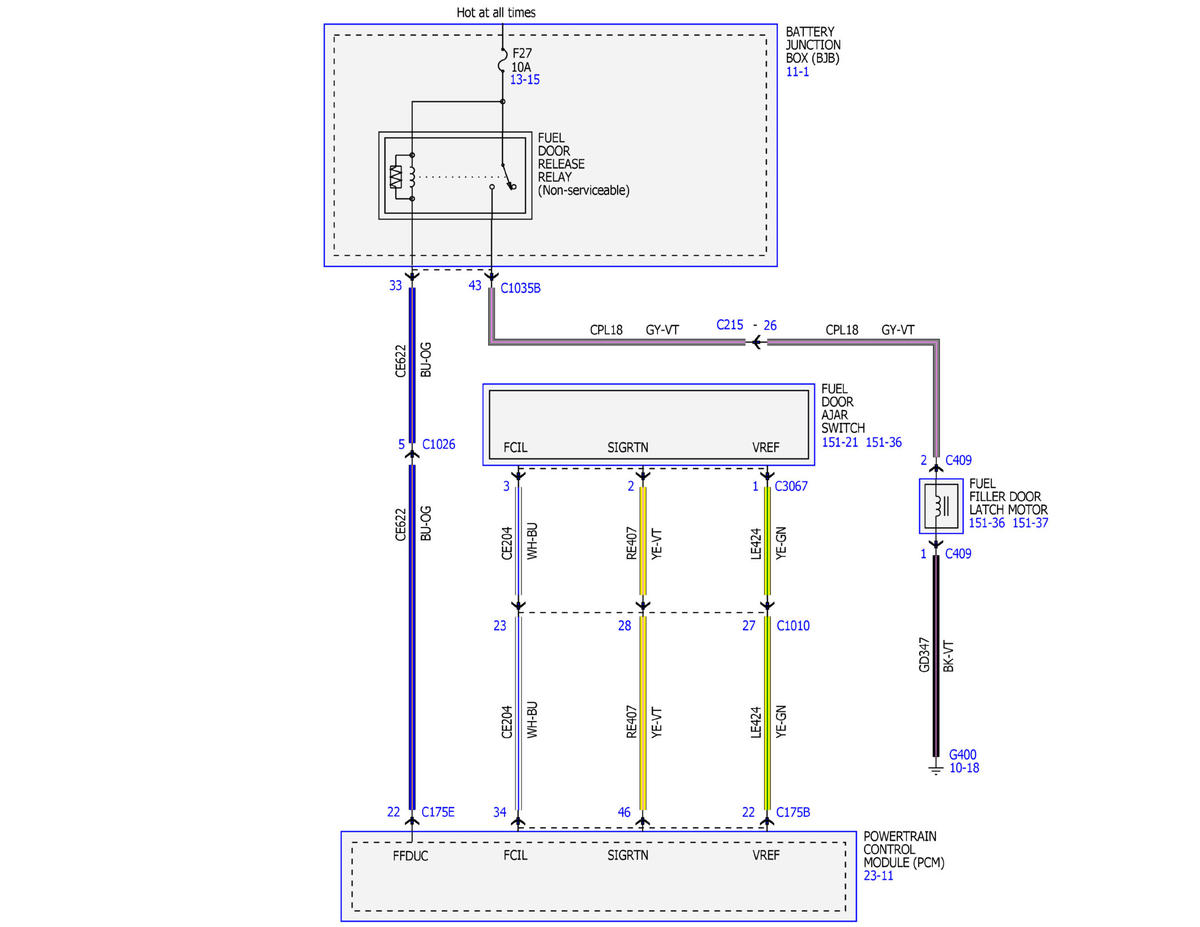

Fig 2: Fuel Filler Door Release Wiring Diagram (2 Of 4)
Courtesy of FORD MOTOR COMPANY

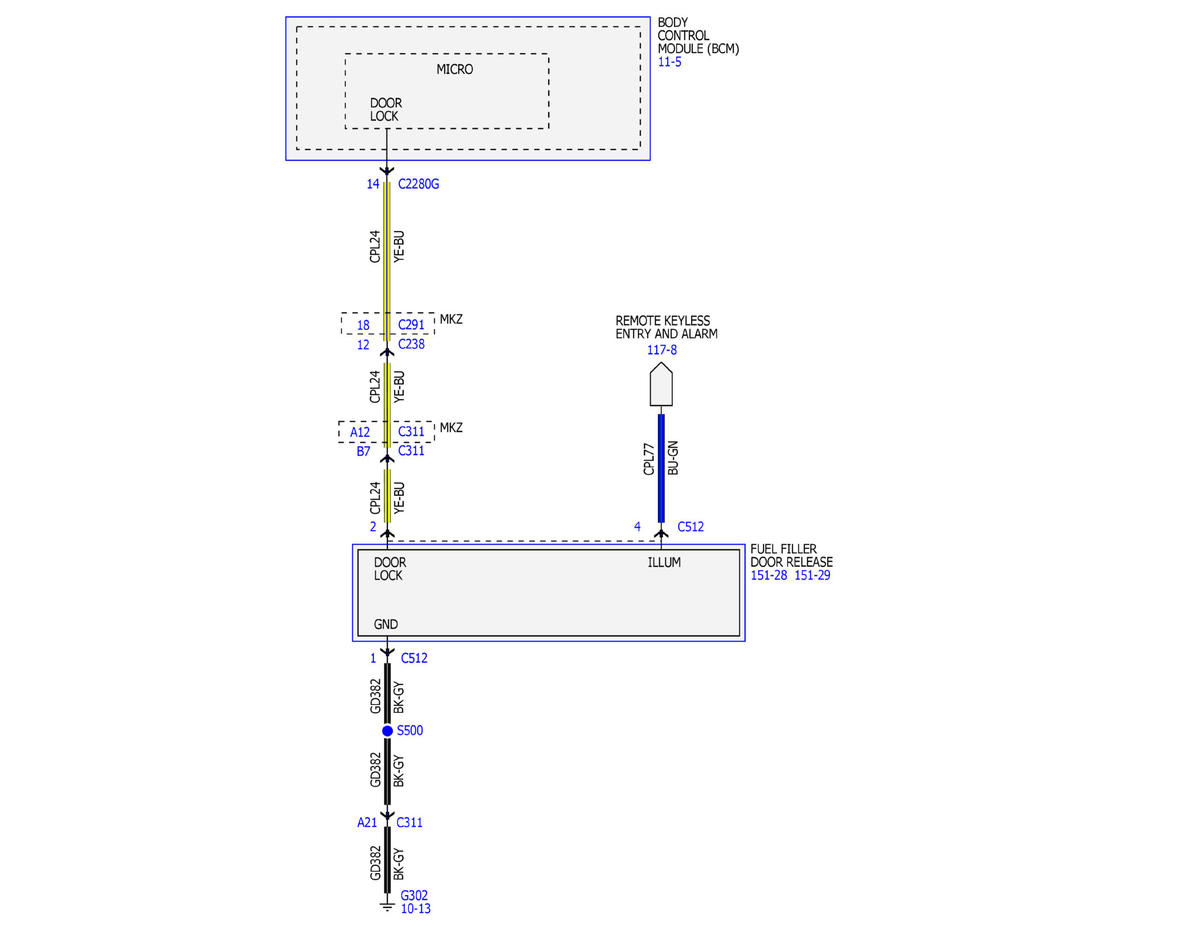

Fig 3: Fuel Filler Door Release Wiring Diagram (3 Of 4)
Courtesy of FORD MOTOR COMPANY
Fig 4: Fuel Filler Door Release Wiring Diagram (4 Of 4)
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
