Cluster and Panel Illumination

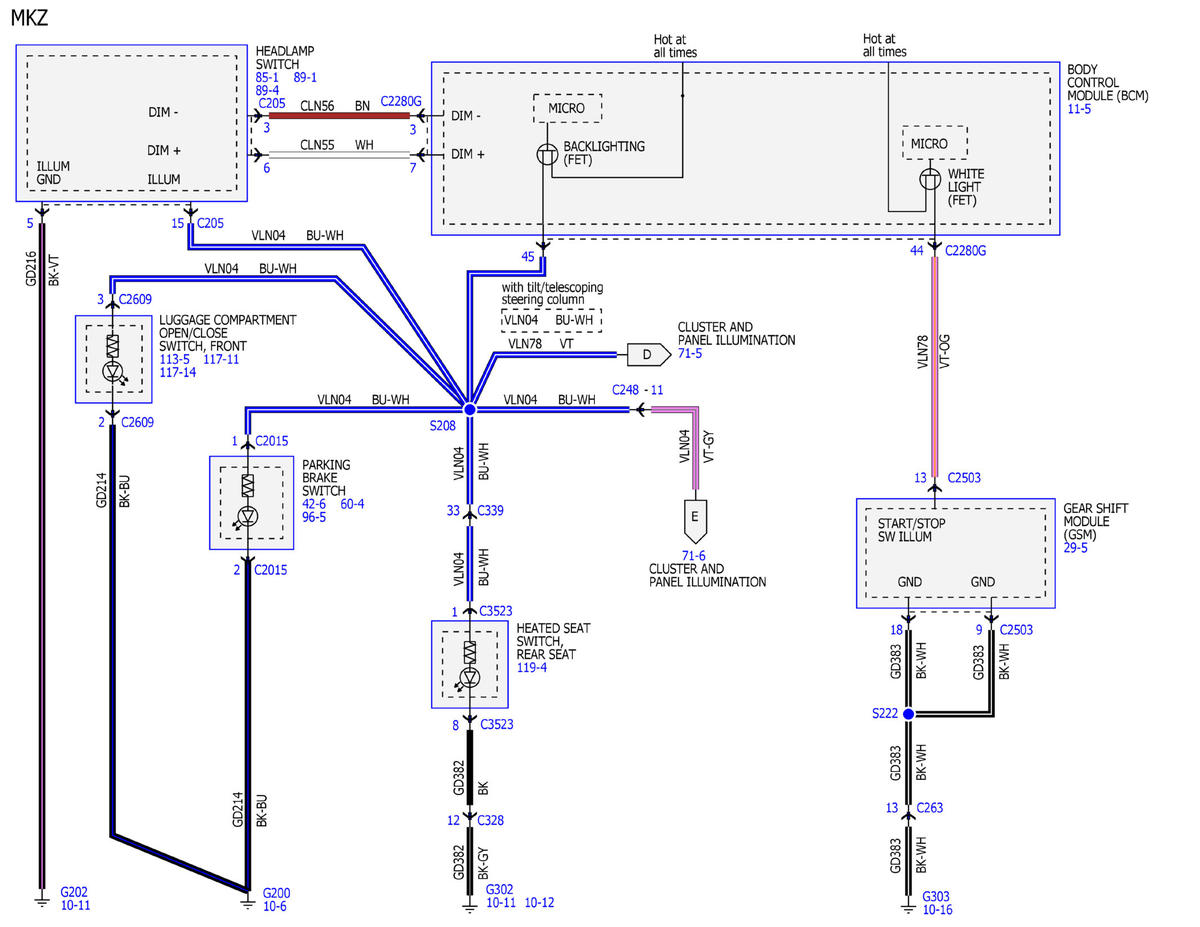

Fig 1: Cluster and Panel Illumination Wiring Diagram (1 Of 6)
GFDWR72769Courtesy of FORD MOTOR COMPANY

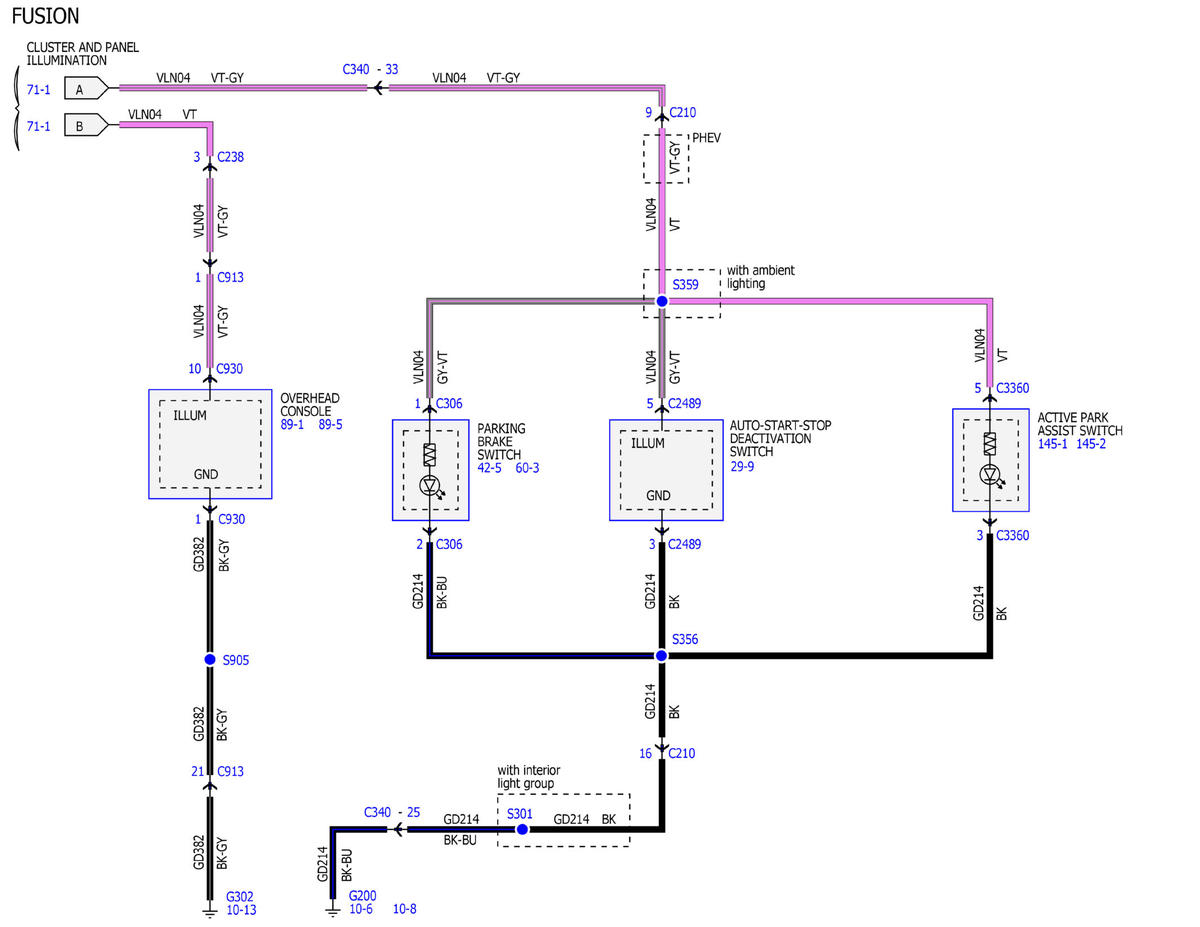

Fig 2: Cluster and Panel Illumination Wiring Diagram (2 Of 6)
GFDWR72770Courtesy of FORD MOTOR COMPANY

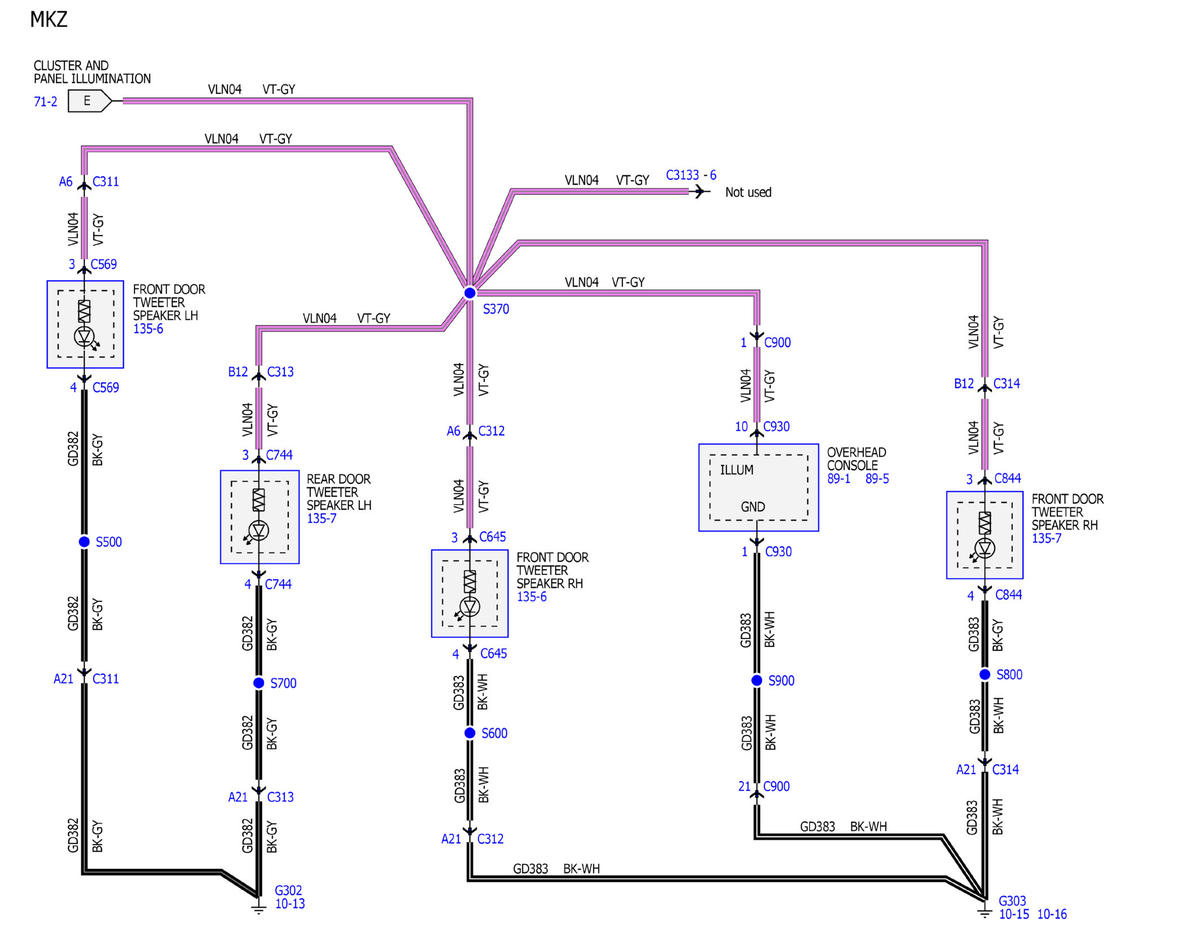

Fig 3: Cluster and Panel Illumination Wiring Diagram (3 Of 6)
GFDWR72771Courtesy of FORD MOTOR COMPANY

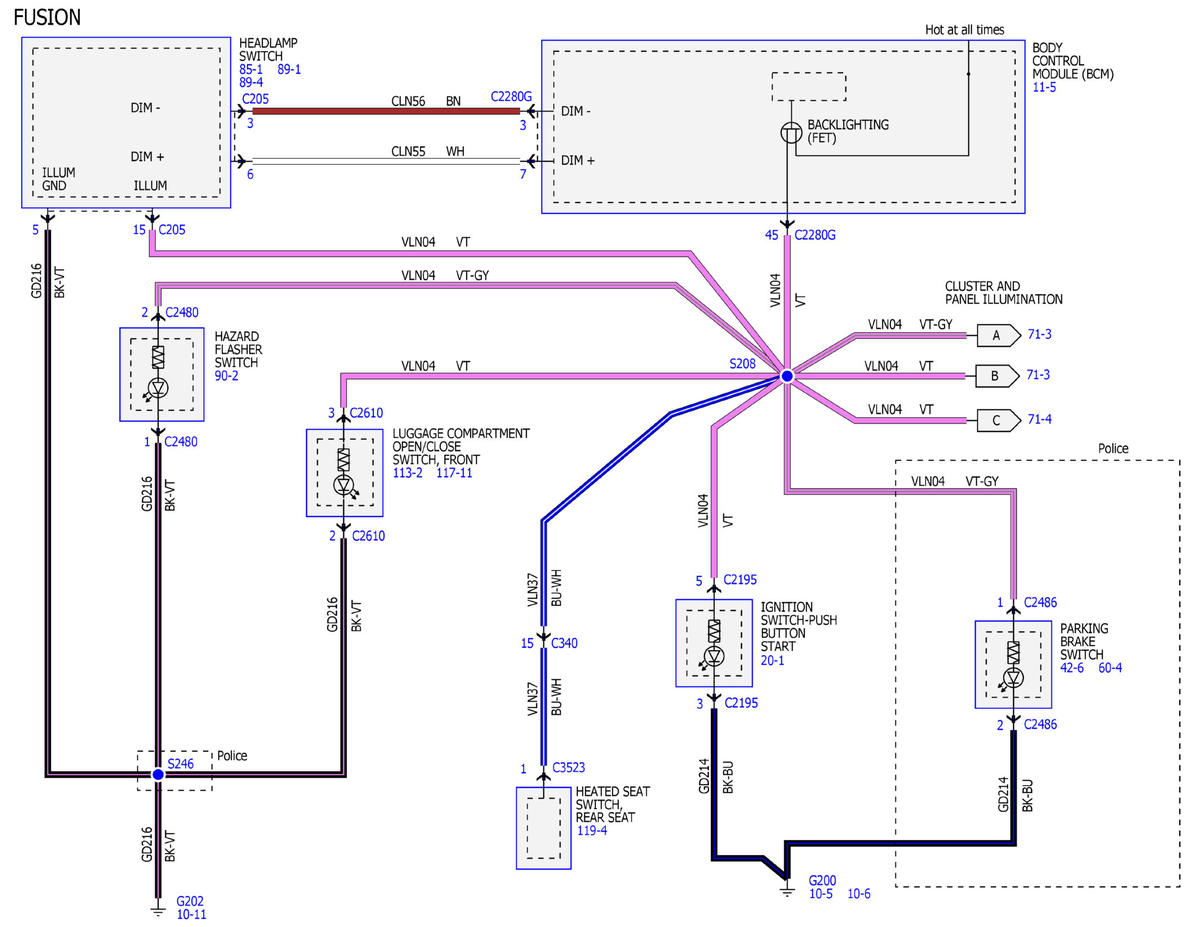

Fig 4: Cluster and Panel Illumination Wiring Diagram (4 Of 6)
GFDWR72772Courtesy of FORD MOTOR COMPANY

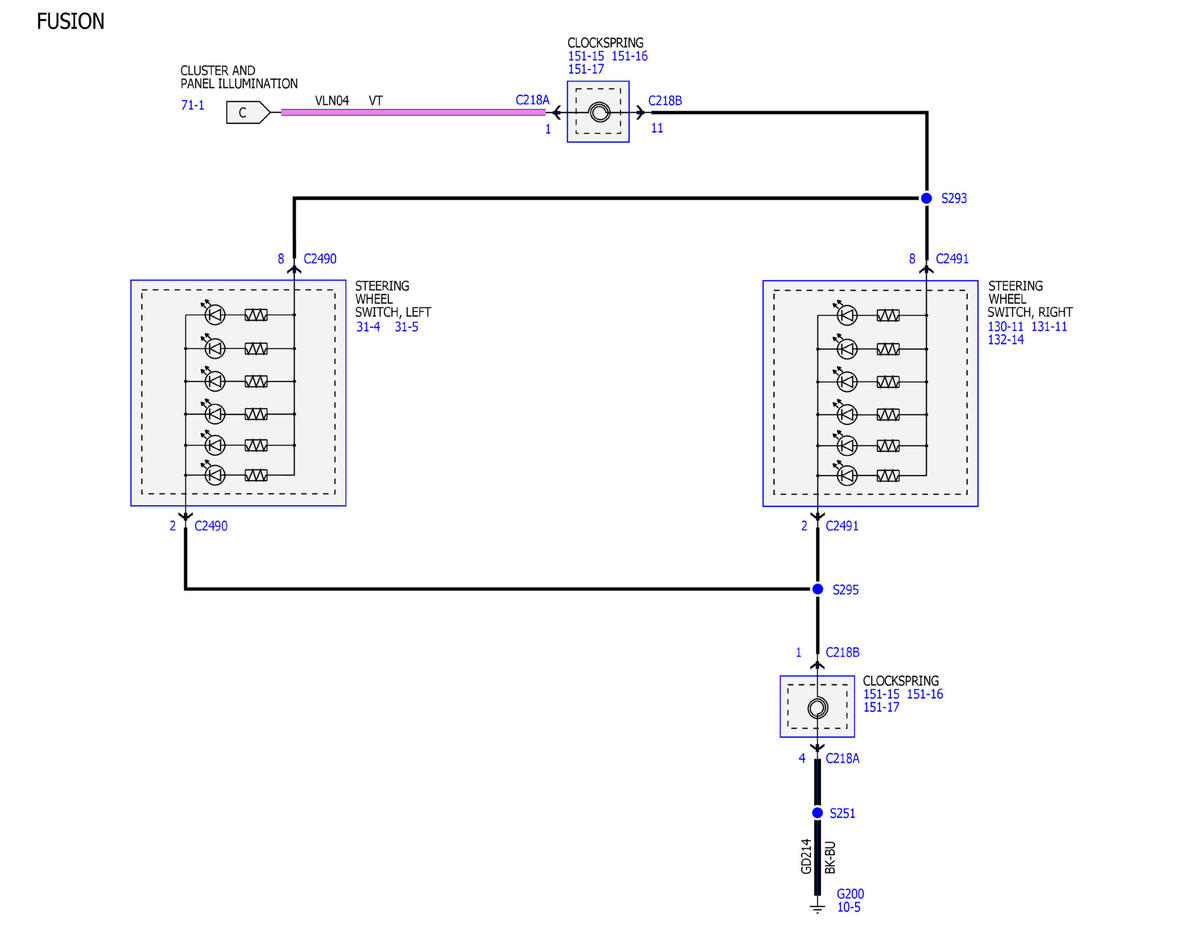

Fig 5: Cluster and Panel Illumination Wiring Diagram (5 Of 6)
GFDWR72773Courtesy of FORD MOTOR COMPANY

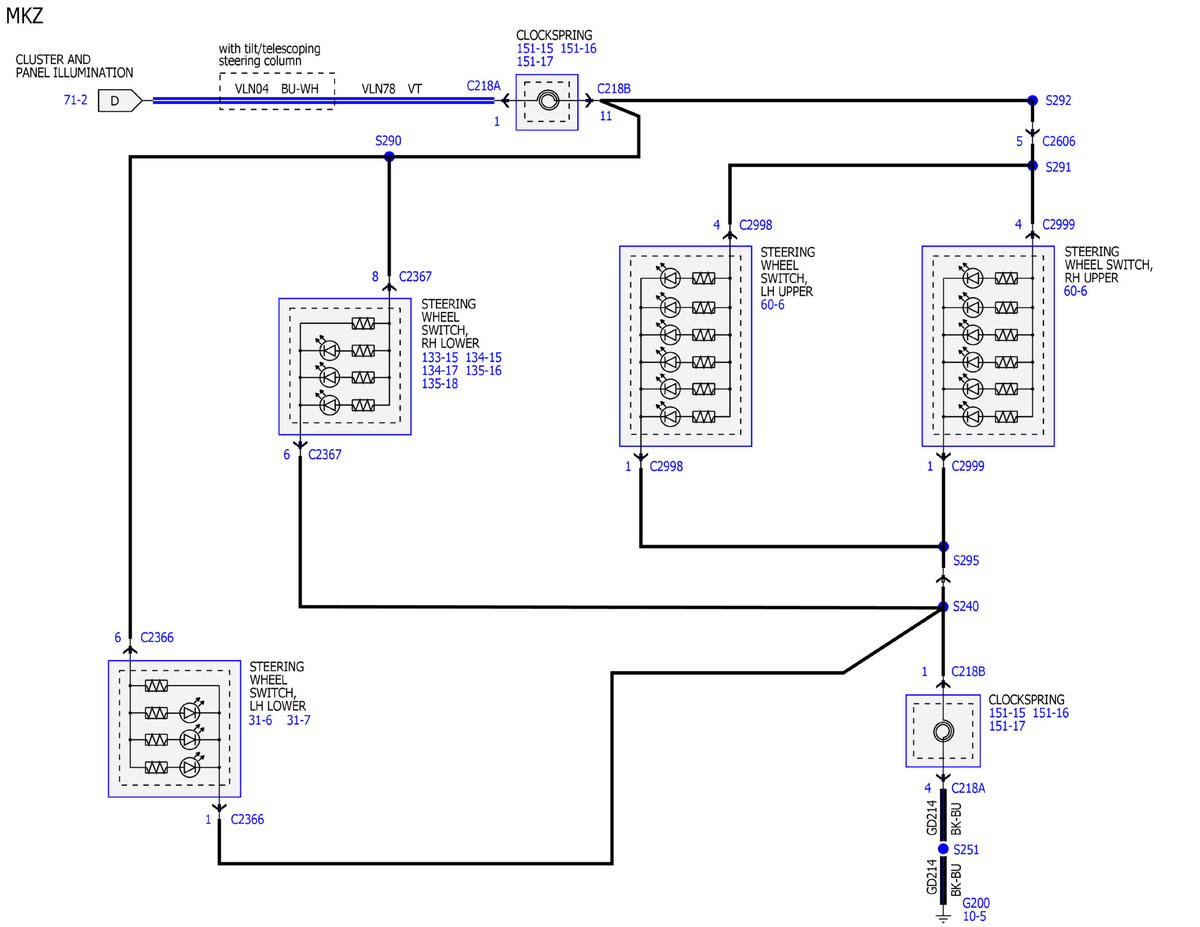

Fig 6: Cluster and Panel Illumination Wiring Diagram (6 Of 6)
GFDWR72774Courtesy of FORD MOTOR COMPANY
