Climate Controlled Seats

Fig 1: Climate Controlled Seats Wiring Diagram (1 Of 8)
GFDWR72761Courtesy of FORD MOTOR COMPANY
Fig 2: Climate Controlled Seats Wiring Diagram (2 Of 8)
GFDWR72762Courtesy of FORD MOTOR COMPANY

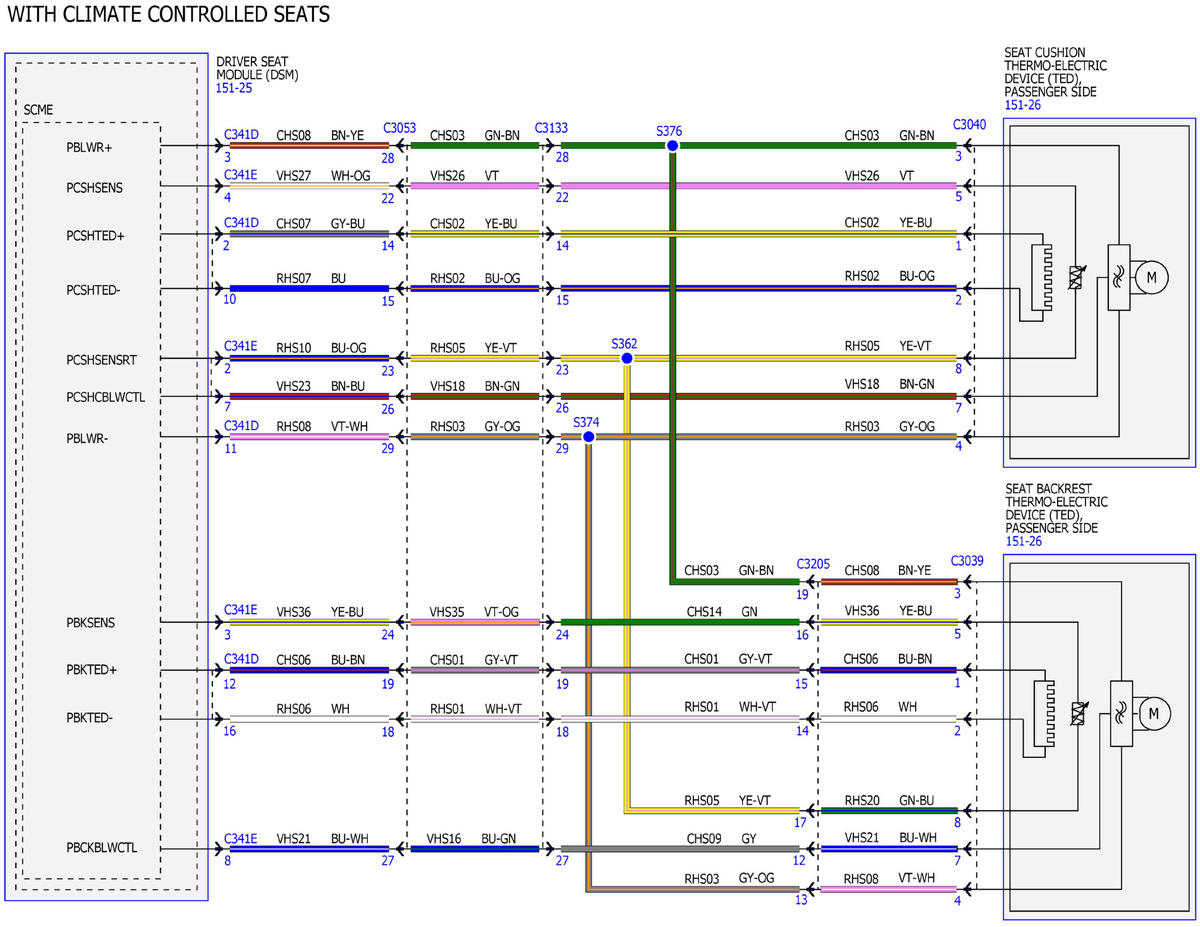

Fig 3: Climate Controlled Seats Wiring Diagram (3 Of 8)
GFDWR72763Courtesy of FORD MOTOR COMPANY

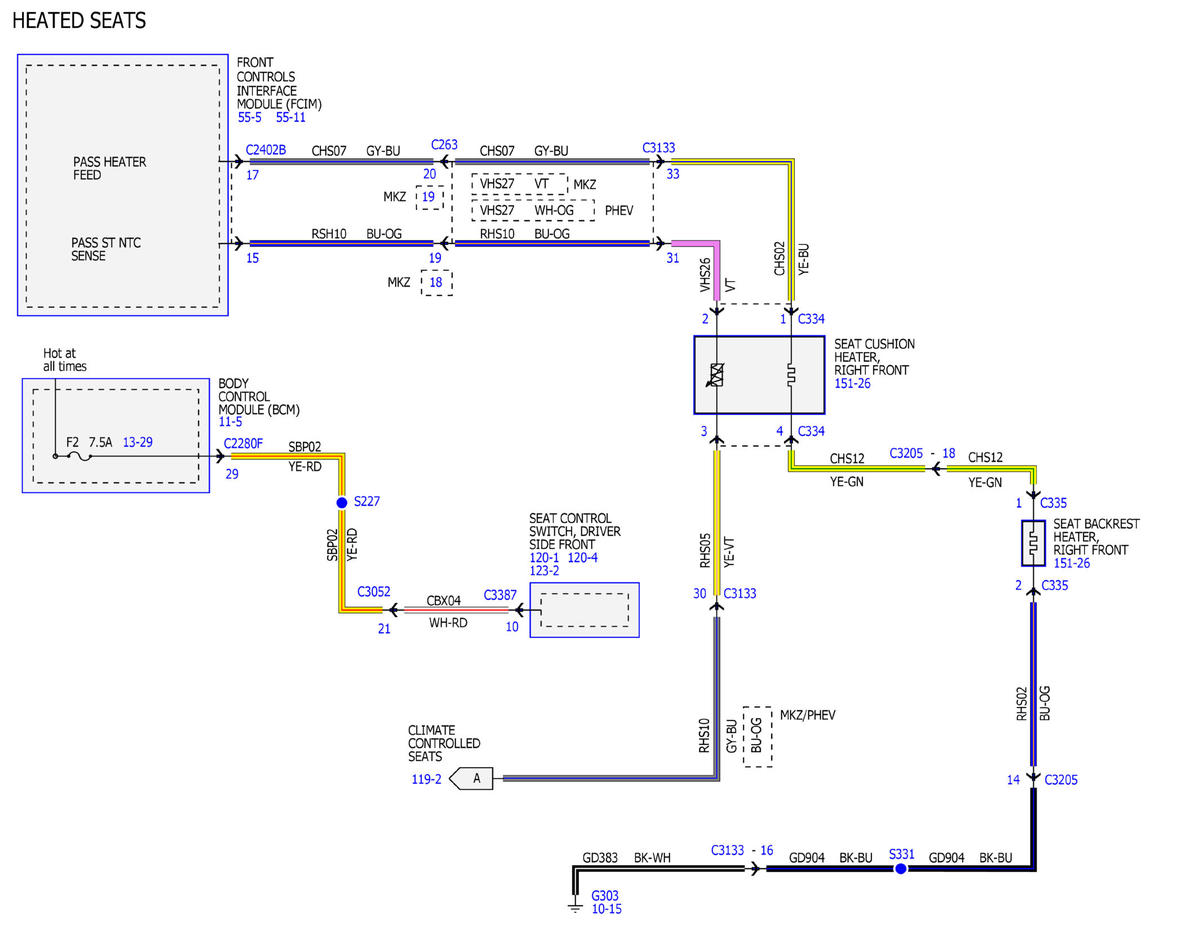

Fig 4: Climate Controlled Seats Wiring Diagram (4 Of 8)
GFDWR72764Courtesy of FORD MOTOR COMPANY

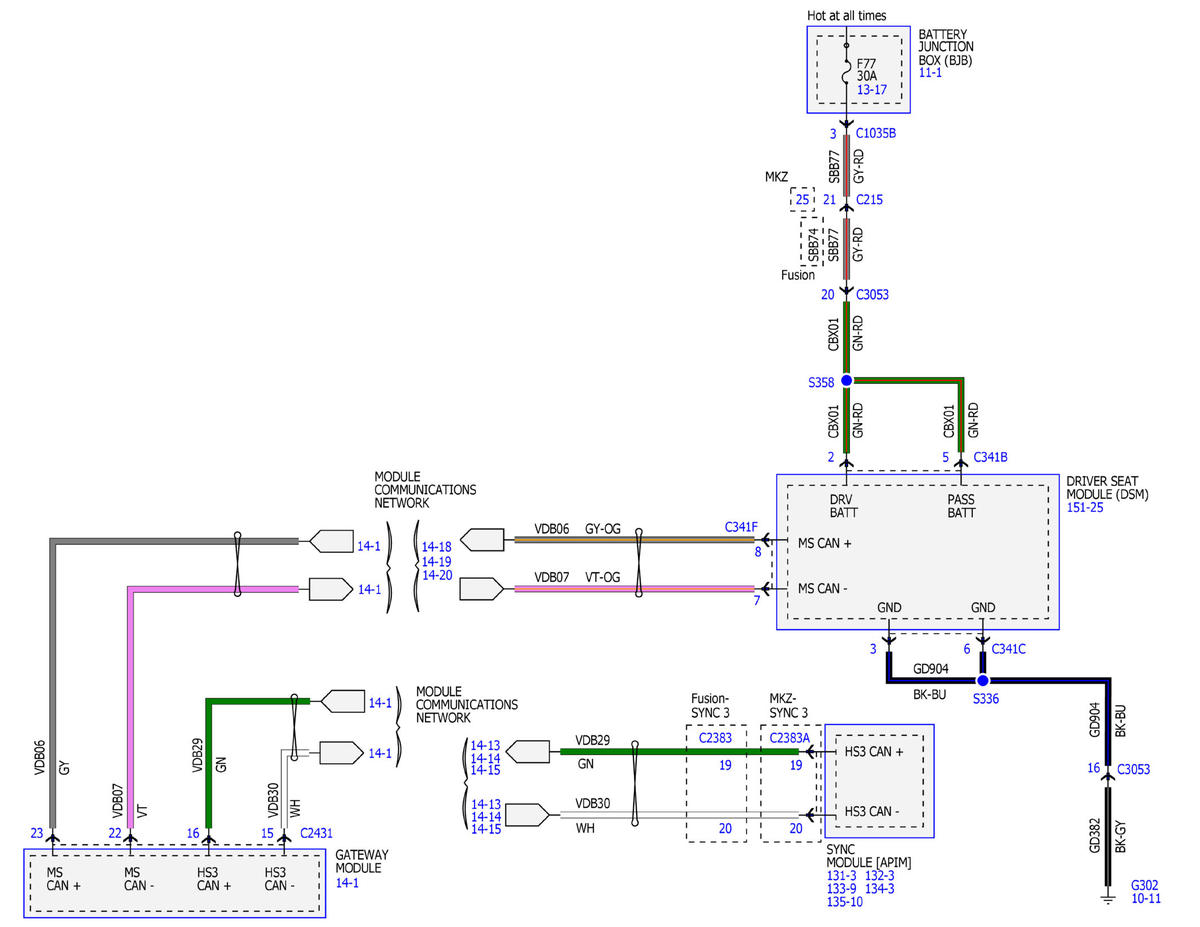

Fig 5: Climate Controlled Seats Wiring Diagram (5 Of 8)
GFDWR72765Courtesy of FORD MOTOR COMPANY
Fig 6: Climate Controlled Seats Wiring Diagram (6 Of 8)
GFDWR72766Courtesy of FORD MOTOR COMPANY
Fig 7: Climate Controlled Seats Wiring Diagram (7 Of 8)
GFDWR72767Courtesy of FORD MOTOR COMPANY
Fig 8: Climate Controlled Seats Wiring Diagram (8 Of 8)
GFDWR72768Courtesy of FORD MOTOR COMPANY
