Charging System

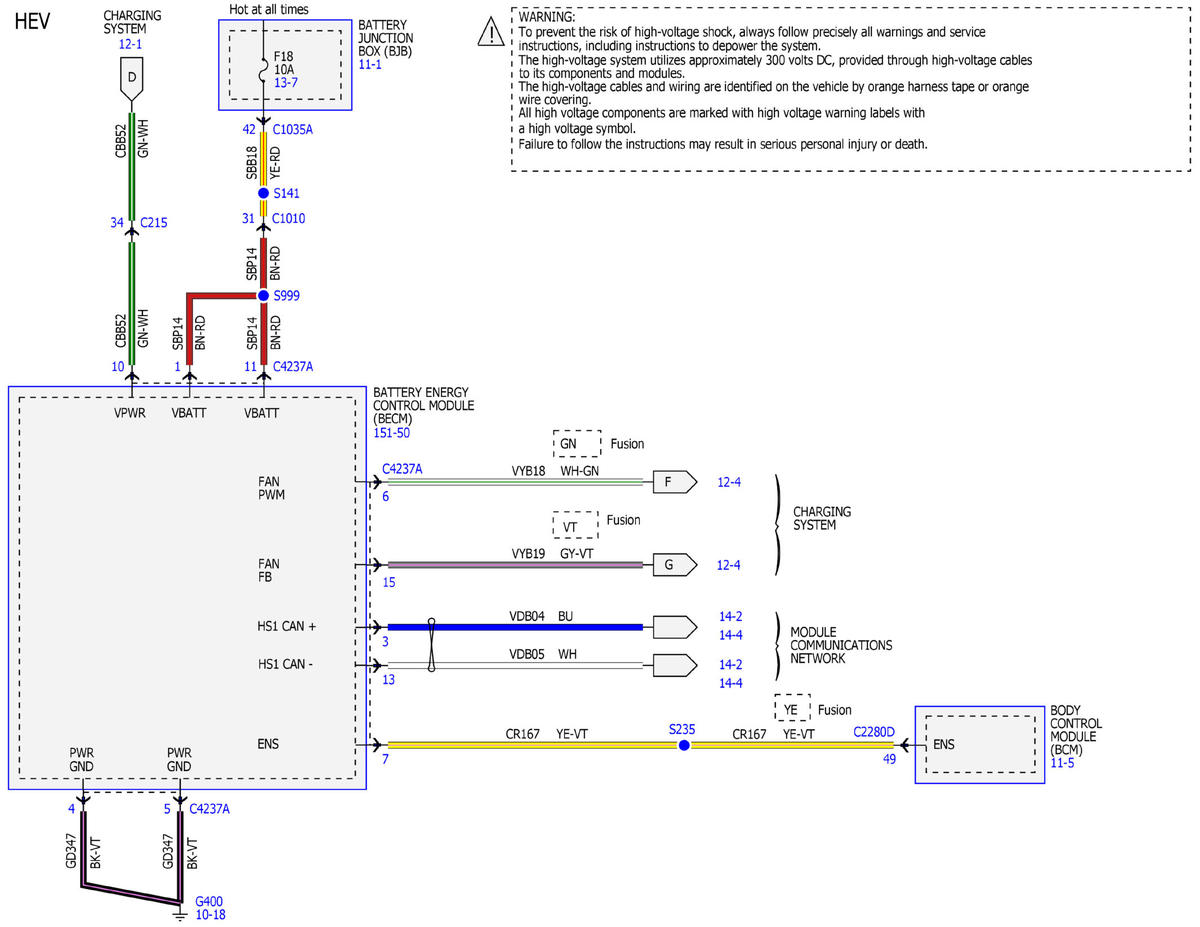

Fig 1: Charging System Wiring Diagram (1 Of 14)

GFDWR72747

Courtesy of FORD MOTOR COMPANY

Fig 2: Charging System Wiring Diagram (2 Of 14)

GFDWR72748

Courtesy of FORD MOTOR COMPANY

Fig 3: Charging System Wiring Diagram (3 Of 14)

GFDWR72749

Courtesy of FORD MOTOR COMPANY

Fig 4: Charging System Wiring Diagram (4 Of 14)

GFDWR72750

Courtesy of FORD MOTOR COMPANY

Fig 5: Charging System Wiring Diagram (5 Of 14)

GFDWR72751

Courtesy of FORD MOTOR COMPANY

Fig 6: Charging System Wiring Diagram (6 Of 14)

GFDWR72752

Courtesy of FORD MOTOR COMPANY

Fig 7: Charging System Wiring Diagram (7 Of 14)

GFDWR72753

Courtesy of FORD MOTOR COMPANY

Fig 8: Charging System Wiring Diagram (8 Of 14)

GFDWR72754

Courtesy of FORD MOTOR COMPANY

Fig 9: Charging System Wiring Diagram (9 Of 14)

GFDWR72755

Courtesy of FORD MOTOR COMPANY

Fig 10: Charging System Wiring Diagram (10 Of 14)

GFDWR72756

Courtesy of FORD MOTOR COMPANY

Fig 11: Charging System Wiring Diagram (11 Of 14)

GFDWR72757

Courtesy of FORD MOTOR COMPANY

Fig 12: Charging System Wiring Diagram (12 Of 14)

GFDWR72758

Courtesy of FORD MOTOR COMPANY

Fig 13: Charging System Wiring Diagram (13 Of 14)

GFDWR72759

Courtesy of FORD MOTOR COMPANY

Fig 14: Charging System Wiring Diagram (14 Of 14)

GFDWR72760

Courtesy of FORD MOTOR COMPANY
