Audio System/Navigation Wiring Diagram - With Sony

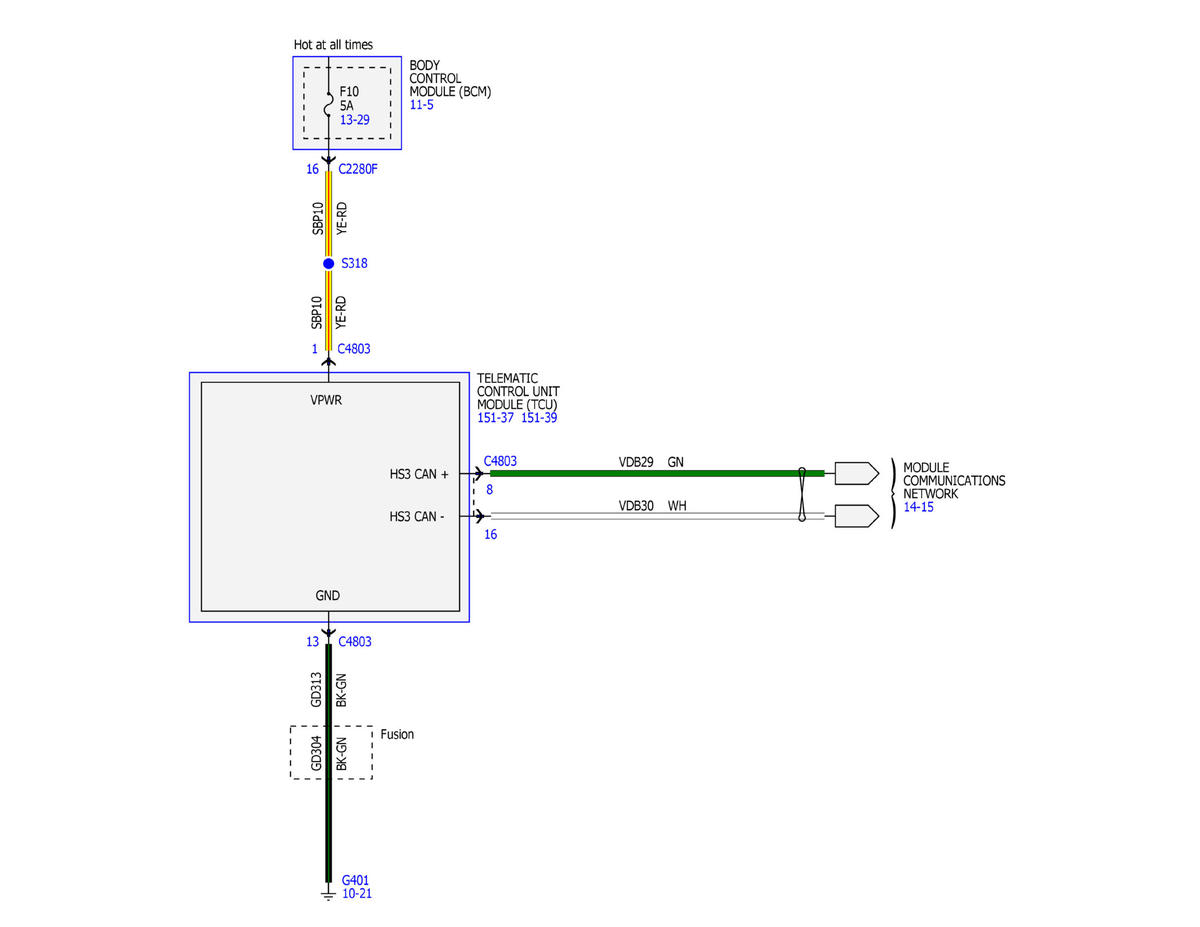

Fig 1: Audio System/Navigation Wiring Diagram - With Sony (1 Of 14)

Courtesy of FORD MOTOR COMPANY

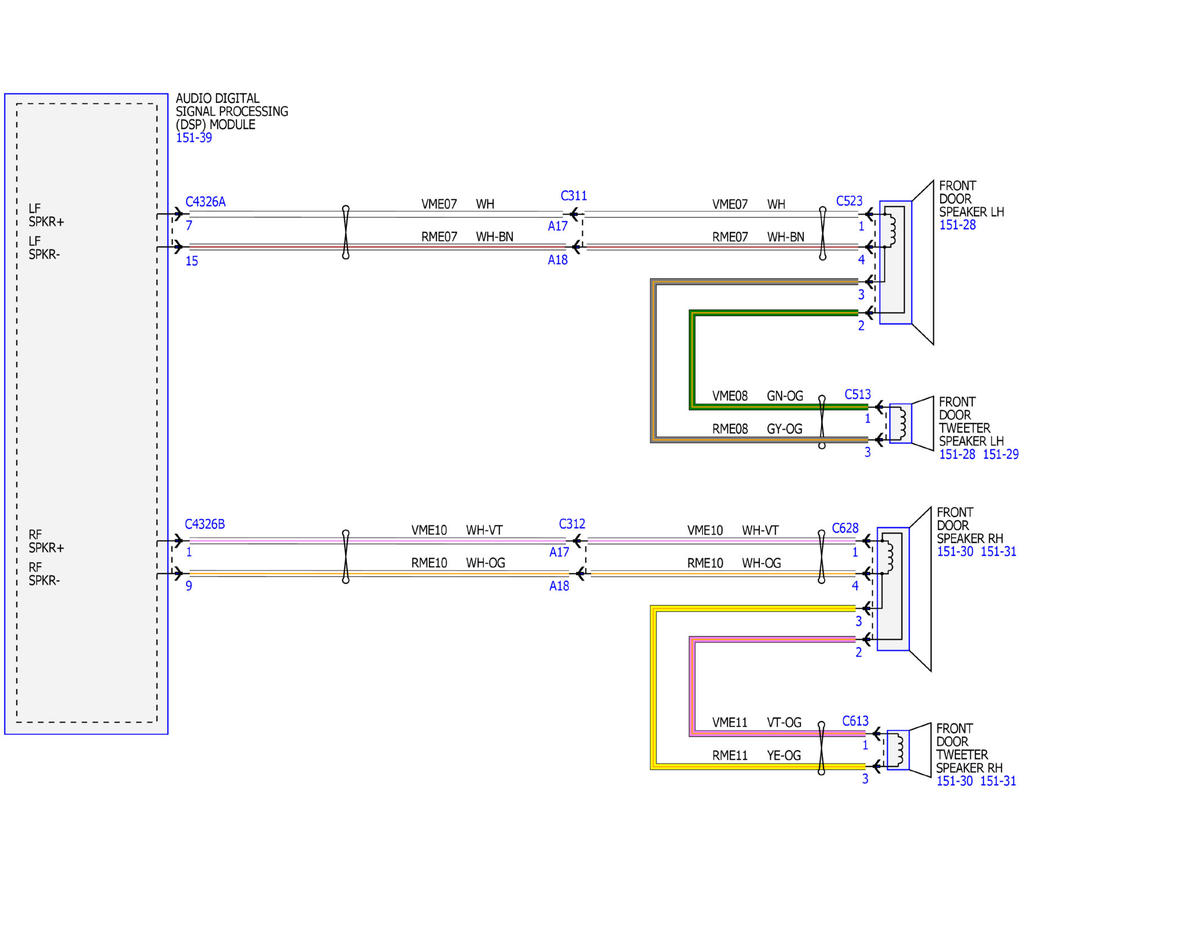

Fig 2: Audio System/Navigation Wiring Diagram - With Sony (2 Of 14)

Courtesy of FORD MOTOR COMPANY

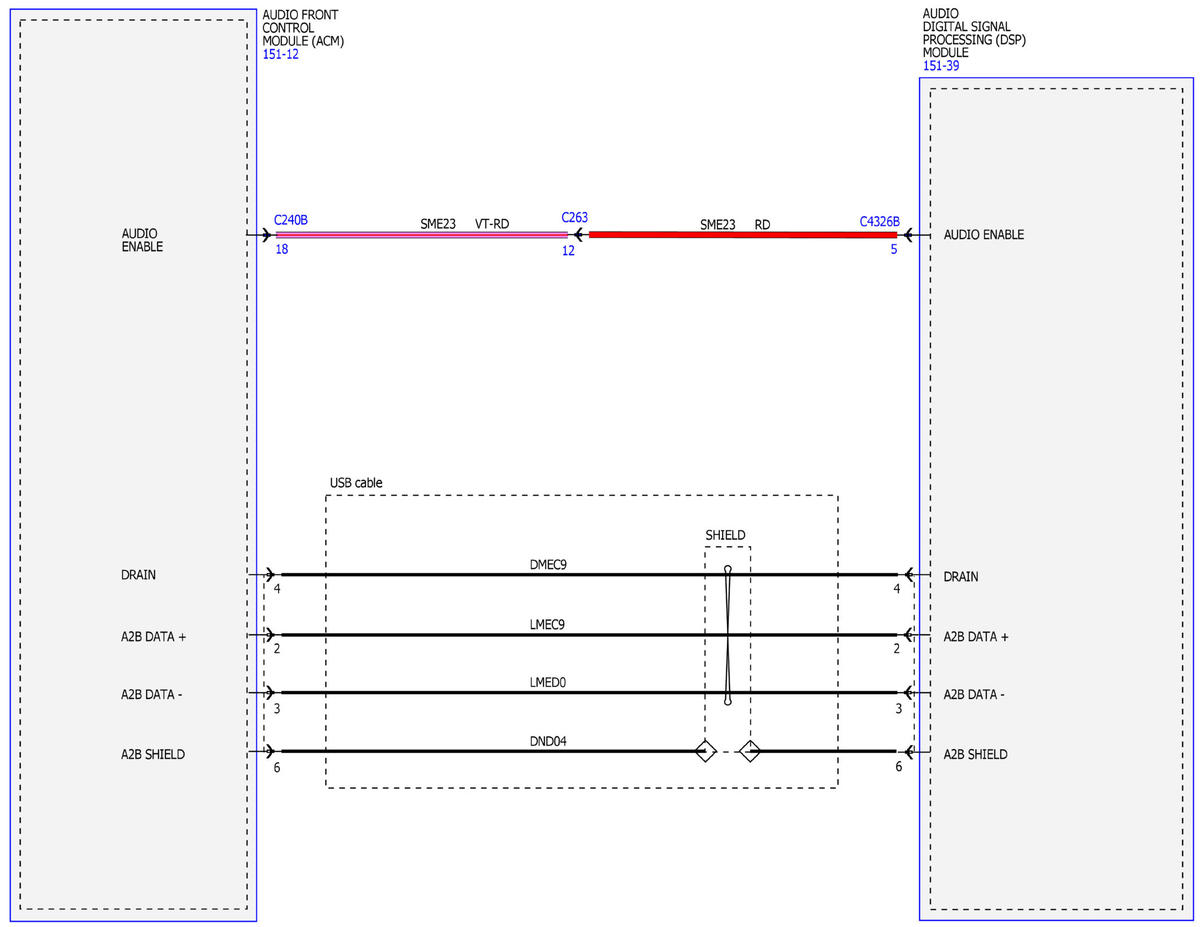

Fig 3: Audio System/Navigation Wiring Diagram - With Sony (3 Of 14)

Courtesy of FORD MOTOR COMPANY

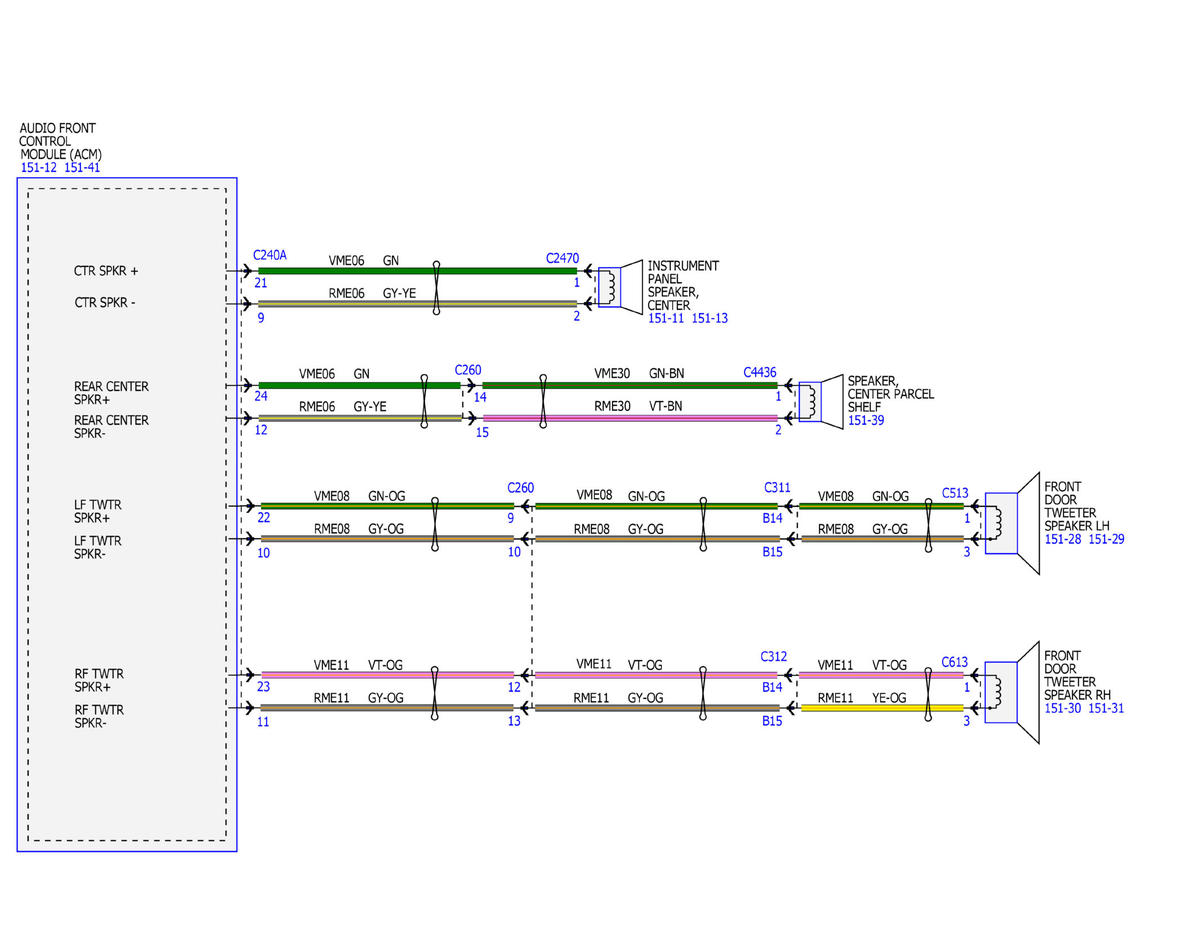

Fig 4: Audio System/Navigation Wiring Diagram - With Sony (4 Of 14)

Courtesy of FORD MOTOR COMPANY

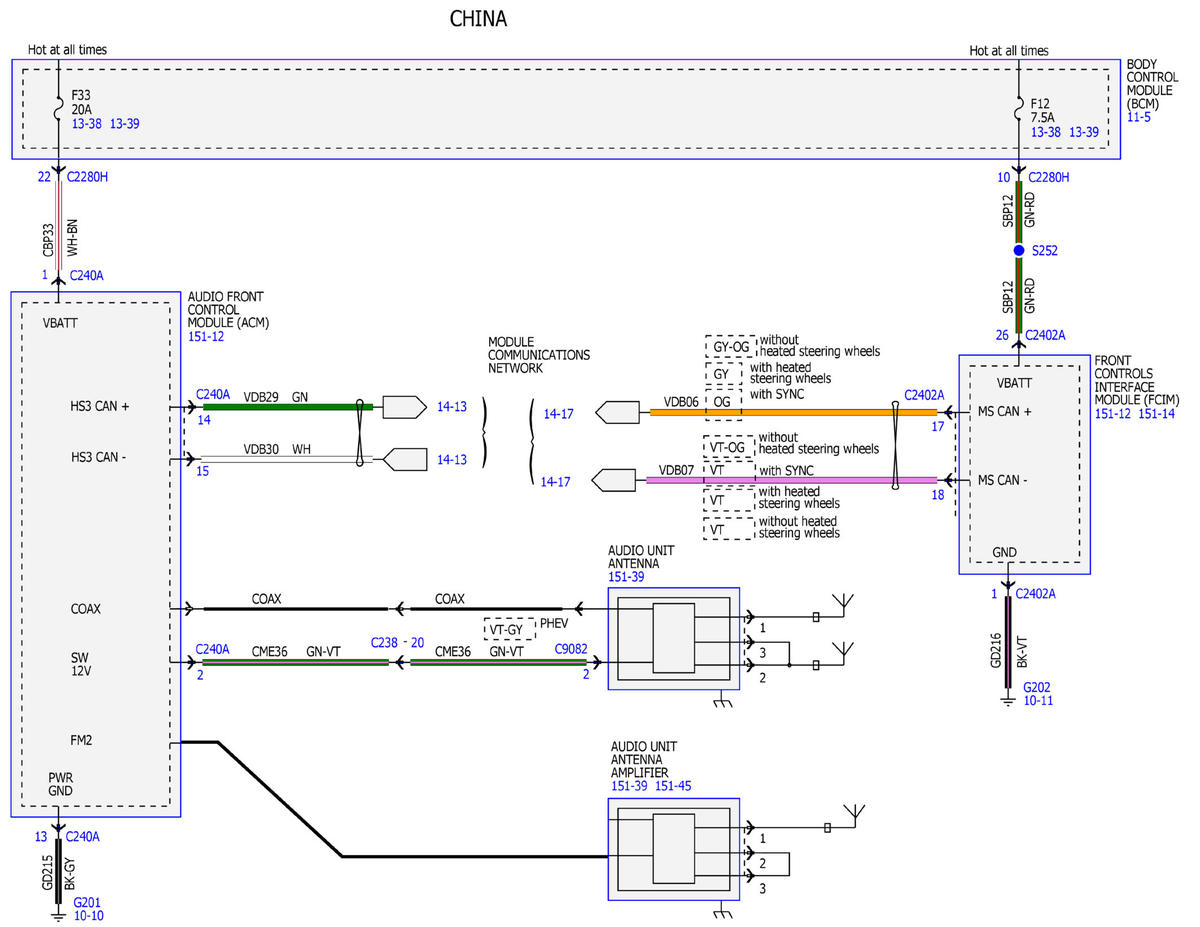

Fig 5: Audio System/Navigation Wiring Diagram - With Sony (5 Of 14)

Courtesy of FORD MOTOR COMPANY

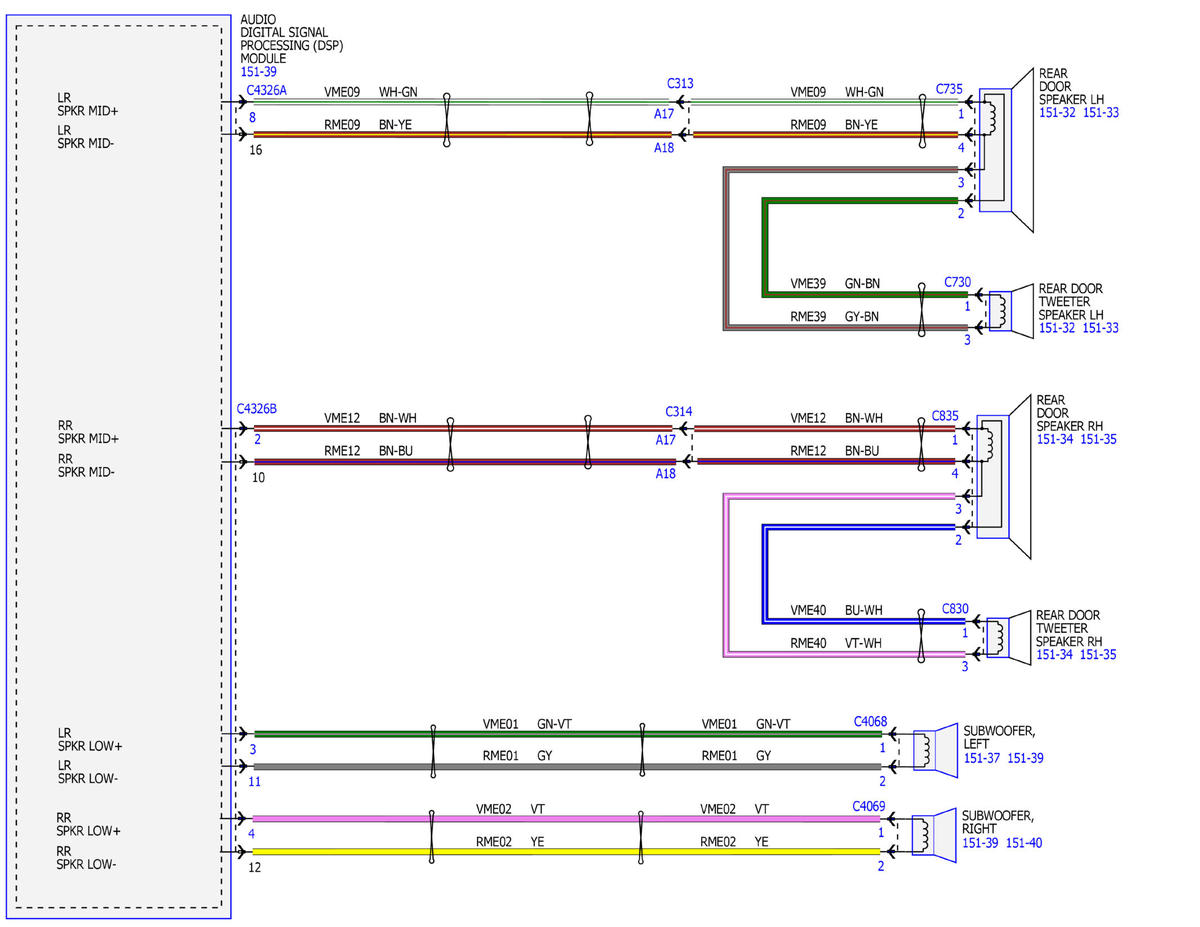

Fig 6: Audio System/Navigation Wiring Diagram - With Sony (6 Of 14)

Courtesy of FORD MOTOR COMPANY

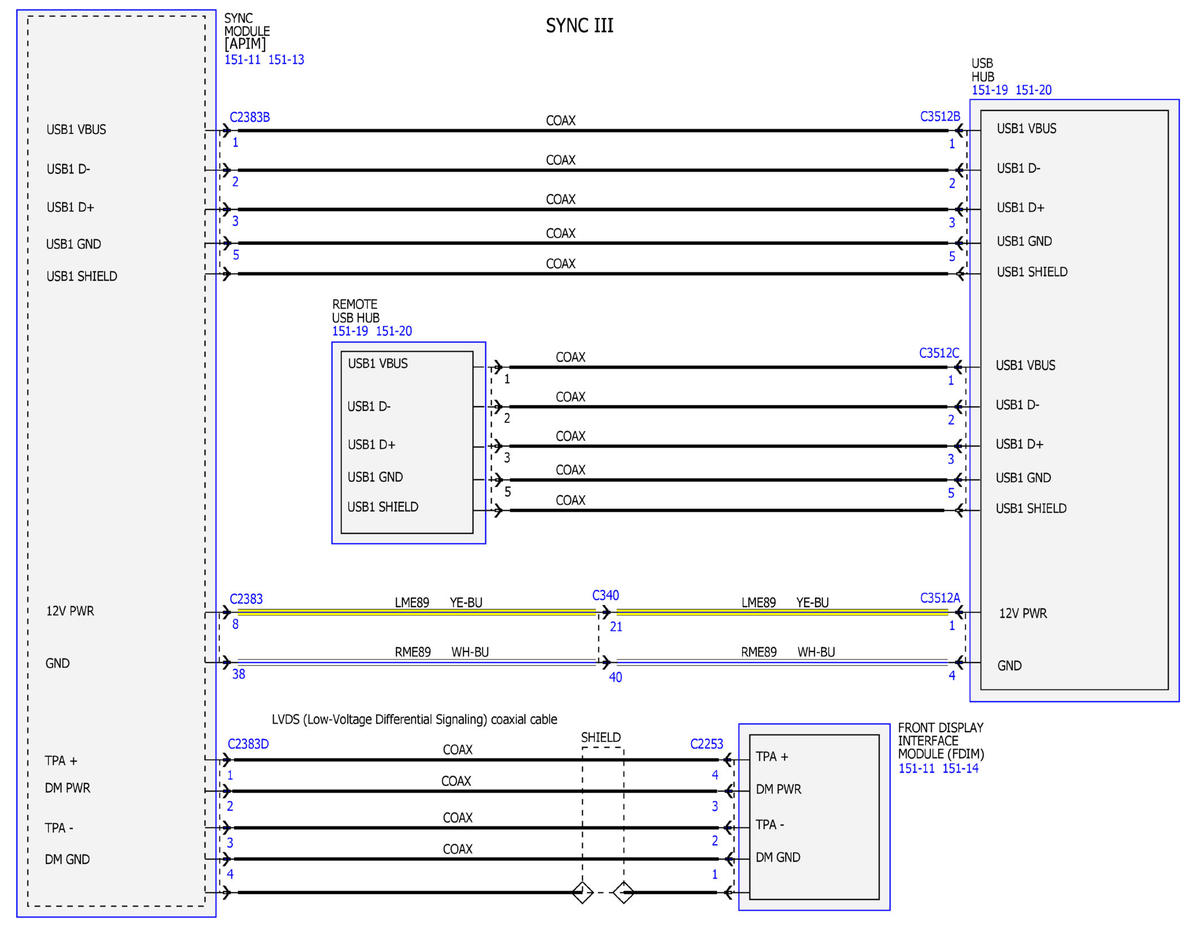

Fig 7: Audio System/Navigation Wiring Diagram - With Sony (7 Of 14)

Courtesy of FORD MOTOR COMPANY

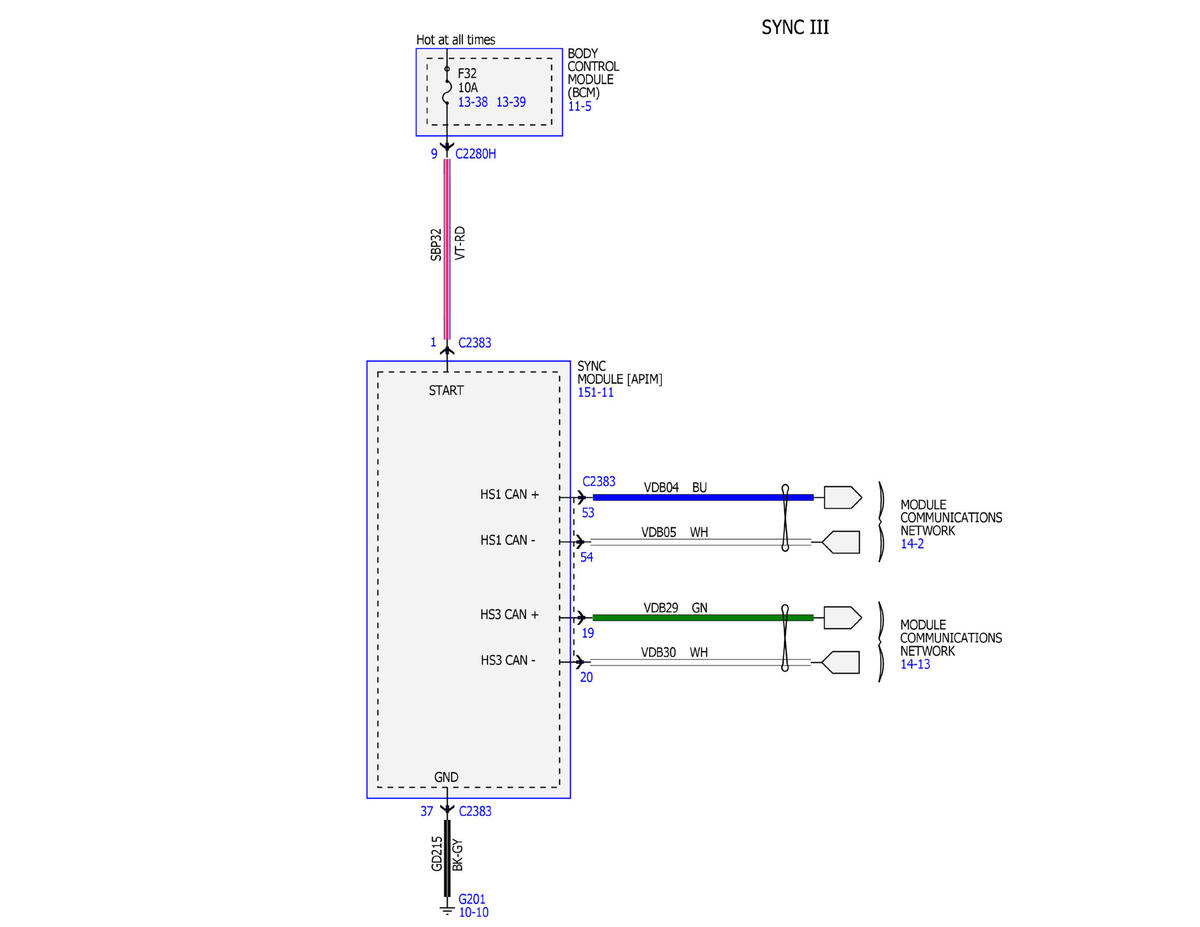

Fig 8: Audio System/Navigation Wiring Diagram - With Sony (8 Of 14)

Courtesy of FORD MOTOR COMPANY

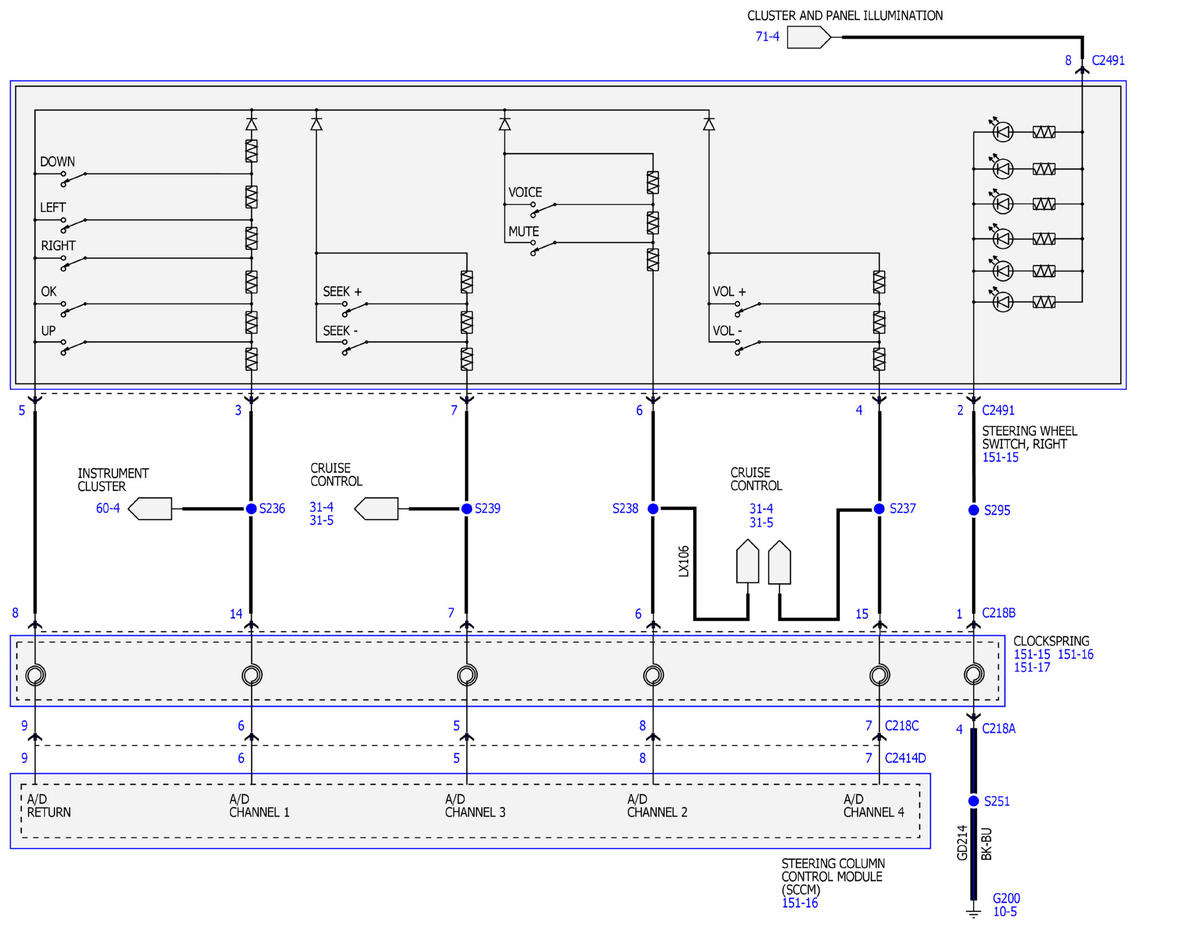

Fig 9: Audio System/Navigation Wiring Diagram - With Sony (9 Of 14)

Courtesy of FORD MOTOR COMPANY

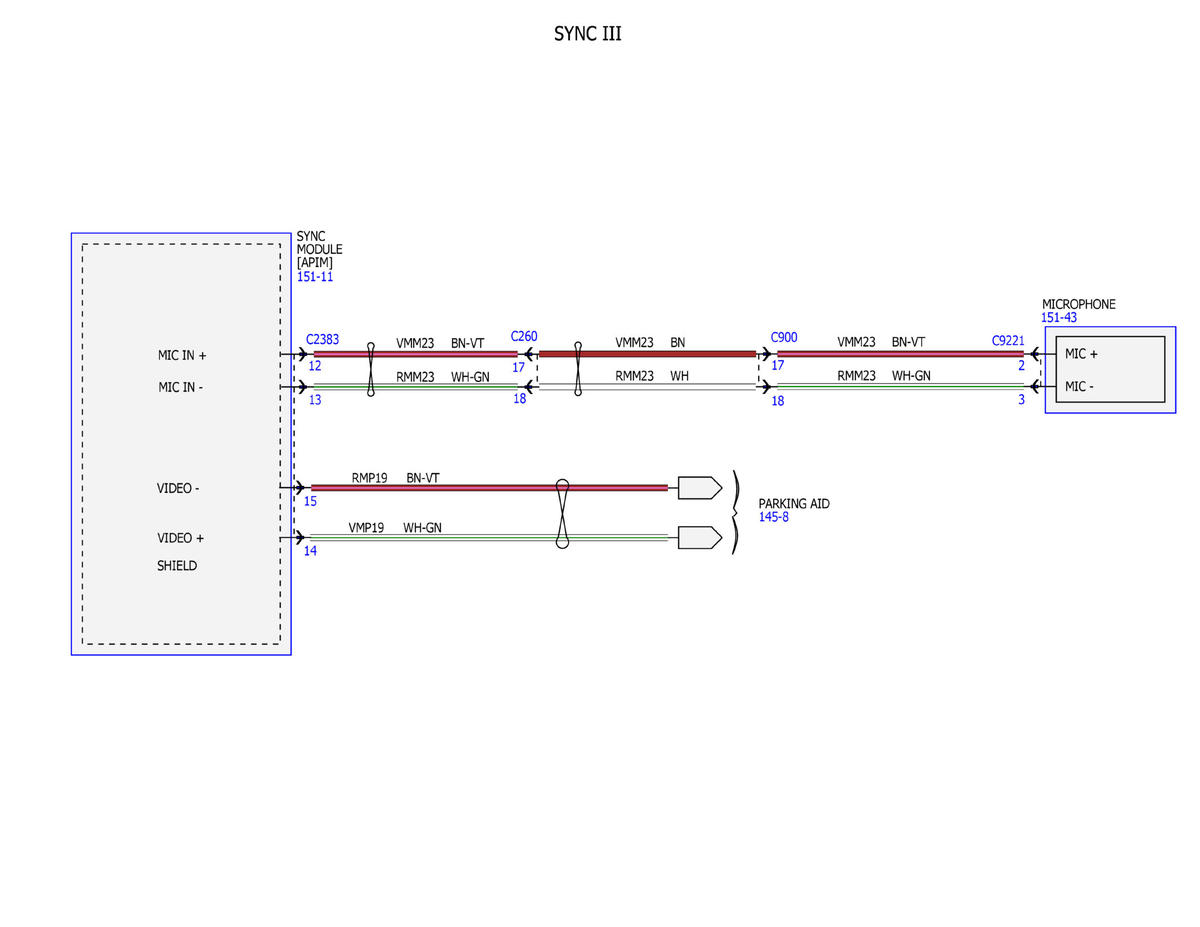

Fig 10: Audio System/Navigation Wiring Diagram - With Sony (10 Of 14)

Courtesy of FORD MOTOR COMPANY

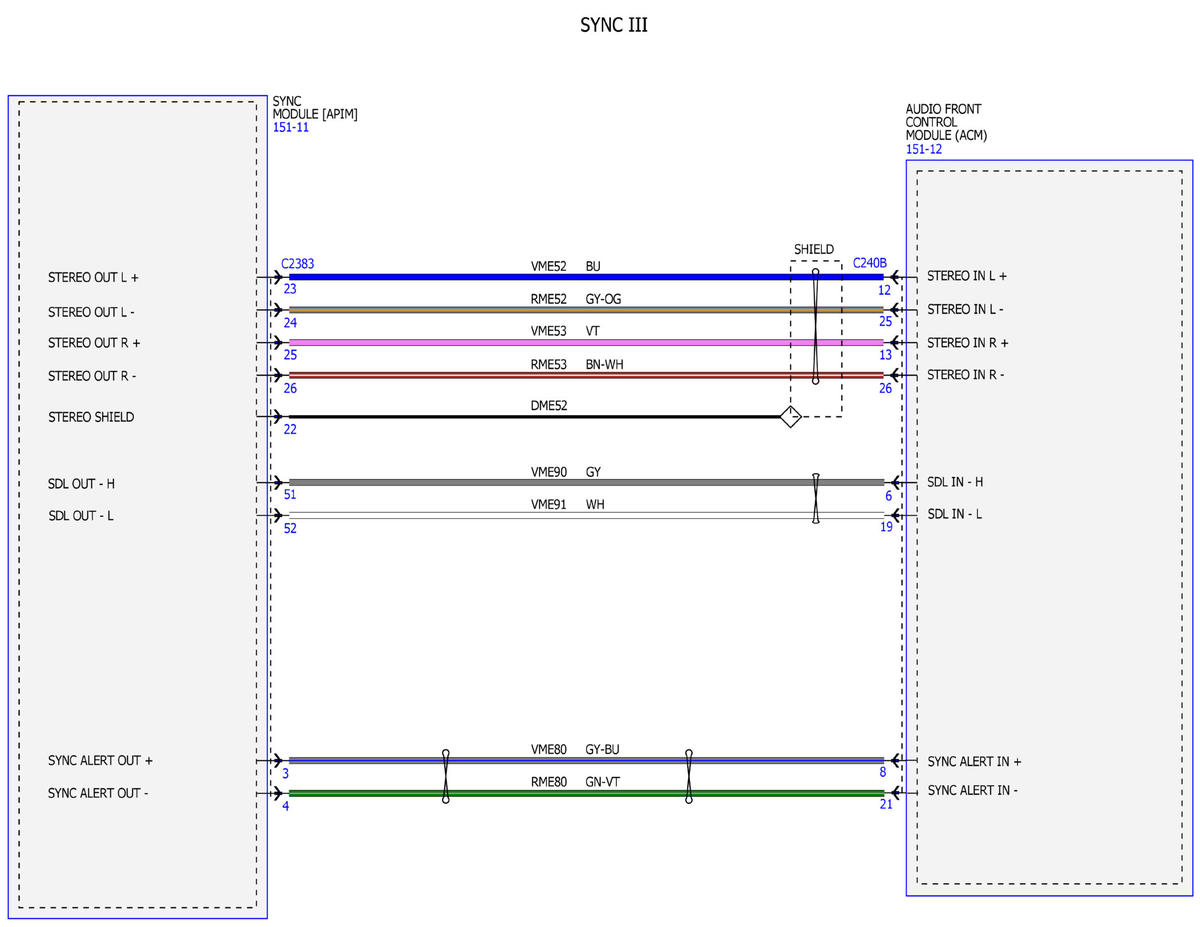

Fig 11: Audio System/Navigation Wiring Diagram - With Sony (11 Of 14)

Courtesy of FORD MOTOR COMPANY

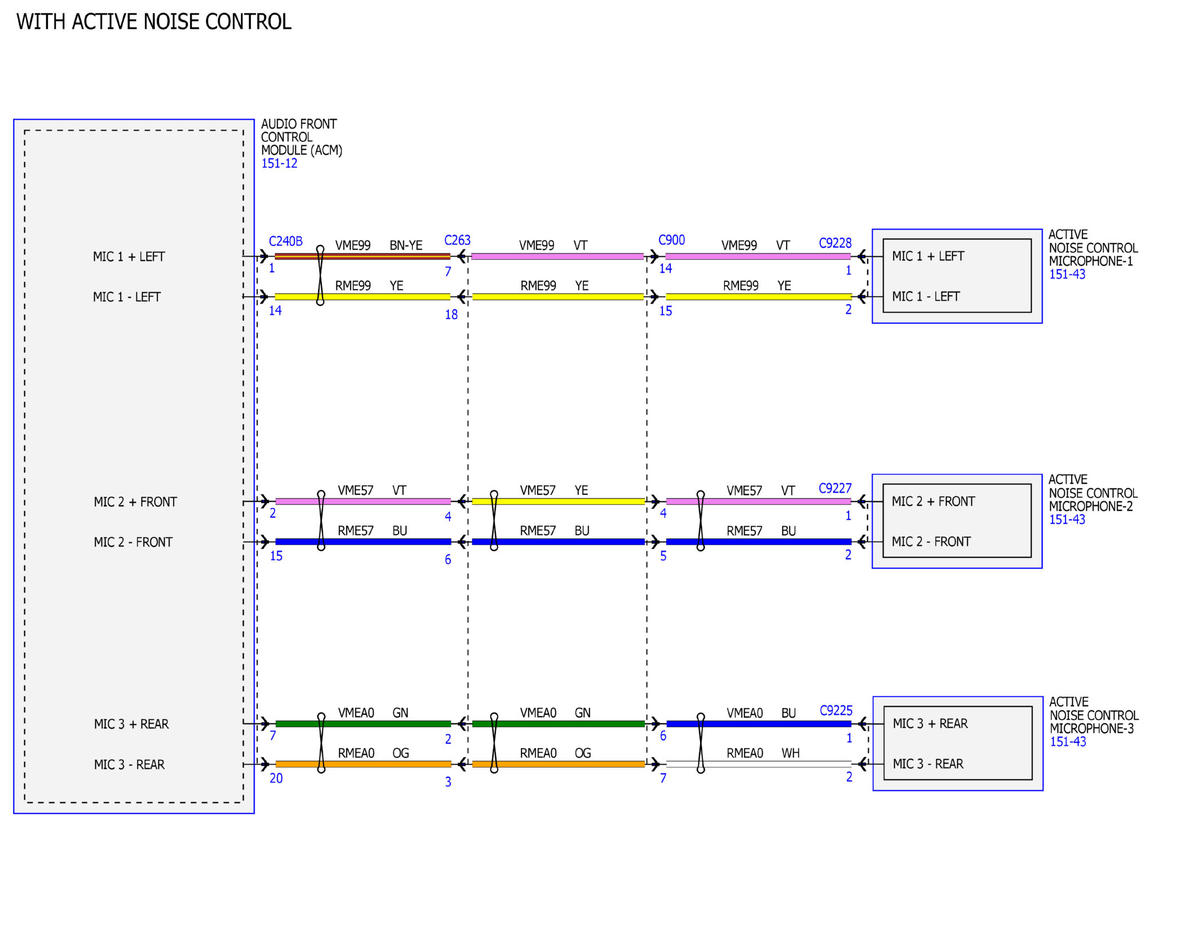

Fig 12: Audio System/Navigation Wiring Diagram - With Sony (12 Of 14)

Courtesy of FORD MOTOR COMPANY

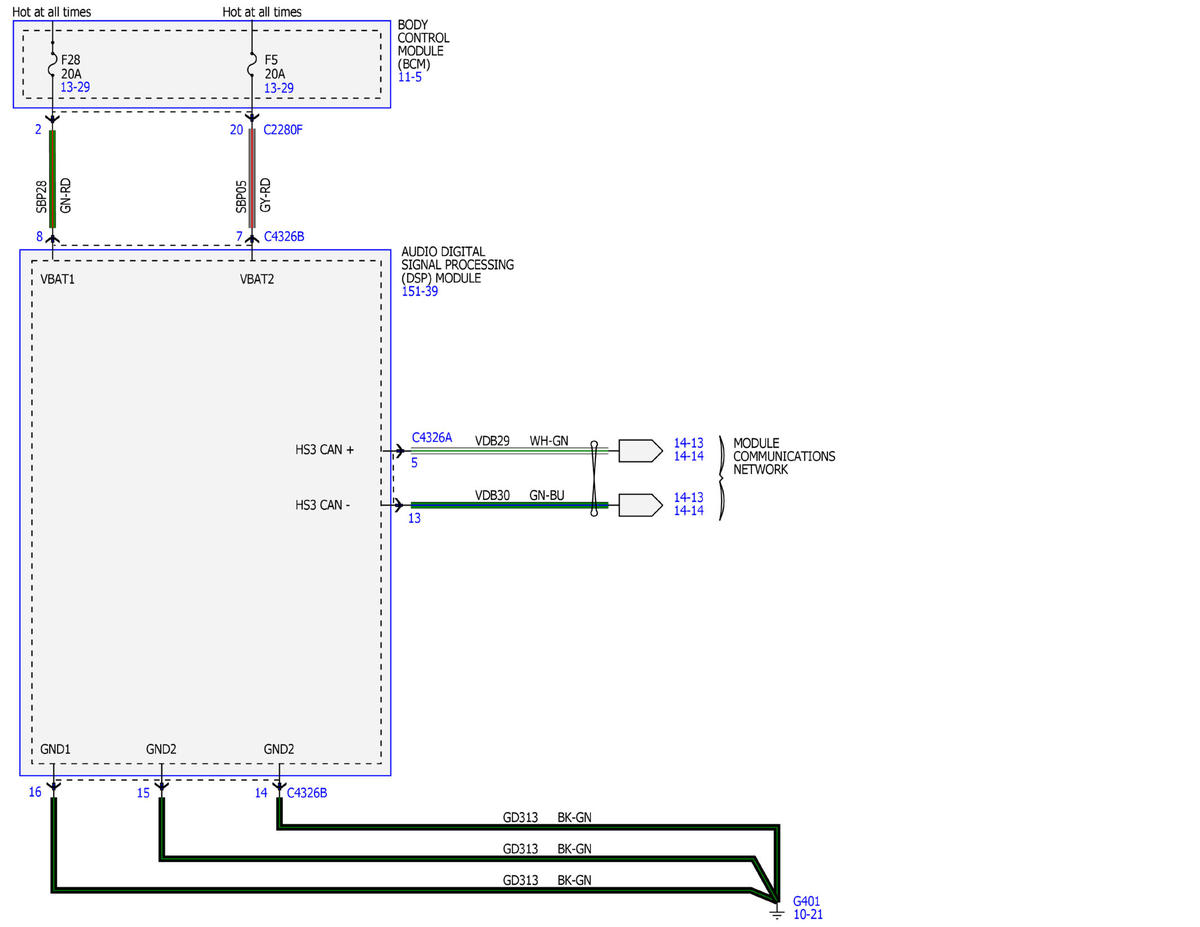

Fig 13: Audio System/Navigation Wiring Diagram - With Sony (13 Of 14)

Courtesy of FORD MOTOR COMPANY

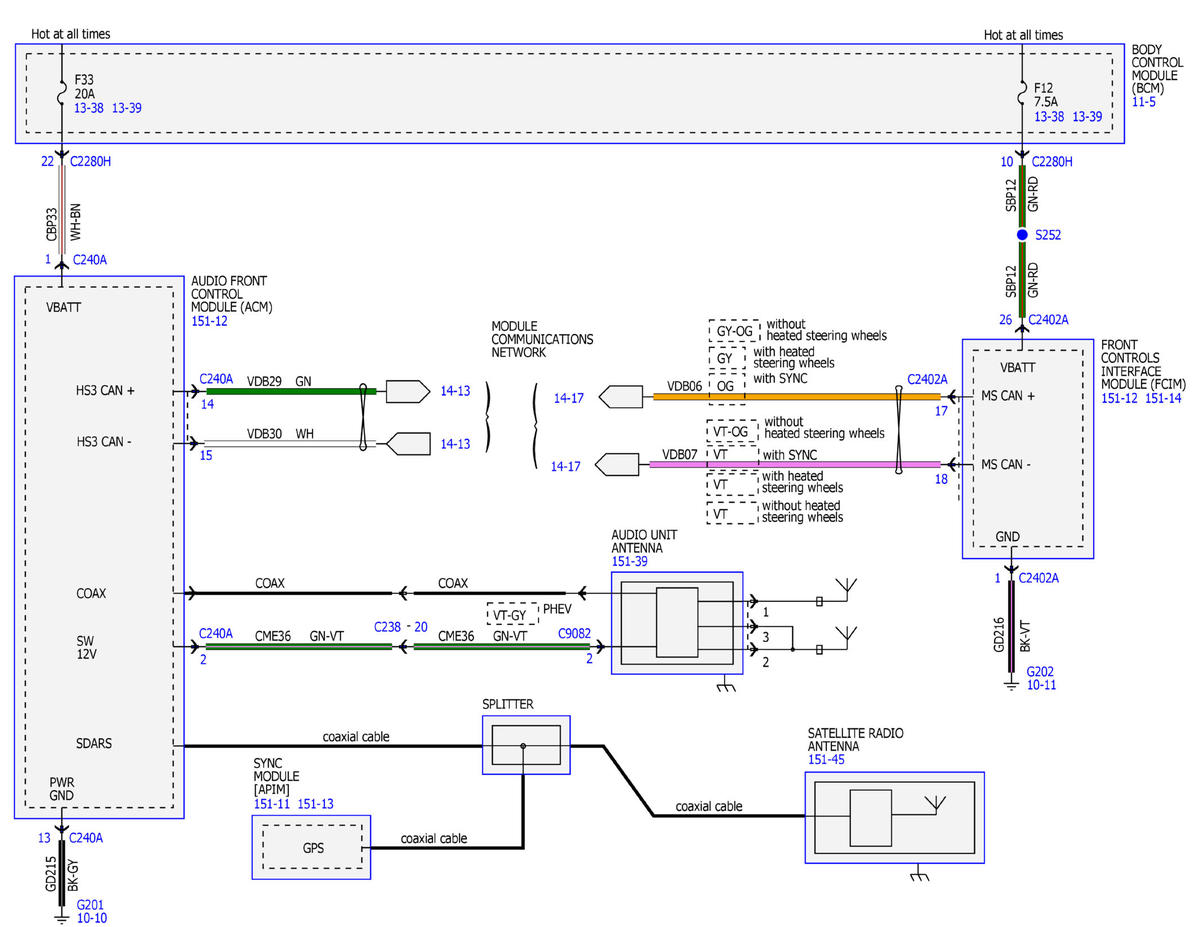

Fig 14: NAudio System/Navigation Wiring Diagram - With Sony (14 Of 14)

Courtesy of FORD MOTOR COMPANY
