Audio System/Navigation Wiring Diagram - MKZ Without Harman Revel

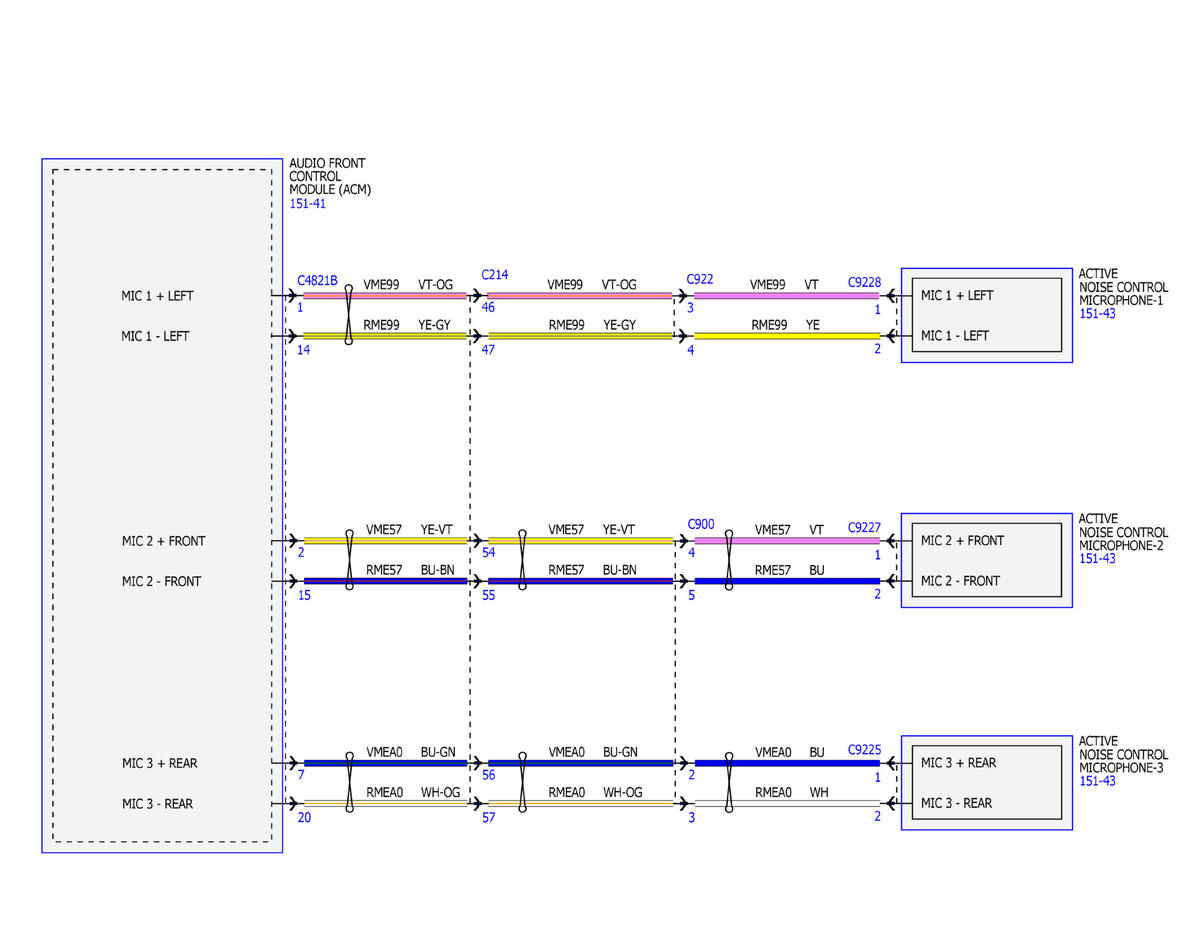

Fig 1: Audio System/Navigation Wiring Diagram - MKZ Without Harman Revel (1 Of 15)

Courtesy of FORD MOTOR COMPANY

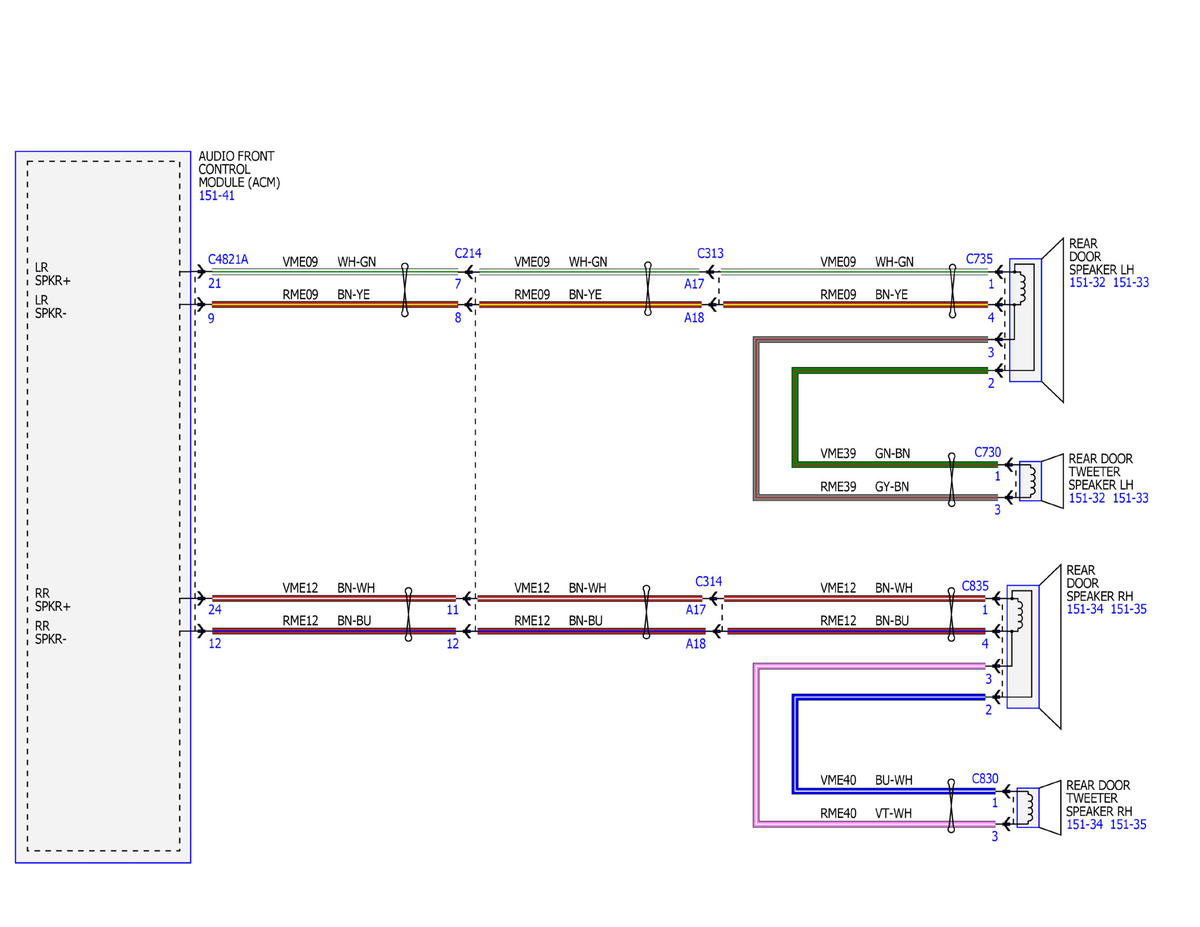

Fig 2: Audio System/Navigation Wiring Diagram - MKZ Without Harman Revel (2 Of 15)

Courtesy of FORD MOTOR COMPANY

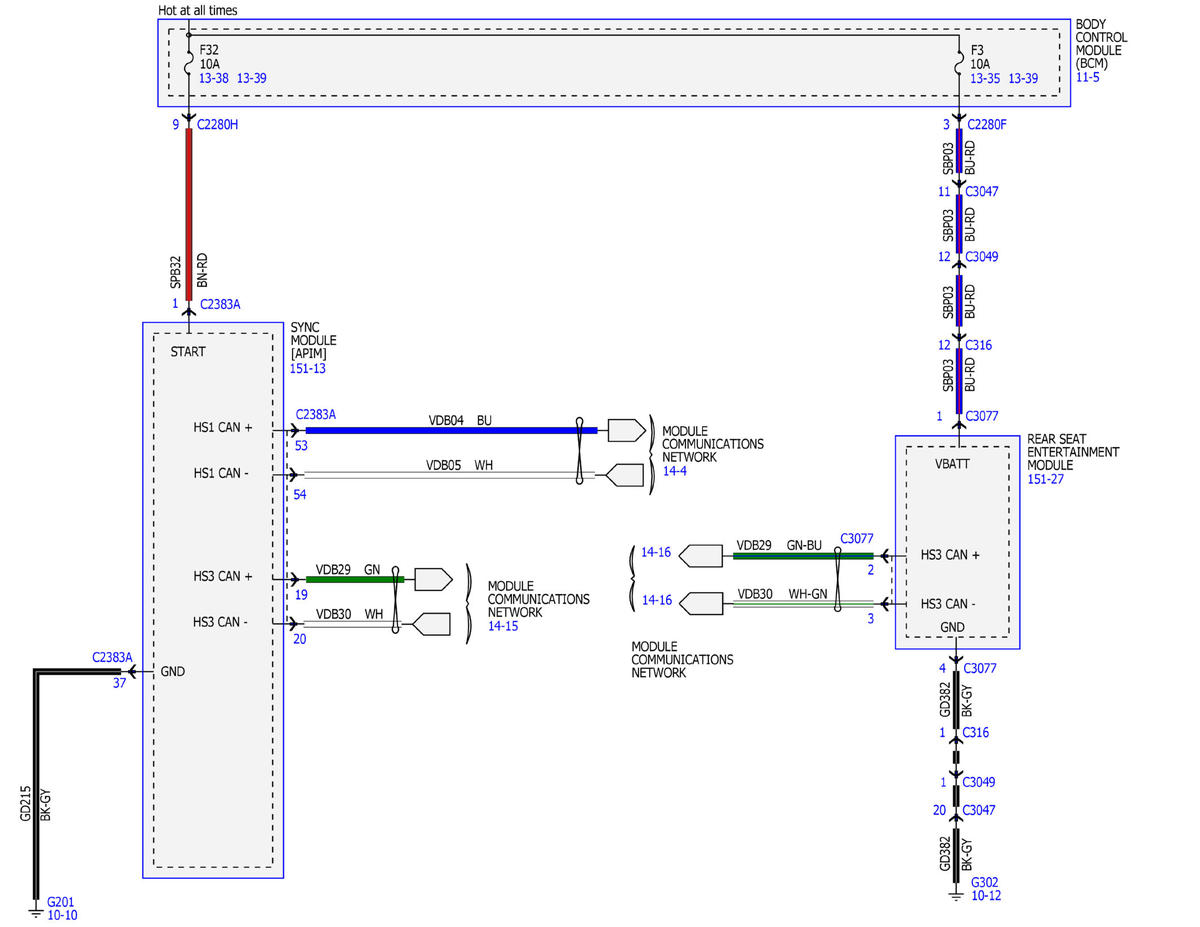

Fig 3: Audio System/Navigation Wiring Diagram - MKZ Without Harman Revel (3 Of 15)

Courtesy of FORD MOTOR COMPANY

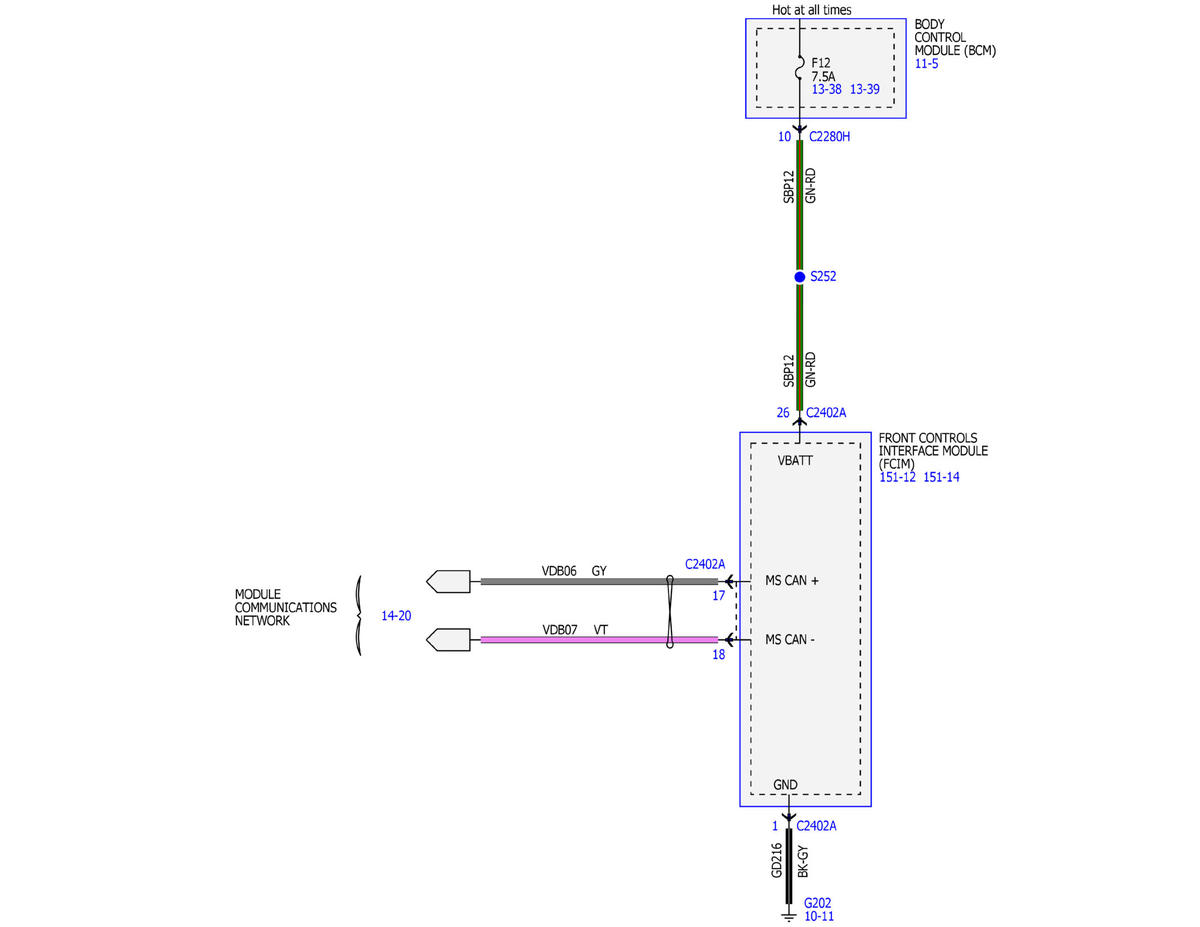

Fig 4: Audio System/Navigation Wiring Diagram - MKZ Without Harman Revel (4 Of 15)

Courtesy of FORD MOTOR COMPANY

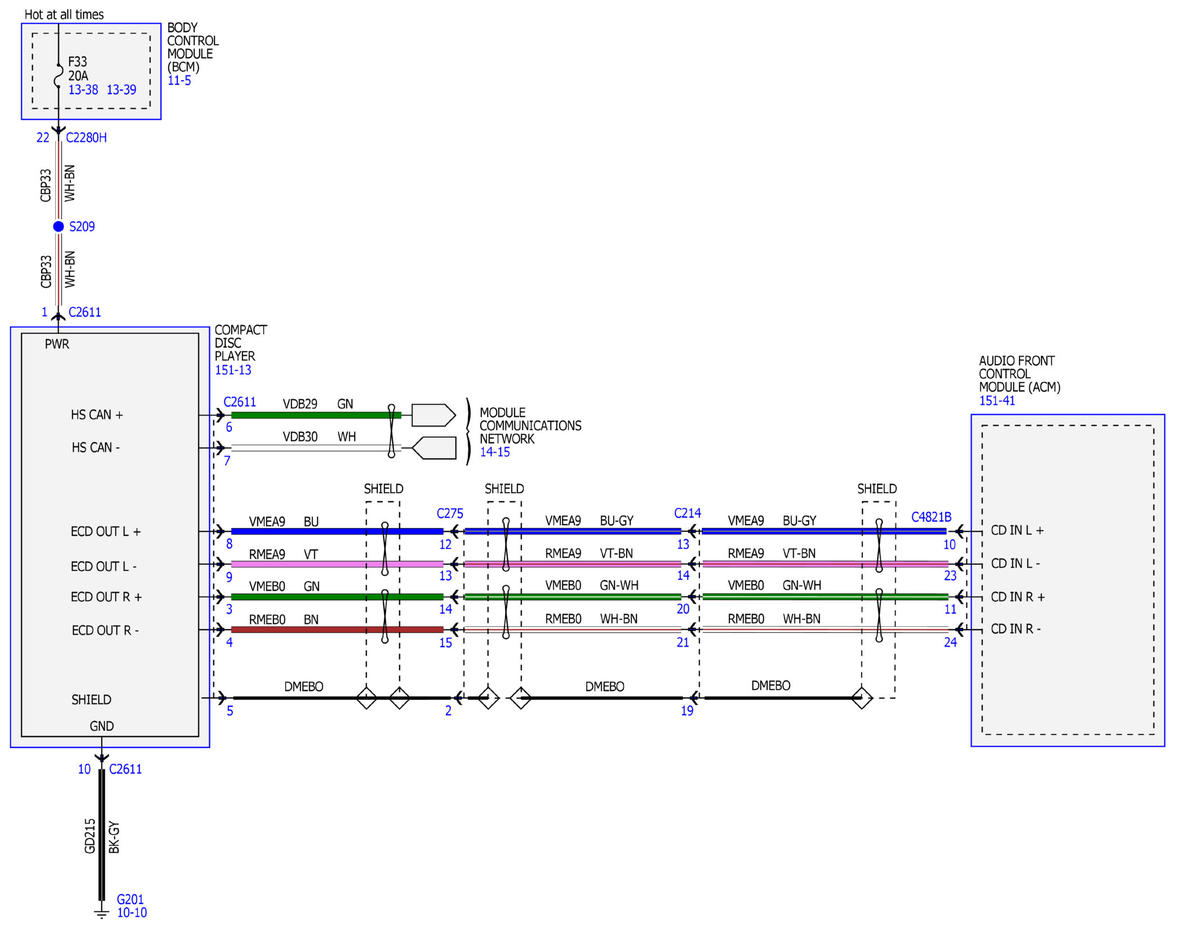

Fig 5: Audio System/Navigation Wiring Diagram - MKZ Without Harman Revel (5 Of 15)

Courtesy of FORD MOTOR COMPANY

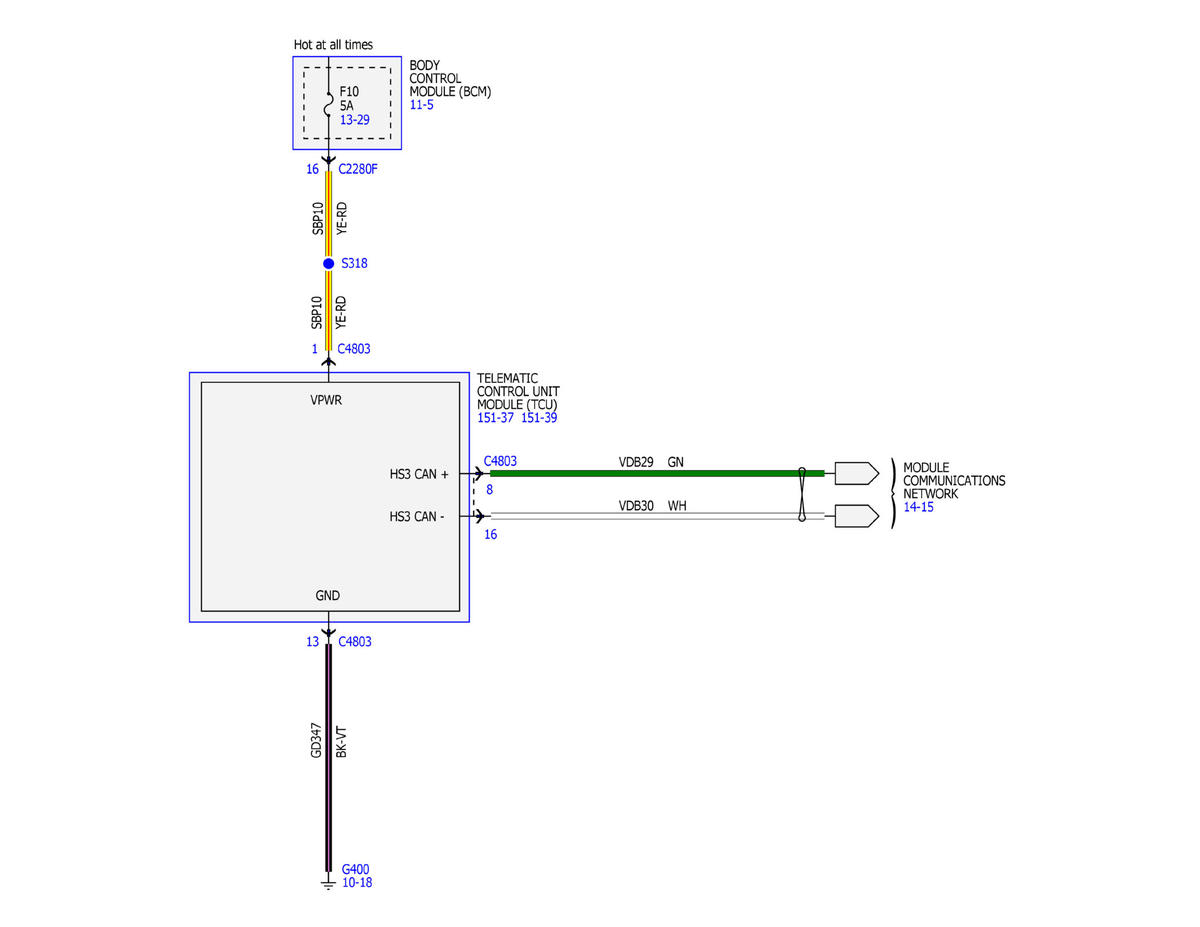

Fig 6: Audio System/Navigation Wiring Diagram - MKZ Without Harman Revel (6 Of 15)

Courtesy of FORD MOTOR COMPANY

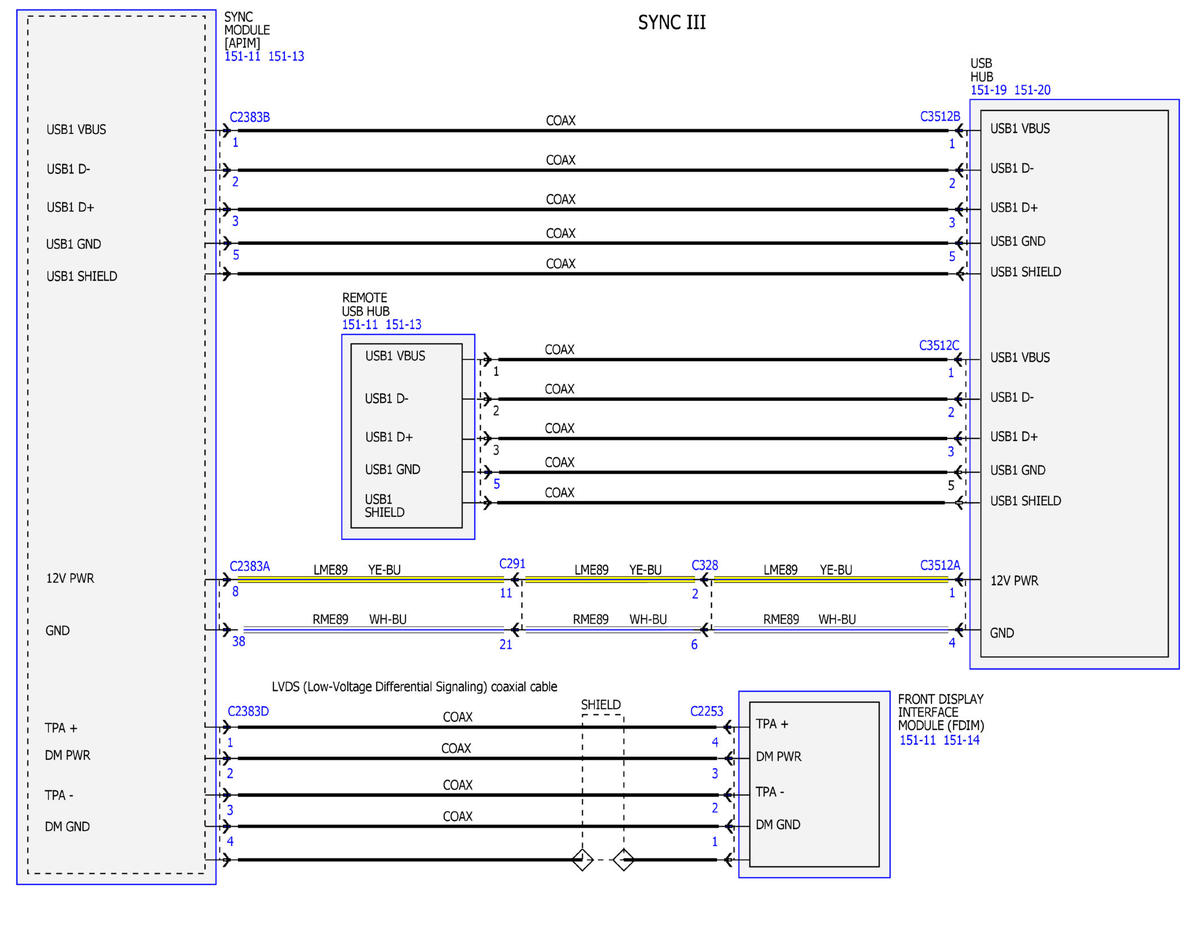

Fig 7: Audio System/Navigation Wiring Diagram - MKZ Without Harman Revel (7 Of 15)

Courtesy of FORD MOTOR COMPANY

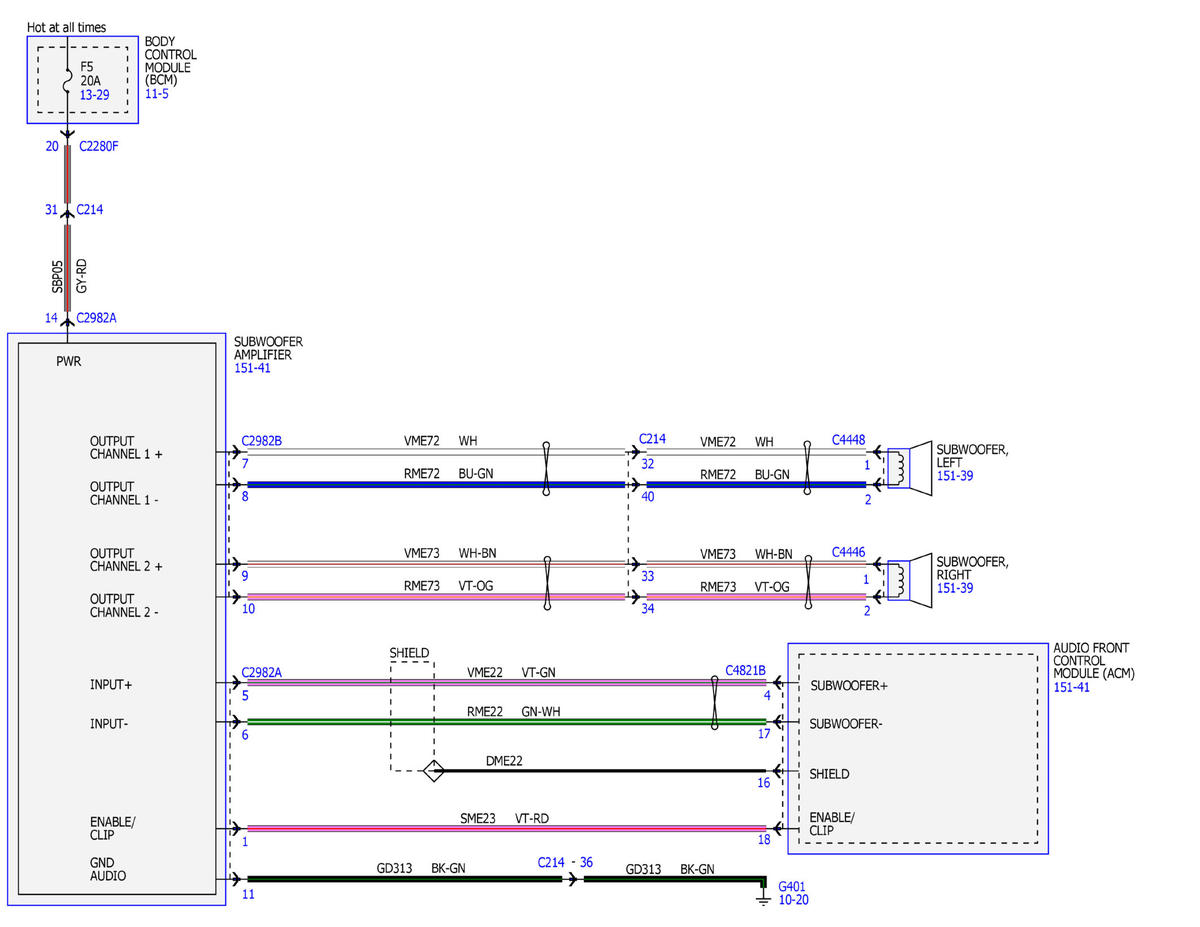

Fig 8: Audio System/Navigation Wiring Diagram - MKZ Without Harman Revel (8 Of 15)

Courtesy of FORD MOTOR COMPANY

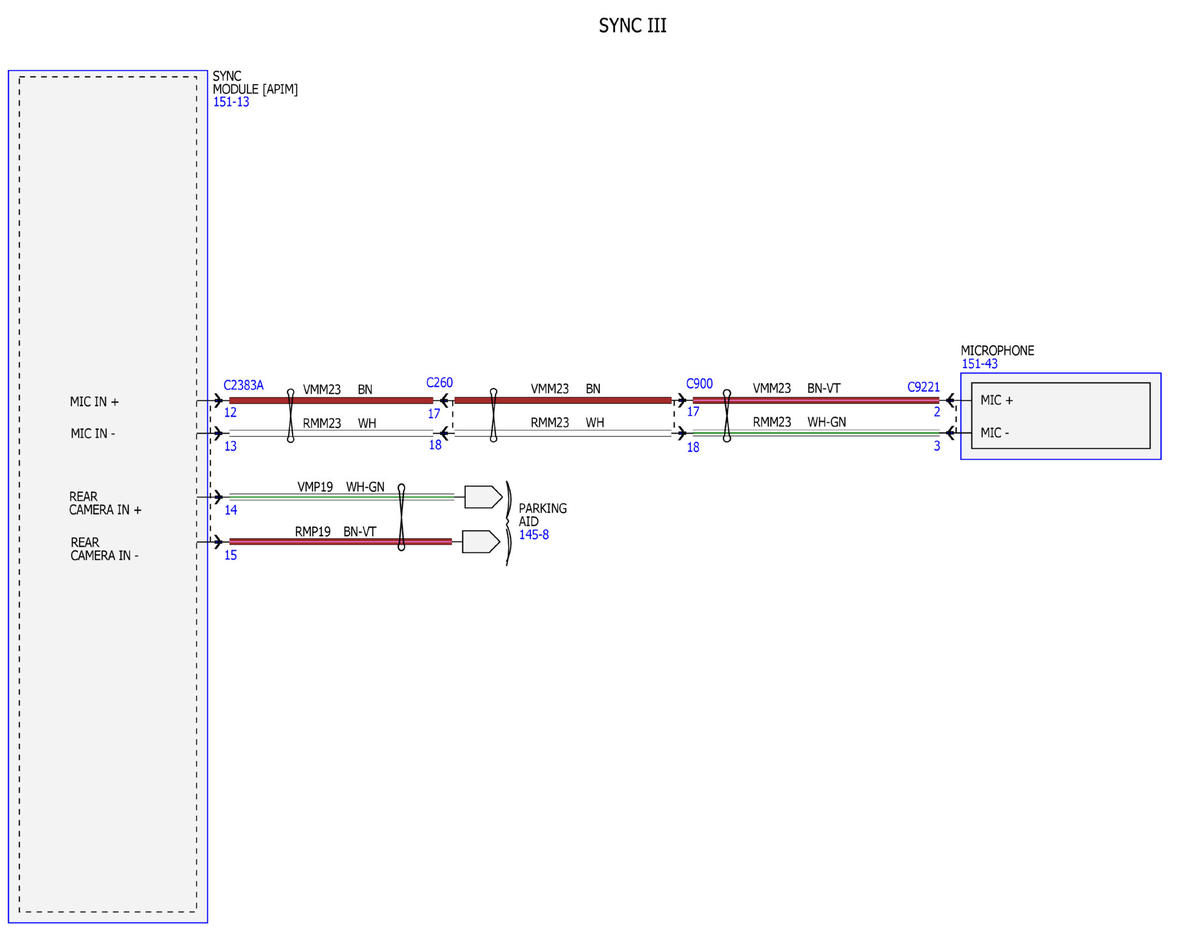

Fig 9: Audio System/Navigation Wiring Diagram - MKZ Without Harman Revel (9 Of 15)

Courtesy of FORD MOTOR COMPANY

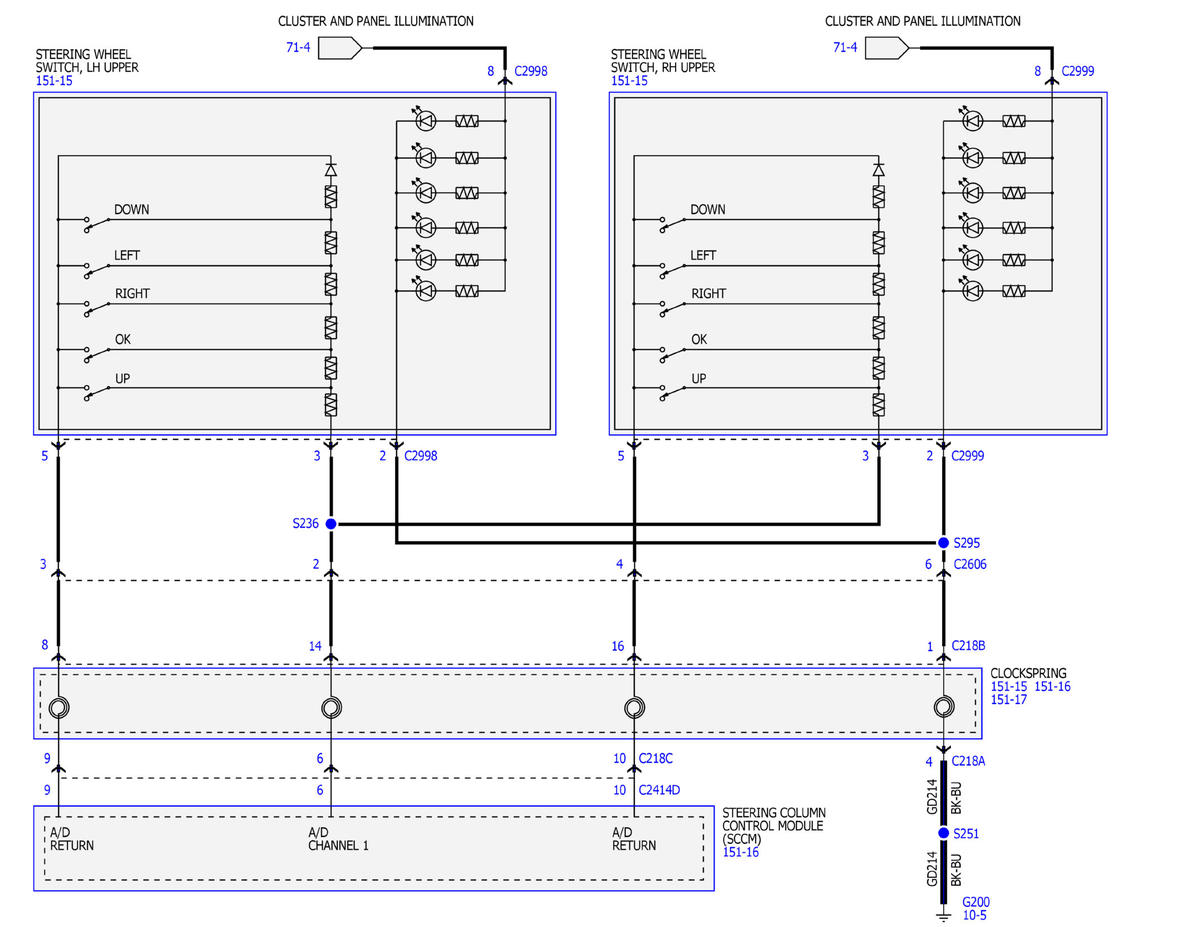

Fig 10: Audio System/Navigation Wiring Diagram - MKZ Without Harman Revel (10 Of 15)

Courtesy of FORD MOTOR COMPANY

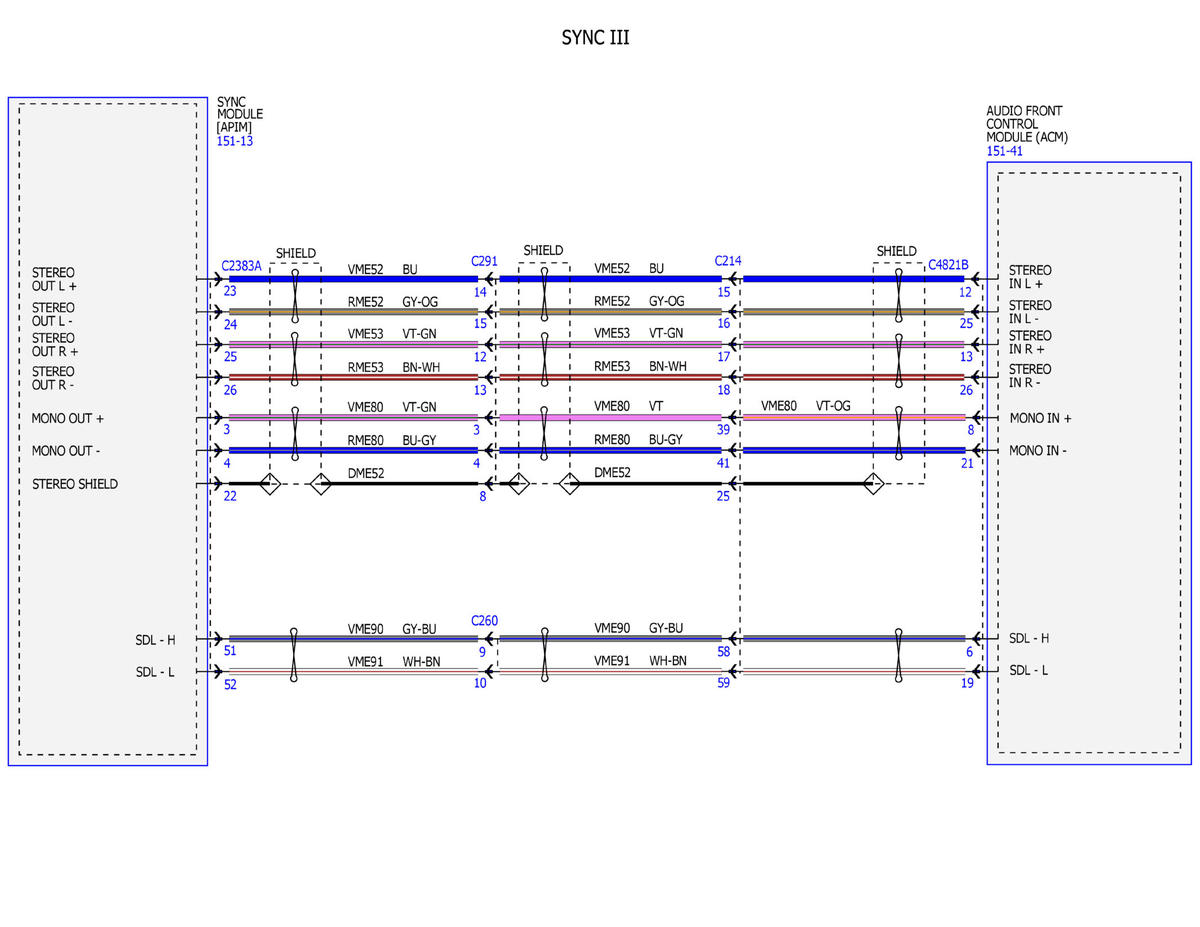

Fig 11: Audio System/Navigation Wiring Diagram - MKZ Without Harman Revel (11 Of 15)

Courtesy of FORD MOTOR COMPANY

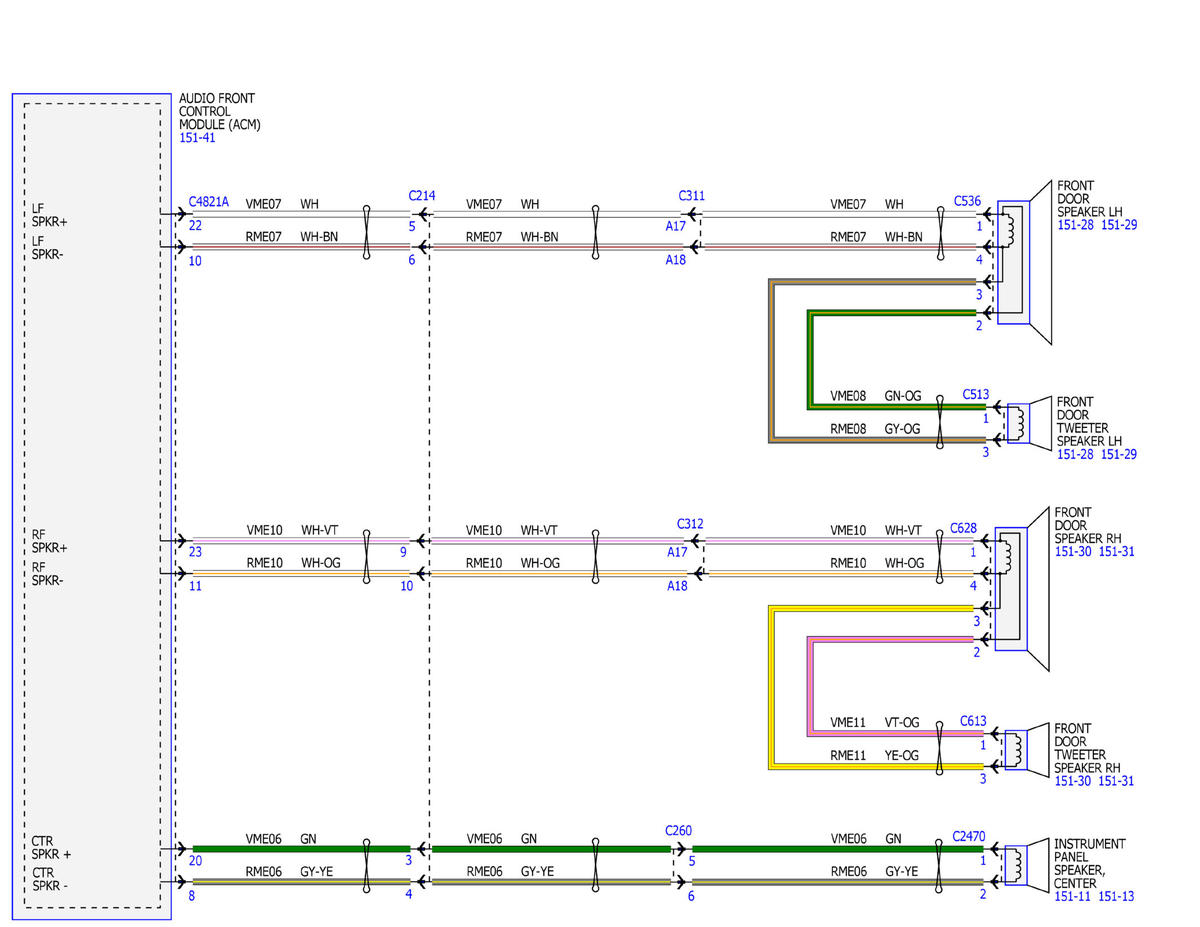

Fig 12: Audio System/Navigation Wiring Diagram - MKZ Without Harman Revel (12 Of 15)

Courtesy of FORD MOTOR COMPANY

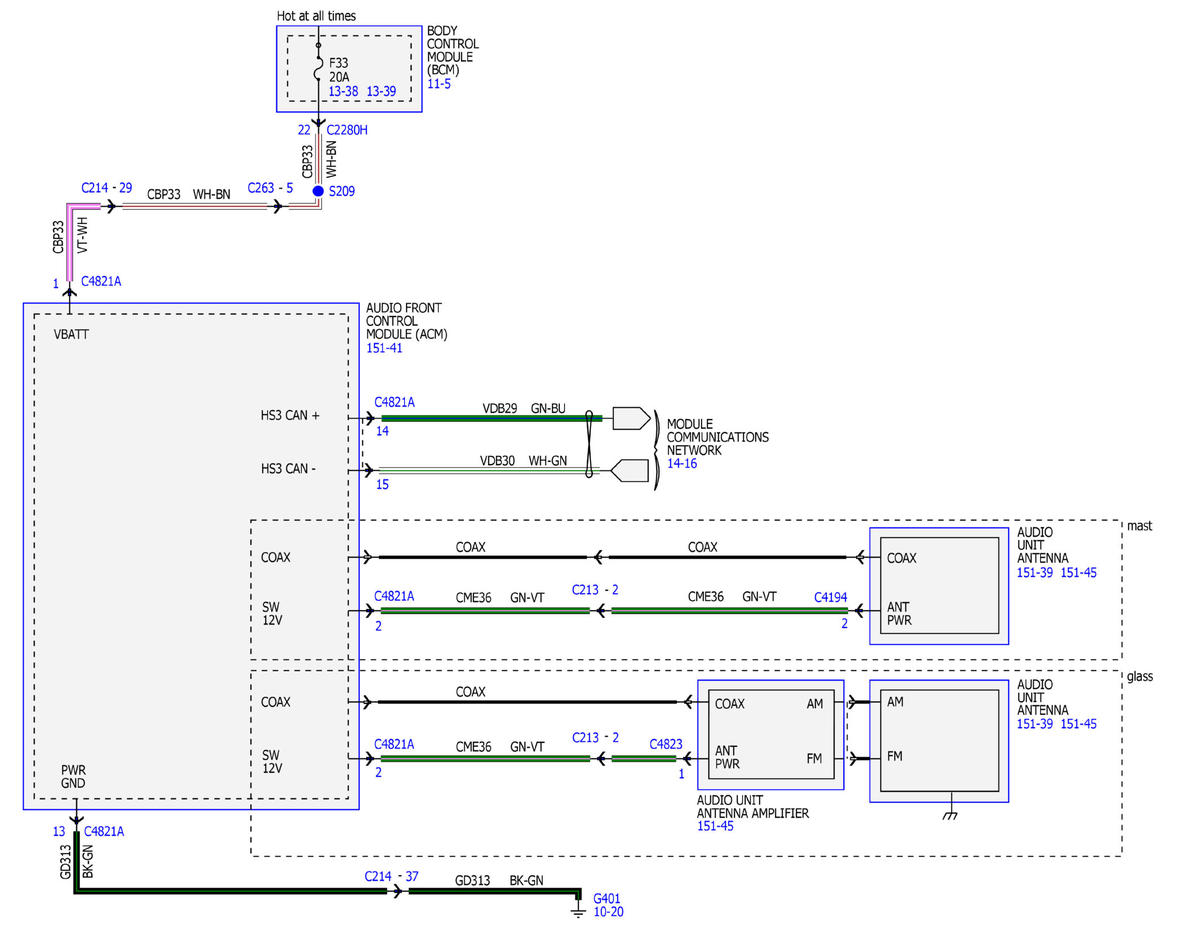

Fig 13: Audio System/Navigation Wiring Diagram - MKZ Without Harman Revel (13 Of 15)

Courtesy of FORD MOTOR COMPANY

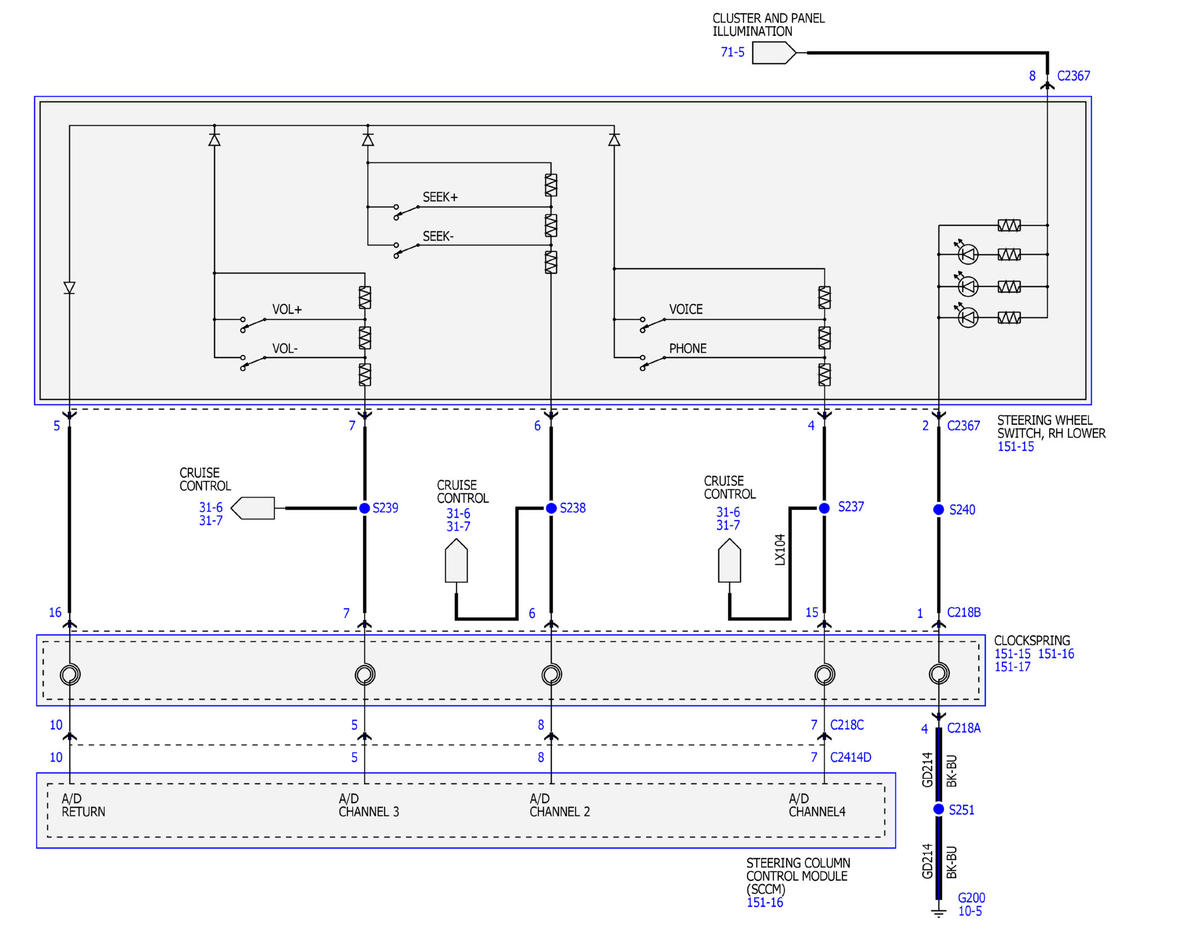

Fig 14: Audio System/Navigation Wiring Diagram - MKZ Without Harman Revel (14 Of 15)

Courtesy of FORD MOTOR COMPANY

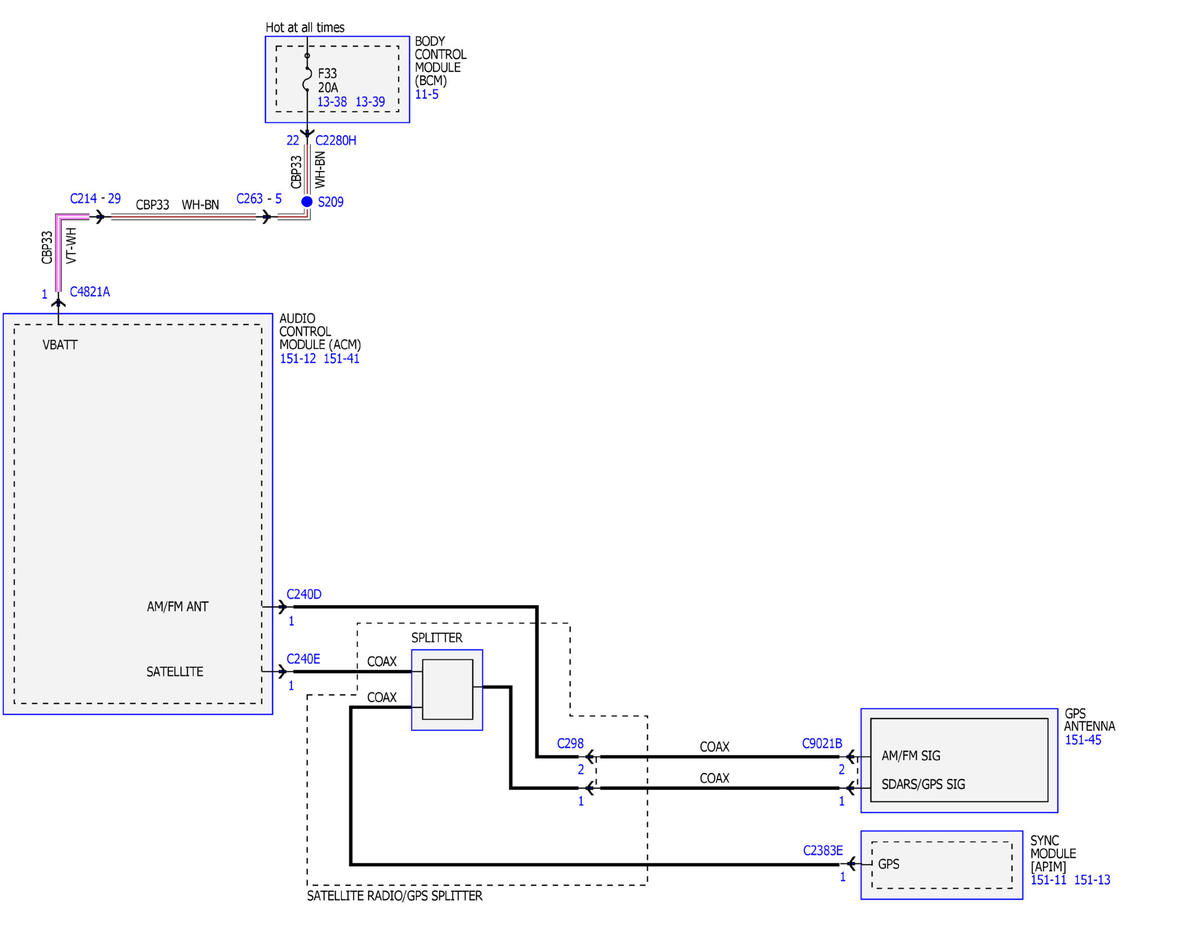

Fig 15: Audio System/Navigation Wiring Diagram - MKZ Without Harman Revel (15 Of 15)

Courtesy of FORD MOTOR COMPANY
