Audio System/Navigation Wiring Diagram - Harman Revel Ultima Audio System

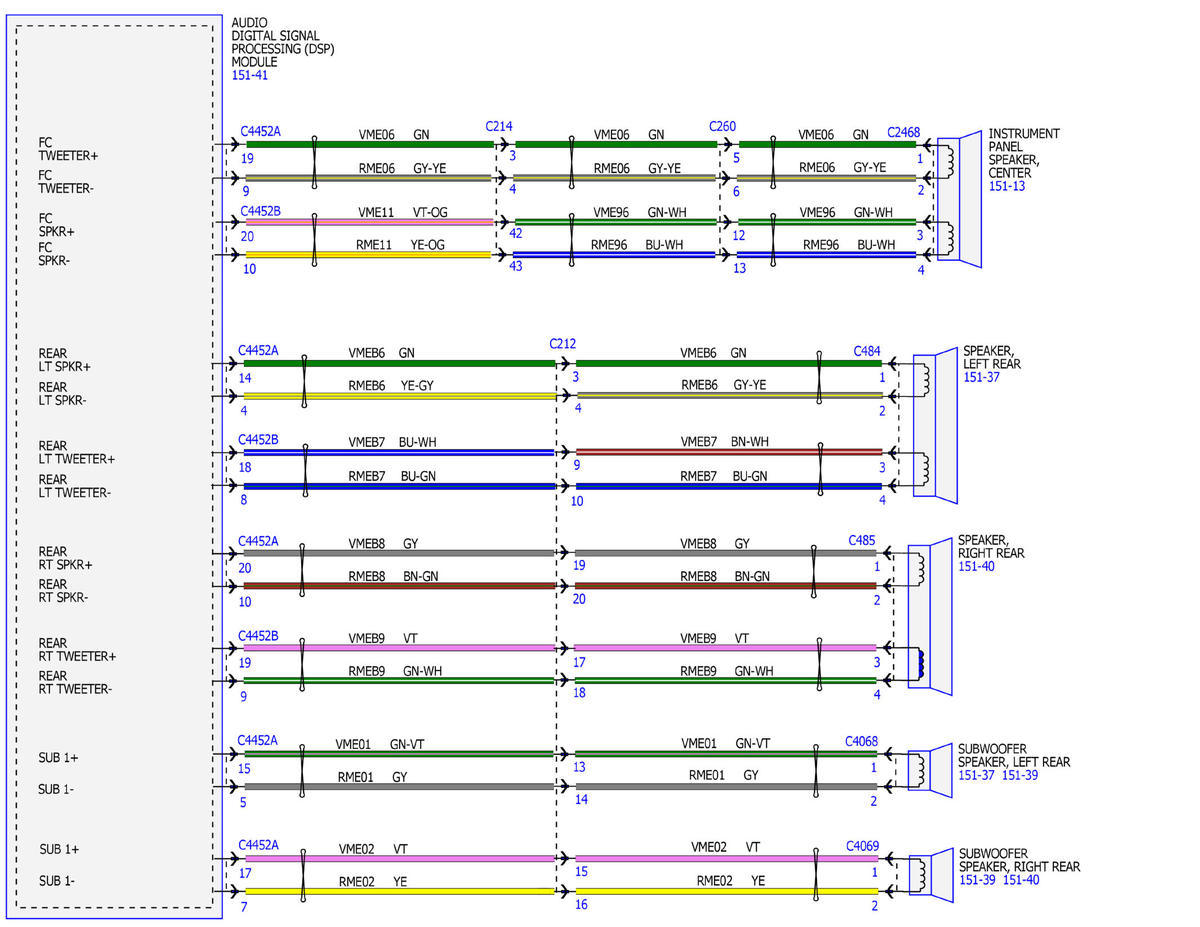

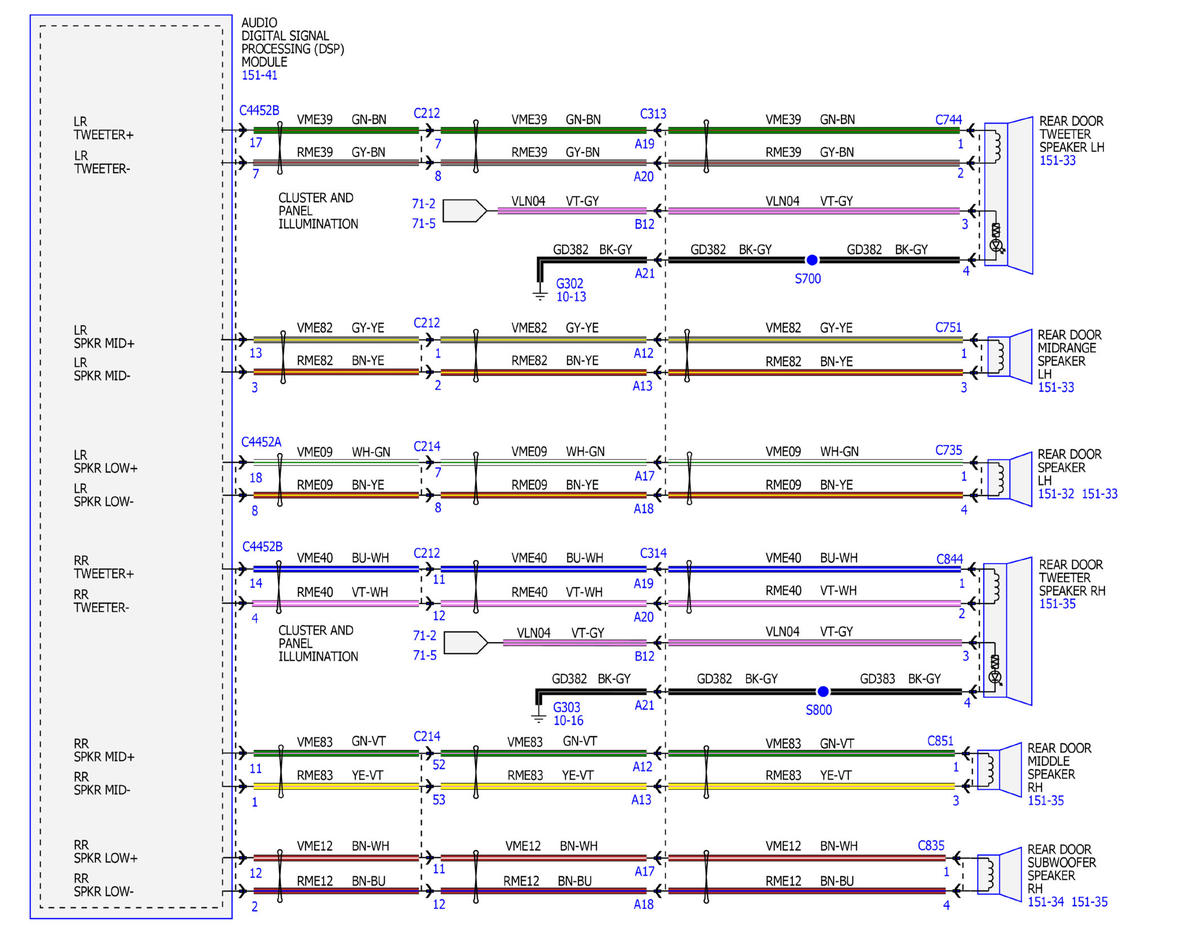

Fig 1: Audio System/Navigation Wiring Diagram - Harman Revel Ultima Audio System (1 Of 18)

Courtesy of FORD MOTOR COMPANY

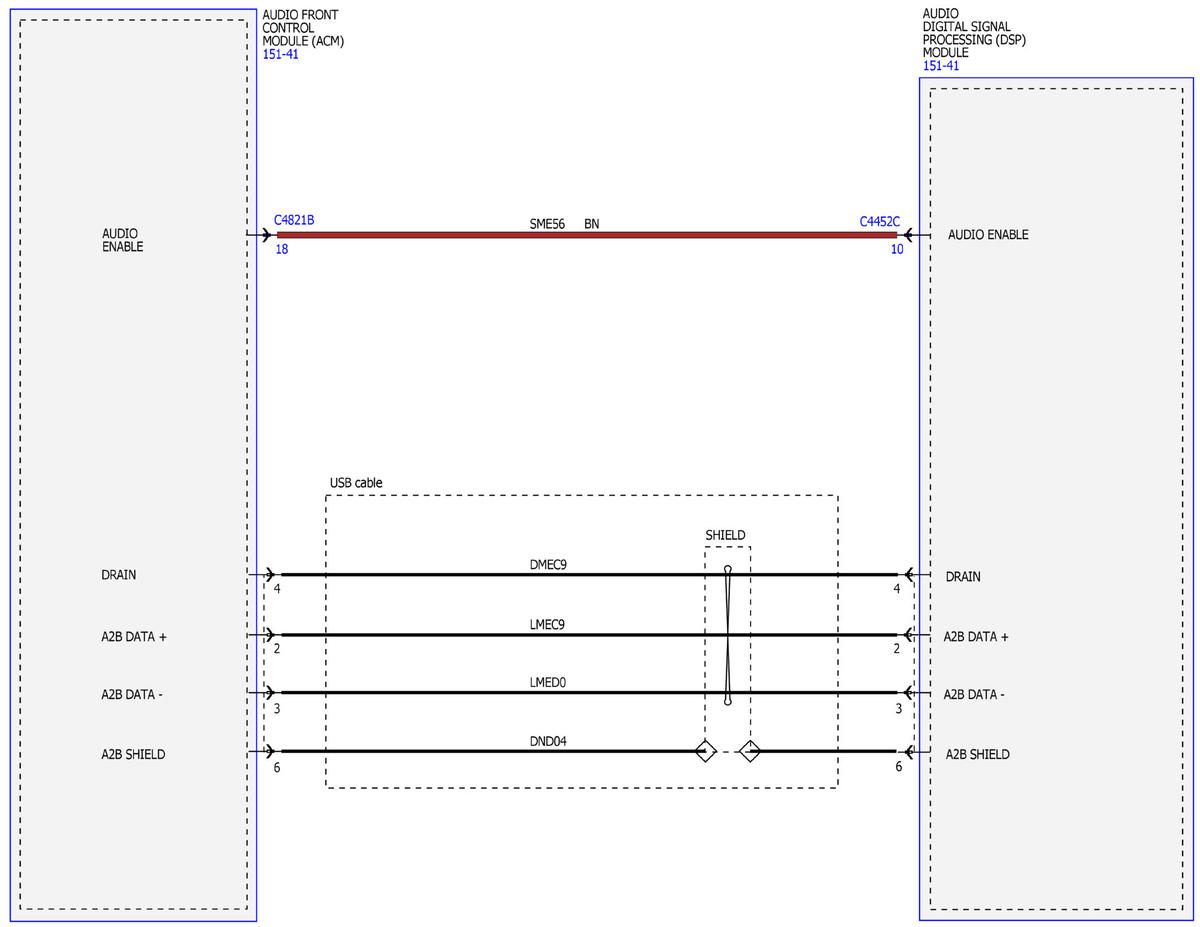

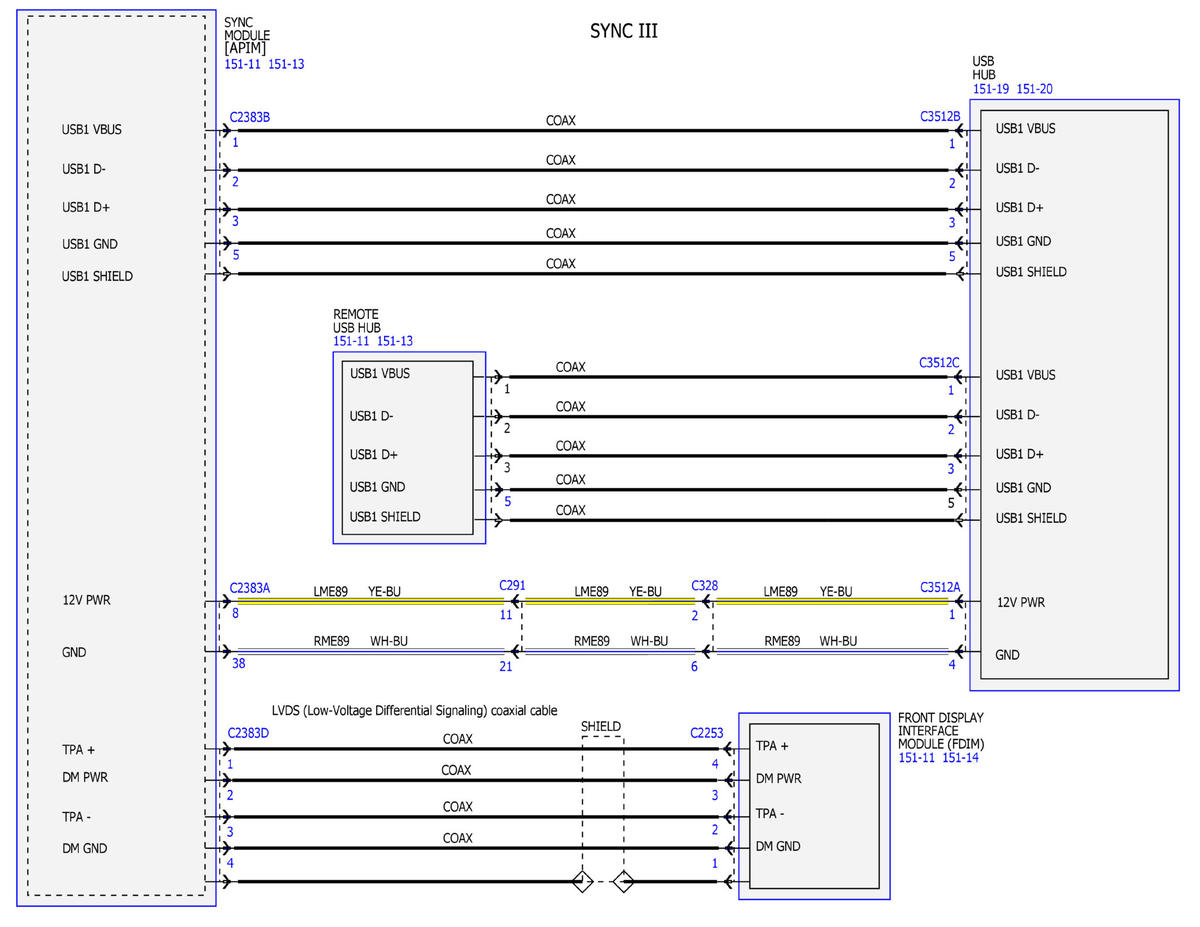

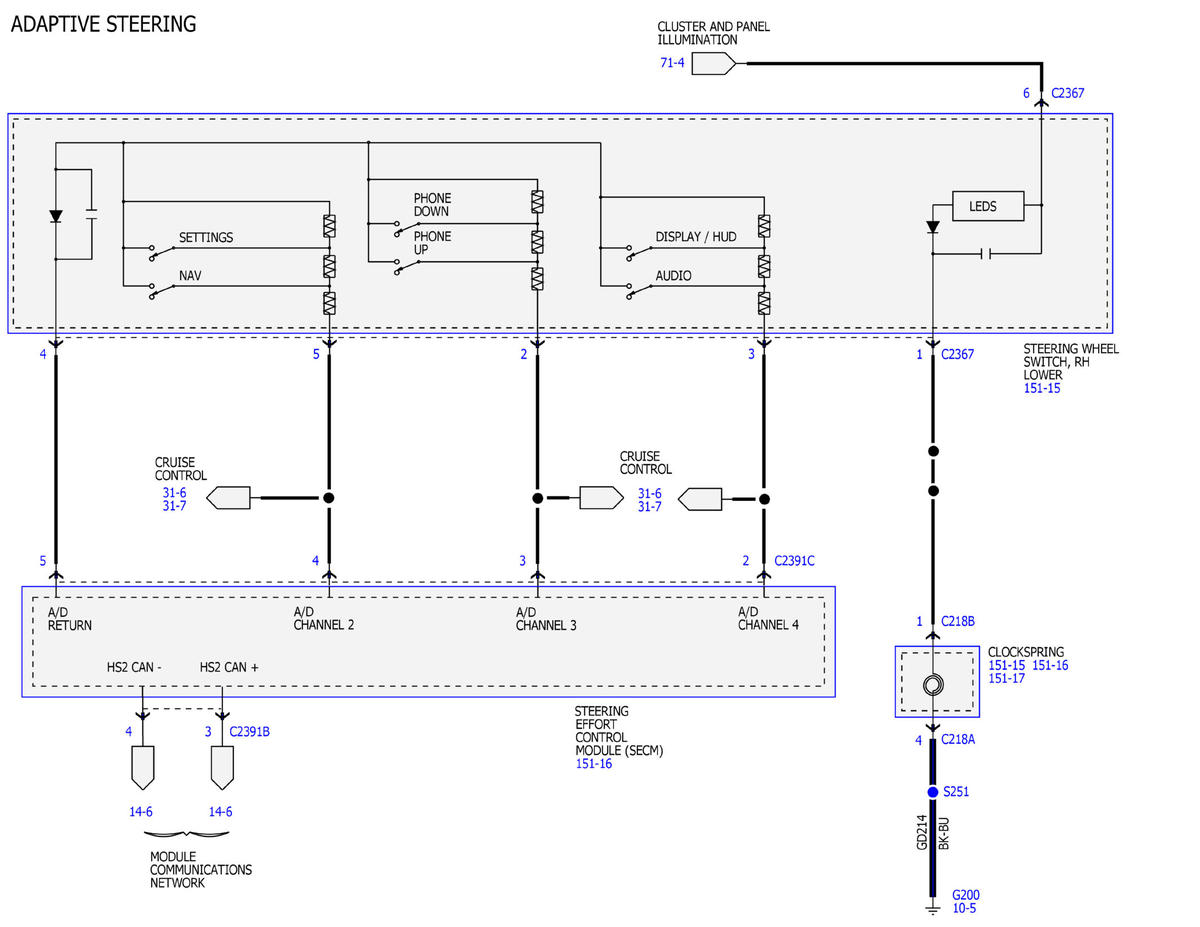

Fig 2: Audio System/Navigation Wiring Diagram - Harman Revel Ultima Audio System (2 Of 18)

Courtesy of FORD MOTOR COMPANY

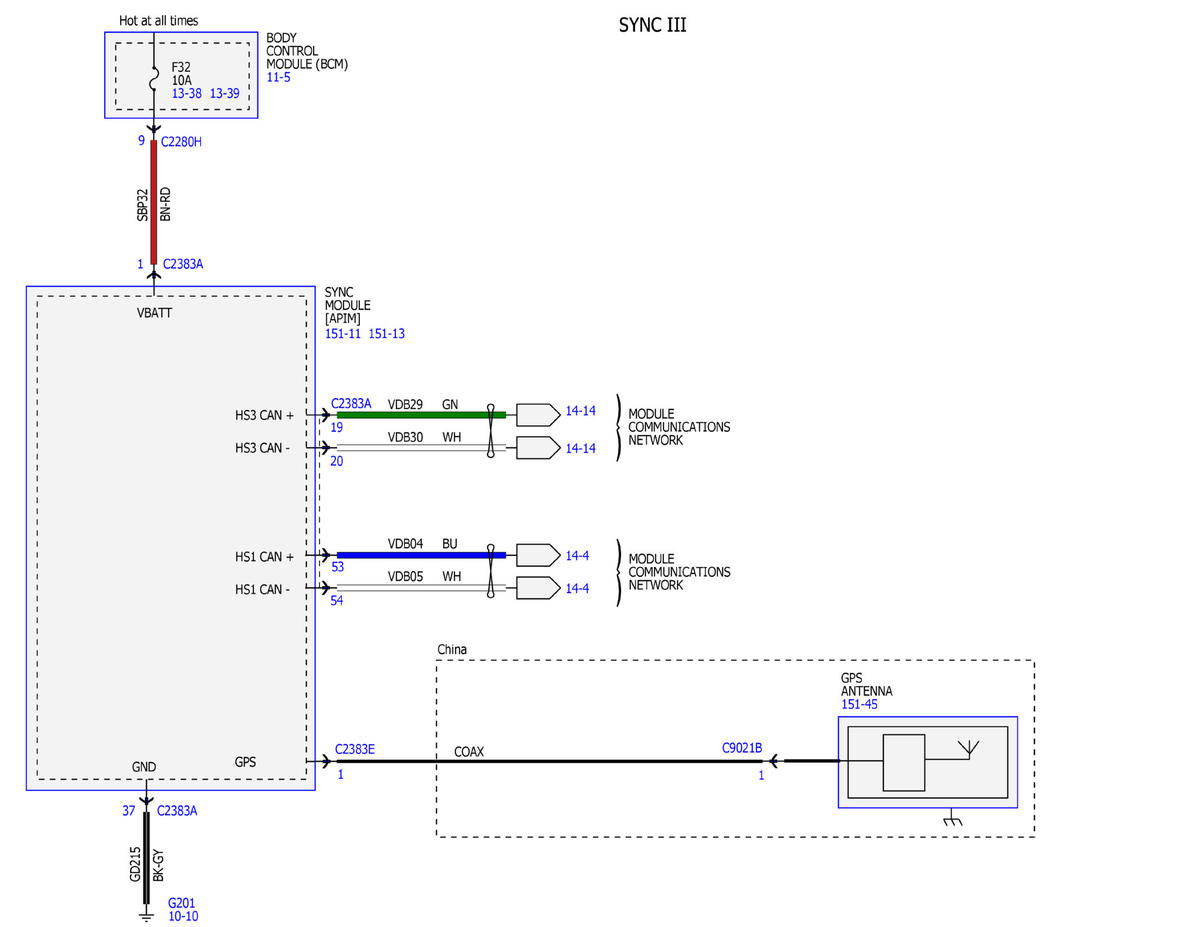

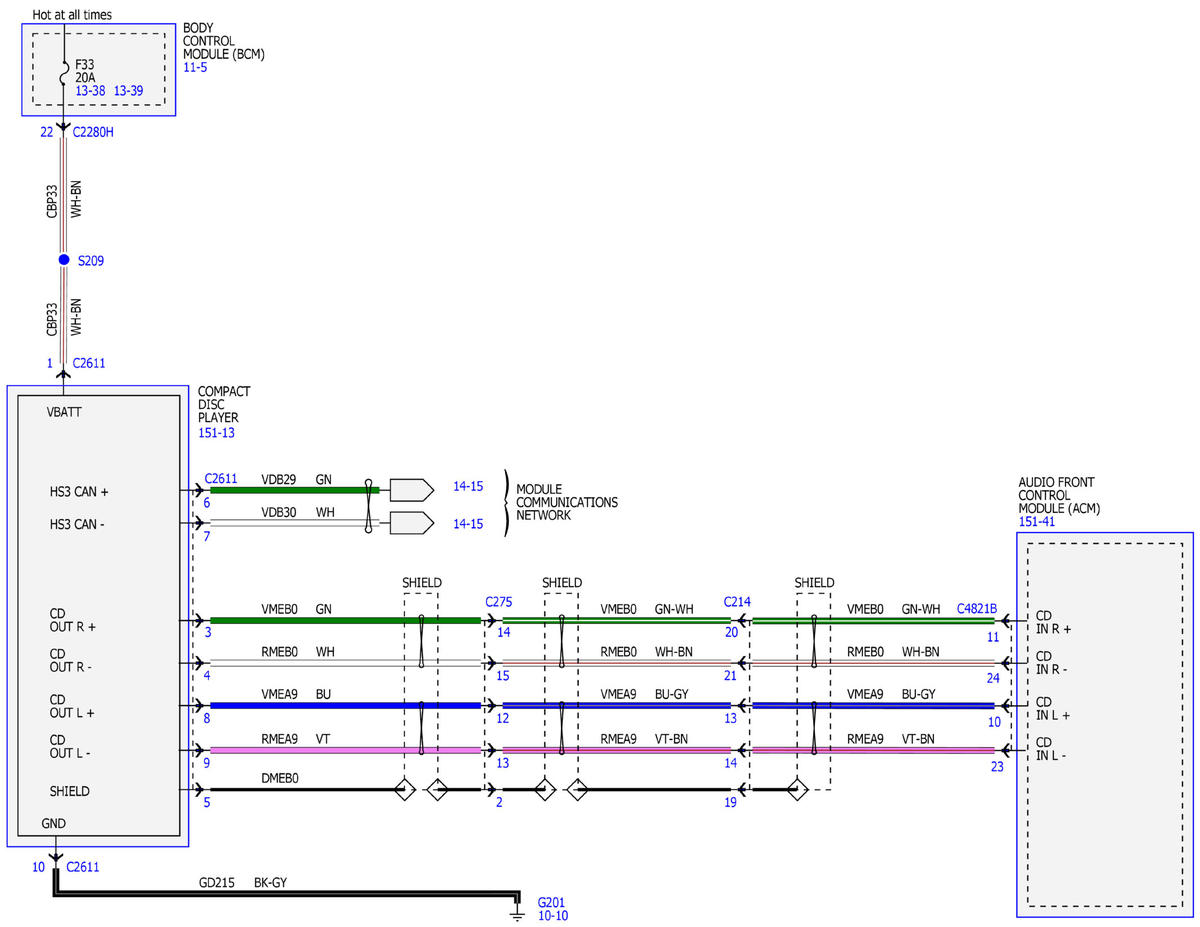

Fig 3: Audio System/Navigation Wiring Diagram - Harman Revel Ultima Audio System (3 Of 18)

Courtesy of FORD MOTOR COMPANY

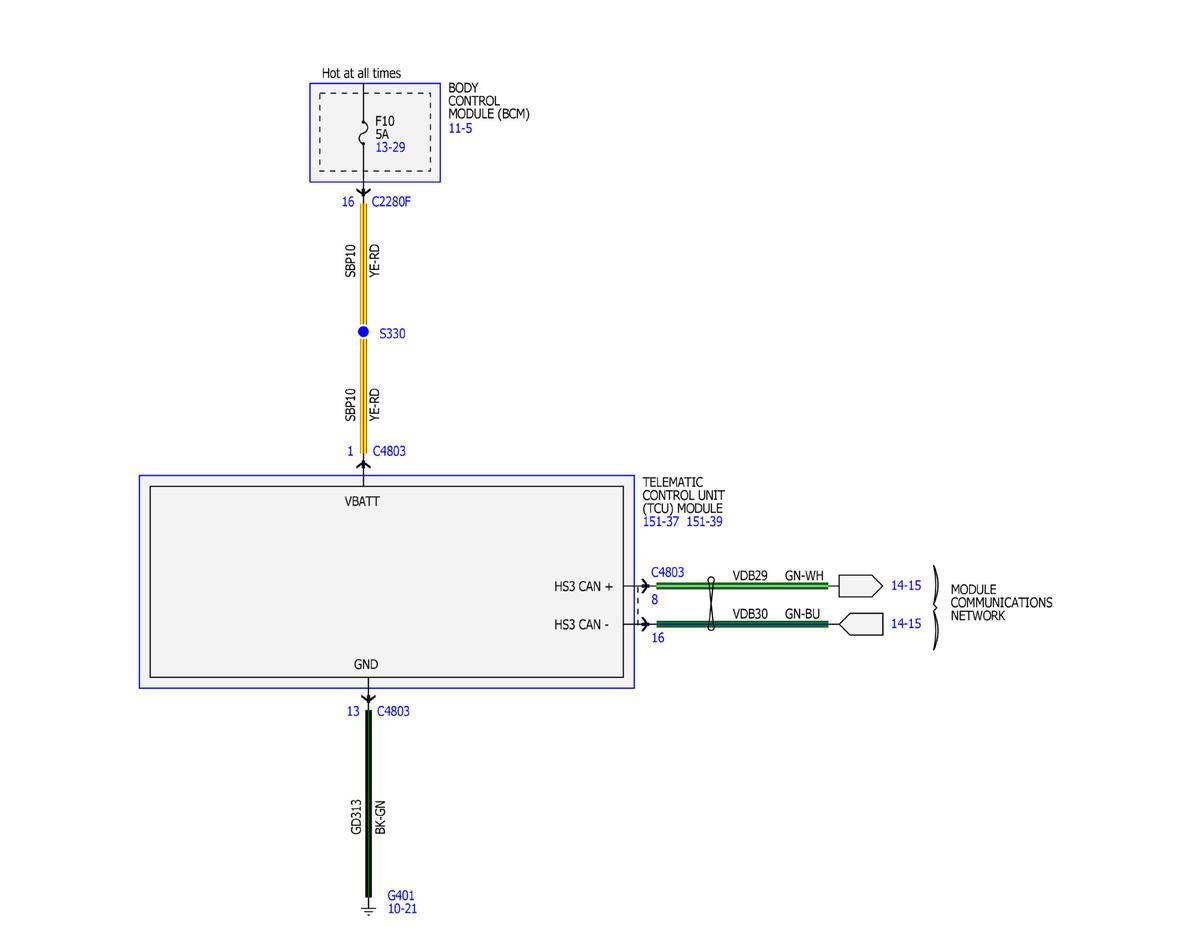

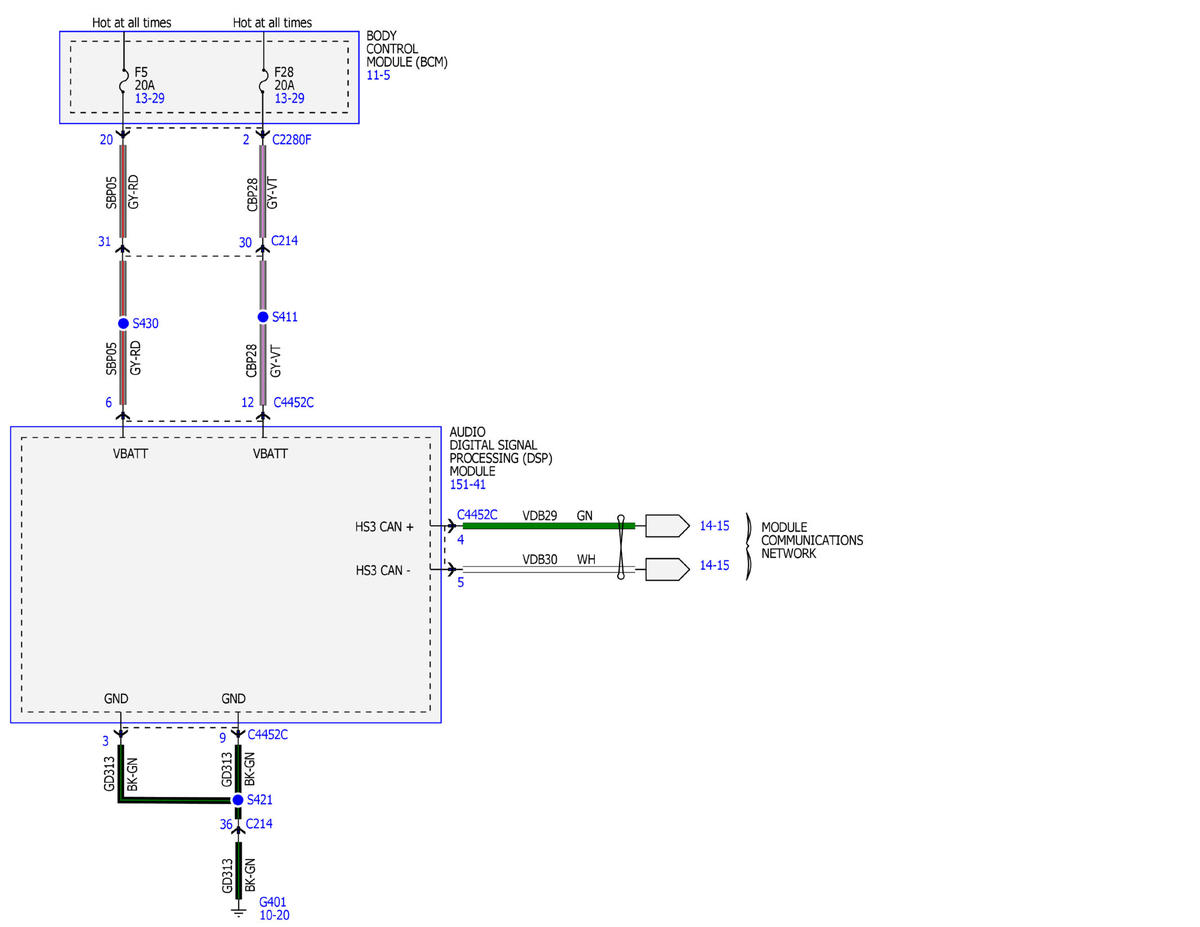

Fig 4: Audio System/Navigation Wiring Diagram - Harman Revel Ultima Audio System (4 Of 18)

Courtesy of FORD MOTOR COMPANY

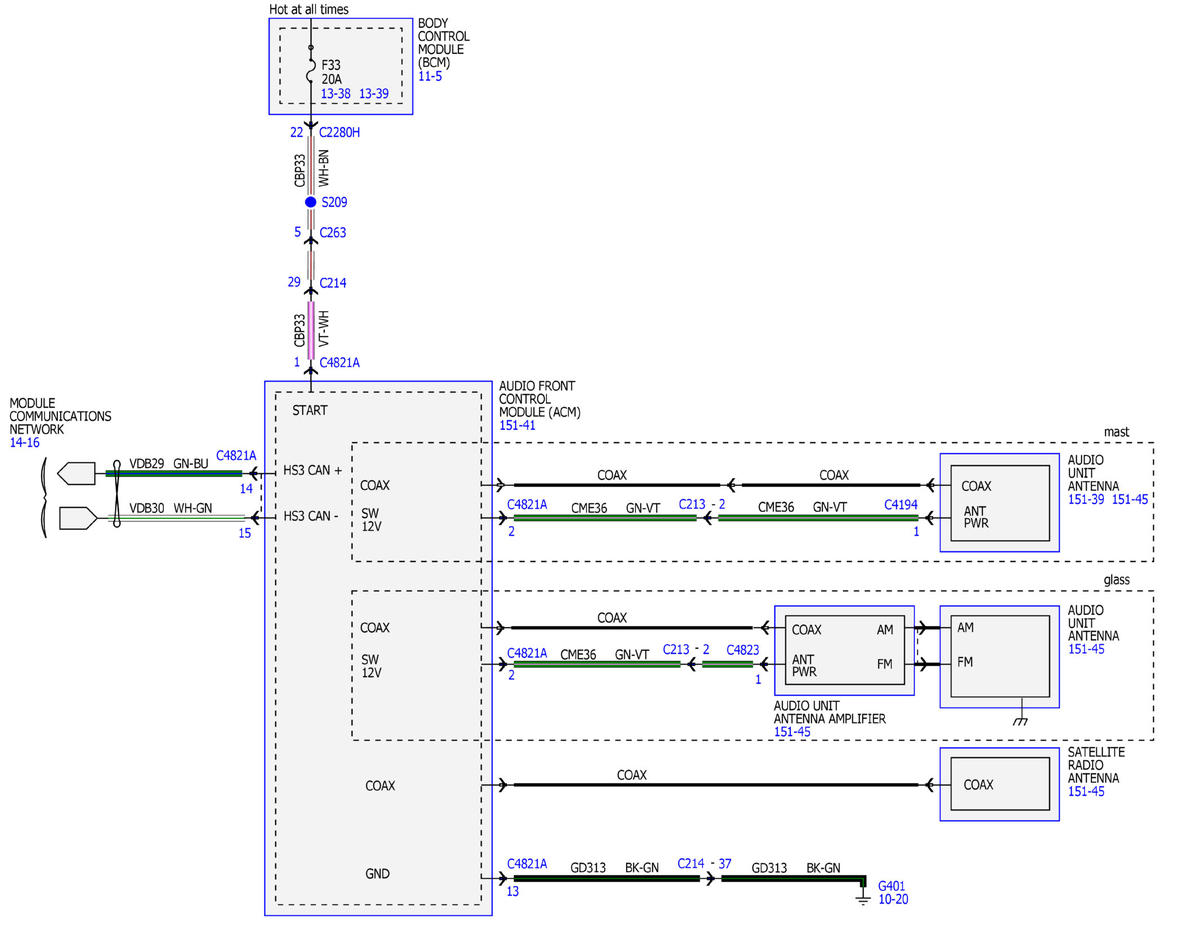

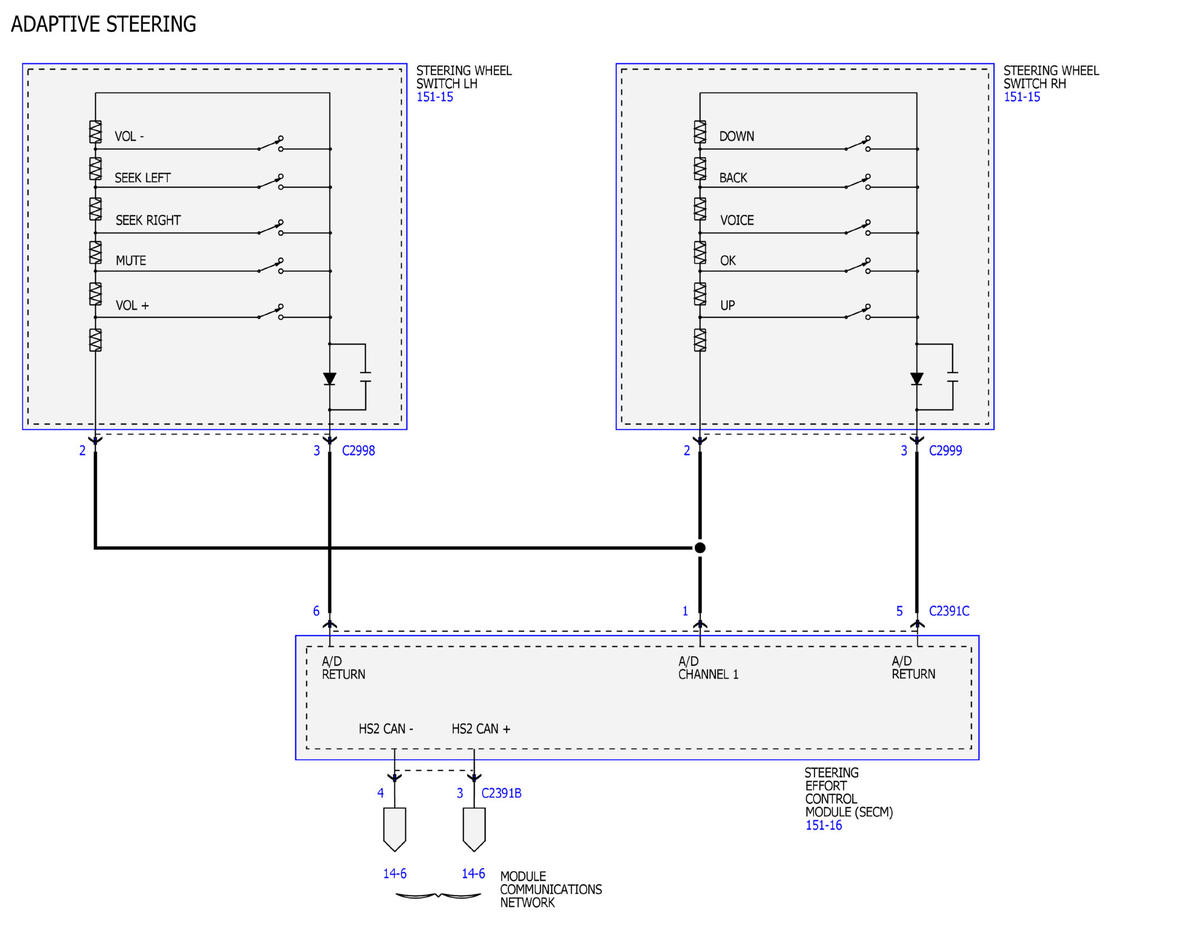

Fig 5: Audio System/Navigation Wiring Diagram - Harman Revel Ultima Audio System (5 Of 18)

Courtesy of FORD MOTOR COMPANY

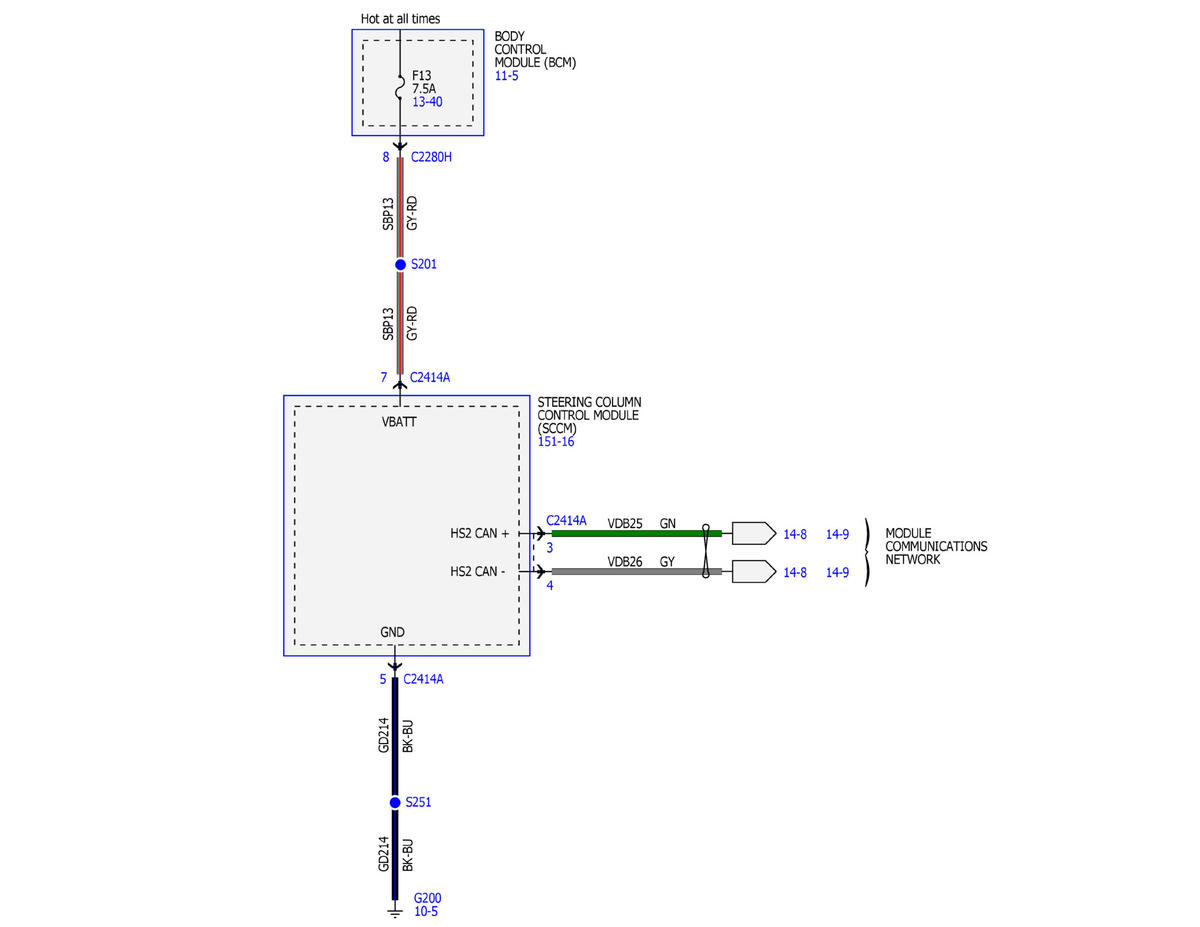

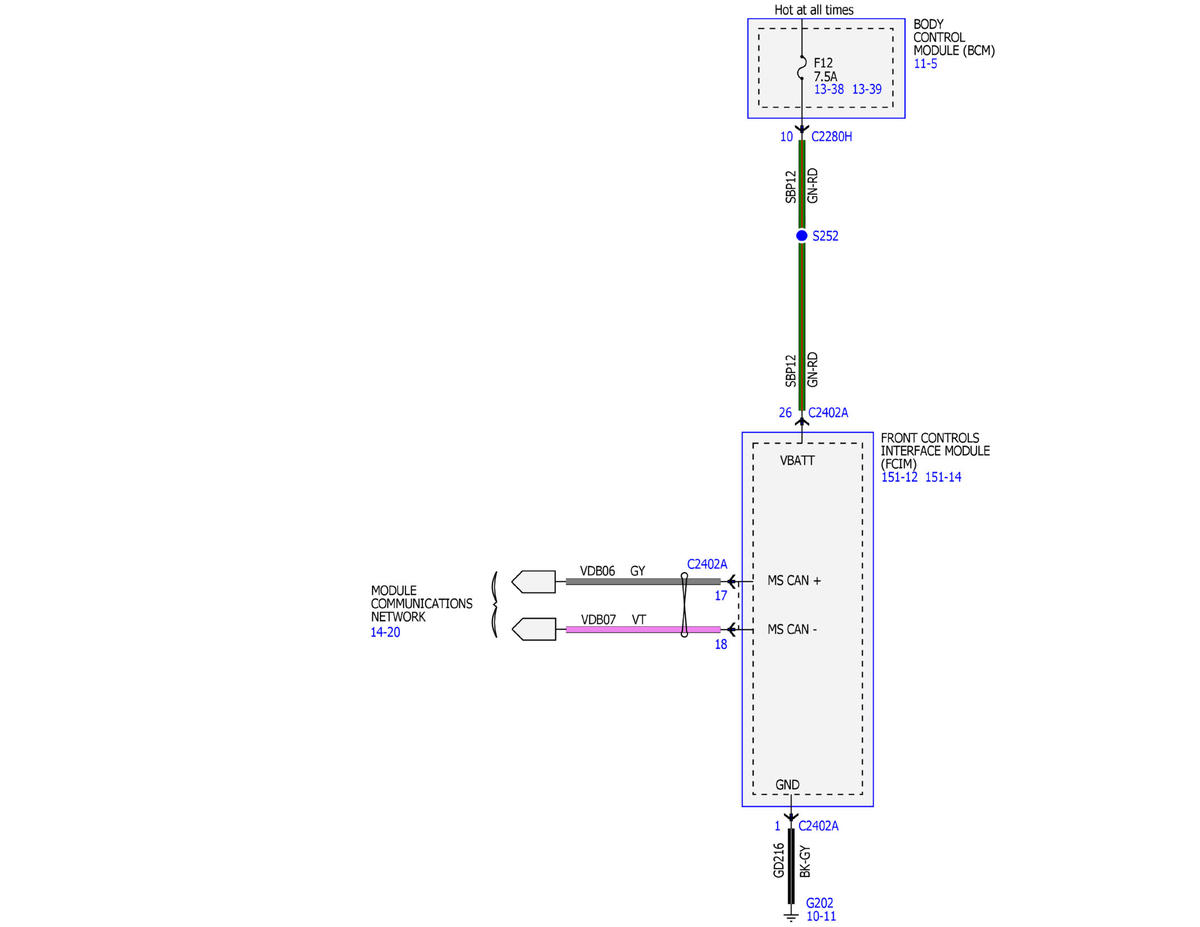

Fig 6: Audio System/Navigation Wiring Diagram - Harman Revel Ultima Audio System (6 Of 18)

Courtesy of FORD MOTOR COMPANY

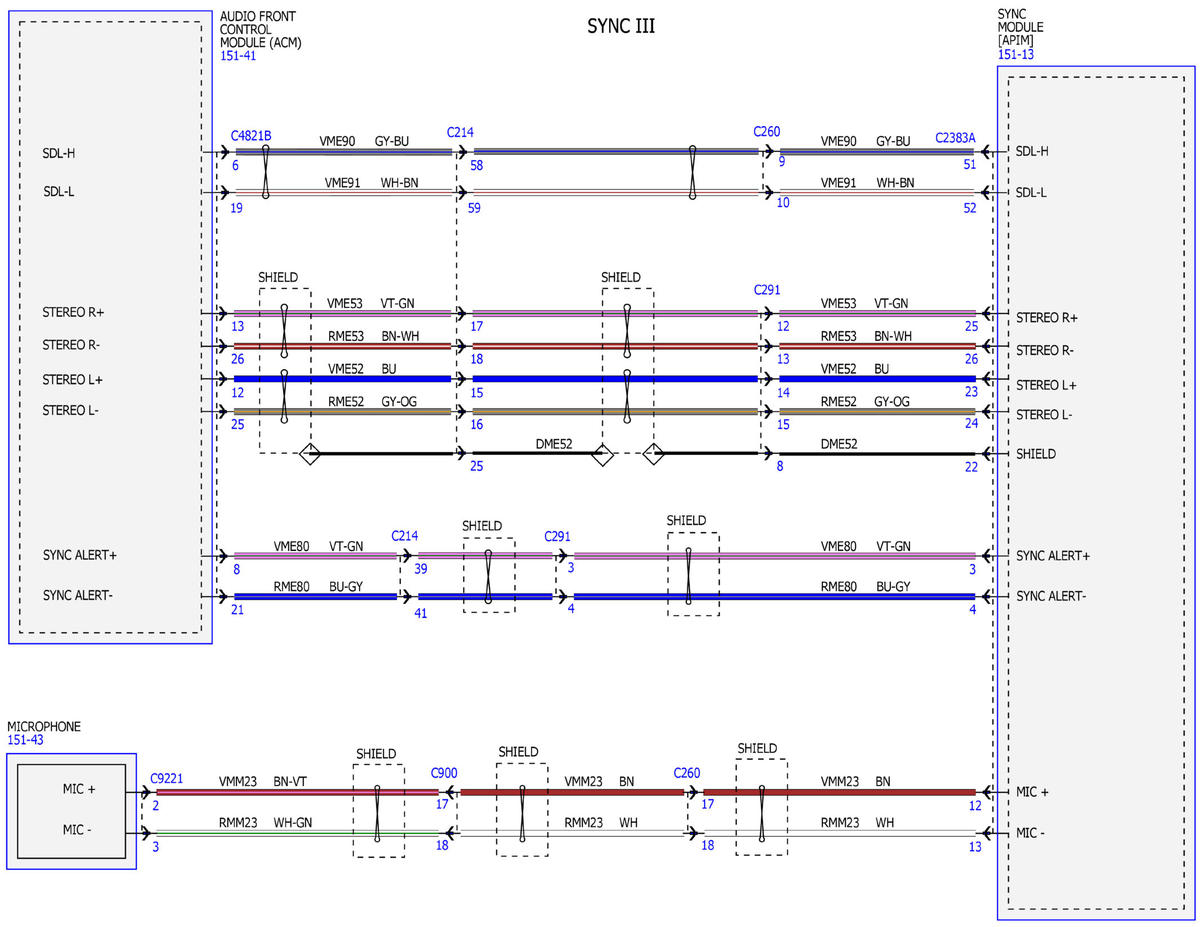

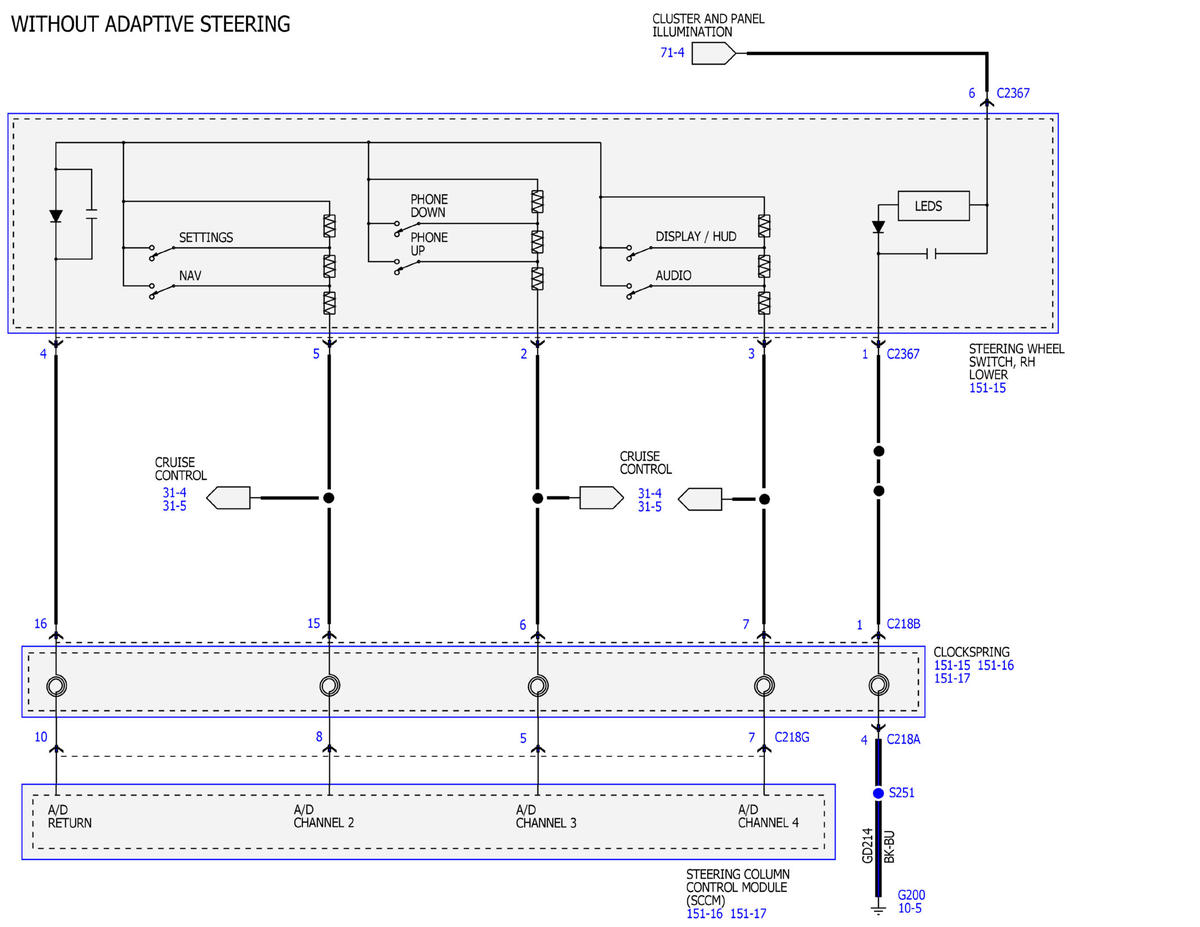

Fig 7: Audio System/Navigation Wiring Diagram - Harman Revel Ultima Audio System (7 Of 18)

Courtesy of FORD MOTOR COMPANY

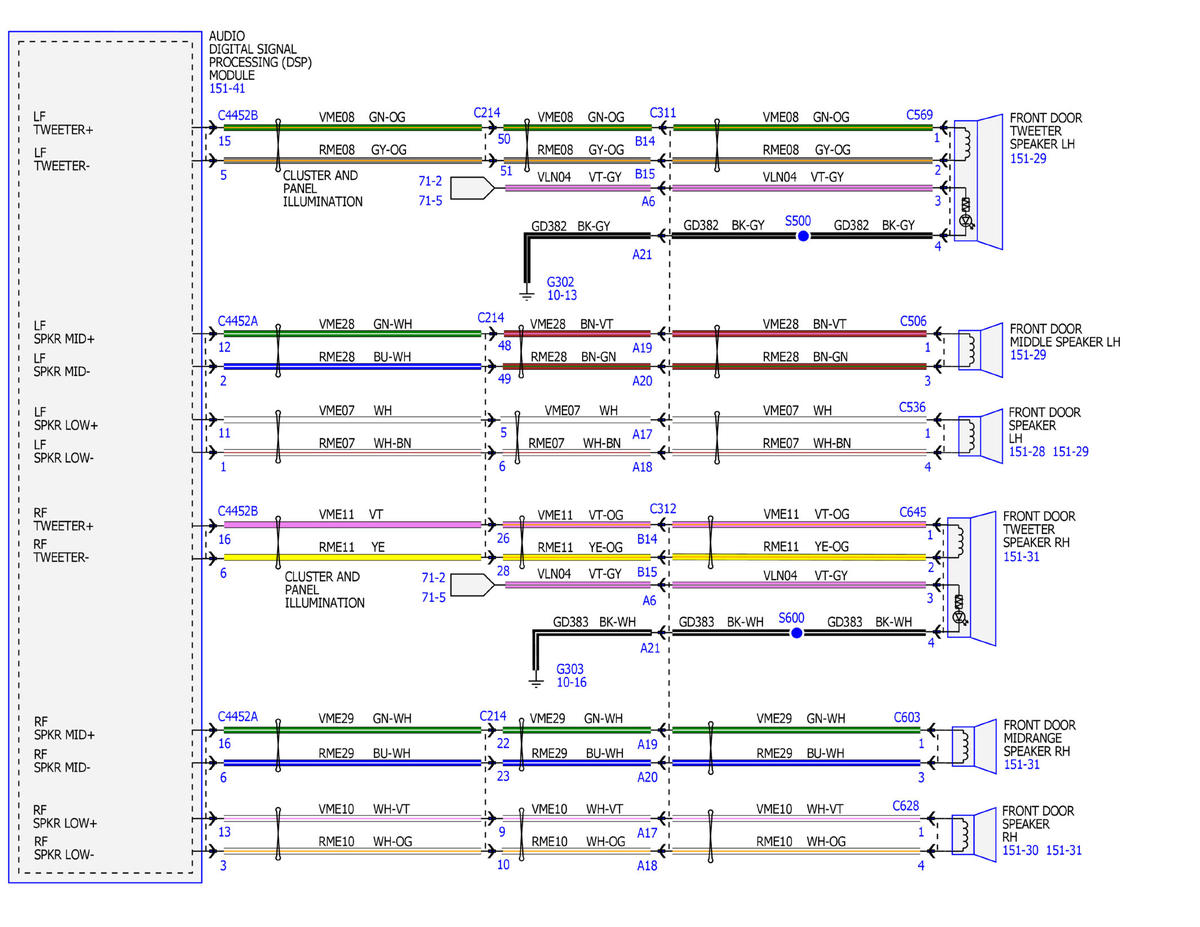

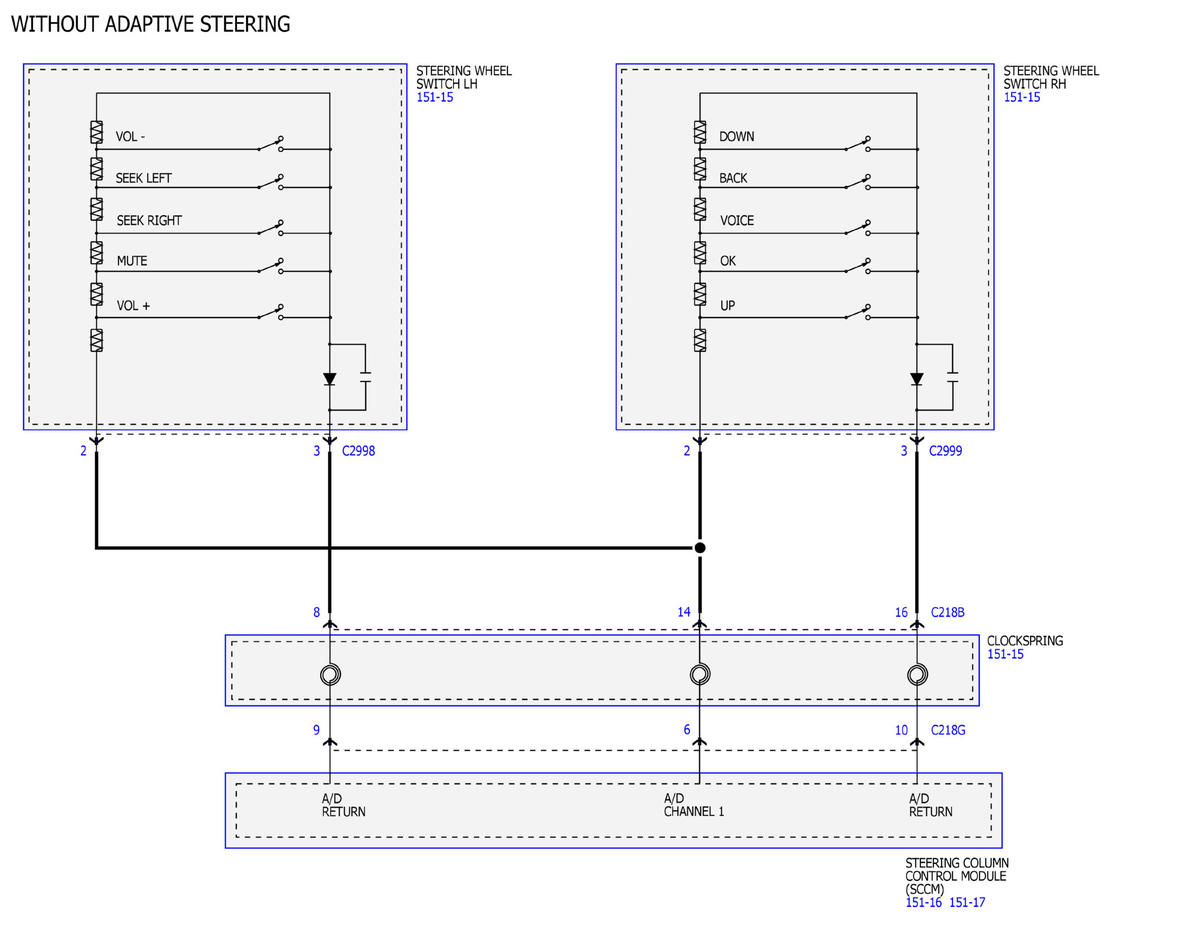

Fig 8: Audio System/Navigation Wiring Diagram - Harman Revel Ultima Audio System (8 Of 18)

Courtesy of FORD MOTOR COMPANY

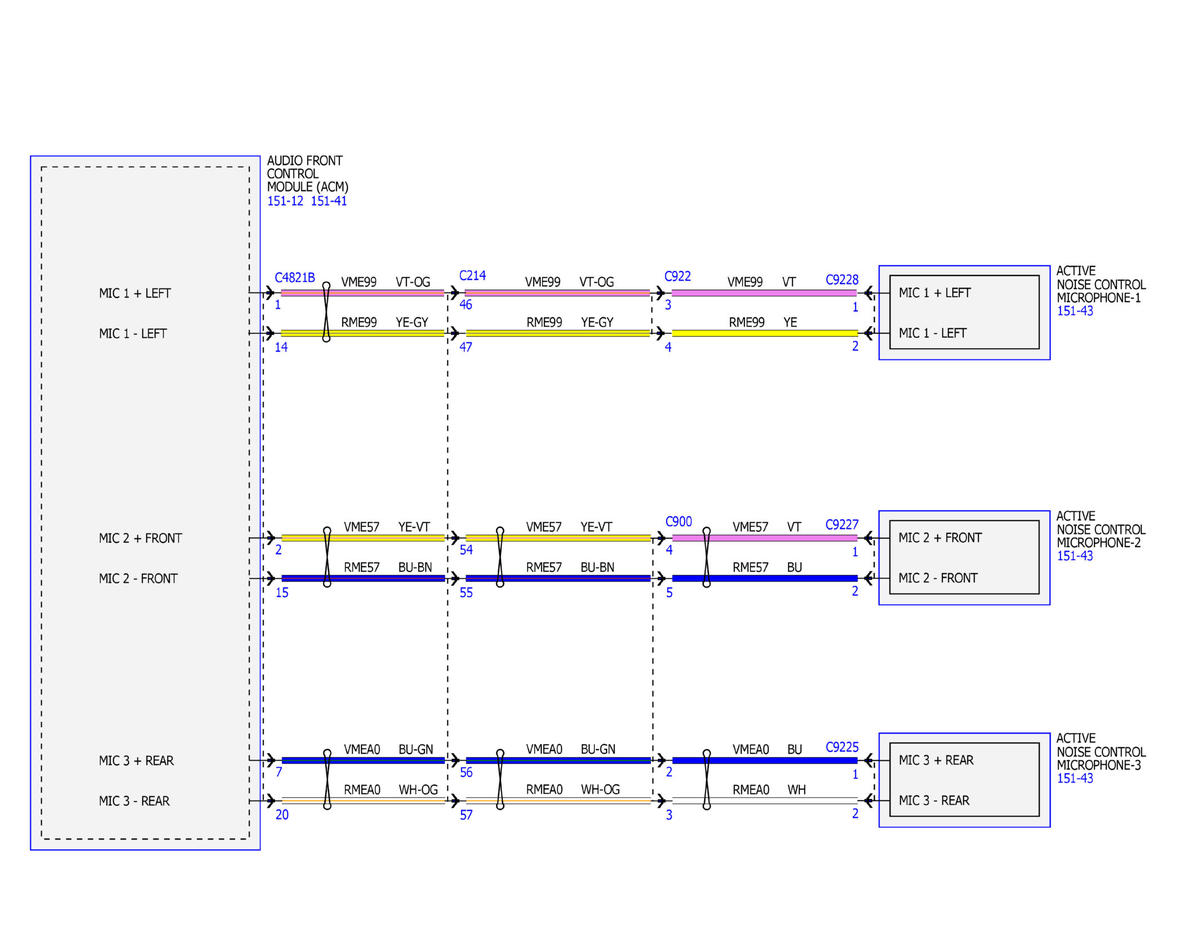

Fig 9: Audio System/Navigation Wiring Diagram - Harman Revel Ultima Audio System (9 Of 18)

Courtesy of FORD MOTOR COMPANY

Fig 10: Audio System/Navigation Wiring Diagram - Harman Revel Ultima Audio System (10 Of 18)

Courtesy of FORD MOTOR COMPANY

Fig 11: Audio System/Navigation Wiring Diagram - Harman Revel Ultima Audio System (11 Of 18)

Courtesy of FORD MOTOR COMPANY

Fig 12: Audio System/Navigation Wiring Diagram - Harman Revel Ultima Audio System (12 Of 18)

Courtesy of FORD MOTOR COMPANY

Fig 13: Audio System/Navigation Wiring Diagram - Harman Revel Ultima Audio System (13 Of 18)

Courtesy of FORD MOTOR COMPANY

Fig 14: Audio System/Navigation Wiring Diagram - Harman Revel Ultima Audio System (14 Of 18)

Courtesy of FORD MOTOR COMPANY

Fig 15: Audio System/Navigation Wiring Diagram - Harman Revel Ultima Audio System (15 Of 18)

Courtesy of FORD MOTOR COMPANY

Fig 16: Audio System/Navigation Wiring Diagram - Harman Revel Ultima Audio System (16 Of 18)

Courtesy of FORD MOTOR COMPANY

Fig 17: Audio System/Navigation Wiring Diagram - Harman Revel Ultima Audio System (17 Of 18)

Courtesy of FORD MOTOR COMPANY

Fig 18: Audio System/Navigation Wiring Diagram - Harman Revel Ultima Audio System (18 Of 18)

Courtesy of FORD MOTOR COMPANY
